LY290V-RRMGS (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0107- )DSL

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 1603 1603 8712 8712125030 8712425050 8712425090 8712425110 8712437090 87245A 87245B 87246A 87246B 87248A 87249A 9011908802 9016840006 9016840006 9046721010 9046721010 9046721010 9046721010 9155180814 9155180814 91621B0816 9613442100 9613442100 9613442100 9613442100
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
99556-30300

LY220,230,240,270,280,290..DSL

*H,L=250

 1
87245B - HOSE, HEATER WATER, INLET B
87245-25450

TRY231,281;LY220,230,240,270,280,290,RZY220,230,TRY220,230..DSL,EFI

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-25680

TRY231,281;LY220,230,240,270,280,290,RZY220,230,TRY220,230..DSL,EFI

 1
87245-25450

LY240,290..06S

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87246B - HOSE, HEATER WATER, OUTLET B
99556-30300

LY220,230,240,270,280,290..DSL

*H,L=220

 1
87248A - PIPE, HEATER WATER INLET, A
87248-25070

LY220,230,240,270,280,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87248-25050

LY220,230,240,270,280,290,RZY231,281

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-25080

LY220,230,240,270,280,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87248-25060

LY220,230,240,270,280,290,RZY231,281

 1
Common parts
87121-25030
87124-25050
87124-25090
87124-25110
87124-37090
90119-08802
90168-40006
90467-21010
91551-80814
91621-B0816
96134-42100
Linked diagrams
1603
8712

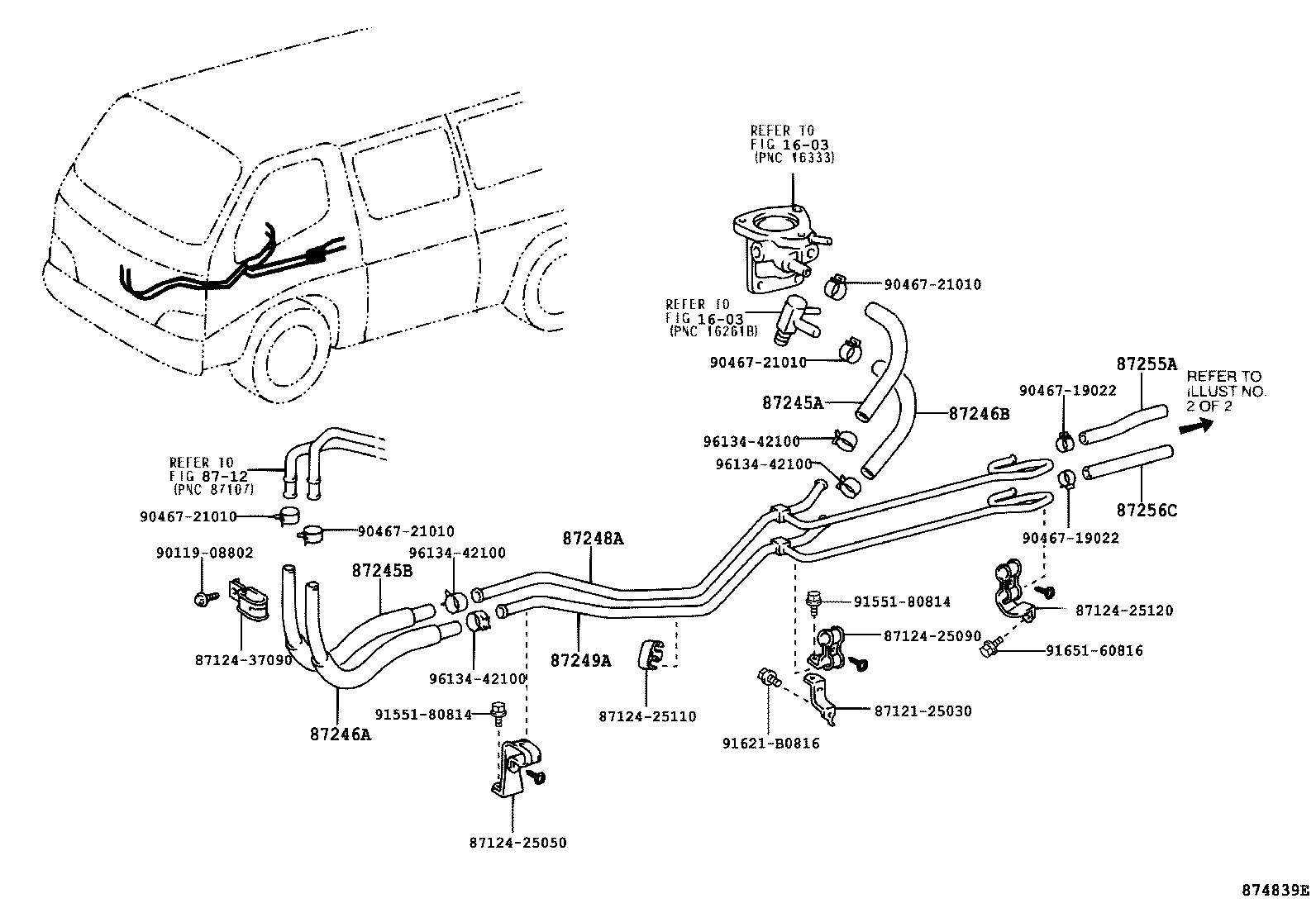

ILLUST NO. 1 OF 2(0107- )LY240,290..06S

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 1603 1603 8712 8712125030 8712425050 8712425090 8712425110 8712425120 8712437090 87245A 87245B 87246A 87246B 87248A 87249A 87255A 87256C 9011908802 9046719022 9046719022 9046721010 9046721010 9046721010 9046721010 9155180814 9155180814 91621B0816 9165160816 9613442100 9613442100 9613442100 9613442100
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
99556-30300

LY220,230,240,270,280,290..DSL

*H,L=250

 1
87245B - HOSE, HEATER WATER, INLET B
87245-25450

TRY231,281;LY220,230,240,270,280,290,RZY220,230,TRY220,230..DSL,EFI

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-25680

TRY231,281;LY220,230,240,270,280,290,RZY220,230,TRY220,230..DSL,EFI

 1
87245-25450

LY240,290..06S

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87246B - HOSE, HEATER WATER, OUTLET B
99556-30300

LY220,230,240,270,280,290..DSL

*H,L=220

 1
87248A - PIPE, HEATER WATER INLET, A
87248-25070

LY220,230,240,270,280,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87248-25050

LY220,230,240,270,280,290,RZY231,281

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-25080

LY220,230,240,270,280,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87248-25060

LY220,230,240,270,280,290,RZY231,281

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99556-20300

LY240,290..06S

*H,L=270

 1
87256C - HOSE, REAR HEATER WATER OUTLET, C
99556-20300

LY240,290..06S

*H,L=240

 1
Common parts
87121-25030
87124-25050
87124-25090
87124-25110
87124-25120
87124-37090
90119-08802
90467-19022
90467-21010
91551-80814
91621-B0816
91651-60816
96134-42100
Linked diagrams
1603
8712

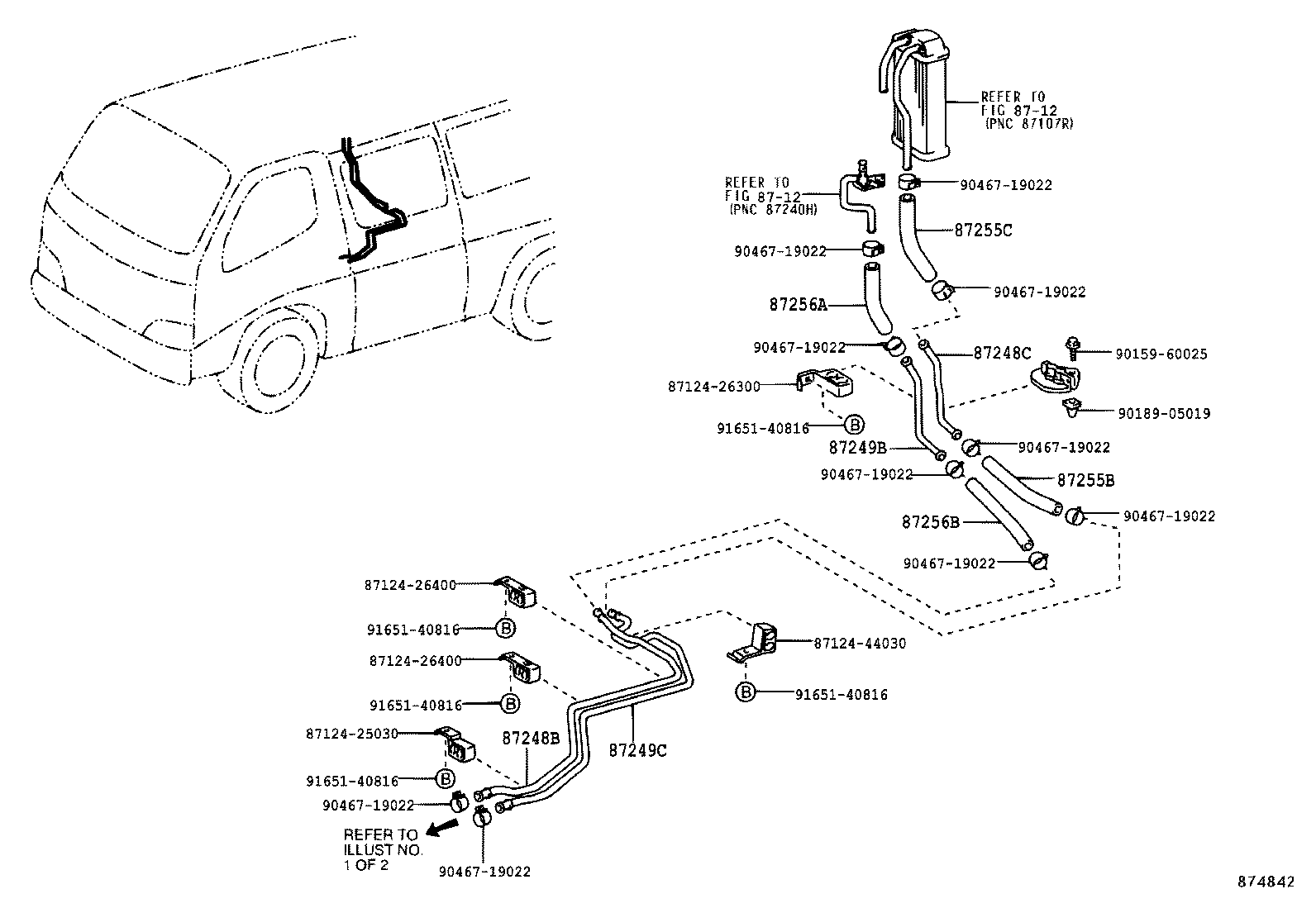

ILLUST NO. 2 OF 2(0107- )LY240,290..06S

Click highlighted areas on diagram

ﾘﾔ

diagram 8712 8712 8712425030 8712426300 8712426400 8712426400 8712444030 87248B 87248C 87249B 87249C 87255B 87255C 87256A 87256B 9015960025 9018905019 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9165140816 9165140816 9165140816 9165140816 9165140816
Part # Description Qty Price
87248B - PIPE, HEATER WATER INLET, B
87248-25020

KDY24#,290,LY240,290..06S

 1
87248C - PIPE, HEATER WATER INLET, C
87248-25040

KDY24#,290,LY240,290..06S

 1
87249B - PIPE, HEATER WATER OUTLET, B
87248-25030

KDY24#,290,LY240,290..06S

 1
87249C - PIPE, HEATER WATER OUTLET, C
87248-25010

KDY24#,290,LY240,290..06S

 1
87255B - HOSE, REAR HEATER WATER INLET, B
99556-20300

KDY24#,290,LY240,290..06S

*H,L=240

 1
87255C - HOSE, REAR HEATER WATER INLET, C
99556-20300

KDY24#,290,LY240,290..06S

*H,L=210

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99556-20200

KDY24#,290,LY240,290..06S

*H,L=140

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
99556-20300

KDY24#,290,LY240,290..06S

*H,L=280

 1
Common parts
87124-25030
87124-26300
87124-26400
87124-44030
90159-60025
90189-05019
90467-19022
91651-40816
Linked diagrams
8712
