Toyota Dyna/toyoace LY290 REAR LICENSE PLATE LAMP

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
LY290V-RRMGS (2001)
8113 - REAR LICENSE PLATE LAMP

LY290V-RRMGS (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004

Engine 5L

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

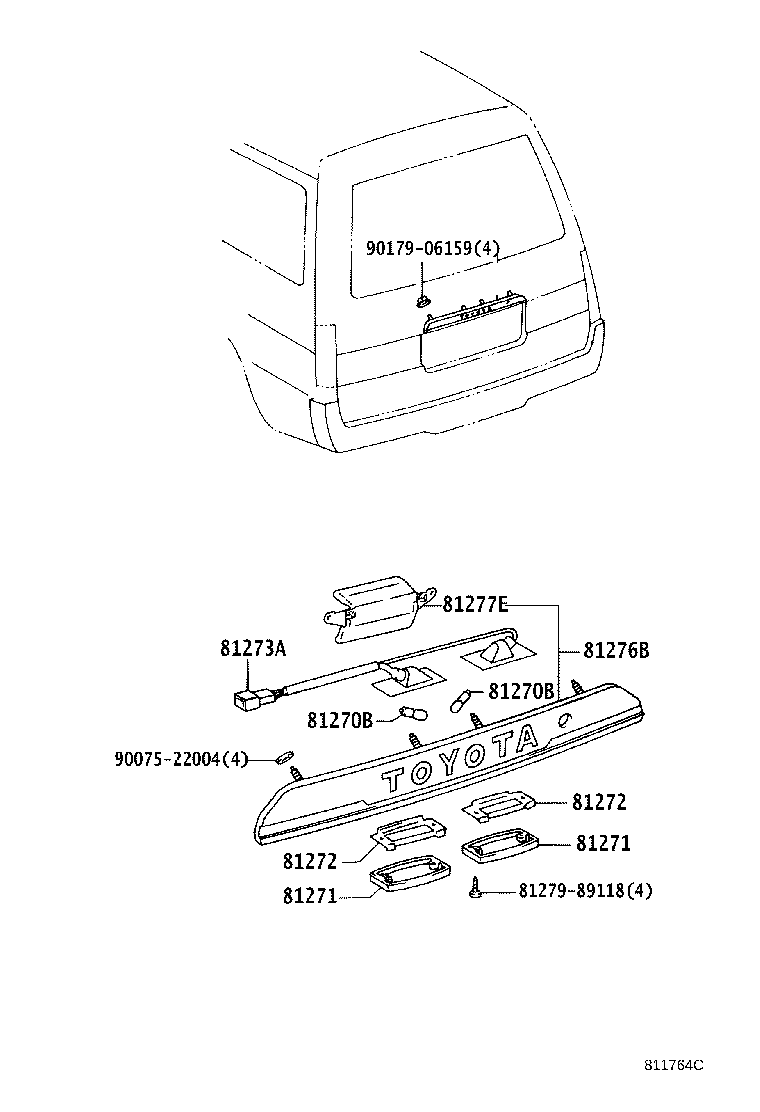

(0107- )KDY24#,290,LY240,290

Click highlighted areas on diagram

Part #	Description	Period	Qty
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 12V 5W	07/2001 - 12/2999	2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 12V 5W	07/2001 - 12/2999	2
81271 - LENS, LICENSE PLATE LAMP
81271-95709	KDY24#,290,LY240,290 ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	07/2001 - 12/2999	2
81271-95J07	KDY24#,290,LY240,290	07/2001 - 03/2009	2
81271 - LENS, LICENSE PLATE LAMP
81271-95709	KDY24#,290,LY240,290 ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	07/2001 - 12/2999	2
81271-95J07	KDY24#,290,LY240,290	07/2001 - 03/2009	2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-95709	KDY24#,290,LY240,290 ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	07/2001 - 12/2999	2
81272-95J07	KDY24#,290,LY240,290	07/2001 - 03/2009	2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-95709	KDY24#,290,LY240,290 ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	07/2001 - 12/2999	2
81272-95J07	KDY24#,290,LY240,290	07/2001 - 03/2009	2
81273A - BODY, LICENSE PLATE LAMP
81273-95J07	KDY240,290	07/2001 - 08/2007	1
81273-95J07	LY240,290	07/2001 - 08/2004	1
81276B - COVER, LICENSE PLATE LAMP
81276-26060	KDY24#,290,LY240,290	07/2001 - 03/2009	1
81276-37090	KDY24#,290,LY240,290 ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	07/2001 - 12/2999	1
81277E - HANDLE, LICENSE PLATE LAMP
81278-95J07	KDY240,290	07/2001 - 08/2007	1
81278-95J07	LY240,290	07/2001 - 08/2004	1
Common parts
81279-89118
90075-22004
90179-06159

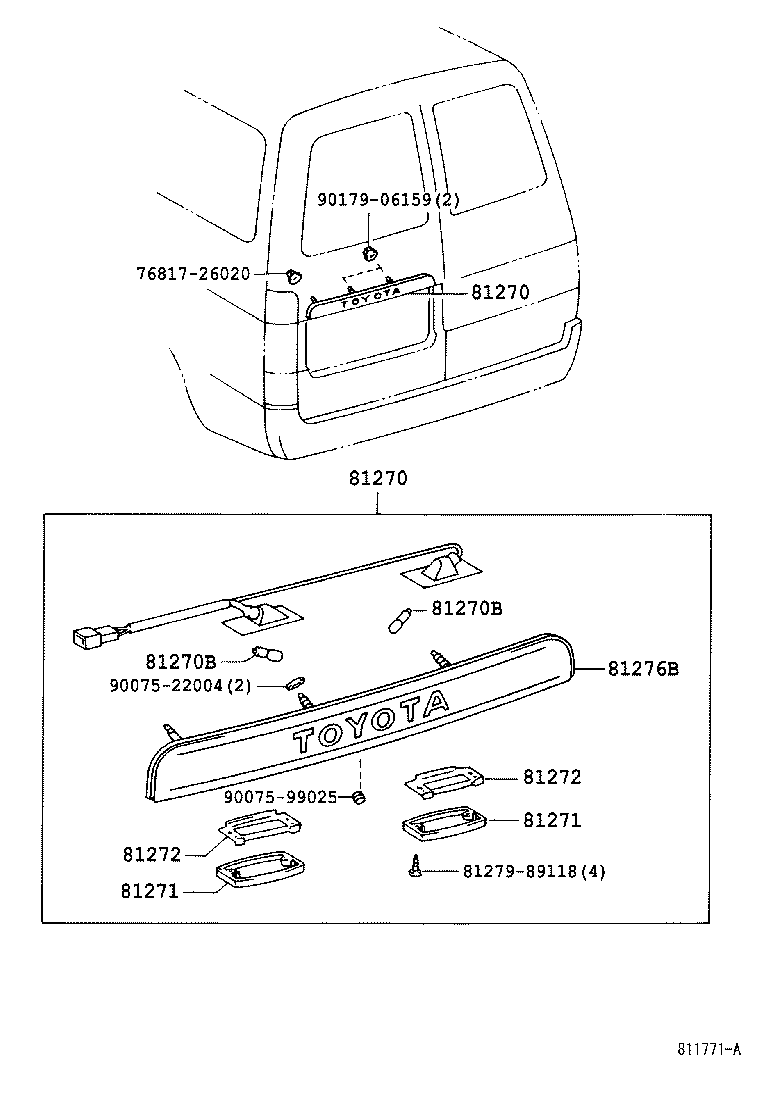

(0107- )KDY24#,290,LY240,290

Click highlighted areas on diagram

ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)

Part #	Description	Period	Qty
81270 - LAMP ASSY, LICENSE PLATE
81270-25060	KDY24#,290,LY240,290 ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	07/2001 - 08/2019	1
81270-26060B0	KDY24#,290,LY240,290 BLACK,058 ,766 ,8P0	07/2001 - 03/2009	1
81270 - LAMP ASSY, LICENSE PLATE
81270-25060	KDY24#,290,LY240,290 ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	07/2001 - 08/2019	1
81270-26060B0	KDY24#,290,LY240,290 BLACK,058 ,766 ,8P0	07/2001 - 03/2009	1
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 12V 5W	07/2001 - 12/2999	2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 12V 5W	07/2001 - 12/2999	2
81271 - LENS, LICENSE PLATE LAMP
81271-95709	KDY24#,290,LY240,290 ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	07/2001 - 12/2999	2
81271-95J07	KDY24#,290,LY240,290	07/2001 - 03/2009	2
81271 - LENS, LICENSE PLATE LAMP
81271-95709	KDY24#,290,LY240,290 ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	07/2001 - 12/2999	2
81271-95J07	KDY24#,290,LY240,290	07/2001 - 03/2009	2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-95709	KDY24#,290,LY240,290 ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	07/2001 - 12/2999	2
81272-95J07	KDY24#,290,LY240,290	07/2001 - 03/2009	2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-95709	KDY24#,290,LY240,290 ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	07/2001 - 12/2999	2
81272-95J07	KDY24#,290,LY240,290	07/2001 - 03/2009	2
81276B - COVER, LICENSE PLATE LAMP
81276-26060	KDY24#,290,LY240,290	07/2001 - 03/2009	1
81276-37090	KDY24#,290,LY240,290 ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	07/2001 - 12/2999	1
Common parts
76817-26020
81279-89118
90075-22004
90075-99025
90179-06159

LY290V-RRMGS (2001)

(0107- )KDY24#,290,LY240,290

(0107- )KDY24#,290,LY240,290
