LY280-TQPGS3 (2001)
Toyota Dyna/Toyoace
ILLUST NO. 1 OF 3(0107- )WT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-25040 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..WT |
2 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16122 |
KDY221,231,LY220,230,280,RZY220,23#,281,TRY220,23#,281..T4 長さ=215,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
4 | ||
| 90117-16074 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..T4,TW4 長さ=205 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16122 |
KDY221,231,LY220,230,280,RZY220,23#,281,TRY220,23#,281..T4 長さ=215,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
4 | ||
| 90117-16074 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..T4,TW4 長さ=205 |
4 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-2E300 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..(T4,TW4)..(125T,15T) 4枚ﾘｰﾌ,MARK=R-2E300:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=46 |
1 | ||
| 48210-2E320 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..T4..15T 4枚ﾘｰﾌ,ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=R-2E320:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=52 |
1 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18023 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..WT |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18023 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..WT |
4 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-2E300 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..(T4,TW4)..(125T,15T) 4枚ﾘｰﾌ,MARK=R-2E300:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=46 |
1 | ||
| 48210-2E320 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..T4..15T 4枚ﾘｰﾌ,ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=R-2E320:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=52 |
1 | ||
| 48302 - SPRING SUB-ASSY, HOLLOW | ||||
| 48302-25110 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..T4,TW4 |
2 | ||
| 48303 - SEAT SUB-ASSY, HOLLOW SPRING | ||||
| 48303-25100 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN ｱﾘ(ﾘﾔ ｽﾀﾋﾞﾗｲｻﾞ),右側 |
1 | ||
| 48303-25110 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN ｱﾘ(ﾘﾔ ｽﾀﾋﾞﾗｲｻﾞ),左側 |
1 | ||
| 48303-25090 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
2 | ||
| 48303 - SEAT SUB-ASSY, HOLLOW SPRING | ||||
| 48303-25100 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN ｱﾘ(ﾘﾔ ｽﾀﾋﾞﾗｲｻﾞ),右側 |
1 | ||
| 48303-25110 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN ｱﾘ(ﾘﾔ ｽﾀﾋﾞﾗｲｻﾞ),左側 |
1 | ||
| 48303-25090 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
2 | ||
| 48473 - SEAT, REAR SPRING U BOLT | ||||
| 48046-25110 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-29755 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN ﾏｰｸ 48531−25240 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16010 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..WT |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16010 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..WT |
4 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..WT |
4 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..WT |
4 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-29755 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN ﾏｰｸ 48531−25240 |
1 | ||
| 48805 - BAR SUB-ASSY, REAR STABILIZER | ||||
| 48805-25010 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..WT |
1 | ||
| 48805A - BUSH(FOR REAR STABILIZER BAR) | ||||
| 90385-13008 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..WT |
2 | ||
| 48815R - BUSH, STABILIZER(FOR REAR) | ||||
| 48815-30040 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..WT |
2 | ||
| 48817T - COLLAR(FOR STABILIZER REAR BAR) | ||||
| 90560-10044 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..WT |
2 | ||
| 48823R - COVER, STABILIZER LINK(FOR REAR) | ||||
| 48823-36040 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..WT |
2 | ||
| 48824R - BRACKET, STABILIZER(FOR REAR) | ||||
| 48824-25030 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..WT |
2 | ||
| 48830B - BUSH(FOR REAR STABILIZER LINK) | ||||
| 90385-13008 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..WT |
2 | ||
| 48830C - SPACER(FOR REAR STABILIZER LINK) | ||||
| 90560-10044 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..WT |
2 | ||
| 48830D - LINK ASSY, REAR STABILIZER, RH | ||||
| 48830-25010 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..WT |
1 | ||
| 48840A - LINK ASSY, REAR STABILIZER, LH | ||||
| 48830-25010 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..WT |
1 | ||
| Common parts | ||||
| 90105-16081 | ||||
| 90119-10355 | ||||
| 90119-12365 | ||||
| 90170-14026 | ||||
| 90170-16016 | ||||
| 90179-14023 | ||||
| 90179-16030 | ||||
| 90201-16035 | ||||
| 91641-K0822 | ||||
| 91642-K1050 | ||||
| 94150-11001 | ||||
| 94621-11400 | ||||

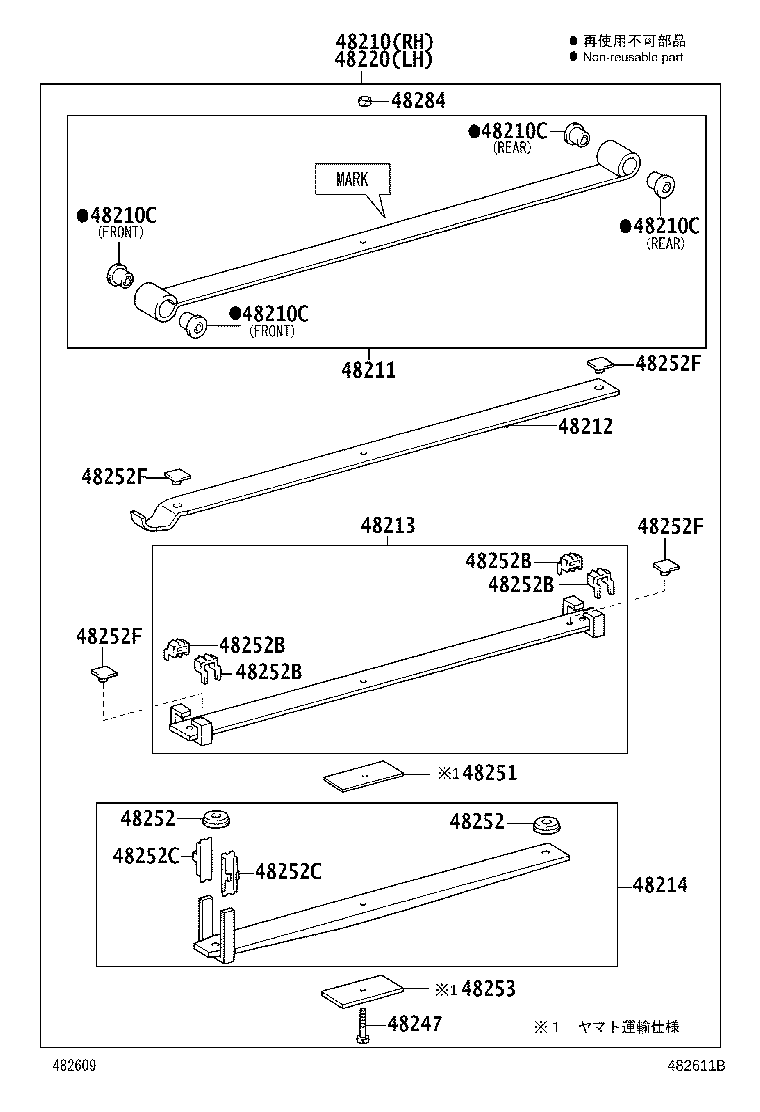

ILLUST NO. 2 OF 3(0107- )T4,TW4
4-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-2E300 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..(T4,TW4)..(125T,15T) 4枚ﾘｰﾌ,MARK=R-2E300:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=46 |
1 | ||
| 48210-2E320 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..T4..15T 4枚ﾘｰﾌ,ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=R-2E320:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=52 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16027 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..WT ﾘﾔ |
4 | ||
| 90389-16026 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..WT ﾌﾛﾝﾄ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16027 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..WT ﾘﾔ |
4 | ||
| 90389-16026 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..WT ﾌﾛﾝﾄ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16027 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..WT ﾘﾔ |
4 | ||
| 90389-16026 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..WT ﾌﾛﾝﾄ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16027 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..WT ﾘﾔ |
4 | ||
| 90389-16026 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..WT ﾌﾛﾝﾄ |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-2E300 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..(T4,TW4)..(125T,15T) MARK=R-2E300:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=46 |
2 | ||
| 48201-2E320 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..T4..15T ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=R-2E320:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=52 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-2E300 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..(T4,TW4)..(125T,15T) MARK=R-2E300:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=46 |
2 | ||
| 48212-2E320 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..T4..15T ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=R-2E320:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=52 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-2E320 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..T4..15T ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=R-2E320:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=52 |
2 | ||
| 48202-2E300 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..(T4,TW4)..(125T,15T) MARK=R-2E300:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=46 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-2E300 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..(T4,TW4)..(125T,15T) MARK=R-2E300:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=46 |
2 | ||
| 48203-2E320 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..T4..15T ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=R-2E320:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=52 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-2E300 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..(T4,TW4)..(125T,15T) 4枚ﾘｰﾌ,MARK=R-2E300:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=46 |
1 | ||
| 48210-2E320 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..T4..15T 4枚ﾘｰﾌ,ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=R-2E320:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=52 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48147-27020 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..T4 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48247-36450 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..T4,TW4 |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26401 |
TRY230..15T,1T;KDY231..WT..IV6;KDY281,TRY230..125T..(CBU,IV3);KDY22#,23#,27#,280,LY220,230,270,280,RZY220,23#,281,TRY220,231,281..CBU,IV3 |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26401 |
TRY230..15T,1T;KDY231..WT..IV6;KDY281,TRY230..125T..(CBU,IV3);KDY22#,23#,27#,280,LY220,230,270,280,RZY220,23#,281,TRY220,231,281..CBU,IV3 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37380 |
KDY281..125T;KDY23#,TRY230..T3..125T;KDY23#,TRY230..T2,T4,TW1,TW2,TW3,TW4;KDY22#,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281 |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37380 |
KDY281..125T;KDY23#,TRY230..T3..125T;KDY23#,TRY230..T2,T4,TW1,TW2,TW3,TW4;KDY22#,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281 |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37380 |
KDY281..125T;KDY23#,TRY230..T3..125T;KDY23#,TRY230..T2,T4,TW1,TW2,TW3,TW4;KDY22#,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281 |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37380 |
KDY281..125T;KDY23#,TRY230..T3..125T;KDY23#,TRY230..T2,T4,TW1,TW2,TW3,TW4;KDY22#,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281 |
8 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37880 |
LY230..WT;RZY230..TB..WT;KDY231..WT..IV6;LY280..T4,TW3,TW4;RZY230..(T2,TW3)..TS;LY280..125T..ST..(CBU,IV3);KDY280,TRY230..(T2,T4,TW2)..WT;LY230..(T2,T3,TW3)..(125T,1T)..(CBU,IV3);KDY28#,TRY230..(T2,T3,TW3,TW4)..(125T,1T)..(CBU,IV3);KDY22#,23#,27#,LY220,270,RZY220,231,281,TRY220,231,281..CBU,IV3 |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37880 |
LY230..WT;RZY230..TB..WT;KDY231..WT..IV6;LY280..T4,TW3,TW4;RZY230..(T2,TW3)..TS;LY280..125T..ST..(CBU,IV3);KDY280,TRY230..(T2,T4,TW2)..WT;LY230..(T2,T3,TW3)..(125T,1T)..(CBU,IV3);KDY28#,TRY230..(T2,T3,TW3,TW4)..(125T,1T)..(CBU,IV3);KDY22#,23#,27#,LY220,270,RZY220,231,281,TRY220,231,281..CBU,IV3 |
4 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-26070 |
TRY230..15T,1T;KDY231..WT..IV6;KDY281,TRY230..125T..(CBU,IV3);KDY22#,23#,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281..CBU,IV3 |
8 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-26070 |
TRY230..15T,1T;KDY231..WT..IV6;KDY281,TRY230..125T..(CBU,IV3);KDY22#,23#,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281..CBU,IV3 |
8 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-26070 |
TRY230..15T,1T;KDY231..WT..IV6;KDY281,TRY230..125T..(CBU,IV3);KDY22#,23#,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281..CBU,IV3 |
8 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-26070 |
TRY230..15T,1T;KDY231..WT..IV6;KDY281,TRY230..125T..(CBU,IV3);KDY22#,23#,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281..CBU,IV3 |
8 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-37130 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
2 | ||
ILLUST NO. 3 OF 3(0107- )
| Part # | Description | Qty | Price |
|---|
