LY280-TQMGS (2001)
Toyota Dyna/Toyoace
(0107-0308)LY230,280,RZY230..125T,12T..WT..CBU ;(0308- )KDY23#,280,LY230,280,TR

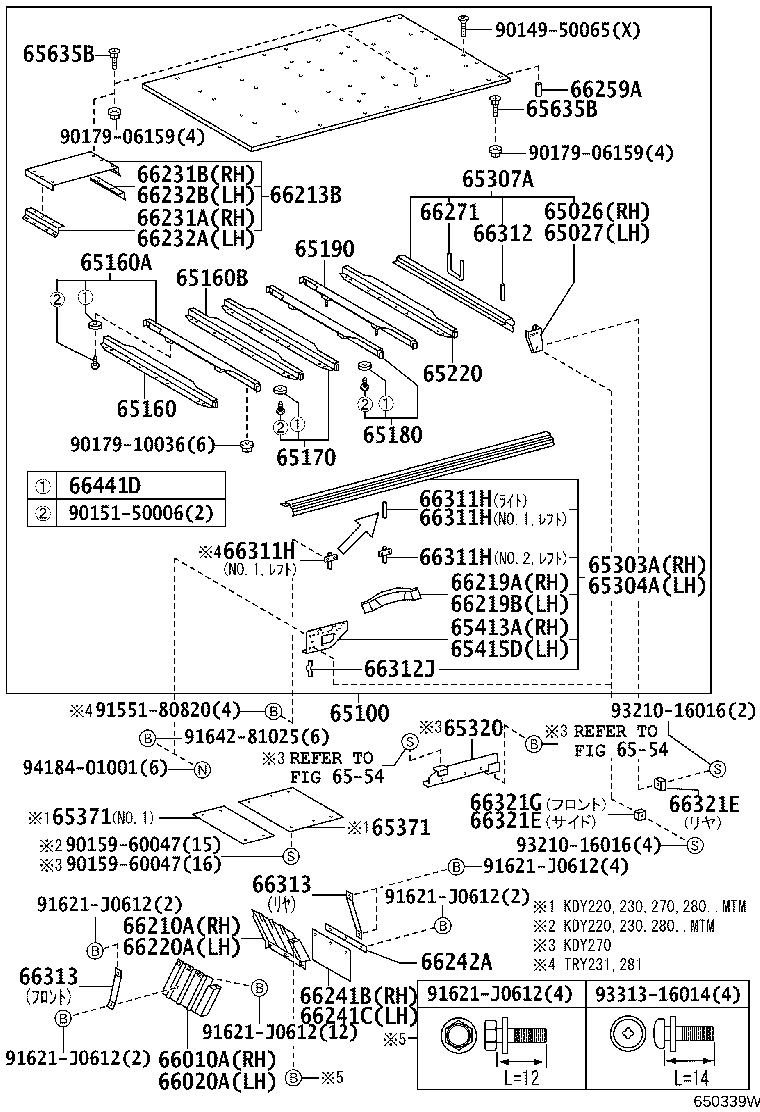

ﾓｸｾｲﾃﾞｯｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65026 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, RH | ||||
| 65026-37020 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
1 | ||
| 65027 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, LH | ||||
| 65027-37020 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
1 | ||
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 65100-2E560 |
KDY23#,280,LY230,280,RZY230,TRY230..T4..TB..(DCR,DSL,EFI)..CBU *** |
1 | ||
| 65100-2E170 |
KDY280,LY280..MTM..15T..WT..(DCR,DSL)..CBU;KDY23#,LY230,RZY230,TRY230..T4..TB..(DCR,DSL,EFI)..CBU ***,ﾊﾟﾜ-ｹﾞ-ﾄ = TECSｶﾀｼｷ -V*CK** |
1 | ||
| 65100-2E230 |
KDY280,LY280..MTM..15T..WT..(DCR,DSL)..CBU;KDY23#,LY230,RZY230,TRY230..T4..TB..(DCR,DSL,EFI)..CBU ***,ﾊﾟﾜ-ﾘﾌﾄ = TECSｶﾀｼｷ -V*CC** |
1 | ||
| 65160A - SILL ASSY, CROSS, NO.2 | ||||
| 65170-25170 |
KDY280,LY280..(T2,T4)..15T..CBU;KDY23#,LY230,RZY230,TRY230..T2..15T..ST..CBU;KDY22#,23#,LY220,230,RZY220,23#,281,TRY220,23#,281..T4..TB..CBU |
1 | ||
| 65160B - SILL ASSY, CROSS, NO.2 | ||||
| 65180-25230 |
KDY280,LY280..(T2,T4,TW4)..TB..CBU;KDY23#,LY230,RZY230,TRY230..T2..15T..ST..CBU;KDY22#,23#,LY220,230,RZY220,23#,281,TRY220,23#,281..(T4,TW4)..TB..CBU |
1 | ||
| 65170 - SILL ASSY, CROSS, NO.2 | ||||
| 65190-25040 |
LY280..(T2,T4,TW4)..TB..CBU;KDY231,LY230,RZY230..T2..15T..ST..CBU;KDY221,231,LY220,230,RZY220,230,TRY231,281..(T4,TW4)..TB..CBU |
1 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65190-25040 |
KDY280,LY280..(T2,T4,TW4)..TB..CBU;KDY23#,LY230,RZY230,TRY230..T2..15T..ST..CBU;KDY22#,23#,LY220,230,RZY220,23#,281,TRY220,23#,281..(T4,TW4)..TB..CBU |
1 | ||
| 65190 - SILL ASSY, CROSS, NO.5 | ||||
| 65180-25230 |
KDY280,LY280..TB..CBU;KDY23#,LY230,RZY230,TRY230..T2..15T..ST..CBU;KDY23#,281,LY230,RZY230..(T3,T4,TW4)..TB..CBU;KDY22#,LY220,RZY220,231,281,TRY220,23#,281..(T3,T4)..TB..15T..CBU |
1 | ||
| 65220 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-25230 |
KDY230,LY230..T2..MTM..15T..ST..CBU;KDY280,LY280..(T2,T4)..MTM..15T..(DCR,DSL)..CBU;KDY22#,23#,LY220,230,RZY220,230,TRY220,230..T4..TB..(DCR,DSL,EFI)..CBU ﾊﾟﾜ-ｹﾞ-ﾄ = TECSｶﾀｼｷ -V*CK** |
1 | ||
| 65230-25130 |
KDY280,LY280..(T2,T4,TW4)..TB..CBU;KDY23#,LY230,RZY230,TRY230..T2..15T..ST..CBU;KDY22#,23#,LY220,230,RZY220,23#,281,TRY220,23#,281..(T4,TW4)..TB..CBU |
1 | ||
| 65303A - FRAME SUB-ASSY, FLOOR SIDE, RH | ||||
| 65303-25540 |
KDY280,LY280..(T2,T4)..15T..(DCR,DSL)..CBU;KDY23#,LY230,RZY230,TRY230..T2..TB..ST..CBU;KDY23#,LY230,RZY230,TRY230..T4..TB..(DCR,DSL,EFI)..CBU |
1 | ||
| 65303-25450 |
KDY23#,LY230..T2..MTM..15T..ST..CBU;KDY280,LY280..(T2,T4)..MTM..15T..(DCR,DSL)..CBU;KDY23#,LY230,RZY230,TRY230..T4..TB..(DCR,DSL,EFI)..CBU ﾊﾟﾜ-ｹﾞ-ﾄ = TECSｶﾀｼｷ -V*CK** |
1 | ||
| 65303-25480 |
KDY23#,LY230..T2..MTM..15T..ST..CBU;KDY280,LY280..(T2,T4)..MTM..15T..(DCR,DSL)..CBU;KDY23#,LY230,RZY230,TRY230..T4..TB..(DCR,DSL,EFI)..CBU ﾊﾟﾜ-ﾘﾌﾄ = TECSｶﾀｼｷ -V*CC** |
1 | ||
| 65304A - FRAME SUB-ASSY, FLOOR SIDE, LH | ||||
| 65304-25410 |
KDY23#,LY230..T2..MTM..15T..ST..CBU;KDY280,LY280..(T2,T4)..MTM..15T..(DCR,DSL)..CBU;KDY23#,LY230,RZY230,TRY230..T4..TB..(DCR,DSL,EFI)..CBU ﾊﾟﾜ-ﾘﾌﾄ = TECSｶﾀｼｷ -V*CC** |
1 | ||
| 65304-25390 |
KDY23#,LY230..T2..MTM..15T..ST..CBU;KDY280,LY280..(T2,T4)..MTM..15T..(DCR,DSL)..CBU;KDY23#,LY230,RZY230,TRY230..T4..TB..(DCR,DSL,EFI)..CBU ﾊﾟﾜ-ｹﾞ-ﾄ = TECSｶﾀｼｷ -V*CK** |
1 | ||
| 65304-25320 |
KDY280,LY280..(T2,T4)..15T..(DCR,DSL)..CBU;KDY23#,LY230,RZY230,TRY230..T2..TB..ST..CBU;KDY23#,LY230,RZY230,TRY230..T4..TB..(DCR,DSL,EFI)..CBU |
1 | ||
| 65307A - FRAME SUB-ASSY, FLOOR, REAR | ||||
| 65307-25120 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
1 | ||
| 65307-25130 |
KDY220,LY220..TB..ST;KDY231..T2..TB..MTM..WT;RZY230,TRY230..TB..MTM..15T..WT..CBU;KDY22#,231,LY220,RZY220,TRY220..T4..TB..CBU;KDY230,LY230..TB..ATM..15T..WT..(DCR,DSL)..CBU;KDY280,LY280..(T2,T4)..MTM..15T..(DCR,DSL)..CBU;KDY230,281,LY230..TB..MTM..(15T,175T)..(DCR,DSL)..CBU ﾊﾟﾜ-ｹﾞ-ﾄ = TECSｶﾀｼｷ -V*CK** |
1 | ||
| 65413A - BRACKET, GUARD FRAME, RH | ||||
| 65413-37050 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
1 | ||
| 65415D - BRACKET, GUARD FRAME, LH | ||||
| 65415-37030 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TB..(DCR,DSL,EFI)..CBU |
1 | ||
| 65635B - BOLT, COUNTER SUNK HEAD SQUARE NECK | ||||
| 65635-92830 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
4 | ||
| 66010A - FENDER ASSY, REAR NO.2 RH | ||||
| 66010-25110 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..(T4,TW4)..TB..CBU |
1 | ||
| 66020A - FENDER ASSY, REAR NO.2 LH | ||||
| 66020-25110 |
KDY22#,23#,280,LY220,230,280,RZY220,230,TRY220,230..(T4,TW4)..TB..(DCR,DSL,EFI)..CBU |
1 | ||
| 66210A - FENDER ASSY, REAR NO.1 RH | ||||
| 66210-25010 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..(T4,TW4)..TB..CBU |
1 | ||
| 66213B - PLATE, REAR FENDER, UPPER | ||||
| 66203-25010 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..TB..WT..CBU |
2 | ||
| 66219A - EXTENSION, REAR FENDER | ||||
| 66219-25010 |
KDY231..T4..TB..CBU;KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY280,LY280..(T2,T4,TW4)..TB..CBU;KDY22#,23#,270,LY220,230,270,RZY230,TRY230..T2..TB..ST..CBU;KDY22#,230,LY220,230,RZY220,23#,281,TRY220,23#,281..(T4,TW4)..TB..CBU |
1 | ||
| 66219B - EXTENSION, REAR FENDER | ||||
| 66219-25010 |
KDY231..T4..TB..CBU;KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY280,LY280..(T2,T4,TW4)..TB..CBU;KDY22#,23#,270,LY220,230,270,RZY230,TRY230..T2..TB..ST..CBU;KDY22#,230,LY220,230,RZY220,23#,281,TRY220,23#,281..(T4,TW4)..TB..CBU |
1 | ||
| 66220A - FENDER ASSY, REAR NO.1 LH | ||||
| 66220-25010 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..(T4,TW4)..TB..CBU |
1 | ||
| 66231A - RETAINER, REAR FENDER, FRONT RH | ||||
| 66231-25010 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..TB..WT..CBU |
1 | ||
| 66231B - RETAINER, REAR FENDER, REAR RH | ||||
| 66232-25010 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..TB..WT..CBU |
1 | ||
| 66232A - RETAINER, REAR FENDER, FRONT LH | ||||
| 66232-25010 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..TB..WT..CBU |
1 | ||
| 66232B - RETAINER, REAR FENDER, REAR LH | ||||
| 66231-25010 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..TB..WT..CBU |
1 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 66241-25050 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..TB..WT..CBU |
1 | ||
| 66241C - BUFFLE, RUBBER | ||||
| 66241-25070 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..TB..WT..CBU |
1 | ||
| 66242A - PLATE, BAFFLE RUBBER | ||||
| 66242-25050 |
KDY230..T2..TB..CBU;KDY230..(T4,TW2,TW4)..CBU;KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,231,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T4,TW2,TW4)..TB..CBU 右側 |
1 | ||
| 66242-25060 |
KDY230..T2..TB..WT..CBU;KDY230..(T4,TW2,TW4)..CBU;KDY22#,231,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..TB..WT..CBU 左側 |
1 | ||
| 66259A - COVER, REAR BODY FLOOR, REAR | ||||
| 66259-37010 |
KDY220,LY220..TB..ST;KDY231..T2..TB..MTM..WT;RZY230,TRY230..TB..MTM..15T..WT..CBU;KDY22#,231,LY220,RZY220,TRY220..T4..TB..CBU;KDY230,LY230..TB..ATM..15T..WT..(DCR,DSL)..CBU;KDY280,LY280..(T2,T4)..MTM..15T..(DCR,DSL)..CBU;KDY230,281,LY230..TB..MTM..(15T,175T)..(DCR,DSL)..CBU TECS=ﾊﾟﾜ- ﾘﾌﾄ OR TECS=ﾊﾟﾜ-ｹﾞ-ﾄ |
4 | ||
| 66259-37010 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
6 | ||
| 66271 - STEP, REAR BODY | ||||
| 66271-25010 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
1 | ||
| 66311H - HOOK, ROPE | ||||
| 66311-37020 |
KDY231..T4..TB..CBU;KDY231..T2..TB..MTM..WT;RZY230,TRY230..TB..MTM..15T..WT..CBU;KDY230,LY230..TB..ATM..15T..WT..(DCR,DSL)..CBU;KDY280,LY280..(T2,T4)..MTM..15T..(DCR,DSL)..CBU;KDY230,281,LY230..TB..MTM..(15T,175T)..(DCR,DSL)..CBU ﾊﾟﾜ-ﾘﾌﾄ = TECSｶﾀｼｷ -V*CC** |
5 | ||
| 66311-37020 |
KDY23#,28#,LY230,280,RZY23#,281,TRY23#,281..(T2,T3,T4)..TB..CBU |
6 | ||
| 66312 - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
2 | ||
| 66312J - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
1 | ||
| 66313 - SUPPORT, REAR FENDER | ||||
| 66235-25010 |
KDY230..(T3,T4)..15T..CBU;KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY230..(T2,TW2,TW4)..TB..CBU;KDY22#,231,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU ﾘﾔ |
2 | ||
| 66236-25020 |
KDY230..(T3,T4)..15T..CBU;KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY230..(T2,TW2,TW4)..TB..CBU;KDY22#,231,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU ﾌﾛﾝﾄ |
2 | ||
| 66313 - SUPPORT, REAR FENDER | ||||
| 66235-25010 |
KDY230..(T3,T4)..15T..CBU;KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY230..(T2,TW2,TW4)..TB..CBU;KDY22#,231,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU ﾘﾔ |
2 | ||
| 66236-25020 |
KDY230..(T3,T4)..15T..CBU;KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY230..(T2,TW2,TW4)..TB..CBU;KDY22#,231,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU ﾌﾛﾝﾄ |
2 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66321-92805 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU ｻｲﾄﾞ |
2 | ||
| 66321-92803 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU ﾘﾔ |
2 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66321-92805 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU ｻｲﾄﾞ |
2 | ||
| 66321-92803 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU ﾘﾔ |
2 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66321-92805 |
KDY22#,LY220..TB..ST;RZY230,TRY230..TB..15T..WT..CBU;KDY23#,LY230..TB..ATM..15T..WT..(DCR,DSL)..CBU;KDY280,LY280..(T2,T4)..MTM..15T..(DCR,DSL)..CBU;KDY23#,LY230..TB..MTM..(15T,175T)..(DCR,DSL)..CBU;KDY22#,281,LY220,RZY220,TRY220..(T3,T4)..TB..15T..CBU ﾊﾟﾜ-ﾘﾌﾄ = TECSｶﾀｼｷ -V*CC** |
2 | ||
| 66441D - SHIM, MOUNTING, NO.1 | ||||
| 66441-37010 |
KDY220..T2..ATM..IV3;KDY220,230,270,280,RZY231,281..(T2,T4,TW2,TW4)..TB..CBU |
2 | ||
| 66441-37010 |
LY220..T2..ATM..IV3;LY230..TB..WT..DSL..CBU;LY230..T2..15T..ST..CBU;LY220,270,280..(T2,T4,TW4)..TB..DSL..CBU |
2 | ||
| Common parts | ||||
| 90149-50065 | ||||
| 90151-50006 | ||||
| 90179-06159 | ||||
| 91621-J0612 | ||||
| 91642-81025 | ||||
| 93210-16016 | ||||
| 93313-16014 | ||||
| 94184-01001 | ||||
(0107-0308)T2,T4..TB..CBU ; (0107-0308)LY220..T2..ATM..IV3 ; (0107-0308)RZY220..T2.
ﾓｸｾｲﾃﾞｯｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65026 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, RH | ||||
| 65026-37020 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
1 | ||
| 65026-37020 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
1 | ||
| 65027 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, LH | ||||
| 65027-37020 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
1 | ||
| 65027-37020 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
1 | ||
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 65100-2E560 |
KDY23#,280,LY230,280,RZY230,TRY230..T4..TB..(DCR,DSL,EFI)..CBU *** |
1 | ||
| 65100-2E560 |
KDY23#,280,LY230,280,RZY230,TRY230..T4..TB..(DCR,DSL,EFI)..CBU *** |
1 | ||
| 65100-2E170 |
KDY280,LY280..MTM..15T..WT..(DCR,DSL)..CBU;KDY23#,LY230,RZY230,TRY230..T4..TB..(DCR,DSL,EFI)..CBU ***,ﾊﾟﾜ-ｹﾞ-ﾄ = TECSｶﾀｼｷ -V*CK** |
1 | ||
| 65100-2E170 |
KDY280,LY280..MTM..15T..WT..(DCR,DSL)..CBU;KDY23#,LY230,RZY230,TRY230..T4..TB..(DCR,DSL,EFI)..CBU ***,ﾊﾟﾜ-ｹﾞ-ﾄ = TECSｶﾀｼｷ -V*CK** |
1 | ||
| 65100-2E230 |
KDY280,LY280..MTM..15T..WT..(DCR,DSL)..CBU;KDY23#,LY230,RZY230,TRY230..T4..TB..(DCR,DSL,EFI)..CBU ***,ﾊﾟﾜ-ﾘﾌﾄ = TECSｶﾀｼｷ -V*CC** |
1 | ||
| 65100-2E230 |
KDY280,LY280..MTM..15T..WT..(DCR,DSL)..CBU;KDY23#,LY230,RZY230,TRY230..T4..TB..(DCR,DSL,EFI)..CBU ***,ﾊﾟﾜ-ﾘﾌﾄ = TECSｶﾀｼｷ -V*CC** |
1 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65160-25290 |
KDY280,LY280..(T2,T4)..15T..CBU;KDY23#,LY230,RZY230,TRY230..T2..15T..ST..CBU;KDY22#,23#,LY220,230,RZY220,23#,281,TRY220,23#,281..T4..TB..CBU |
1 | ||
| 65160-25290 |
KDY280,LY280..(T2,T4)..15T..CBU;KDY23#,LY230,RZY230,TRY230..T2..15T..ST..CBU;KDY22#,23#,LY220,230,RZY220,23#,281,TRY220,23#,281..T4..TB..CBU |
1 | ||
| 65160A - SILL ASSY, CROSS, NO.2 | ||||
| 65170-25170 |
KDY280,LY280..(T2,T4)..15T..CBU;KDY23#,LY230,RZY230,TRY230..T2..15T..ST..CBU;KDY22#,23#,LY220,230,RZY220,23#,281,TRY220,23#,281..T4..TB..CBU |
1 | ||
| 65170-25170 |
KDY280,LY280..(T2,T4)..15T..CBU;KDY23#,LY230,RZY230,TRY230..T2..15T..ST..CBU;KDY22#,23#,LY220,230,RZY220,23#,281,TRY220,23#,281..T4..TB..CBU |
1 | ||
| 65160B - SILL ASSY, CROSS, NO.2 | ||||
| 65180-25230 |
KDY280,LY280..(T2,T4,TW4)..TB..CBU;KDY23#,LY230,RZY230,TRY230..T2..15T..ST..CBU;KDY22#,23#,LY220,230,RZY220,23#,281,TRY220,23#,281..(T4,TW4)..TB..CBU |
1 | ||
| 65180-25230 |
KDY280,LY280..(T2,T4,TW4)..TB..CBU;KDY23#,LY230,RZY230,TRY230..T2..15T..ST..CBU;KDY22#,23#,LY220,230,RZY220,23#,281,TRY220,23#,281..(T4,TW4)..TB..CBU |
1 | ||
| 65170 - SILL ASSY, CROSS, NO.2 | ||||
| 65190-25040 |
LY280..(T2,T4,TW4)..TB..CBU;KDY231,LY230,RZY230..T2..15T..ST..CBU;KDY221,231,LY220,230,RZY220,230,TRY231,281..(T4,TW4)..TB..CBU |
1 | ||
| 65190-25040 |
LY280..(T2,T4,TW4)..TB..CBU;KDY231,LY230,RZY230..T2..15T..ST..CBU;KDY221,231,LY220,230,RZY220,230,TRY231,281..(T4,TW4)..TB..CBU |
1 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65190-25040 |
KDY280,LY280..(T2,T4,TW4)..TB..CBU;KDY23#,LY230,RZY230,TRY230..T2..15T..ST..CBU;KDY22#,23#,LY220,230,RZY220,23#,281,TRY220,23#,281..(T4,TW4)..TB..CBU |
1 | ||
| 65190-25040 |
KDY280,LY280..(T2,T4,TW4)..TB..CBU;KDY23#,LY230,RZY230,TRY230..T2..15T..ST..CBU;KDY22#,23#,LY220,230,RZY220,23#,281,TRY220,23#,281..(T4,TW4)..TB..CBU |
1 | ||
| 65190 - SILL ASSY, CROSS, NO.5 | ||||
| 65180-25230 |
KDY280,LY280..TB..CBU;KDY23#,LY230,RZY230,TRY230..T2..15T..ST..CBU;KDY23#,281,LY230,RZY230..(T3,T4,TW4)..TB..CBU;KDY22#,LY220,RZY220,231,281,TRY220,23#,281..(T3,T4)..TB..15T..CBU |
1 | ||
| 65180-25230 |
KDY280,LY280..TB..CBU;KDY23#,LY230,RZY230,TRY230..T2..15T..ST..CBU;KDY23#,281,LY230,RZY230..(T3,T4,TW4)..TB..CBU;KDY22#,LY220,RZY220,231,281,TRY220,23#,281..(T3,T4)..TB..15T..CBU |
1 | ||
| 65220 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-25230 |
KDY230,LY230..T2..MTM..15T..ST..CBU;KDY280,LY280..(T2,T4)..MTM..15T..(DCR,DSL)..CBU;KDY22#,23#,LY220,230,RZY220,230,TRY220,230..T4..TB..(DCR,DSL,EFI)..CBU ﾊﾟﾜ-ｹﾞ-ﾄ = TECSｶﾀｼｷ -V*CK** |
1 | ||
| 65180-25230 |
KDY230,LY230..T2..MTM..15T..ST..CBU;KDY280,LY280..(T2,T4)..MTM..15T..(DCR,DSL)..CBU;KDY22#,23#,LY220,230,RZY220,230,TRY220,230..T4..TB..(DCR,DSL,EFI)..CBU ﾊﾟﾜ-ｹﾞ-ﾄ = TECSｶﾀｼｷ -V*CK** |
1 | ||
| 65230-25130 |
KDY280,LY280..(T2,T4,TW4)..TB..CBU;KDY23#,LY230,RZY230,TRY230..T2..15T..ST..CBU;KDY22#,23#,LY220,230,RZY220,23#,281,TRY220,23#,281..(T4,TW4)..TB..CBU |
1 | ||
| 65230-25130 |
KDY280,LY280..(T2,T4,TW4)..TB..CBU;KDY23#,LY230,RZY230,TRY230..T2..15T..ST..CBU;KDY22#,23#,LY220,230,RZY220,23#,281,TRY220,23#,281..(T4,TW4)..TB..CBU |
1 | ||
| 65303A - FRAME SUB-ASSY, FLOOR SIDE, RH | ||||
| 65303-25540 |
KDY280,LY280..(T2,T4)..15T..(DCR,DSL)..CBU;KDY23#,LY230,RZY230,TRY230..T2..TB..ST..CBU;KDY23#,LY230,RZY230,TRY230..T4..TB..(DCR,DSL,EFI)..CBU |
1 | ||
| 65303-25540 |
KDY280,LY280..(T2,T4)..15T..(DCR,DSL)..CBU;KDY23#,LY230,RZY230,TRY230..T2..TB..ST..CBU;KDY23#,LY230,RZY230,TRY230..T4..TB..(DCR,DSL,EFI)..CBU |
1 | ||
| 65303-25450 |
KDY23#,LY230..T2..MTM..15T..ST..CBU;KDY280,LY280..(T2,T4)..MTM..15T..(DCR,DSL)..CBU;KDY23#,LY230,RZY230,TRY230..T4..TB..(DCR,DSL,EFI)..CBU ﾊﾟﾜ-ｹﾞ-ﾄ = TECSｶﾀｼｷ -V*CK** |
1 | ||
| 65303-25450 |
KDY23#,LY230..T2..MTM..15T..ST..CBU;KDY280,LY280..(T2,T4)..MTM..15T..(DCR,DSL)..CBU;KDY23#,LY230,RZY230,TRY230..T4..TB..(DCR,DSL,EFI)..CBU ﾊﾟﾜ-ｹﾞ-ﾄ = TECSｶﾀｼｷ -V*CK** |
1 | ||
| 65303-25480 |
KDY23#,LY230..T2..MTM..15T..ST..CBU;KDY280,LY280..(T2,T4)..MTM..15T..(DCR,DSL)..CBU;KDY23#,LY230,RZY230,TRY230..T4..TB..(DCR,DSL,EFI)..CBU ﾊﾟﾜ-ﾘﾌﾄ = TECSｶﾀｼｷ -V*CC** |
1 | ||
| 65303-25480 |
KDY23#,LY230..T2..MTM..15T..ST..CBU;KDY280,LY280..(T2,T4)..MTM..15T..(DCR,DSL)..CBU;KDY23#,LY230,RZY230,TRY230..T4..TB..(DCR,DSL,EFI)..CBU ﾊﾟﾜ-ﾘﾌﾄ = TECSｶﾀｼｷ -V*CC** |
1 | ||
| 65304A - FRAME SUB-ASSY, FLOOR SIDE, LH | ||||
| 65304-25410 |
KDY23#,LY230..T2..MTM..15T..ST..CBU;KDY280,LY280..(T2,T4)..MTM..15T..(DCR,DSL)..CBU;KDY23#,LY230,RZY230,TRY230..T4..TB..(DCR,DSL,EFI)..CBU ﾊﾟﾜ-ﾘﾌﾄ = TECSｶﾀｼｷ -V*CC** |
1 | ||
| 65304-25410 |
KDY23#,LY230..T2..MTM..15T..ST..CBU;KDY280,LY280..(T2,T4)..MTM..15T..(DCR,DSL)..CBU;KDY23#,LY230,RZY230,TRY230..T4..TB..(DCR,DSL,EFI)..CBU ﾊﾟﾜ-ﾘﾌﾄ = TECSｶﾀｼｷ -V*CC** |
1 | ||
| 65304-25390 |
KDY23#,LY230..T2..MTM..15T..ST..CBU;KDY280,LY280..(T2,T4)..MTM..15T..(DCR,DSL)..CBU;KDY23#,LY230,RZY230,TRY230..T4..TB..(DCR,DSL,EFI)..CBU ﾊﾟﾜ-ｹﾞ-ﾄ = TECSｶﾀｼｷ -V*CK** |
1 | ||
| 65304-25390 |
KDY23#,LY230..T2..MTM..15T..ST..CBU;KDY280,LY280..(T2,T4)..MTM..15T..(DCR,DSL)..CBU;KDY23#,LY230,RZY230,TRY230..T4..TB..(DCR,DSL,EFI)..CBU ﾊﾟﾜ-ｹﾞ-ﾄ = TECSｶﾀｼｷ -V*CK** |
1 | ||
| 65304-25320 |
KDY280,LY280..(T2,T4)..15T..(DCR,DSL)..CBU;KDY23#,LY230,RZY230,TRY230..T2..TB..ST..CBU;KDY23#,LY230,RZY230,TRY230..T4..TB..(DCR,DSL,EFI)..CBU |
1 | ||
| 65304-25320 |
KDY280,LY280..(T2,T4)..15T..(DCR,DSL)..CBU;KDY23#,LY230,RZY230,TRY230..T2..TB..ST..CBU;KDY23#,LY230,RZY230,TRY230..T4..TB..(DCR,DSL,EFI)..CBU |
1 | ||
| 65307A - FRAME SUB-ASSY, FLOOR, REAR | ||||
| 65307-25120 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
1 | ||
| 65307-25120 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
1 | ||
| 65307-25130 |
KDY220,LY220..TB..ST;KDY231..T2..TB..MTM..WT;RZY230,TRY230..TB..MTM..15T..WT..CBU;KDY22#,231,LY220,RZY220,TRY220..T4..TB..CBU;KDY230,LY230..TB..ATM..15T..WT..(DCR,DSL)..CBU;KDY280,LY280..(T2,T4)..MTM..15T..(DCR,DSL)..CBU;KDY230,281,LY230..TB..MTM..(15T,175T)..(DCR,DSL)..CBU ﾊﾟﾜ-ｹﾞ-ﾄ = TECSｶﾀｼｷ -V*CK** |
1 | ||
| 65307-25130 |
KDY220,LY220..TB..ST;KDY231..T2..TB..MTM..WT;RZY230,TRY230..TB..MTM..15T..WT..CBU;KDY22#,231,LY220,RZY220,TRY220..T4..TB..CBU;KDY230,LY230..TB..ATM..15T..WT..(DCR,DSL)..CBU;KDY280,LY280..(T2,T4)..MTM..15T..(DCR,DSL)..CBU;KDY230,281,LY230..TB..MTM..(15T,175T)..(DCR,DSL)..CBU ﾊﾟﾜ-ｹﾞ-ﾄ = TECSｶﾀｼｷ -V*CK** |
1 | ||
| 65413A - BRACKET, GUARD FRAME, RH | ||||
| 65413-37050 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
1 | ||
| 65413-37050 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
1 | ||
| 65415D - BRACKET, GUARD FRAME, LH | ||||
| 65415-37030 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TB..(DCR,DSL,EFI)..CBU |
1 | ||
| 65415-37030 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TB..(DCR,DSL,EFI)..CBU |
1 | ||
| 65635B - BOLT, COUNTER SUNK HEAD SQUARE NECK | ||||
| 65635-92830 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
4 | ||
| 65635-92830 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
4 | ||
| 65635B - BOLT, COUNTER SUNK HEAD SQUARE NECK | ||||
| 65635-92830 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
4 | ||
| 65635-92830 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
4 | ||
| 66010A - FENDER ASSY, REAR NO.2 RH | ||||
| 66010-25110 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..(T4,TW4)..TB..CBU |
1 | ||
| 66010-25110 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..(T4,TW4)..TB..CBU |
1 | ||
| 66020A - FENDER ASSY, REAR NO.2 LH | ||||
| 66020-25110 |
KDY22#,23#,280,LY220,230,280,RZY220,230,TRY220,230..(T4,TW4)..TB..(DCR,DSL,EFI)..CBU |
1 | ||
| 66020-25110 |
KDY22#,23#,280,LY220,230,280,RZY220,230,TRY220,230..(T4,TW4)..TB..(DCR,DSL,EFI)..CBU |
1 | ||
| 66210A - FENDER ASSY, REAR NO.1 RH | ||||
| 66210-25010 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..(T4,TW4)..TB..CBU |
1 | ||
| 66210-25010 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..(T4,TW4)..TB..CBU |
1 | ||
| 66213B - PLATE, REAR FENDER, UPPER | ||||
| 66203-25010 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..TB..WT..CBU |
2 | ||
| 66203-25010 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..TB..WT..CBU |
2 | ||
| 66219A - EXTENSION, REAR FENDER | ||||
| 66219-25010 |
KDY231..T4..TB..CBU;KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY280,LY280..(T2,T4,TW4)..TB..CBU;KDY22#,23#,270,LY220,230,270,RZY230,TRY230..T2..TB..ST..CBU;KDY22#,230,LY220,230,RZY220,23#,281,TRY220,23#,281..(T4,TW4)..TB..CBU |
1 | ||
| 66219-25010 |
KDY231..T4..TB..CBU;KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY280,LY280..(T2,T4,TW4)..TB..CBU;KDY22#,23#,270,LY220,230,270,RZY230,TRY230..T2..TB..ST..CBU;KDY22#,230,LY220,230,RZY220,23#,281,TRY220,23#,281..(T4,TW4)..TB..CBU |
1 | ||
| 66219B - EXTENSION, REAR FENDER | ||||
| 66219-25010 |
KDY231..T4..TB..CBU;KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY280,LY280..(T2,T4,TW4)..TB..CBU;KDY22#,23#,270,LY220,230,270,RZY230,TRY230..T2..TB..ST..CBU;KDY22#,230,LY220,230,RZY220,23#,281,TRY220,23#,281..(T4,TW4)..TB..CBU |
1 | ||
| 66219-25010 |
KDY231..T4..TB..CBU;KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY280,LY280..(T2,T4,TW4)..TB..CBU;KDY22#,23#,270,LY220,230,270,RZY230,TRY230..T2..TB..ST..CBU;KDY22#,230,LY220,230,RZY220,23#,281,TRY220,23#,281..(T4,TW4)..TB..CBU |
1 | ||
| 66220A - FENDER ASSY, REAR NO.1 LH | ||||
| 66220-25010 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..(T4,TW4)..TB..CBU |
1 | ||
| 66220-25010 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..(T4,TW4)..TB..CBU |
1 | ||
| 66231A - RETAINER, REAR FENDER, FRONT RH | ||||
| 66231-25010 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..TB..WT..CBU |
1 | ||
| 66231-25010 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..TB..WT..CBU |
1 | ||
| 66231B - RETAINER, REAR FENDER, REAR RH | ||||
| 66232-25010 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..TB..WT..CBU |
1 | ||
| 66232-25010 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..TB..WT..CBU |
1 | ||
| 66232A - RETAINER, REAR FENDER, FRONT LH | ||||
| 66232-25010 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..TB..WT..CBU |
1 | ||
| 66232-25010 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..TB..WT..CBU |
1 | ||
| 66232B - RETAINER, REAR FENDER, REAR LH | ||||
| 66231-25010 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..TB..WT..CBU |
1 | ||
| 66231-25010 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..TB..WT..CBU |
1 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 66241-25050 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..TB..WT..CBU |
1 | ||
| 66241-25050 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..TB..WT..CBU |
1 | ||
| 66241C - BUFFLE, RUBBER | ||||
| 66241-25070 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..TB..WT..CBU |
1 | ||
| 66241-25070 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..TB..WT..CBU |
1 | ||
| 66242A - PLATE, BAFFLE RUBBER | ||||
| 66242-25050 |
KDY230..T2..TB..CBU;KDY230..(T4,TW2,TW4)..CBU;KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,231,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T4,TW2,TW4)..TB..CBU 右側 |
1 | ||
| 66242-25050 |
KDY230..T2..TB..CBU;KDY230..(T4,TW2,TW4)..CBU;KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,231,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T4,TW2,TW4)..TB..CBU 右側 |
1 | ||
| 66242-25060 |
KDY230..T2..TB..WT..CBU;KDY230..(T4,TW2,TW4)..CBU;KDY22#,231,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..TB..WT..CBU 左側 |
1 | ||
| 66242-25060 |
KDY230..T2..TB..WT..CBU;KDY230..(T4,TW2,TW4)..CBU;KDY22#,231,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..TB..WT..CBU 左側 |
1 | ||
| 66259A - COVER, REAR BODY FLOOR, REAR | ||||
| 66259-37010 |
KDY220,LY220..TB..ST;KDY231..T2..TB..MTM..WT;RZY230,TRY230..TB..MTM..15T..WT..CBU;KDY22#,231,LY220,RZY220,TRY220..T4..TB..CBU;KDY230,LY230..TB..ATM..15T..WT..(DCR,DSL)..CBU;KDY280,LY280..(T2,T4)..MTM..15T..(DCR,DSL)..CBU;KDY230,281,LY230..TB..MTM..(15T,175T)..(DCR,DSL)..CBU TECS=ﾊﾟﾜ- ﾘﾌﾄ OR TECS=ﾊﾟﾜ-ｹﾞ-ﾄ |
4 | ||
| 66259-37010 |
KDY220,LY220..TB..ST;KDY231..T2..TB..MTM..WT;RZY230,TRY230..TB..MTM..15T..WT..CBU;KDY22#,231,LY220,RZY220,TRY220..T4..TB..CBU;KDY230,LY230..TB..ATM..15T..WT..(DCR,DSL)..CBU;KDY280,LY280..(T2,T4)..MTM..15T..(DCR,DSL)..CBU;KDY230,281,LY230..TB..MTM..(15T,175T)..(DCR,DSL)..CBU TECS=ﾊﾟﾜ- ﾘﾌﾄ OR TECS=ﾊﾟﾜ-ｹﾞ-ﾄ |
4 | ||
| 66259-37010 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
6 | ||
| 66259-37010 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
6 | ||
| 66271 - STEP, REAR BODY | ||||
| 66271-25010 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
1 | ||
| 66271-25010 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
1 | ||
| 66311H - HOOK, ROPE | ||||
| 66311-37020 |
KDY231..T4..TB..CBU;KDY231..T2..TB..MTM..WT;RZY230,TRY230..TB..MTM..15T..WT..CBU;KDY230,LY230..TB..ATM..15T..WT..(DCR,DSL)..CBU;KDY280,LY280..(T2,T4)..MTM..15T..(DCR,DSL)..CBU;KDY230,281,LY230..TB..MTM..(15T,175T)..(DCR,DSL)..CBU ﾊﾟﾜ-ﾘﾌﾄ = TECSｶﾀｼｷ -V*CC** |
5 | ||
| 66311-37020 |
KDY231..T4..TB..CBU;KDY231..T2..TB..MTM..WT;RZY230,TRY230..TB..MTM..15T..WT..CBU;KDY230,LY230..TB..ATM..15T..WT..(DCR,DSL)..CBU;KDY280,LY280..(T2,T4)..MTM..15T..(DCR,DSL)..CBU;KDY230,281,LY230..TB..MTM..(15T,175T)..(DCR,DSL)..CBU ﾊﾟﾜ-ﾘﾌﾄ = TECSｶﾀｼｷ -V*CC** |
5 | ||
| 66311-37020 |
KDY23#,28#,LY230,280,RZY23#,281,TRY23#,281..(T2,T3,T4)..TB..CBU |
6 | ||
| 66311-37020 |
KDY23#,28#,LY230,280,RZY23#,281,TRY23#,281..(T2,T3,T4)..TB..CBU |
6 | ||
| 66311H - HOOK, ROPE | ||||
| 66311-37020 |
KDY231..T4..TB..CBU;KDY231..T2..TB..MTM..WT;RZY230,TRY230..TB..MTM..15T..WT..CBU;KDY230,LY230..TB..ATM..15T..WT..(DCR,DSL)..CBU;KDY280,LY280..(T2,T4)..MTM..15T..(DCR,DSL)..CBU;KDY230,281,LY230..TB..MTM..(15T,175T)..(DCR,DSL)..CBU ﾊﾟﾜ-ﾘﾌﾄ = TECSｶﾀｼｷ -V*CC** |
5 | ||
| 66311-37020 |
KDY231..T4..TB..CBU;KDY231..T2..TB..MTM..WT;RZY230,TRY230..TB..MTM..15T..WT..CBU;KDY230,LY230..TB..ATM..15T..WT..(DCR,DSL)..CBU;KDY280,LY280..(T2,T4)..MTM..15T..(DCR,DSL)..CBU;KDY230,281,LY230..TB..MTM..(15T,175T)..(DCR,DSL)..CBU ﾊﾟﾜ-ﾘﾌﾄ = TECSｶﾀｼｷ -V*CC** |
5 | ||
| 66311-37020 |
KDY23#,28#,LY230,280,RZY23#,281,TRY23#,281..(T2,T3,T4)..TB..CBU |
6 | ||
| 66311-37020 |
KDY23#,28#,LY230,280,RZY23#,281,TRY23#,281..(T2,T3,T4)..TB..CBU |
6 | ||
| 66311H - HOOK, ROPE | ||||
| 66311-37020 |
KDY231..T4..TB..CBU;KDY231..T2..TB..MTM..WT;RZY230,TRY230..TB..MTM..15T..WT..CBU;KDY230,LY230..TB..ATM..15T..WT..(DCR,DSL)..CBU;KDY280,LY280..(T2,T4)..MTM..15T..(DCR,DSL)..CBU;KDY230,281,LY230..TB..MTM..(15T,175T)..(DCR,DSL)..CBU ﾊﾟﾜ-ﾘﾌﾄ = TECSｶﾀｼｷ -V*CC** |
5 | ||
| 66311-37020 |
KDY231..T4..TB..CBU;KDY231..T2..TB..MTM..WT;RZY230,TRY230..TB..MTM..15T..WT..CBU;KDY230,LY230..TB..ATM..15T..WT..(DCR,DSL)..CBU;KDY280,LY280..(T2,T4)..MTM..15T..(DCR,DSL)..CBU;KDY230,281,LY230..TB..MTM..(15T,175T)..(DCR,DSL)..CBU ﾊﾟﾜ-ﾘﾌﾄ = TECSｶﾀｼｷ -V*CC** |
5 | ||
| 66311-37020 |
KDY23#,28#,LY230,280,RZY23#,281,TRY23#,281..(T2,T3,T4)..TB..CBU |
6 | ||
| 66311-37020 |
KDY23#,28#,LY230,280,RZY23#,281,TRY23#,281..(T2,T3,T4)..TB..CBU |
6 | ||
| 66311H - HOOK, ROPE | ||||
| 66311-37020 |
KDY231..T4..TB..CBU;KDY231..T2..TB..MTM..WT;RZY230,TRY230..TB..MTM..15T..WT..CBU;KDY230,LY230..TB..ATM..15T..WT..(DCR,DSL)..CBU;KDY280,LY280..(T2,T4)..MTM..15T..(DCR,DSL)..CBU;KDY230,281,LY230..TB..MTM..(15T,175T)..(DCR,DSL)..CBU ﾊﾟﾜ-ﾘﾌﾄ = TECSｶﾀｼｷ -V*CC** |
5 | ||
| 66311-37020 |
KDY231..T4..TB..CBU;KDY231..T2..TB..MTM..WT;RZY230,TRY230..TB..MTM..15T..WT..CBU;KDY230,LY230..TB..ATM..15T..WT..(DCR,DSL)..CBU;KDY280,LY280..(T2,T4)..MTM..15T..(DCR,DSL)..CBU;KDY230,281,LY230..TB..MTM..(15T,175T)..(DCR,DSL)..CBU ﾊﾟﾜ-ﾘﾌﾄ = TECSｶﾀｼｷ -V*CC** |
5 | ||
| 66311-37020 |
KDY23#,28#,LY230,280,RZY23#,281,TRY23#,281..(T2,T3,T4)..TB..CBU |
6 | ||
| 66311-37020 |
KDY23#,28#,LY230,280,RZY23#,281,TRY23#,281..(T2,T3,T4)..TB..CBU |
6 | ||
| 66312 - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
2 | ||
| 66311-37020 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
2 | ||
| 66312J - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
1 | ||
| 66312-37020 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
1 | ||
| 66313 - SUPPORT, REAR FENDER | ||||
| 66235-25010 |
KDY230..(T3,T4)..15T..CBU;KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY230..(T2,TW2,TW4)..TB..CBU;KDY22#,231,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU ﾘﾔ |
2 | ||
| 66235-25010 |
KDY230..(T3,T4)..15T..CBU;KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY230..(T2,TW2,TW4)..TB..CBU;KDY22#,231,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU ﾘﾔ |
2 | ||
| 66236-25020 |
KDY230..(T3,T4)..15T..CBU;KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY230..(T2,TW2,TW4)..TB..CBU;KDY22#,231,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU ﾌﾛﾝﾄ |
2 | ||
| 66236-25020 |
KDY230..(T3,T4)..15T..CBU;KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY230..(T2,TW2,TW4)..TB..CBU;KDY22#,231,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU ﾌﾛﾝﾄ |
2 | ||
| 66313 - SUPPORT, REAR FENDER | ||||
| 66235-25010 |
KDY230..(T3,T4)..15T..CBU;KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY230..(T2,TW2,TW4)..TB..CBU;KDY22#,231,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU ﾘﾔ |
2 | ||
| 66235-25010 |
KDY230..(T3,T4)..15T..CBU;KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY230..(T2,TW2,TW4)..TB..CBU;KDY22#,231,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU ﾘﾔ |
2 | ||
| 66236-25020 |
KDY230..(T3,T4)..15T..CBU;KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY230..(T2,TW2,TW4)..TB..CBU;KDY22#,231,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU ﾌﾛﾝﾄ |
2 | ||
| 66236-25020 |
KDY230..(T3,T4)..15T..CBU;KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY230..(T2,TW2,TW4)..TB..CBU;KDY22#,231,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU ﾌﾛﾝﾄ |
2 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66321-92805 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU ｻｲﾄﾞ |
2 | ||
| 66321-92805 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU ｻｲﾄﾞ |
2 | ||
| 66321-92803 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU ﾘﾔ |
2 | ||
| 66321-92803 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU ﾘﾔ |
2 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66321-92805 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU ｻｲﾄﾞ |
2 | ||
| 66321-92805 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU ｻｲﾄﾞ |
2 | ||
| 66321-92803 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU ﾘﾔ |
2 | ||
| 66321-92803 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU ﾘﾔ |
2 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66321-92805 |
KDY22#,LY220..TB..ST;RZY230,TRY230..TB..15T..WT..CBU;KDY23#,LY230..TB..ATM..15T..WT..(DCR,DSL)..CBU;KDY280,LY280..(T2,T4)..MTM..15T..(DCR,DSL)..CBU;KDY23#,LY230..TB..MTM..(15T,175T)..(DCR,DSL)..CBU;KDY22#,281,LY220,RZY220,TRY220..(T3,T4)..TB..15T..CBU ﾊﾟﾜ-ﾘﾌﾄ = TECSｶﾀｼｷ -V*CC** |
2 | ||
| 66321-92805 |
KDY22#,LY220..TB..ST;RZY230,TRY230..TB..15T..WT..CBU;KDY23#,LY230..TB..ATM..15T..WT..(DCR,DSL)..CBU;KDY280,LY280..(T2,T4)..MTM..15T..(DCR,DSL)..CBU;KDY23#,LY230..TB..MTM..(15T,175T)..(DCR,DSL)..CBU;KDY22#,281,LY220,RZY220,TRY220..(T3,T4)..TB..15T..CBU ﾊﾟﾜ-ﾘﾌﾄ = TECSｶﾀｼｷ -V*CC** |
2 | ||
| 66441D - SHIM, MOUNTING, NO.1 | ||||
| 66441-37010 |
KDY220..T2..ATM..IV3;KDY220,230,270,280,RZY231,281..(T2,T4,TW2,TW4)..TB..CBU |
2 | ||
| 66441-37010 |
KDY220..T2..ATM..IV3;KDY220,230,270,280,RZY231,281..(T2,T4,TW2,TW4)..TB..CBU |
2 | ||
| 66441-37010 |
LY220..T2..ATM..IV3;LY230..TB..WT..DSL..CBU;LY230..T2..15T..ST..CBU;LY220,270,280..(T2,T4,TW4)..TB..DSL..CBU |
2 | ||
| 66441-37010 |
LY220..T2..ATM..IV3;LY230..TB..WT..DSL..CBU;LY230..T2..15T..ST..CBU;LY220,270,280..(T2,T4,TW4)..TB..DSL..CBU |
2 | ||
| Common parts | ||||
| 90149-50065 | ||||
| 90151-50006 | ||||
| 90159-60047 | ||||
| 90179-06159 | ||||
| 90179-10036 | ||||
| 91551-80820 | ||||
| 91621-J0612 | ||||
| 91642-81025 | ||||
| 93210-16016 | ||||
| 93313-16014 | ||||
| 94184-01001 | ||||
| Linked diagrams | ||||
| 6554 | ||||
(0107-0308)RZY230..TW1..IV3 ; (0107-0308)LY220,230,270,280,RZY220..TW1 ; (0308-
ｽﾁ-ﾙﾃﾞｯｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 65100-2E560 |
KDY23#,280,LY230,280,RZY230,TRY230..T4..TB..(DCR,DSL,EFI)..CBU *** |
1 | ||
| 65100-2E170 |
KDY280,LY280..MTM..15T..WT..(DCR,DSL)..CBU;KDY23#,LY230,RZY230,TRY230..T4..TB..(DCR,DSL,EFI)..CBU ***,ﾊﾟﾜ-ｹﾞ-ﾄ = TECSｶﾀｼｷ -V*CK** |
1 | ||
| 65100-2E230 |
KDY280,LY280..MTM..15T..WT..(DCR,DSL)..CBU;KDY23#,LY230,RZY230,TRY230..T4..TB..(DCR,DSL,EFI)..CBU ***,ﾊﾟﾜ-ﾘﾌﾄ = TECSｶﾀｼｷ -V*CC** |
1 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65160-25290 |
KDY280,LY280..(T2,T4)..15T..CBU;KDY23#,LY230,RZY230,TRY230..T2..15T..ST..CBU;KDY22#,23#,LY220,230,RZY220,23#,281,TRY220,23#,281..T4..TB..CBU |
1 | ||
| 65170 - SILL ASSY, CROSS, NO.2 | ||||
| 65190-25040 |
LY280..(T2,T4,TW4)..TB..CBU;KDY231,LY230,RZY230..T2..15T..ST..CBU;KDY221,231,LY220,230,RZY220,230,TRY231,281..(T4,TW4)..TB..CBU |
1 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65190-25040 |
KDY280,LY280..(T2,T4,TW4)..TB..CBU;KDY23#,LY230,RZY230,TRY230..T2..15T..ST..CBU;KDY22#,23#,LY220,230,RZY220,23#,281,TRY220,23#,281..(T4,TW4)..TB..CBU |
1 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65190-25040 |
KDY280,LY280..(T2,T4,TW4)..TB..CBU;KDY23#,LY230,RZY230,TRY230..T2..15T..ST..CBU;KDY22#,23#,LY220,230,RZY220,23#,281,TRY220,23#,281..(T4,TW4)..TB..CBU |
1 | ||
| 66210A - FENDER ASSY, REAR NO.1 RH | ||||
| 66210-25010 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..(T4,TW4)..TB..CBU |
1 | ||
| 66220A - FENDER ASSY, REAR NO.1 LH | ||||
| 66220-25010 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..(T4,TW4)..TB..CBU |
1 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 66241-25050 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..TB..WT..CBU |
1 | ||
| 66241C - BUFFLE, RUBBER | ||||
| 66241-25070 |
KDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..TB..WT..CBU |
1 | ||
| 66242A - PLATE, BAFFLE RUBBER | ||||
| 66242-25050 |
KDY230..T2..TB..CBU;KDY230..(T4,TW2,TW4)..CBU;KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,231,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T4,TW2,TW4)..TB..CBU 右側 |
1 | ||
| 66242-25060 |
KDY230..T2..TB..WT..CBU;KDY230..(T4,TW2,TW4)..CBU;KDY22#,231,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..TB..WT..CBU 左側 |
1 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66321-92805 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU ｻｲﾄﾞ |
2 | ||
| 66321-92803 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU ﾘﾔ |
2 | ||
| Common parts | ||||
| 90150-50005 | ||||
| 90179-05004 | ||||
| 91631-40614 | ||||
| 91651-40616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
