LY280-TQMGC (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2003
Engine 3RZFPE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )3RZFPE..LY230,280

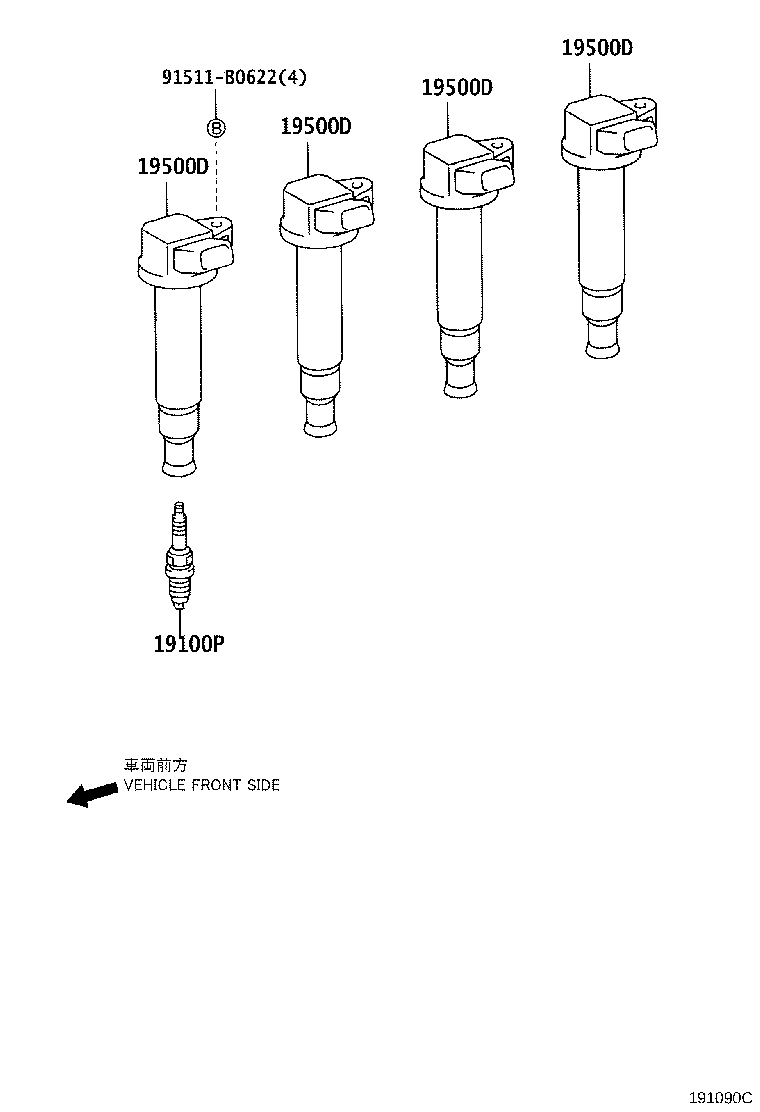

Click highlighted areas on diagram

diagram 19100P 19500D 19500D 19500D 19500D 91511B0622
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01214

3RZFPE..LY230,280

SK16R−P8

 4
90919-01215

3RZFPE..LY230,280

IFR5A−8N

 4
19500D - COIL, IGNITION, NO.1
90919-02237

3RZFPE..LY230,280

 4
19500D - COIL, IGNITION, NO.1
90919-02237

3RZFPE..LY230,280

 4
19500D - COIL, IGNITION, NO.1
90919-02237

3RZFPE..LY230,280

 4
19500D - COIL, IGNITION, NO.1
90919-02237

3RZFPE..LY230,280

 4
Common parts
91511-B0622
