LY280-TQMGC (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2003
Engine 3RZFPE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0107-0308)3RZFPE

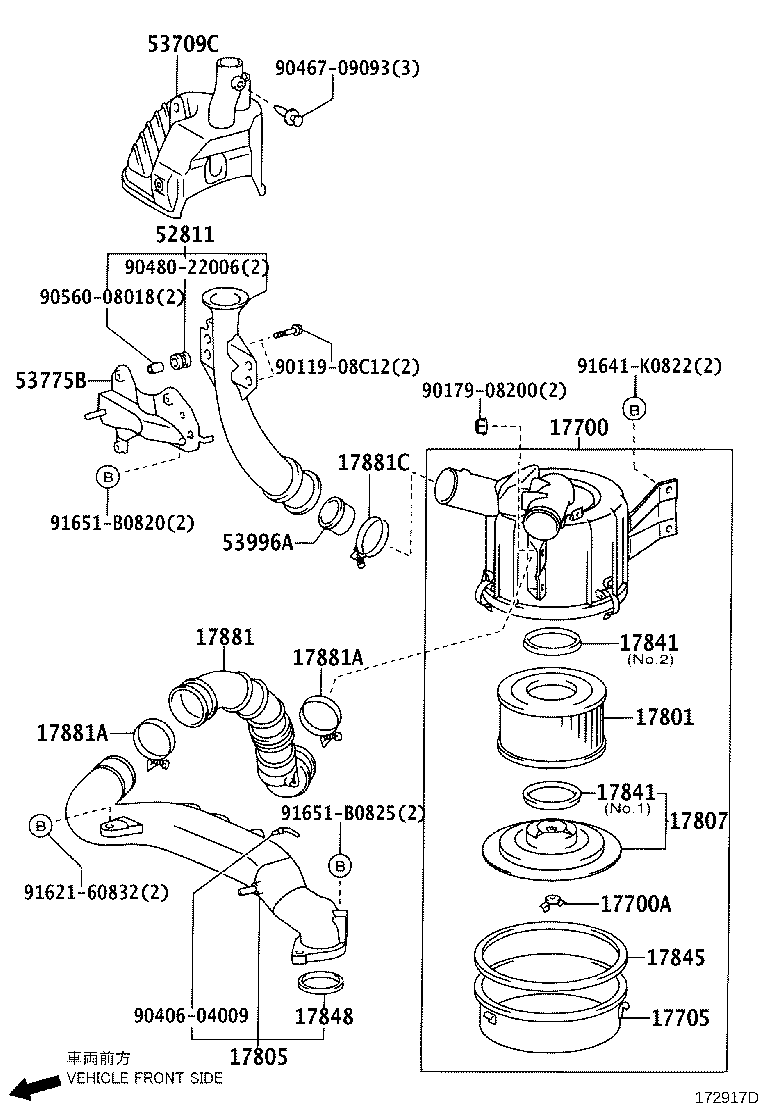

Click highlighted areas on diagram

diagram 17700 17700A 17705 17801 17805 17807 17841 17841 17845 17848 17881 17881A 17881A 17881C 52811 53709C 53775B 53996A 9011908C12 9017908200 9040604009 9046709093 9048022006 9056008018 9162160832 91641K0822 91651B0820 91651B0825
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-5B200

5L..LY230..TW1;3RZFPE..LY230,280;5L..LY220..125T..WT;5L..LY230..TB..125T..ST

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-08008

5L..LY230..TW1;3RZFPE..LY230,280;5L..LY220..125T..WT;5L..LY230..TB..125T..ST

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-54490

5L..LY230..TW1;3RZFPE..LY230,280;5L..LY220..125T..WT;5L..LY230..TB..125T..ST

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-56050

5L..LY230..TW1;3RZFPE..LY230,280;5L..LY220..125T..WT;5L..LY230..TB..125T..ST

 1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17805-75200

3RZFPE..LY230,280

 1
17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET
17807-54040

5L..LY230..TW1;3RZFPE..LY230,280;5L..LY220..125T..WT;5L..LY230..TB..125T..ST

 1
17841 - GASKET, FILTER ELEMENT
17841-54020

5L..LY230..TW1;3RZFPE..LY230,280;5L..LY220..125T..WT;5L..LY230..TB..125T..ST

NO.2

 1
17841-44030

5L..LY230..TW1;3RZFPE..LY230,280;5L..LY220..125T..WT;5L..LY230..TB..125T..ST

NO.1

 1
17841 - GASKET, FILTER ELEMENT
17841-54020

5L..LY230..TW1;3RZFPE..LY230,280;5L..LY220..125T..WT;5L..LY230..TB..125T..ST

NO.2

 1
17841-44030

5L..LY230..TW1;3RZFPE..LY230,280;5L..LY220..125T..WT;5L..LY230..TB..125T..ST

NO.1

 1
17845 - GASKET, AIR CLEANER CAP
17845-54030

5L..LY230..TW1;3RZFPE..LY230,280;5L..LY220..125T..WT;5L..LY230..TB..125T..ST

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
17849-70030

3RZFPE..LY230,280

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-75181

3RZFPE..LY230,280

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10750

3RZFPE..LY230,280

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10750

3RZFPE..LY230,280

 2
17881C - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10800

5L,3RZFPE..LY220,230,240,270,280,290

 1
52811 - DUCT, COOL AIR INTAKE, NO.1
52811-25010

LY220,230,270,280..T2,T3,T4

 1
53709C - COVER SUB-ASSY, AIR CLEANER INLET
53767-25040

LY220,230,270,280..T2,T3,T4

 1
53775B - BRACKET, COOL AIR INTAKE DUCT MOUNTING
53707-25020

LY230,280..LPG

 1
53996A - PACKING, AIR CLEANER INLET PIPE
53996-25020

LY220,230,240,270,280,290

 1
Common parts
90119-08C12
90179-08200
90406-04009
90467-09093
90480-22006
90560-08018
91621-60832
91641-K0822
91651-B0820
91651-B0825
