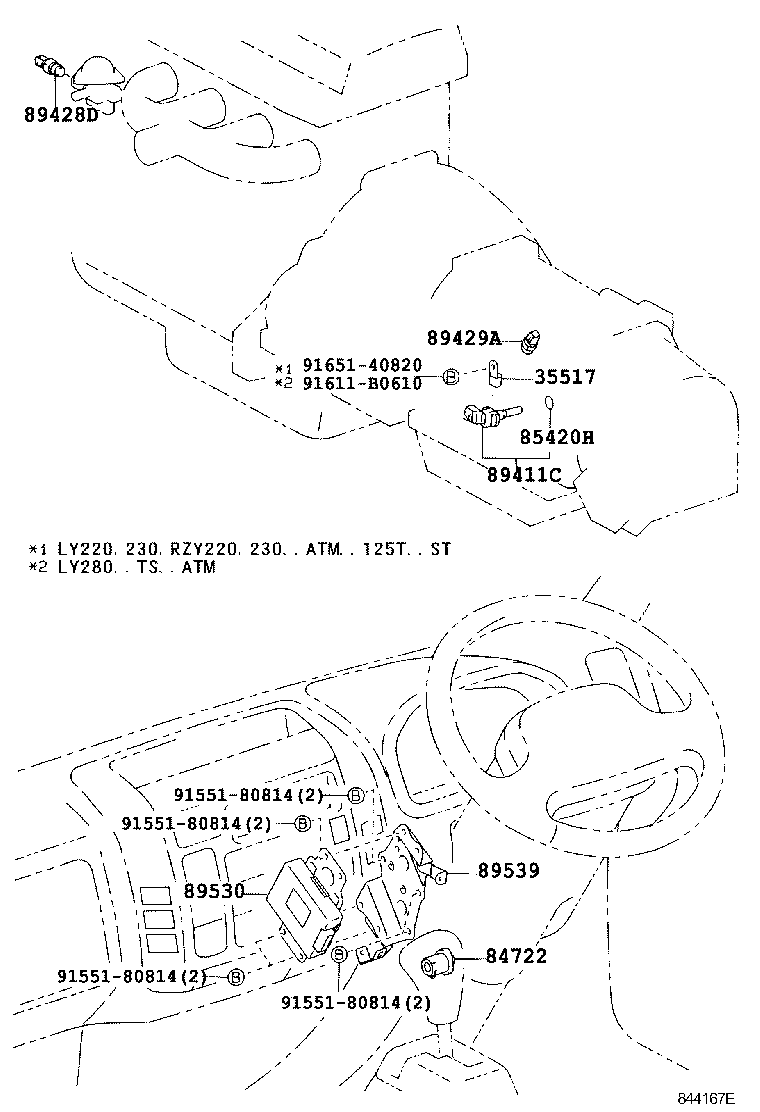

LY280-TLPDS (2001)
Toyota Dyna/Toyoace
(0107-0408)LY220,230,280,RZY220,230..TS..ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35517 - PLATE, TRANSMISSION WIRE LOCK | ||||
| 35517-26010 |
LY280..TS..ATM |
1 | ||
| 84722 - SWITCH, TRANSMISSION CONTROL | ||||
| 84722-37020B0 |
KDY221..TS..ATM;KDY231..TB..ATM..125T;KDY231,TRY230..ST..IV6;KDY231,TRY230..(T2,T3,T4)..ATM..(CBU,IV3);KDY220,230,28#,LY220,230,280,RZY220,23#,281,TRY220,231,281..ATM DK.CHARCOAL,TRIM1# |
1 | ||
| 84722-37020B0 |
LY220,230,280,RZY220,23#,281,TRY220,230..ATM DK.CHARCOAL,TRIM1# |
1 | ||
| 85420H - RING, O(FOR SPEED SENSOR) | ||||
| 96721-19009 |
LY280..TS..ATM |
1 | ||
| 89411C - SENSOR, SPEED | ||||
| 89411-35030 |
LY280..TS..ATM |
1 | ||
| 89428D - SWITCH, TEMPERATURE, NO.2 | ||||
| 89428-36030 |
LY220,230,280,RZY220,230..ATM..(DSL,EFI) |
1 | ||
| 89429A - SENSOR, TEMPERATURE | ||||
| 89428-60090 |
LY280..TS..ATM;LY280,RZY281,TRY281..ATM..LPG |
1 | ||
| 89429-34010 |
LY230..TB..ATM;KDY231..ATM..15T;TRY230..ATM..125T;LY280..TB..ATM..DSL;KDY231..ATM..125T..WT;KDY220,230,280,RZY220,230,TRY220..ATM |
1 | ||
| 89530 - COMPUTER ASSY, TRANSMISSION CONTROL | ||||
| 89530-25070 |
LY220,230,280..TS..ATM |
1 | ||
| 89539 - BRACKET, TRANSMISSION CONTROL COMPUTER | ||||
| 89539-25010 |
TRY230..ATM..15T;KDY22#,23#,28#,LY220,230,280,RZY231,281,TRY231,281..ATM |
1 | ||
| Common parts | ||||
| 91551-80814 | ||||
| 91611-B0610 | ||||
| 91651-40820 | ||||

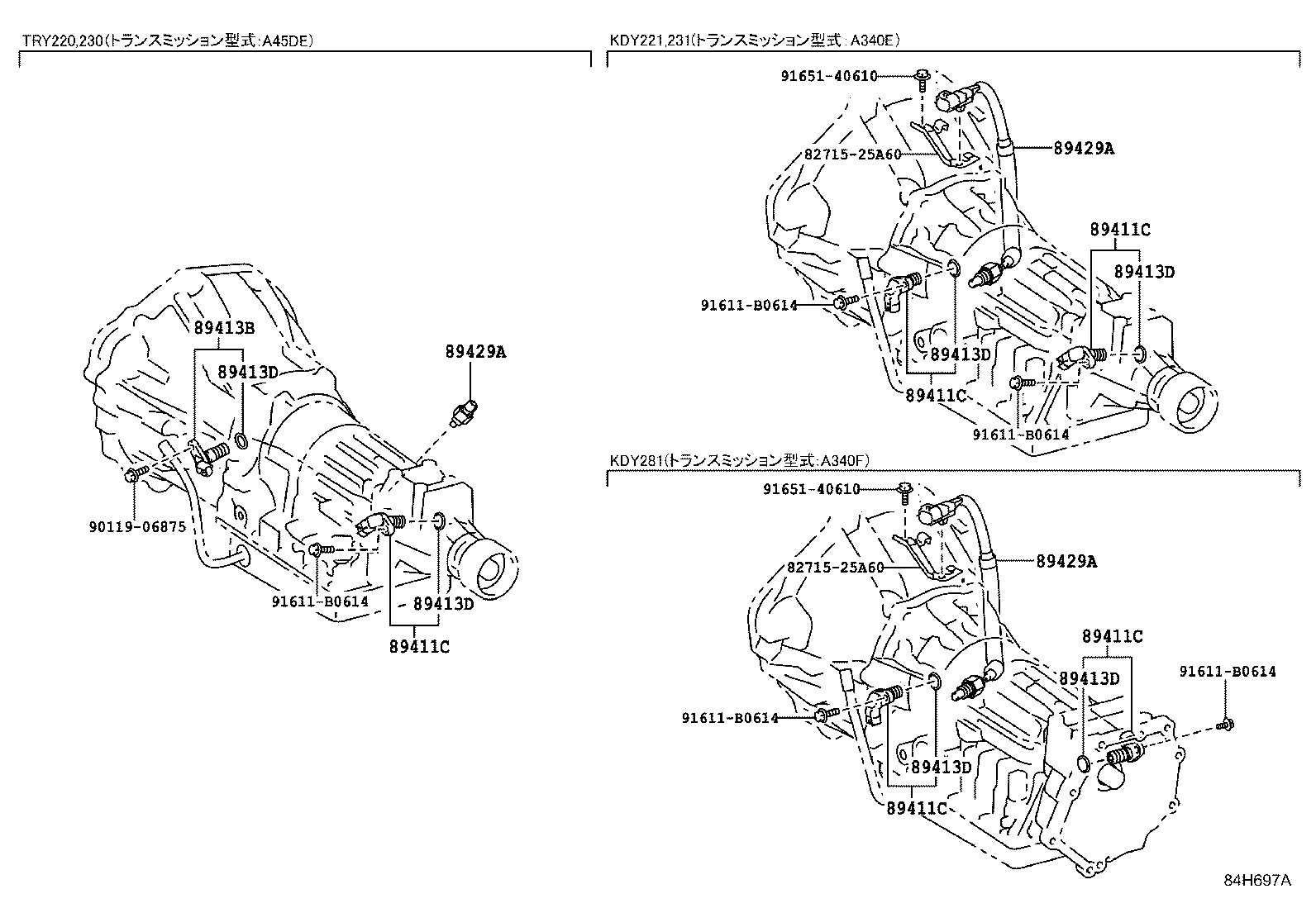

ILLUST NO. 1 OF 2(0308- )TRY220,230..ATM..125T ; (1610- )ATM..125T,1T..ST
ﾄﾗﾝｽﾐｯｼｮﾝ(A45DE,A340E,A340F)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89411C - SENSOR, SPEED | ||||
| 89411-35030 |
LY280..TS..ATM |
1 | ||
| 89411C - SENSOR, SPEED | ||||
| 89411-35030 |
LY280..TS..ATM |
1 | ||
| 89411C - SENSOR, SPEED | ||||
| 89411-35030 |
LY280..TS..ATM |
1 | ||
| 89411C - SENSOR, SPEED | ||||
| 89411-35030 |
LY280..TS..ATM |
1 | ||
| 89411C - SENSOR, SPEED | ||||
| 89411-35030 |
LY280..TS..ATM |
1 | ||
| 89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR) | ||||
| 90301-11008 |
KDY22#,23#,28#,TRY220,230..ATM..(125T,1T)..ST |
2 | ||
| 89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR) | ||||
| 90301-11008 |
KDY22#,23#,28#,TRY220,230..ATM..(125T,1T)..ST |
2 | ||
| 89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR) | ||||
| 90301-11008 |
KDY22#,23#,28#,TRY220,230..ATM..(125T,1T)..ST |
2 | ||
| 89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR) | ||||
| 90301-11008 |
KDY22#,23#,28#,TRY220,230..ATM..(125T,1T)..ST |
2 | ||
| 89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR) | ||||
| 90301-11008 |
KDY22#,23#,28#,TRY220,230..ATM..(125T,1T)..ST |
2 | ||
| 89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR) | ||||
| 90301-11008 |
KDY22#,23#,28#,TRY220,230..ATM..(125T,1T)..ST |
2 | ||
| 89429A - SENSOR, TEMPERATURE | ||||
| 89428-60090 |
LY280..TS..ATM;LY280,RZY281,TRY281..ATM..LPG |
1 | ||
| 89429-34010 |
LY230..TB..ATM;KDY231..ATM..15T;TRY230..ATM..125T;LY280..TB..ATM..DSL;KDY231..ATM..125T..WT;KDY220,230,280,RZY220,230,TRY220..ATM |
1 | ||
| 89429A - SENSOR, TEMPERATURE | ||||
| 89428-60090 |
LY280..TS..ATM;LY280,RZY281,TRY281..ATM..LPG |
1 | ||
| 89429-34010 |
LY230..TB..ATM;KDY231..ATM..15T;TRY230..ATM..125T;LY280..TB..ATM..DSL;KDY231..ATM..125T..WT;KDY220,230,280,RZY220,230,TRY220..ATM |
1 | ||
| 89429A - SENSOR, TEMPERATURE | ||||
| 89428-60090 |
LY280..TS..ATM;LY280,RZY281,TRY281..ATM..LPG |
1 | ||
| 89429-34010 |
LY230..TB..ATM;KDY231..ATM..15T;TRY230..ATM..125T;LY280..TB..ATM..DSL;KDY231..ATM..125T..WT;KDY220,230,280,RZY220,230,TRY220..ATM |
1 | ||
| Common parts | ||||
| 82715-25A60 | ||||
| 90119-06875 | ||||
| 91611-B0614 | ||||
| 91651-40610 | ||||
