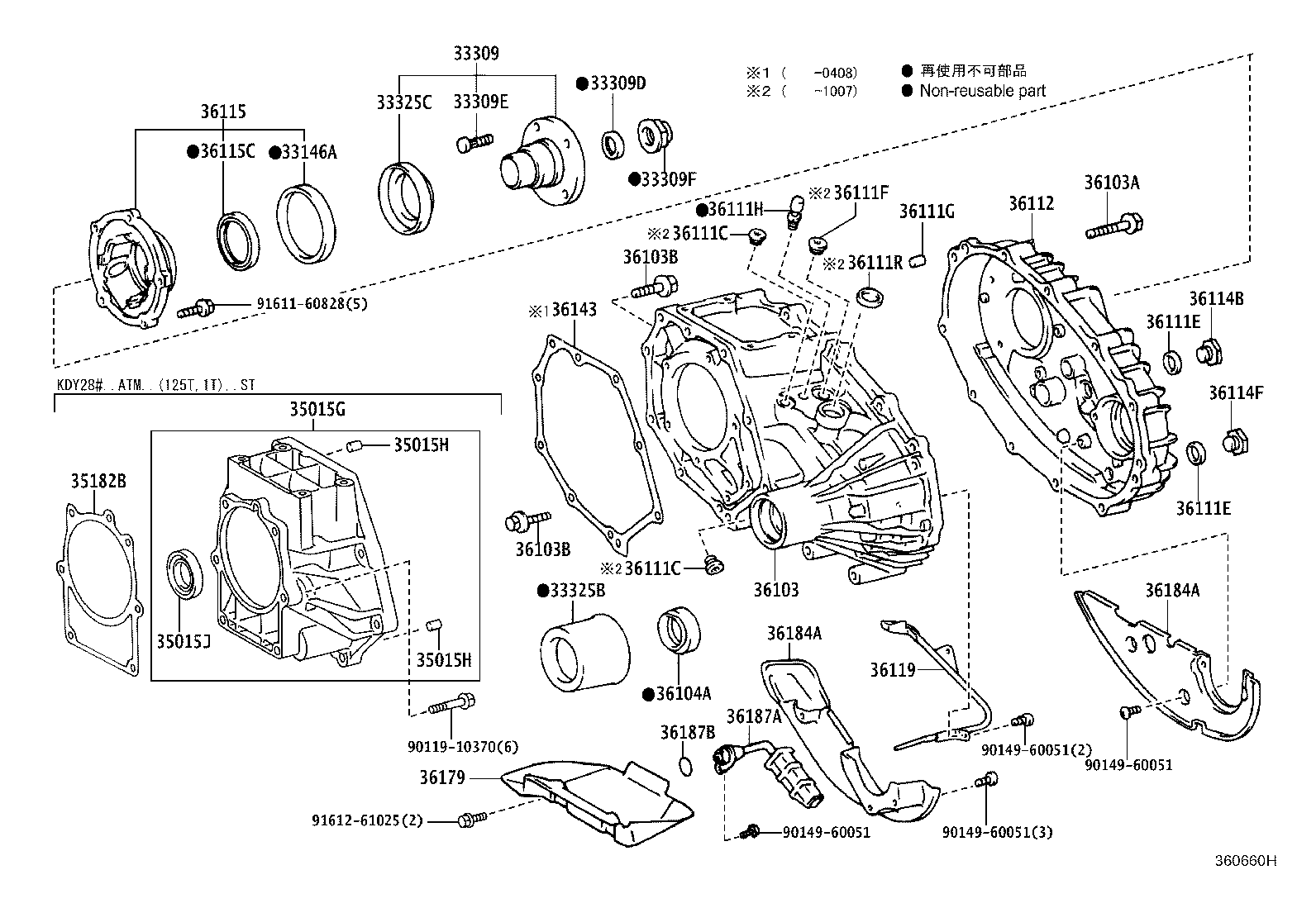

LY280-TLPDS (2001)
Toyota Dyna/Toyoace
(0107- )KDY27#,LY270 ; (0107- )KDY28#,LY280..T2,T3,TW3..125T,1T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33146A - DEFLECTOR, TRANSFER EXTENSION HOUSING DUST | ||||
| 33146-28020 |
KDY27#,LY270;KDY28#,LY280..(T2,T3,TW3)..(125T,1T) |
1 | ||
| 33309 - FLANGE SUB-ASSY, TRANSFER OUTPUT SHAFT COMPANION | ||||
| 33309-28021 |
KDY27#,LY270;KDY28#,LY280..(T2,T3,TW3)..(125T,1T) |
1 | ||
| 33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90312-23001 |
KDY27#,28#,290,LY270,280,290,RZY281,TRY281 |
1 | ||
| 33309E - BOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90114-10061 |
KDY27#,LY270;KDY28#,LY280..(T2,T3,TW3)..(125T,1T) |
4 | ||
| 33309F - NUT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90179-20010 |
KDY27#,28#,290,LY270,280,290,RZY281,TRY281 |
1 | ||
| 33325B - DEFLECTOR, DUST (FOR TRANSFER EXTENSION FRONT HOUSING) | ||||
| 33325-28020 |
KDY27#,28#,290,LY270,280,290,RZY281,TRY281 |
1 | ||
| 33325C - DEFLECTOR, DUST (FOR TRANSFER EXTENSION REAR HOUSING) | ||||
| 33325-28040 |
KDY27#,LY270;KDY28#,LY280..(T2,T3,TW3)..(125T,1T) |
1 | ||
| 36103 - CASE SUB-ASSY, TRANSFER | ||||
| 36103-26020 |
KDY281..T2;KDY270,LY270;KDY280,LY280..(T2,T3,TW3)..TS |
1 | ||
| 36103A - BOLT (FOR TRANSFER CASE) | ||||
| 91612-61055 |
KDY27#,28#,290,LY270,280,290,RZY281,TRY281 *10−1.25PX55−30 |
11 | ||
| 36103B - BOLT (FOR TRANSFER CASE & ADAPTER SETTING) | ||||
| 90119-10615 |
KDY27#,28#,290,LY270,280,290,RZY281,TRY281 *10−1.25PX47−30 |
8 | ||
| 36103B - BOLT (FOR TRANSFER CASE & ADAPTER SETTING) | ||||
| 90119-10615 |
KDY27#,28#,290,LY270,280,290,RZY281,TRY281 *10−1.25PX47−30 |
8 | ||
| 36104A - SEAL, TYPE T, OIL (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90311-37003 |
KDY27#,LY270;KDY28#,LY280..(T2,T3,TW3)..(125T,1T) |
1 | ||
| 36111C - PLUG (FOR TRANSFER CASE) | ||||
| 90341-12014 |
KDY281..T2;KDY270,LY270;KDY280,LY280..(T2,T3,TW3)..TS |
2 | ||
| 36111C - PLUG (FOR TRANSFER CASE) | ||||
| 90341-12014 |
KDY281..T2;KDY270,LY270;KDY280,LY280..(T2,T3,TW3)..TS |
2 | ||
| 36111E - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18008 |
KDY27#,28#,290,LY270,280,290,RZY281,TRY281 |
2 | ||
| 36111E - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18008 |
KDY27#,28#,290,LY270,280,290,RZY281,TRY281 |
2 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-14008 |
KDY281..T2;KDY270,LY270;KDY280,LY280..(T2,T3,TW3)..TS |
1 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10214 |
KDY27#,28#,290,LY270,280,290,RZY281,TRY281 長さ=14,外径=10 |
2 | ||
| 36111H - PLUG, BREATHER (FOR TRANSFER CASE) | ||||
| 90930-03085 |
KDY27#,28#,290,LY270,280,290,RZY281,TRY281 |
1 | ||
| 36111R - PLUG, TIGHT (FOR TRANSFER CASE) | ||||
| 96411-42800 |
KDY281..T2;KDY270,LY270;KDY280,LY280..(T2,T3,TW3)..TS |
1 | ||
| 36112 - CASE, TRANSFER, REAR | ||||
| 36112-26020 |
KDY27#,LY270;KDY28#,LY280..(T2,T3,TW3)..(125T,1T) |
1 | ||
| 36114B - PLUG, NO.1 (FOR TRANSFER CASE) | ||||
| 90341-18006 |
KDY270,280,290,LY270,280,290,RZY281 |
1 | ||
| 36114F - PLUG (FOR TRANSFER DRAIN) | ||||
| 90341-18057 |
KDY27#,28#,290,LY270,280,290,RZY281,TRY281 |
1 | ||
| 36115 - HOUSING, TRANSFER EXTENSION | ||||
| 36105-28020 |
KDY27#,LY270;KDY28#,LY280..(T2,T3,TW3)..(125T,1T) |
1 | ||
| 36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING) | ||||
| 90311-52021 |
KDY27#,LY270;KDY28#,LY280..(T2,T3,TW3)..(125T,1T) |
1 | ||
| 36119 - RECEIVER, TRANSFER OIL, NO.1 | ||||
| 36119-25010 |
KDY27#,28#,290,LY270,280,290,RZY281,TRY281 |
1 | ||
| 36143 - GASKET, TRANSFER CASE, FRONT | ||||
| 36143-28020 |
LY270,280,290,RZY281 |
1 | ||
| 36179 - PROTECTOR, TRANSFER CASE LOWER | ||||
| 36179-25010 |
KDY27#,28#,290,LY270,280,290,RZY281,TRY281 |
1 | ||
| 36184A - SEPARATOR, TRANSFER OIL | ||||
| 36184-28030 |
KDY27#,28#,290,LY270,280,290,RZY281,TRY281 ﾌﾛﾝﾄｹｰｽ側 |
1 | ||
| 36184-26010 |
KDY27#,28#,290,LY270,280,290,RZY281,TRY281 ﾘﾔｹｰｽ側 |
1 | ||
| 36184A - SEPARATOR, TRANSFER OIL | ||||
| 36184-28030 |
KDY27#,28#,290,LY270,280,290,RZY281,TRY281 ﾌﾛﾝﾄｹｰｽ側 |
1 | ||
| 36184-26010 |
KDY27#,28#,290,LY270,280,290,RZY281,TRY281 ﾘﾔｹｰｽ側 |
1 | ||
| 36187A - STRAINR, TRANSFER OIL, NO.1 | ||||
| 36187-25010 |
KDY27#,28#,290,LY270,280,290,RZY281,TRY281 |
1 | ||
| 36187B - RING, O (FOR TRANSFER OIL STRAINER) | ||||
| 96721-24017 |
KDY27#,28#,290,LY270,280,290,RZY281,TRY281 |
1 | ||
| Common parts | ||||
| 90119-10370 | ||||
| 90149-60051 | ||||
| 91611-60828 | ||||
| 91612-61025 | ||||
(0107- )KDY280,LY280..TB ; (0107- )KDY280,LY280..TW1 ; (0107- )KDY281,290,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90312-23001 |
KDY27#,28#,290,LY270,280,290,RZY281,TRY281 |
1 | ||
| 33309F - NUT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90179-20010 |
KDY27#,28#,290,LY270,280,290,RZY281,TRY281 |
1 | ||
| 33325B - DEFLECTOR, DUST (FOR TRANSFER EXTENSION FRONT HOUSING) | ||||
| 33325-28020 |
KDY27#,28#,290,LY270,280,290,RZY281,TRY281 |
1 | ||
| 36103 - CASE SUB-ASSY, TRANSFER | ||||
| 36103-26020 |
KDY281..T2;KDY270,LY270;KDY280,LY280..(T2,T3,TW3)..TS |
1 | ||
| 36103A - BOLT (FOR TRANSFER CASE) | ||||
| 91612-61055 |
KDY27#,28#,290,LY270,280,290,RZY281,TRY281 *10−1.25PX55−30 |
11 | ||
| 36103B - BOLT (FOR TRANSFER CASE & ADAPTER SETTING) | ||||
| 90119-10615 |
KDY27#,28#,290,LY270,280,290,RZY281,TRY281 *10−1.25PX47−30 |
8 | ||
| 36103B - BOLT (FOR TRANSFER CASE & ADAPTER SETTING) | ||||
| 90119-10615 |
KDY27#,28#,290,LY270,280,290,RZY281,TRY281 *10−1.25PX47−30 |
8 | ||
| 36111E - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18008 |
KDY27#,28#,290,LY270,280,290,RZY281,TRY281 |
2 | ||
| 36111E - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18008 |
KDY27#,28#,290,LY270,280,290,RZY281,TRY281 |
2 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10214 |
KDY27#,28#,290,LY270,280,290,RZY281,TRY281 長さ=14,外径=10 |
2 | ||
| 36111H - PLUG, BREATHER (FOR TRANSFER CASE) | ||||
| 90930-03085 |
KDY27#,28#,290,LY270,280,290,RZY281,TRY281 |
1 | ||
| 36112 - CASE, TRANSFER, REAR | ||||
| 36112-26020 |
KDY27#,LY270;KDY28#,LY280..(T2,T3,TW3)..(125T,1T) |
1 | ||
| 36114B - PLUG, NO.1 (FOR TRANSFER CASE) | ||||
| 90341-18006 |
KDY270,280,290,LY270,280,290,RZY281 |
1 | ||
| 36114F - PLUG (FOR TRANSFER DRAIN) | ||||
| 90341-18057 |
KDY27#,28#,290,LY270,280,290,RZY281,TRY281 |
1 | ||
| 36115 - HOUSING, TRANSFER EXTENSION | ||||
| 36105-28020 |
KDY27#,LY270;KDY28#,LY280..(T2,T3,TW3)..(125T,1T) |
1 | ||
| 36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING) | ||||
| 90311-52021 |
KDY27#,LY270;KDY28#,LY280..(T2,T3,TW3)..(125T,1T) |
1 | ||
| 36119 - RECEIVER, TRANSFER OIL, NO.1 | ||||
| 36119-25010 |
KDY27#,28#,290,LY270,280,290,RZY281,TRY281 |
1 | ||
| 36143 - GASKET, TRANSFER CASE, FRONT | ||||
| 36143-28020 |
LY270,280,290,RZY281 |
1 | ||
| 36179 - PROTECTOR, TRANSFER CASE LOWER | ||||
| 36179-25010 |
KDY27#,28#,290,LY270,280,290,RZY281,TRY281 |
1 | ||
| 36184A - SEPARATOR, TRANSFER OIL | ||||
| 36184-28030 |
KDY27#,28#,290,LY270,280,290,RZY281,TRY281 ﾌﾛﾝﾄｹｰｽ側 |
1 | ||
| 36184-26010 |
KDY27#,28#,290,LY270,280,290,RZY281,TRY281 ﾘﾔｹｰｽ側 |
1 | ||
| 36184A - SEPARATOR, TRANSFER OIL | ||||
| 36184-28030 |
KDY27#,28#,290,LY270,280,290,RZY281,TRY281 ﾌﾛﾝﾄｹｰｽ側 |
1 | ||
| 36184-26010 |
KDY27#,28#,290,LY270,280,290,RZY281,TRY281 ﾘﾔｹｰｽ側 |
1 | ||
| 36187A - STRAINR, TRANSFER OIL, NO.1 | ||||
| 36187-25010 |
KDY27#,28#,290,LY270,280,290,RZY281,TRY281 |
1 | ||
| 36187B - RING, O (FOR TRANSFER OIL STRAINER) | ||||
| 96721-24017 |
KDY27#,28#,290,LY270,280,290,RZY281,TRY281 |
1 | ||
| Common parts | ||||
| 90119-10929 | ||||
| 90149-60051 | ||||
| 91612-61025 | ||||
