LY280-TKPFS (2001)
Toyota Dyna/Toyoace
(0107- )LY230,280..TB..ATM
A443E,A443F

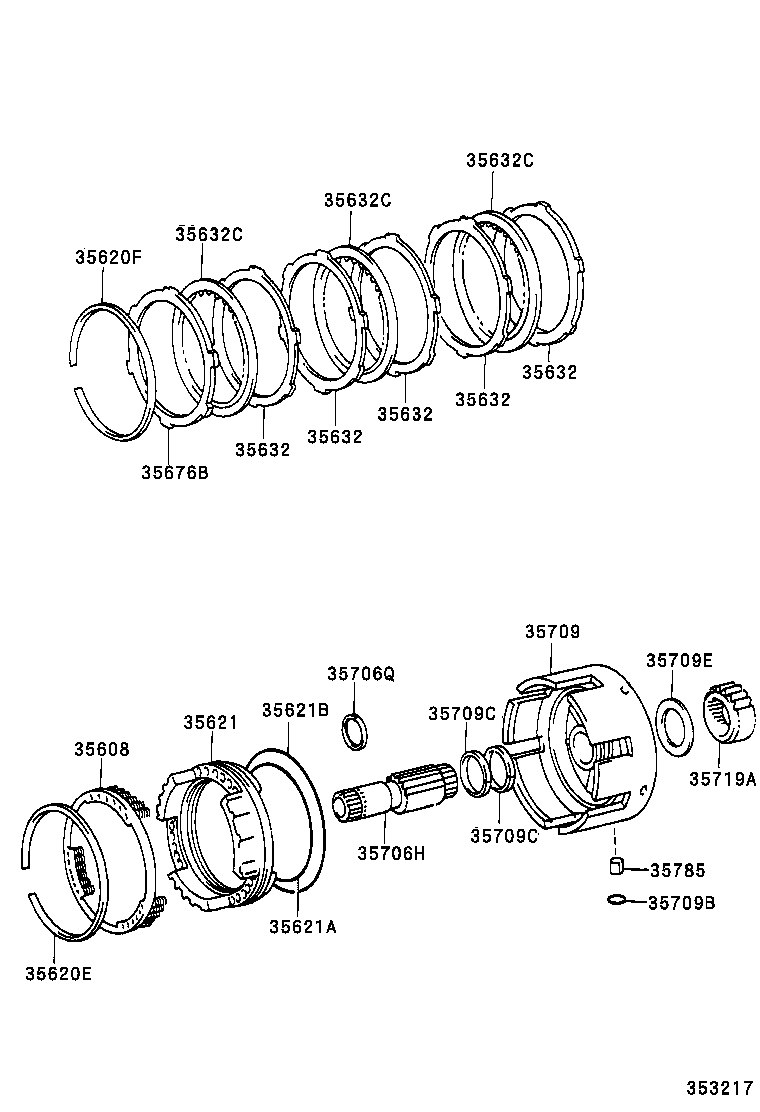

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35608 - SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN | ||||
| 35608-36010 |
LY230,280..TB..ATM..DSL |
1 | ||
| 35620E - RING, HOLE SNAP (FOR BRAKE PISTON RETURN SPRING) | ||||
| 90521-99109 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35620F - RING, HOLE SNAP (FOR BRAKE NO.1 FLANGE) | ||||
| 90521-99109 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35621 - PISTON, BRAKE, NO.1 | ||||
| 35621-36020 |
LY230,280..TB..ATM..DSL |
1 | ||
| 35621A - RING, O (FOR BRAKE PISTON OUTER) | ||||
| 90301-99030 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35621B - RING, O (FOR BRAKE PISTON INNER) | ||||
| 90301-99031 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35632 - PLATE, BRAKE | ||||
| 35632-36010 |
LY230,280..TB..ATM..DSL |
5 | ||
| 35632 - PLATE, BRAKE | ||||
| 35632-36010 |
LY230,280..TB..ATM..DSL |
5 | ||
| 35632 - PLATE, BRAKE | ||||
| 35632-36010 |
LY230,280..TB..ATM..DSL |
5 | ||
| 35632 - PLATE, BRAKE | ||||
| 35632-36010 |
LY230,280..TB..ATM..DSL |
5 | ||
| 35632 - PLATE, BRAKE | ||||
| 35632-36010 |
LY230,280..TB..ATM..DSL |
5 | ||
| 35632C - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-36060 |
LY230,280..TB..ATM..DSL |
3 | ||
| 35632C - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-36060 |
LY230,280..TB..ATM..DSL |
3 | ||
| 35632C - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-36060 |
LY230,280..TB..ATM..DSL |
3 | ||
| 35676B - FLANGE, BRAKE, NO.1 | ||||
| 35676-60020 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=5.2 |
1 | ||
| 35676-60010 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=5.0 |
1 | ||
| 35676-60030 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=5.4 |
1 | ||
| 35676-60040 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=5.6 |
1 | ||
| 35706H - GEAR SUB-ASSY, PLANETARY SUN | ||||
| 35706-36020 |
LY230,280,RZY231,281..TB..ATM |
1 | ||
| 35706Q - RING, SHAFT SNAP (FOR FRONT PLANETARY SUN GEAR) | ||||
| 90520-33009 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35709 - SUPPORT SUB-ASSY, CENTER | ||||
| 35709-60041 |
LY230,280..TB..ATM..DSL |
1 | ||
| 35709B - RING, O (FOR CENTER SUPPORT) | ||||
| 90301-09008 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
3 | ||
| 35709C - RING, OIL SEAL (FOR CENTER SUPPORT) | ||||
| 35617-36020 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
2 | ||
| 35709C - RING, OIL SEAL (FOR CENTER SUPPORT) | ||||
| 35617-36020 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
2 | ||
| 35709E - WASHER (FOR CENTER SUPPORT) | ||||
| 90209-52007 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=2.1 |
1 | ||
| 90209-52008 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=2.4 |
1 | ||
| 90209-52005 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=1.5 |
1 | ||
| 90209-52006 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=1.8 |
1 | ||
| 90209-52009 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=2.7 |
1 | ||
| 35719A - GEAR, REAR PLANETARY SUN | ||||
| 35719-36020 |
LY230,280,RZY231,281..TB..ATM |
1 | ||
| 35785 - RETAINER, CENTER SUPPORT RING | ||||
| 35785-36010 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
3 | ||
(0107- )KDY230,280,LY230,280,RZY231,281,TRY230..TB..ATM..DCR,EFI,LPG ; (0605-
A442E,A442F,A443E,A443F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35608 - SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN | ||||
| 35608-36010 |
LY230,280..TB..ATM..DSL |
1 | ||
| 35608-36010 |
LY230,280..TB..ATM..DSL |
1 | ||
| 35620E - RING, HOLE SNAP (FOR BRAKE PISTON RETURN SPRING) | ||||
| 90521-99109 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 90521-99109 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35620F - RING, HOLE SNAP (FOR BRAKE NO.1 FLANGE) | ||||
| 90521-99109 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 90521-99109 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35621 - PISTON, BRAKE, NO.1 | ||||
| 35621-36020 |
LY230,280..TB..ATM..DSL |
1 | ||
| 35621-36020 |
LY230,280..TB..ATM..DSL |
1 | ||
| 35621A - RING, O (FOR BRAKE PISTON OUTER) | ||||
| 90301-99030 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 90301-99030 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35621B - RING, O (FOR BRAKE PISTON INNER) | ||||
| 90301-99031 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 90301-99031 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35632 - PLATE, BRAKE | ||||
| 35632-36010 |
LY230,280..TB..ATM..DSL |
5 | ||
| 35632-36010 |
LY230,280..TB..ATM..DSL |
5 | ||
| 35632 - PLATE, BRAKE | ||||
| 35632-36010 |
LY230,280..TB..ATM..DSL |
5 | ||
| 35632-36010 |
LY230,280..TB..ATM..DSL |
5 | ||
| 35632 - PLATE, BRAKE | ||||
| 35632-36010 |
LY230,280..TB..ATM..DSL |
5 | ||
| 35632-36010 |
LY230,280..TB..ATM..DSL |
5 | ||
| 35632 - PLATE, BRAKE | ||||
| 35632-36010 |
LY230,280..TB..ATM..DSL |
5 | ||
| 35632-36010 |
LY230,280..TB..ATM..DSL |
5 | ||
| 35632C - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-36060 |
LY230,280..TB..ATM..DSL |
3 | ||
| 35633-36060 |
LY230,280..TB..ATM..DSL |
3 | ||
| 35632C - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-36060 |
LY230,280..TB..ATM..DSL |
3 | ||
| 35633-36060 |
LY230,280..TB..ATM..DSL |
3 | ||
| 35632C - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-36060 |
LY230,280..TB..ATM..DSL |
3 | ||
| 35633-36060 |
LY230,280..TB..ATM..DSL |
3 | ||
| 35632C - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-36060 |
LY230,280..TB..ATM..DSL |
3 | ||
| 35633-36060 |
LY230,280..TB..ATM..DSL |
3 | ||
| 35676B - FLANGE, BRAKE, NO.1 | ||||
| 35676-60020 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=5.2 |
1 | ||
| 35676-60020 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=5.2 |
1 | ||
| 35676-60010 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=5.0 |
1 | ||
| 35676-60010 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=5.0 |
1 | ||
| 35676-60030 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=5.4 |
1 | ||
| 35676-60030 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=5.4 |
1 | ||
| 35676-60040 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=5.6 |
1 | ||
| 35676-60040 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=5.6 |
1 | ||
| 35706H - GEAR SUB-ASSY, PLANETARY SUN | ||||
| 35706-36020 |
LY230,280,RZY231,281..TB..ATM |
1 | ||
| 35706-36020 |
LY230,280,RZY231,281..TB..ATM |
1 | ||
| 35706Q - RING, SHAFT SNAP (FOR FRONT PLANETARY SUN GEAR) | ||||
| 90520-33009 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 90520-33009 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35709 - SUPPORT SUB-ASSY, CENTER | ||||
| 35709-60041 |
LY230,280..TB..ATM..DSL |
1 | ||
| 35709-60041 |
LY230,280..TB..ATM..DSL |
1 | ||
| 35709B - RING, O (FOR CENTER SUPPORT) | ||||
| 90301-09008 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
3 | ||
| 90301-09008 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
3 | ||
| 35709C - RING, OIL SEAL (FOR CENTER SUPPORT) | ||||
| 35617-36020 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
2 | ||
| 35617-36020 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
2 | ||
| 35709C - RING, OIL SEAL (FOR CENTER SUPPORT) | ||||
| 35617-36020 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
2 | ||
| 35617-36020 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
2 | ||
| 35709E - WASHER (FOR CENTER SUPPORT) | ||||
| 90209-52007 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=2.1 |
1 | ||
| 90209-52007 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=2.1 |
1 | ||
| 90209-52008 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=2.4 |
1 | ||
| 90209-52008 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=2.4 |
1 | ||
| 90209-52005 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=1.5 |
1 | ||
| 90209-52005 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=1.5 |
1 | ||
| 90209-52006 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=1.8 |
1 | ||
| 90209-52006 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=1.8 |
1 | ||
| 90209-52009 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=2.7 |
1 | ||
| 90209-52009 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=2.7 |
1 | ||
| 35719A - GEAR, REAR PLANETARY SUN | ||||
| 35719-36020 |
LY230,280,RZY231,281..TB..ATM |
1 | ||
| 35719-36020 |
LY230,280,RZY231,281..TB..ATM |
1 | ||
| 35785 - RETAINER, CENTER SUPPORT RING | ||||
| 35785-36010 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
3 | ||
| 35785-36010 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
3 | ||
