LY280-TKPFS (2001)
Toyota Dyna/Toyoace
(0107- )KDY230,280,LY230,280,RZY231,281,TRY230..TB..ATM ; (0605- )KDY230..TS.
A442E,A442F,A443E,A443F

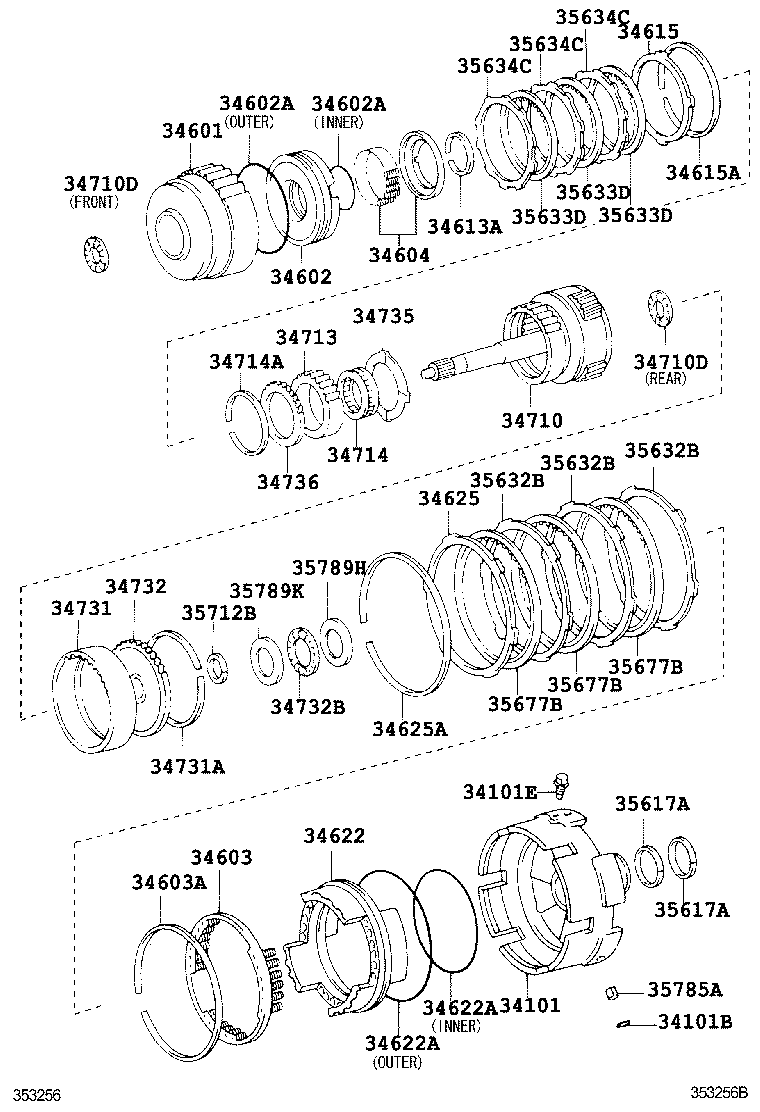

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 34101 - CASE SUB-ASSY, OVERDRIVE | ||||
| 34101-60040 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 34101-60040 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 34101B - RING, O (FOR OVERDRIVE CASE) | ||||
| 90301-09008 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
3 | ||
| 90301-09008 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
3 | ||
| 34101E - BOLT (FOR OVERDRIVE CASE & TRANSAXLE CASE SETTING) | ||||
| 90105-12307 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T *12−1.25PX20.5−13 |
3 | ||
| 90105-12307 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T *12−1.25PX20.5−13 |
3 | ||
| 34601 - DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH | ||||
| 34601-60030 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 34601-60030 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 34602 - PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH | ||||
| 34602-60020 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 34602-60020 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 34602A - RING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON) | ||||
| 90301-64007 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 内側 |
1 | ||
| 90301-64007 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 内側 |
1 | ||
| 90301-99027 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 外側 |
1 | ||
| 90301-99027 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 外側 |
1 | ||
| 34602A - RING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON) | ||||
| 90301-64007 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 内側 |
1 | ||
| 90301-64007 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 内側 |
1 | ||
| 90301-99027 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 外側 |
1 | ||
| 90301-99027 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 外側 |
1 | ||
| 34603 - SPRING SUB-ASSY, OVERDRIVE BRAKE RETURN | ||||
| 34603-60010 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 34603-60010 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 34603A - RING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING) | ||||
| 90521-99109 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 90521-99109 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 34604 - SPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN | ||||
| 34604-60020 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 34604-60020 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 34613A - RING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH RETURN SP | ||||
| 90520-50001 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 90520-50001 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 34615 - FLANGE, OVERDRIVE CLUTCH | ||||
| 35675-60080 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=4.77 |
1 | ||
| 35675-60080 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=4.77 |
1 | ||
| 35675-60090 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=4.94 |
1 | ||
| 35675-60090 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=4.94 |
1 | ||
| 35675-60100 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=5.11 |
1 | ||
| 35675-60100 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=5.11 |
1 | ||
| 35675-60070 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=4.6 |
1 | ||
| 35675-60070 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=4.6 |
1 | ||
| 34615A - RING, HOLE SNAP (FOR OVERDRIVE CLUTCH FLANGE) | ||||
| 90521-99115 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 90521-99115 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 34622 - PISTON, OVERDRIVE BRAKE | ||||
| 34622-60010 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 34622-60010 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 34622A - RING, O (FOR OVERDRIVE BRAKE PISTON) | ||||
| 90301-99030 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 外側 |
1 | ||
| 90301-99030 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 外側 |
1 | ||
| 90301-99031 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 内側 |
1 | ||
| 90301-99031 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 内側 |
1 | ||
| 34622A - RING, O (FOR OVERDRIVE BRAKE PISTON) | ||||
| 90301-99030 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 外側 |
1 | ||
| 90301-99030 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 外側 |
1 | ||
| 90301-99031 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 内側 |
1 | ||
| 90301-99031 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 内側 |
1 | ||
| 34625 - FLANGE, OVERDRIVE BRAKE, NO.1 | ||||
| 34625-60020 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=5.0 |
1 | ||
| 34625-60020 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=5.0 |
1 | ||
| 34625A - RING, HOLE SNAP (FOR OVERDRIVE BRAKE FLANGE) | ||||
| 90521-99109 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 90521-99109 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 34710 - GEAR ASSY, OVERDRIVE PLANETARY | ||||
| 34710-25010 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 34710-25010 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 34710D - BEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY G | ||||
| 90374-23001 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T ﾘﾔ |
1 | ||
| 90374-23001 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T ﾘﾔ |
1 | ||
| 90374-28012 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T ﾌﾛﾝﾄ |
1 | ||
| 90374-28012 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T ﾌﾛﾝﾄ |
1 | ||
| 34710D - BEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY G | ||||
| 90374-23001 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T ﾘﾔ |
1 | ||
| 90374-23001 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T ﾘﾔ |
1 | ||
| 90374-28012 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T ﾌﾛﾝﾄ |
1 | ||
| 90374-28012 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T ﾌﾛﾝﾄ |
1 | ||
| 34713 - RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE) | ||||
| 34713-36010 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 34713-36010 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 34714 - CLUTCH, 1 WAY(FOR OVERDRIVE) | ||||
| 35791-36010 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35791-36010 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 34714A - RING, HOLE SNAP(FOR 1 WAY CLUTCH) | ||||
| 90521-90002 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 90521-90002 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 34731 - GEAR, OVERDRIVE PLANETARY RING | ||||
| 34731-60010 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 34731-60010 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 34731A - RING, HOLE SNAP (FOR OVERDRIVE PLANETARY RING GEAR) | ||||
| 90521-99110 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 90521-99110 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 34732 - FLANGE, OVERDRIVE PLANETARY RING GEAR | ||||
| 34732-60020 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 34732-60020 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 34732B - BEARING, THRUST(FOR OVERDRIVE PLANETARY RING GEAR FLANG | ||||
| 90374-34007 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 90374-34007 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 34735 - WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.1 | ||||
| 34737-60020 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 34737-60020 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 34736 - WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.2 | ||||
| 34738-36010 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 34738-36010 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35617A - RING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE) | ||||
| 35617-36020 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
2 | ||
| 35617-36020 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
2 | ||
| 35617A - RING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE) | ||||
| 35617-36020 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
2 | ||
| 35617-36020 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
2 | ||
| 35632B - PLATE, BRAKE (FOR OVERDRIVE) | ||||
| 35632-60010 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=2.4 |
2 | ||
| 35632-60010 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=2.4 |
2 | ||
| 35632-60050 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=4.0 |
1 | ||
| 35632-60050 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=4.0 |
1 | ||
| 35632B - PLATE, BRAKE (FOR OVERDRIVE) | ||||
| 35632-60010 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=2.4 |
2 | ||
| 35632-60010 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=2.4 |
2 | ||
| 35632-60050 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=4.0 |
1 | ||
| 35632-60050 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=4.0 |
1 | ||
| 35632B - PLATE, BRAKE (FOR OVERDRIVE) | ||||
| 35632-60010 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=2.4 |
2 | ||
| 35632-60010 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=2.4 |
2 | ||
| 35632-60050 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=4.0 |
1 | ||
| 35632-60050 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=4.0 |
1 | ||
| 35633D - DISC, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 35633-60050 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
3 | ||
| 35633-60050 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
3 | ||
| 35633D - DISC, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 35633-60050 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
3 | ||
| 35633-60050 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
3 | ||
| 35633D - DISC, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 35633-60050 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
3 | ||
| 35633-60050 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
3 | ||
| 35634C - PLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 35634-60010 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
3 | ||
| 35634-60010 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
3 | ||
| 35634C - PLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 35634-60010 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
3 | ||
| 35634-60010 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
3 | ||
| 35634C - PLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 35634-60010 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
3 | ||
| 35634-60010 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
3 | ||
| 35677B - DISC, CLUTCH (FOR OVERDRIVE BRAKE) | ||||
| 35633-60060 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
3 | ||
| 35633-60060 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
3 | ||
| 35677B - DISC, CLUTCH (FOR OVERDRIVE BRAKE) | ||||
| 35633-60060 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
3 | ||
| 35633-60060 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
3 | ||
| 35677B - DISC, CLUTCH (FOR OVERDRIVE BRAKE) | ||||
| 35633-60060 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
3 | ||
| 35633-60060 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
3 | ||
| 35712B - RING, OIL SEAL (FOR OVERDRIVE PLANETARY RING GEAR FLANG | ||||
| 35712-36010 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35712-36010 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35785A - RETAINER, OVERDRIVE CASE RING | ||||
| 35785-36010 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
3 | ||
| 35785-36010 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
3 | ||
| 35789H - RACE, THRUST BEARING (FOR OVERDRIVE CASE) | ||||
| 35789-60030 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35789-60030 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35789K - RACE, THRUST BEARING (FOR OVERDRIVE PLANETARY GEAR) | ||||
| 35789-60020 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35789-60020 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
