LY280-TKMFS3 (2001)
Toyota Dyna/Toyoace

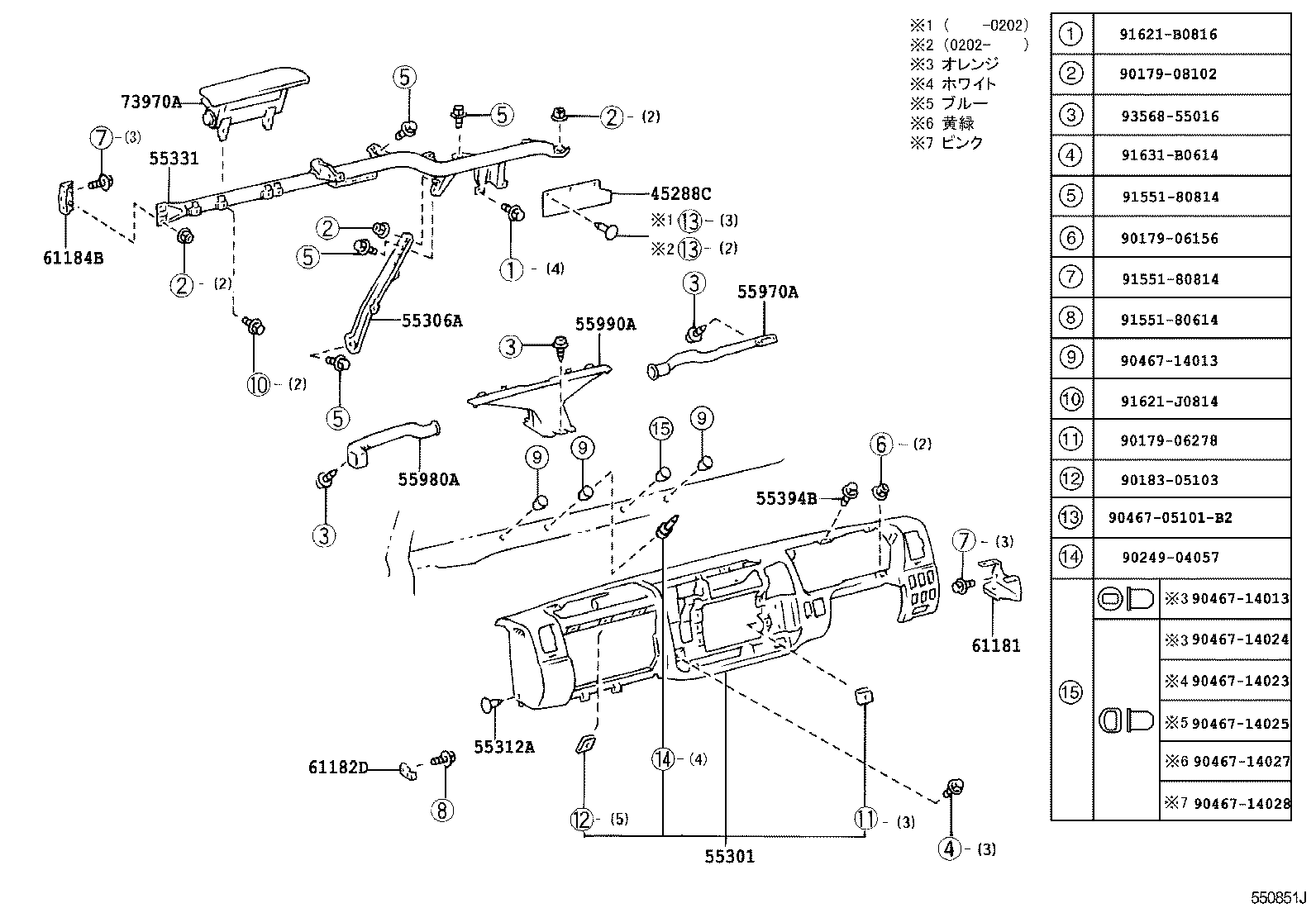

ILLUST NO. 1 OF 2(0107-1610)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45288C - PLATE, STEERING COLUMN COVER | ||||
| 45288-37010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-25030B0 |
LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 ｱﾘ(SRS ｳﾝﾃﾝｾｷ ｴｱﾊﾞﾂｸﾞ & SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ),MD.CHARCOAL,TRIM1# |
1 | ||
| 55301-25020B0 |
LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 MD.CHARCOAL,TRIM1# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-37011 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-07041B8 |
KDY220,230,240,270,280,290,RZY231,281 MD.CHARCOAL,TRIM1# |
2 | ||
| 90467-07041B8 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL MD.CHARCOAL,TRIM1# |
2 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-37024 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 |
1 | ||
| 55330-37032 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 ｱﾘ(SRS ｳﾝﾃﾝｾｷ ｴｱﾊﾞﾂｸﾞ & SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ) |
1 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-37010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
4 | ||
| 55970A - DUCT ASSY, SIDE DEFROSTER, RH | ||||
| 55971-37050 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 55971-37050 |
KDY220,230,240,270,280,290,RZY231,281 |
1 | ||
| 55980A - DUCT ASSY, SIDE DEFROSTER, LH | ||||
| 55972-37050 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 55972-37050 |
KDY220,230,240,270,280,290,RZY231,281 |
1 | ||
| 55990A - NOZZLE ASSY, DEFROSTER, LOWER | ||||
| 55990-37041 |
KDY220,230,240,270,280,290,RZY231,281 |
1 | ||
| 55990-37041 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 61181 - BRACKET, INSTRUMENT PANEL SIDE | ||||
| 55707-37010 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 55707-37010 |
KDY220,230,240,270,280,290,RZY231,281 |
1 | ||
| 61182D - BRACKET, INSTRUMENT PANEL SIDE | ||||
| 61181-37040 |
KDY220,230,240,270,280,290,RZY231,281 |
1 | ||
| 61181-37040 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 61184B - BRACKET, INSTRUMENT PANEL SIDE, NO.2 LH | ||||
| 61184-37010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-37010B0 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 MD.CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 90179-06156 | ||||
| 90179-06278 | ||||
| 90179-08102 | ||||
| 90183-05103 | ||||
| 90249-04057 | ||||
| 90467-05101B2 | ||||
| 90467-14013 | ||||
| 90467-14023 | ||||
| 90467-14024 | ||||
| 90467-14025 | ||||
| 90467-14027 | ||||
| 90467-14028 | ||||
| 91551-80614 | ||||
| 91551-80814 | ||||
| 91621-B0816 | ||||
| 91621-J0814 | ||||
| 91631-B0614 | ||||
| 93568-55016 | ||||

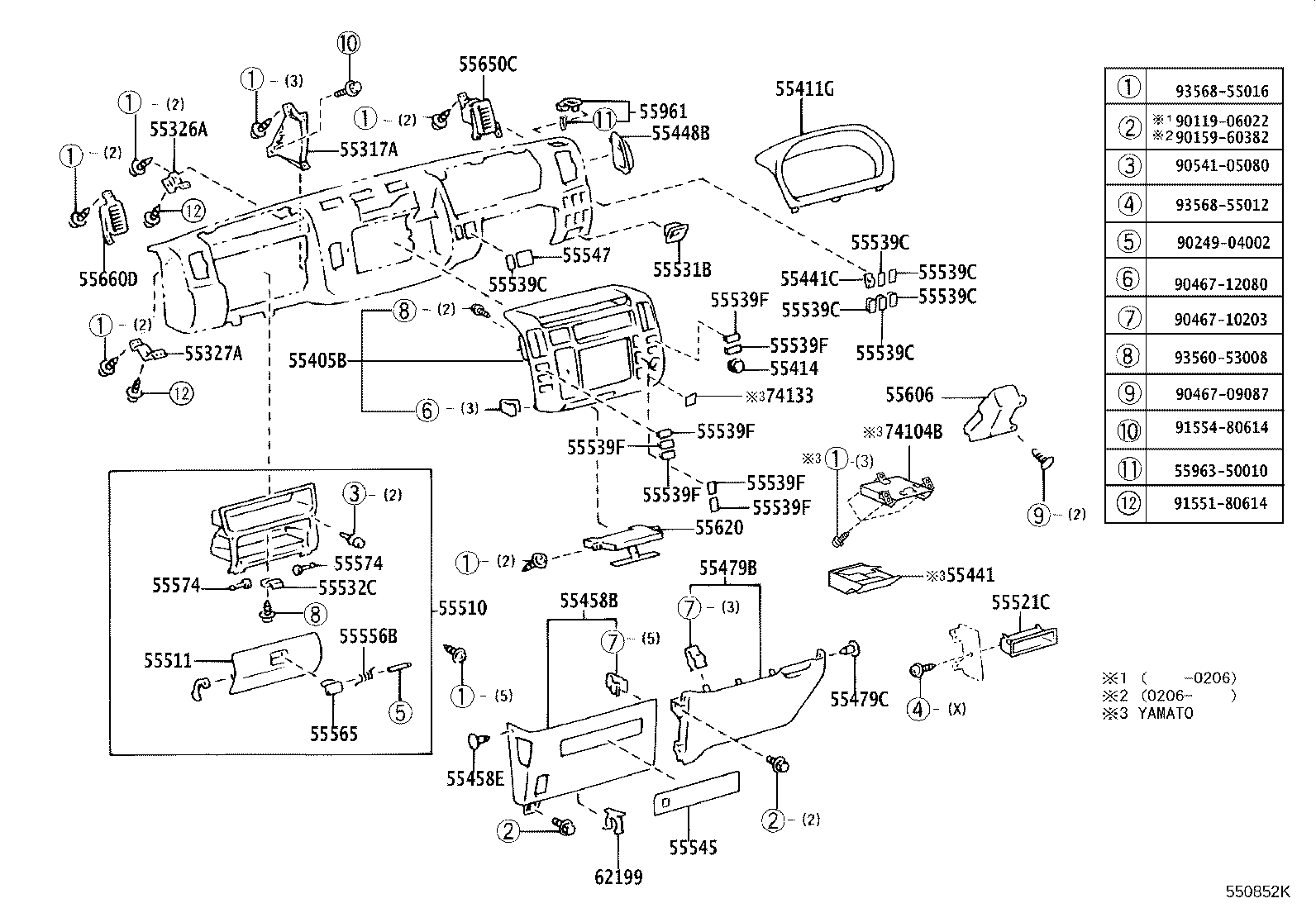

ILLUST NO. 2 OF 2(0107-1610)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-37010 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 55317-37010 |
KDY220,230,240,270,280,290,RZY231,281 |
1 | ||
| 55326A - STAY, INSTRUMENT PANEL, NO.1 | ||||
| 55326-37010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 55327A - STAY, INSTRUMENT PANEL, NO.2 | ||||
| 55327-37010 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 55327-37010 |
KDY220,230,240,270,280,290,RZY231,281 |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-37150 |
KDY221,23#..T2,T3;KDY221,23#..T4..TB;KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 ﾓｸﾒ |
1 | ||
| 55405-37140 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-25020B0 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-37020 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 55477-37020 |
KDY220,230,240,270,280,290,RZY231,281 |
1 | ||
| 55441C - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-20140B6 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL MD.CHARCOAL,TRIM1# |
1 | ||
| 55441-20140B6 |
KDY220,230,240,270,280,290,RZY231,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55448B - COVER, OIL RESERVOIR TANK, RH | ||||
| 55448-37020B0 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55458B - COVER, INSTRUMENT, LWR | ||||
| 55458-37010B0 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55458E - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-07041B8 |
KDY220,230,240,270,280,290,RZY231,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 90467-07041B8 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL MD.CHARCOAL,TRIM1# |
1 | ||
| 55479B - COVER, INSTRUMENT, LOWER CENTER | ||||
| 55320-37010B0 |
LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY220,RZY231,281..15T,1T;LY230..TB..(12T,15T,175T)..DSL MD.CHARCOAL,TRIM1# |
1 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-07041B8 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
2 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-37010B0 |
KDY220,230,240,270,280,290,RZY231,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55550-37010B0 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL MD.CHARCOAL,TRIM1# |
1 | ||
| 55511 - DOOR, GLOVE COMPARTMENT | ||||
| 55511-37020B0 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL MD.CHARCOAL,TRIM1# |
1 | ||
| 55511-37020B0 |
KDY220,230,240,270,280,290,RZY231,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-89102 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｱﾘ(2 ｽﾋﾟ-ｶ) |
3 | ||
| 55521-89102 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
2 | ||
| 55521-89102 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｱﾘ(CD ﾌﾟﾚ-ﾔ) |
1 | ||
| 55531B - COVER, CHOKE KNOB HOLE | ||||
| 55531-37010B0 |
KDY220,230,240,270,280,290,RZY231,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55531-37020B0 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL MD.CHARCOAL,TRIM1# |
1 | ||
| 55532C - STOPPER, GLOVE DOOR | ||||
| 55532-37030 |
KDY220,230,240,270,280,290,RZY231,281 |
1 | ||
| 55532-37030 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-37020B0 |
KDY220,230,240,270,280,290,RZY231,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55539-37020B0 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL MD.CHARCOAL,TRIM1# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-37020B0 |
KDY220,230,240,270,280,290,RZY231,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55539-37020B0 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL MD.CHARCOAL,TRIM1# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-37020B0 |
KDY220,230,240,270,280,290,RZY231,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55539-37020B0 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL MD.CHARCOAL,TRIM1# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-37020B0 |
KDY220,230,240,270,280,290,RZY231,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55539-37020B0 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL MD.CHARCOAL,TRIM1# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-37020B0 |
KDY220,230,240,270,280,290,RZY231,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55539-37020B0 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL MD.CHARCOAL,TRIM1# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-37020B0 |
KDY220,230,240,270,280,290,RZY231,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55539-37020B0 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL MD.CHARCOAL,TRIM1# |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010C0 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL BLACK,TRIM1# |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010C0 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL BLACK,TRIM1# |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010C0 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL BLACK,TRIM1# |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010C0 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL BLACK,TRIM1# |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010C0 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL BLACK,TRIM1# |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010C0 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL BLACK,TRIM1# |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010C0 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL BLACK,TRIM1# |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-37010B0 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-37010B0 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55556B - SPRING, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55518-37010 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 55518-37010 |
KDY220,230,240,270,280,290,RZY231,281 |
1 | ||
| 55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-37030B0 |
KDY220,230,240,270,280,290,RZY231,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55565-37030B0 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL MD.CHARCOAL,TRIM1# |
1 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-38010 |
KDY220,230,240,270,280,290,RZY231,281 |
2 | ||
| 55574-38010 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
2 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-38010 |
KDY220,230,240,270,280,290,RZY231,281 |
2 | ||
| 55574-38010 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
2 | ||
| 55620 - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55620-37021 |
KDY220,230,240,270,280,290,RZY231,281 |
1 | ||
| 55620-37021 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 55650C - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-37030B0 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55660D - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55660-37010B0 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL MD.CHARCOAL,TRIM1# |
1 | ||
| 55660-37010B0 |
KDY220,230,240,270,280,290,RZY231,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-37030B0 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL MD.CHARCOAL,TRIM1# |
1 | ||
| 55961-37030B0 |
KDY220,230,240,270,280,290,RZY231,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 62199 - HOLDER, FUSEE | ||||
| 90468-25003 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
2 | ||
| Common parts | ||||
| 55963-50010 | ||||
| 90119-06022 | ||||
| 90159-60382 | ||||
| 90249-04002 | ||||
| 90467-09087 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 90541-05080 | ||||
| 91551-80614 | ||||
| 91554-80614 | ||||
| 93560-53008 | ||||
| 93568-55012 | ||||
| 93568-55016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
