LY280-TGMFS3 (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )DSL

Click highlighted areas on diagram

ﾉｿﾞｸ(ﾚｲﾄｳｼｬ)

diagram 88320 88330A 88410 88431 88440B 88440D 88444 88446 8844660020 88469A 8868825200 88688K 9009904349 9009904950 9009907065 9009907114 9011908474 9011908B42 9011910367 9011912160 9331915008
Part # Description Qty Price

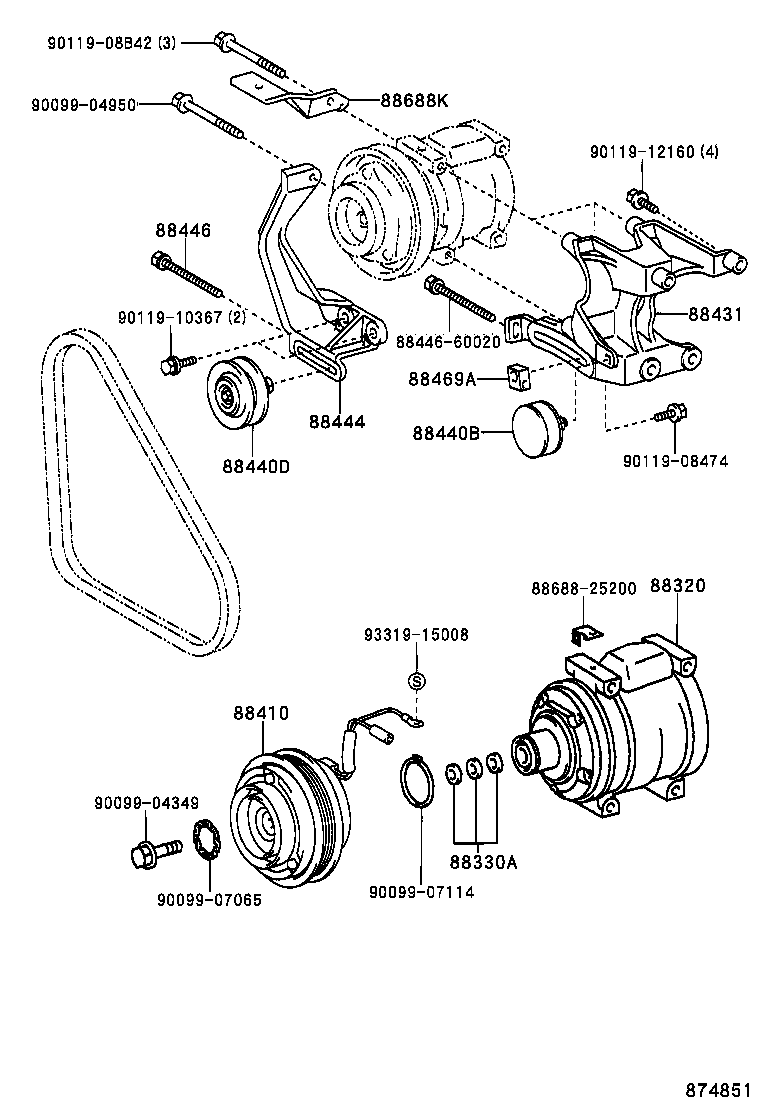

88320 - COMPRESSOR ASSY, COOLER
88320-37080

LY220,230,240,270,280,290,RZY220,23#,281

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
88410 - CLUTCH ASSY, MAGNET
88410-25150

LY220,230,240,270,280,290..DSL

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-25230

LY220,230,240,270,280,290..DSL

 1
88440B - PULLEY ASSY, IDLE
88440-26070

LY220,230,240,270,280,290..DSL

 1
88440D - PULLEY ASSY, IDLE NO.2
88440-35030

LY220,230,240,270,280,290..DSL

 1
88444 - BRACKET, IDLE PULLEY
88444-25080

LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL

 1
88446 - BOLT, IDLE PULLEY
88446-35030

LY220,230,240,270,280,290..DSL

 1
88469A - COLLAR, ADJUSTING
88469-30280

LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL

 1
88688K - BRACKET, COOLER COMPRESSOR
88688-25310

LY220,230,240,270,280,290,RZY220,23#,281

 1
Common parts
88446-60020
88688-25200
90099-04349
90099-04950
90099-07065
90099-07114
90119-08474
90119-08B42
90119-10367
90119-12160
93319-15008

(0108-0408)LY220,230,240,270,280,290

Click highlighted areas on diagram

ﾚｲﾄｳｼｬ(ｼﾂﾅｲﾖｳ)

diagram 88301 88302B 88320 88403 88410 88431 88432 88433 88434 88435 88436 88440E 8857825050 88648F 9009140605 9009140802 9009301202 9009301202 9009904208 9009904553 9010510438 9010510438 9010510438 9151180825 9151180825 91511B0845 91511C0835 91511C0835 91511C0835 9151281040 9451101000
Part # Description Qty Price

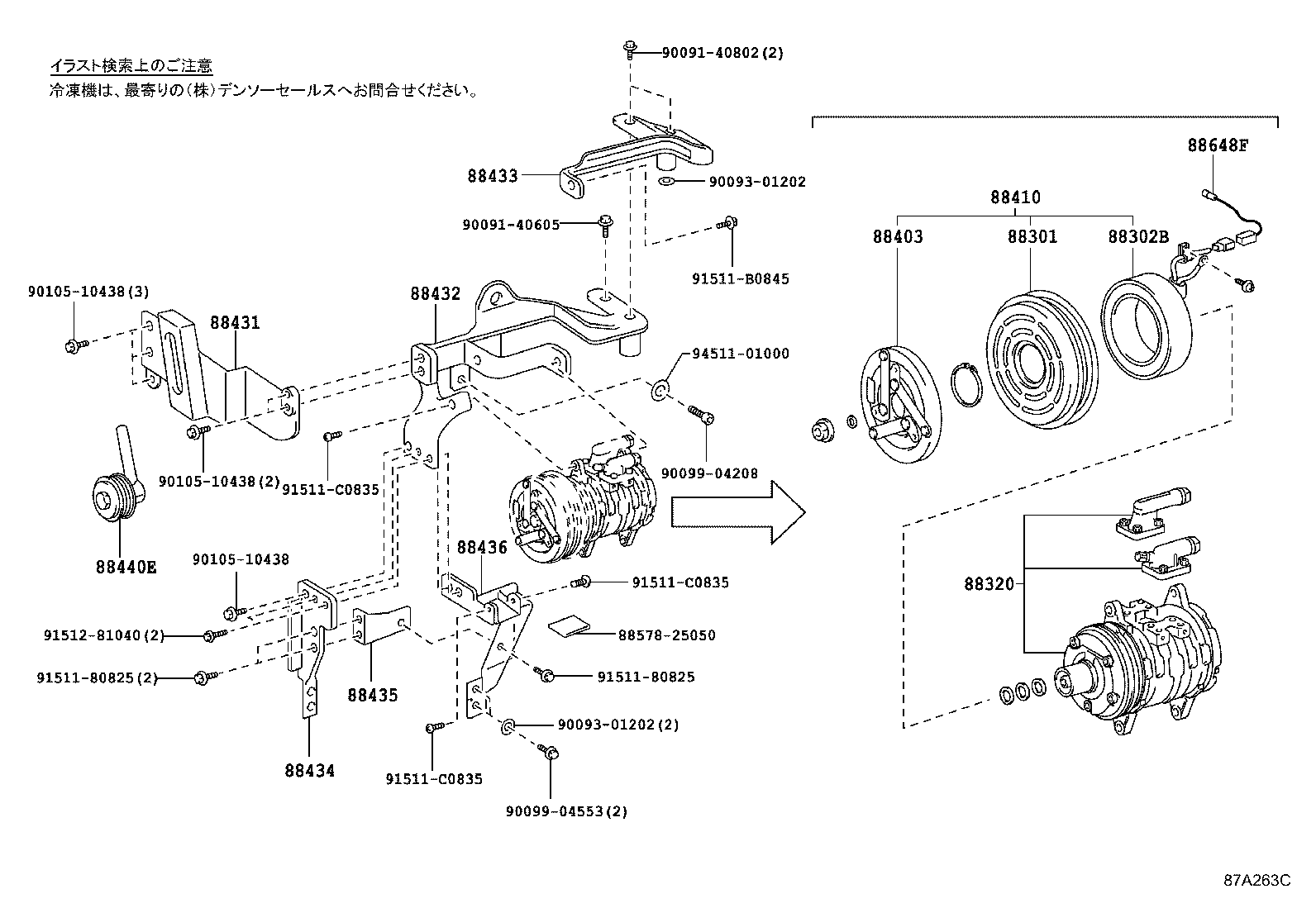

88320 - COMPRESSOR ASSY, COOLER
88320-37080

LY220,230,240,270,280,290,RZY220,23#,281

 1
88410 - CLUTCH ASSY, MAGNET
88410-25150

LY220,230,240,270,280,290..DSL

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-25230

LY220,230,240,270,280,290..DSL

 1
Common parts
88578-25050
90091-40605
90091-40802
90093-01202
90099-04208
90099-04553
90105-10438
91511-80825
91511-B0845
91511-C0835
91512-81040
94511-01000
