LY280-TGMFS3 (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

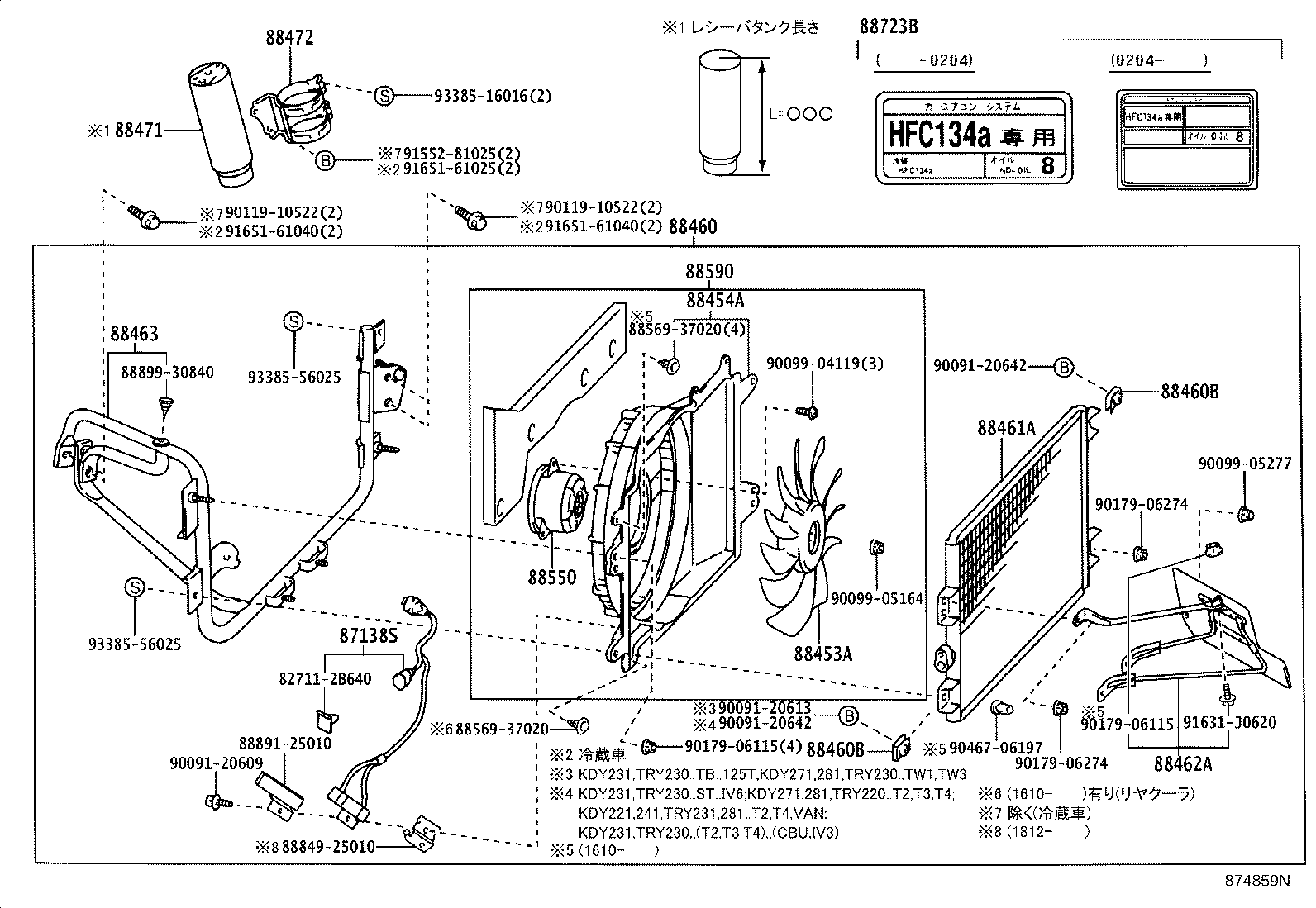

ILLUST NO. 1 OF 3(0107- )

Click highlighted areas on diagram

ｺﾝﾃﾞﾝｻ & ﾚｼ-ﾊﾞ

diagram 827112B640 87138S 88453A 88454A 88460 88460B 88460B 88461A 88462A 88463 88471 88472 88550 8856937020 8856937020 88590 88723B 8884925010 8889125010 8889930840 9009120609 9009120613 9009120642 9009120642 9009904119 9009905164 9009905277 9011910522 9011910522 9017906115 9017906115 9017906274 9017906274 9046706197 9155281025 91631J0620 9165161025 9165161040 9165161040 9338516016 9338556025 9338556025
Part # Description Qty Price
87138S - RESISTOR, BLOWER
87138-25070

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
88453A - FAN, COOLING
88453-37010

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
88454A - SHROUD, FAN
88454-25060

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
88460 - CONDENSER ASSY, COOLER
88460-25210

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..T2,T3,T4,VAN

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88463-35120

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 2
88460B - BRACKET, COOLER CONDENSER, NO.1
88463-35120

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 2
88461A - CORE, COOLER CONDENSER
88461-25050

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..T2,T3,T4,VAN

 1
88462A - HOLDER, CONDENSER
88462-25020

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-25041

RZY230..(T3,TW1,TW2,TW3,TW4)..(125T,1T);LY220,230,270,280,RZY220..TW1,TW2,TW3,TW4;KDY22#,23#,24#,27#,28#,290,RZY231,281,TRY220,23#,281

 1
88463-25041

RZY230..(T2,T3,T4)..(CBU,IV3);LY220,230,240,270,280,290,RZY220..T2,T3,T4,VAN

 1
88463-25040

LY220,230,240,270,280,290,RZY220,230..T2,T3,T4,VAN

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-34010

LY220,230,270,280,RZY220,230..T2,T3,T4;KDY22#,23#,24#,27#,28#,290,LY240,290,RZY231,281,TRY220,23#,281

長さ=187

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-25090

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-25050

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..T2,T3,T4,VAN

 1
88590 - BLOWER ASSY, W/SHROUD
88590-25070

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..T2,T3,T4,VAN

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20030

LY220,230,240,270,280,290,RZY220,230

ｱﾘ(ﾘﾔ ｸ-ﾗ)

 1
88733-22040

LY220..ATM;LY230,280..LPG;LY220..125T..WT;LY280..T2,TW1,TW3,TW4;LY230..(125T,12T)..IV3;LY220,290..(15T,1T)..CBU;LY280..(T3,T4)..ATM..DSL;LY230..ATM..15T..DSL..IV3;LY230,270..DSL..(CBU,IV6);LY220..MTM..125T..ST..CBU;LY280..(T3,T4)..MTM..DSL..CBU;LY240,RZY220,230..(06S,TB,TS)..(CBU,IV3);LY220,230,270..(T2,TW1)..MTM..(12T,15T,1T)..ST..IV3

 1
88733-22040

LY220..15T..IV3;LY230..TS..WT..IV3;LY220,270..MTM..125T..ST..IV3;LY240,RZY230..(T3,VAN)..(03S,TS);LY230,280..(T3,T4)..MTM..DSL..IV3;KDY220,230,240,270,280,290,RZY231,281

 1
Common parts
82711-2B640
88569-37020
88849-25010
88891-25010
88899-30840
90091-20609
90091-20613
90091-20642
90099-04119
90099-05164
90099-05277
90119-10522
90179-06115
90179-06274
90467-06197
91552-81025
91631-J0620
91651-61025
91651-61040
93385-16016
93385-56025

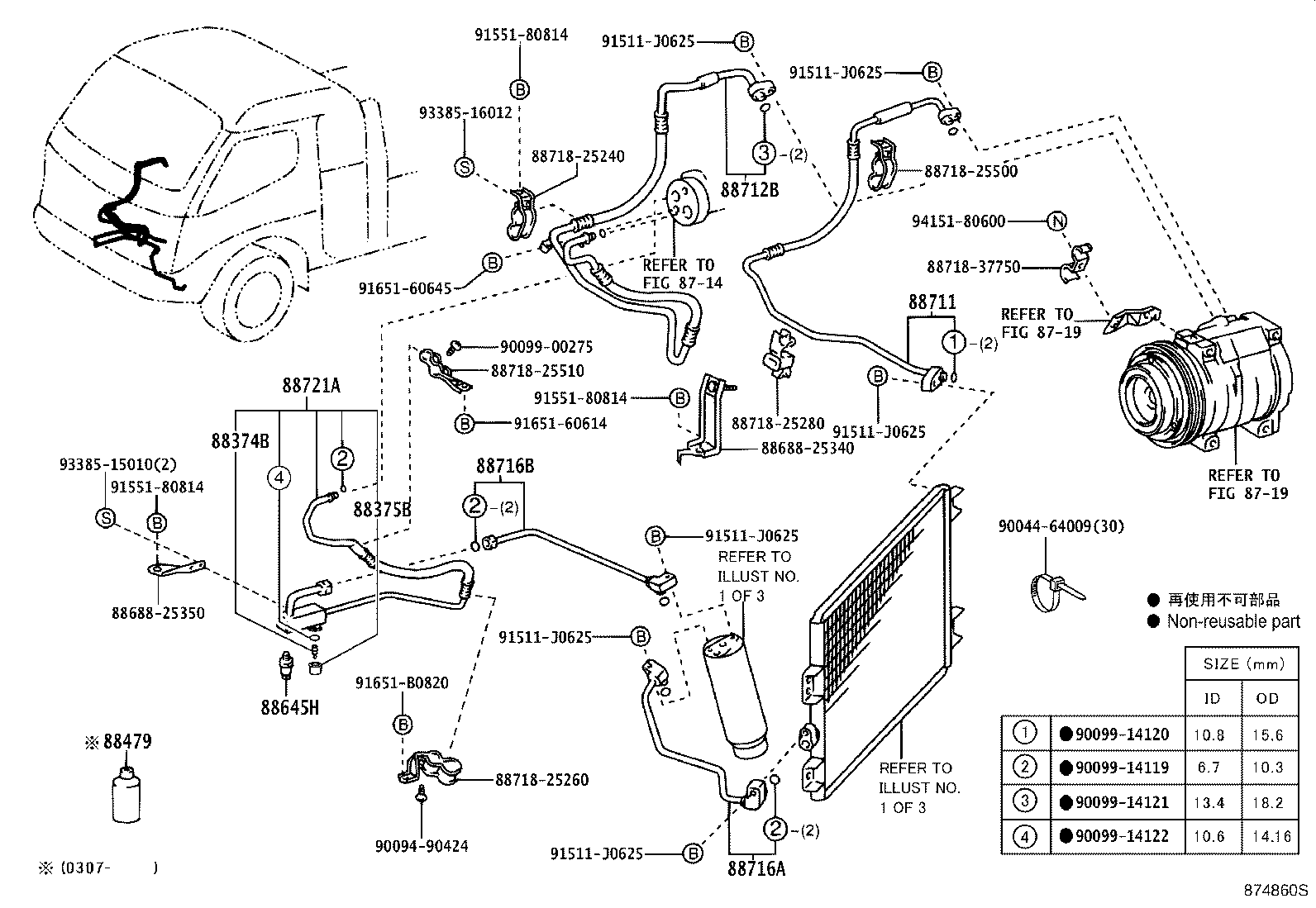

ILLUST NO. 2 OF 3(0107- )KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY2

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 8714 8719 8719 88374B 88375B 88479 88645H 8868825340 8868825350 88711 88712B 88716A 88716B 8871825240 8871825260 8871825280 8871825500 8871825510 8871837750 88721A 9004464009 9009490424 9009900275 9009914119 9009914120 9009914121 9009914122 91511J0625 91511J0625 91511J0625 91511J0625 91511J0625 91511J0625 9155180814 9155180814 9155180814 9165160614 9165160645 91651B0820 9338515010 9338516012 9415180600
Part # Description Qty Price
88645H - SWITCH, PRESSURE NO.1
88645-60030

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
88645-60030

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-25360

LY220,230,240,270,280,290..DSL

 1
88711-25360

LY220,230,240,270,280,290..DSL

 1
88712B - HOSE, COOLER REFRIGERANT SUCTION
88712-25441

LY220,230,240,270,280,290..DSL

 1
88712-25441

LY220,230,240,270,280,290..DSL

 1
88712-25440

LY220,230,240,270,280,290..DSL

 1
88712-25440

LY220,230,240,270,280,290..DSL

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-25230

LY220..125T..ST;RZY230..TW4..CBU;LY230..TB..WT..DSL..IV3;LY230..(T2,T3)..ST..IV3;RZY230..T2..15T..ST..CBU;LY230,RZY220..T2..TB..15T..CBU;LY230..(T2,T3,TW3)..TS..(CBU,IV6);LY220,RZY231,281,TRY231,281..15T,1T;LY230..(T3,T4,TW2,TW4)..TB..DSL..CBU;KDY22#,23#,24#,27#,28#,290,LY240,270,280,290,TRY220,230..DCR,DSL,EFI

 1
88716-25230

LY220..125T..ST;RZY230..TW4..CBU;LY230..TB..WT..DSL..IV3;LY230..(T2,T3)..ST..IV3;RZY230..T2..15T..ST..CBU;LY230,RZY220..T2..TB..15T..CBU;LY230..(T2,T3,TW3)..TS..(CBU,IV6);LY220,RZY231,281,TRY231,281..15T,1T;LY230..(T3,T4,TW2,TW4)..TB..DSL..CBU;KDY22#,23#,24#,27#,28#,290,LY240,270,280,290,TRY220,230..DCR,DSL,EFI

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-25260

KDY271..IV3;KDY221..T3..TS;KDY221..TB..IV3;KDY221..1T..CBU;KDY231..15T..WT..IV3;KDY221,281..(T2,T3,TW1)..(15T,1T)..IV3;KDY231,241,TRY220,230..(TW1,TW3,VAN)..(06S,TS)..(15T,1T);KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281

 1
88716-25260

KDY271..IV3;KDY221..T3..TS;KDY221..TB..IV3;KDY221..1T..CBU;KDY231..15T..WT..IV3;KDY221,281..(T2,T3,TW1)..(15T,1T)..IV3;KDY231,241,TRY220,230..(TW1,TW3,VAN)..(06S,TS)..(15T,1T);KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281

 1
88721A - HOSE, LIQUID, A
88721-25230

TRY231,281;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..DCR,DSL,EFI

 1
88721-25230

TRY231,281;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..DCR,DSL,EFI

 1
Common parts
88688-25340
88688-25350
88718-25240
88718-25260
88718-25280
88718-25500
88718-25510
88718-37750
90044-64009
90094-90424
90099-00275
90099-14119
90099-14120
90099-14121
90099-14122
91511-J0625
91551-80814
91651-60614
91651-60645
91651-B0820
93385-15010
93385-16012
94151-80600
Linked diagrams
8714
8719

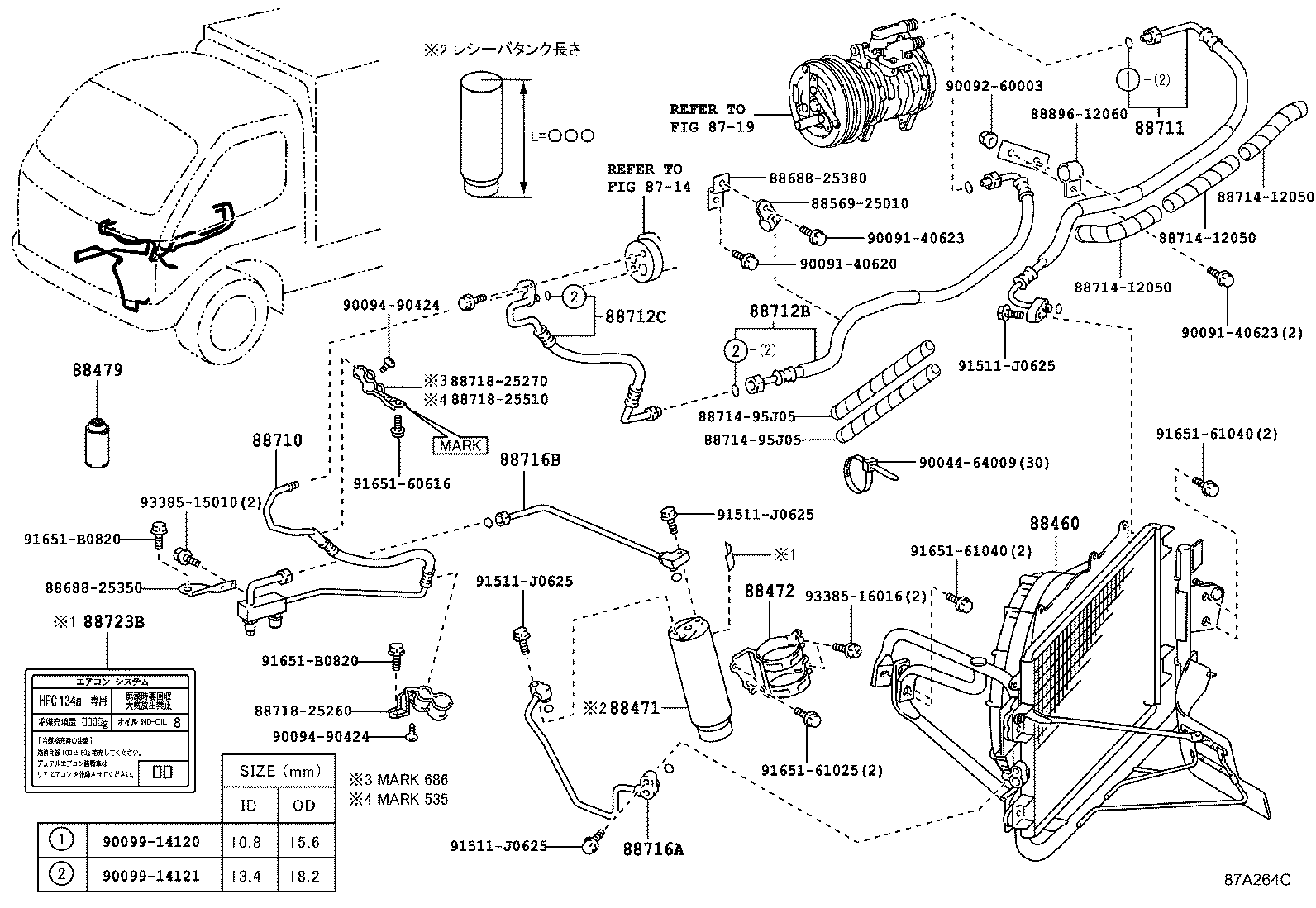

ILLUST NO. 1 OF 3(0108-0408)LY220,230,240,270,280,290

Click highlighted areas on diagram

ﾚｲﾄｳｼｬ

diagram 8714 8719 88460 88471 88472 88479 8856925010 8868825350 8868825380 88710 88711 88712B 88712C 8871412050 8871412050 8871412050 8871495J05 8871495J05 88716A 88716B 8871825260 8871825270 8871825510 88723B 8889612060 9004464009 9009140620 9009140623 9009140623 9009260003 9009490424 9009490424 9009914120 9009914121 91511J0625 91511J0625 91511J0625 91511J0625 9165160616 9165161025 9165161040 9165161040 91651B0820 91651B0820 9338515010 9338516016
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-25210

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..T2,T3,T4,VAN

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-34010

LY220,230,270,280,RZY220,230..T2,T3,T4;KDY22#,23#,24#,27#,28#,290,LY240,290,RZY231,281,TRY220,23#,281

長さ=187

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-25090

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-25360

LY220,230,240,270,280,290..DSL

 1
88712B - HOSE, COOLER REFRIGERANT SUCTION
88712-25441

LY220,230,240,270,280,290..DSL

 1
88712-25440

LY220,230,240,270,280,290..DSL

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-25230

LY220..125T..ST;RZY230..TW4..CBU;LY230..TB..WT..DSL..IV3;LY230..(T2,T3)..ST..IV3;RZY230..T2..15T..ST..CBU;LY230,RZY220..T2..TB..15T..CBU;LY230..(T2,T3,TW3)..TS..(CBU,IV6);LY220,RZY231,281,TRY231,281..15T,1T;LY230..(T3,T4,TW2,TW4)..TB..DSL..CBU;KDY22#,23#,24#,27#,28#,290,LY240,270,280,290,TRY220,230..DCR,DSL,EFI

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-25260

KDY271..IV3;KDY221..T3..TS;KDY221..TB..IV3;KDY221..1T..CBU;KDY231..15T..WT..IV3;KDY221,281..(T2,T3,TW1)..(15T,1T)..IV3;KDY231,241,TRY220,230..(TW1,TW3,VAN)..(06S,TS)..(15T,1T);KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20030

LY220,230,240,270,280,290,RZY220,230

ｱﾘ(ﾘﾔ ｸ-ﾗ)

 1
88733-22040

LY220..ATM;LY230,280..LPG;LY220..125T..WT;LY280..T2,TW1,TW3,TW4;LY230..(125T,12T)..IV3;LY220,290..(15T,1T)..CBU;LY280..(T3,T4)..ATM..DSL;LY230..ATM..15T..DSL..IV3;LY230,270..DSL..(CBU,IV6);LY220..MTM..125T..ST..CBU;LY280..(T3,T4)..MTM..DSL..CBU;LY240,RZY220,230..(06S,TB,TS)..(CBU,IV3);LY220,230,270..(T2,TW1)..MTM..(12T,15T,1T)..ST..IV3

 1
88733-22040

LY220..15T..IV3;LY230..TS..WT..IV3;LY220,270..MTM..125T..ST..IV3;LY240,RZY230..(T3,VAN)..(03S,TS);LY230,280..(T3,T4)..MTM..DSL..IV3;KDY220,230,240,270,280,290,RZY231,281

 1
Common parts
88569-25010
88688-25350
88688-25380
88714-12050
88714-95J05
88718-25260
88718-25270
88718-25510
88896-12060
90044-64009
90091-40620
90091-40623
90092-60003
90094-90424
90099-14120
90099-14121
91511-J0625
91651-60616
91651-61025
91651-61040
91651-B0820
93385-15010
93385-16016
Linked diagrams
8714
8719
