LY280-TGMFS3 (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0107- )DSL

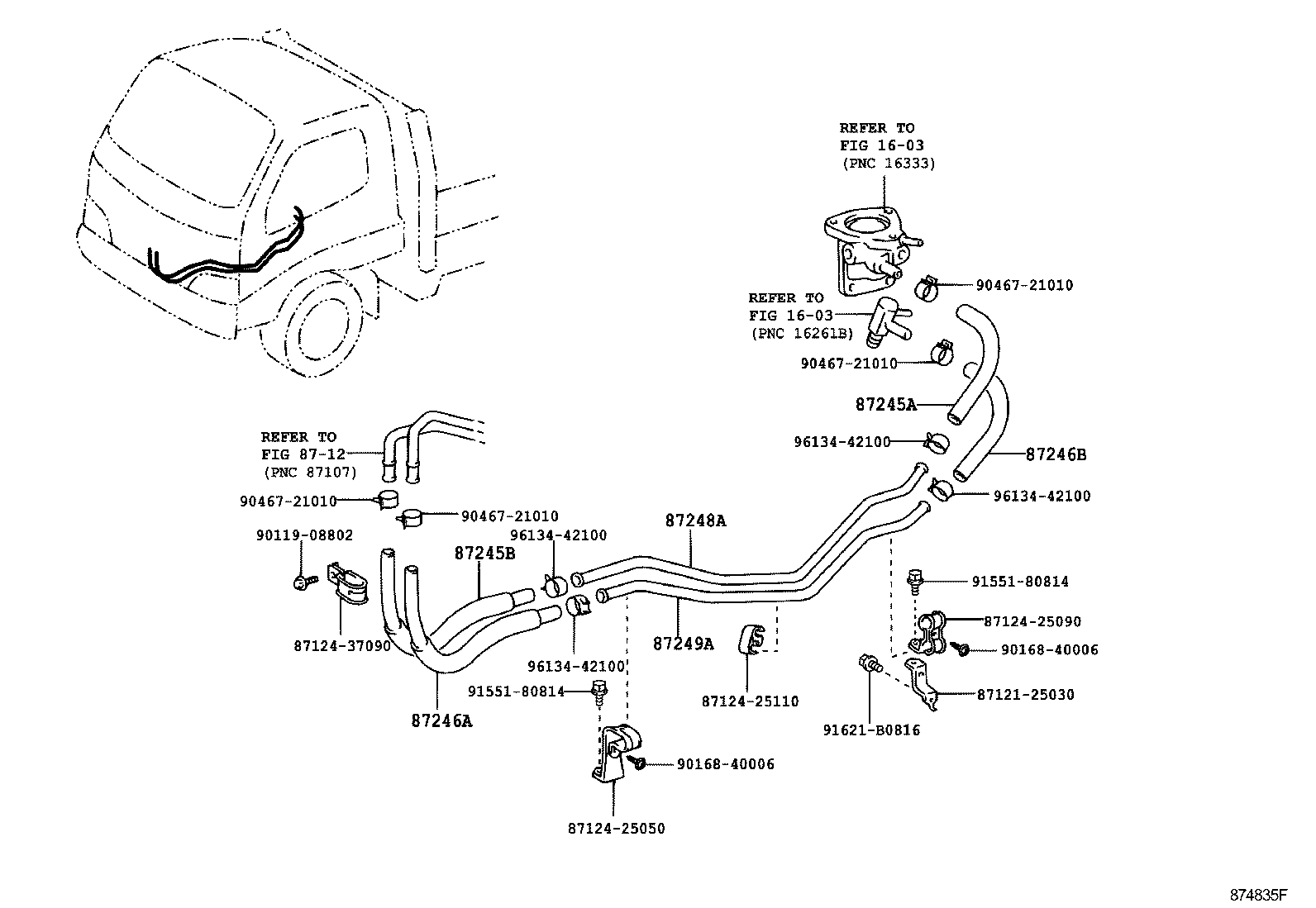

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 1603 1603 8712 8712125030 8712425050 8712425090 8712425110 8712437090 87245A 87245B 87246A 87246B 87248A 87249A 9011908802 9016840006 9016840006 9046721010 9046721010 9046721010 9046721010 9155180814 9155180814 91621B0816 9613442100 9613442100 9613442100 9613442100
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
99556-30300

LY220,230,240,270,280,290..DSL

*H,L=250

 1
87245B - HOSE, HEATER WATER, INLET B
87245-25450

TRY231,281;LY220,230,240,270,280,290,RZY220,230,TRY220,230..DSL,EFI

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-25680

TRY231,281;LY220,230,240,270,280,290,RZY220,230,TRY220,230..DSL,EFI

 1
87246B - HOSE, HEATER WATER, OUTLET B
99556-30300

LY220,230,240,270,280,290..DSL

*H,L=220

 1
87248A - PIPE, HEATER WATER INLET, A
87248-25050

LY220,230,240,270,280,290,RZY231,281

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-25060

LY220,230,240,270,280,290,RZY231,281

 1
Common parts
87121-25030
87124-25050
87124-25090
87124-25110
87124-37090
90119-08802
90168-40006
90467-21010
91551-80814
91621-B0816
96134-42100
