LY280-TGMFS3 (2001)
Toyota Dyna/Toyoace
ILLUST NO. 3 OF 5(0107-1610)

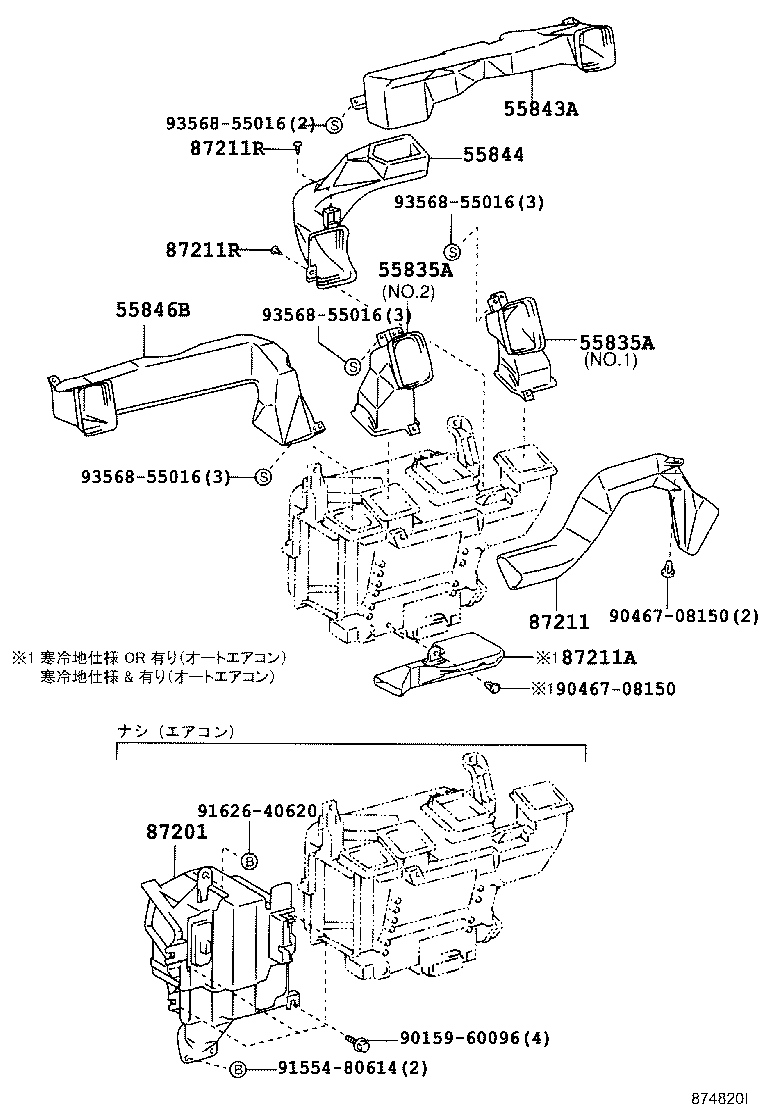

ｴｱ ﾀﾞｸﾄ--ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55835A - DUCT, HEATER TO REGISTER, CENTER | ||||
| 55835-37020 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL NO.2 |
1 | ||
| 55835-37020 |
KDY220,230,240,270,280,290,RZY231,281 NO.2 |
1 | ||
| 55835-37010 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL NO.1 |
1 | ||
| 55835-37010 |
KDY220,230,240,270,280,290,RZY231,281 NO.1 |
1 | ||
| 55835A - DUCT, HEATER TO REGISTER, CENTER | ||||
| 55835-37020 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL NO.2 |
1 | ||
| 55835-37020 |
KDY220,230,240,270,280,290,RZY231,281 NO.2 |
1 | ||
| 55835-37010 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL NO.1 |
1 | ||
| 55835-37010 |
KDY220,230,240,270,280,290,RZY231,281 NO.1 |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-25020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-37030 |
LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 |
1 | ||
| 55846B - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-37050 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 55846-37050 |
KDY220,230,240,270,280,290,RZY231,281 |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87211-37150 |
KDY221..T4..TB;KDY221..T2,T3,TW1;KDY220,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87212-37010 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 87212-37010 |
KDY220,230,240,270,280,290,RZY231,281 |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87213-37010 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL ｶﾝﾚｲﾁ ｼﾖｳ OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 87213-37010 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 87213-37010 |
KDY220,230,240,270,280,290,RZY231,281 ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 87213-37010 |
KDY220,230,240,270,280,290,RZY231,281 ｶﾝﾚｲﾁ ｼﾖｳ OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 87211R - CLIP, AIR DUCT | ||||
| 90467-10005B0 |
KDY220,230,240,270,280,290,RZY231,281 MD.CHARCOAL,TRIM1# |
2 | ||
| 90467-10005B0 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL MD.CHARCOAL,TRIM1# |
2 | ||
| 87211R - CLIP, AIR DUCT | ||||
| 90467-10005B0 |
KDY220,230,240,270,280,290,RZY231,281 MD.CHARCOAL,TRIM1# |
2 | ||
| 90467-10005B0 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL MD.CHARCOAL,TRIM1# |
2 | ||
| Common parts | ||||
| 90159-60096 | ||||
| 90467-08150 | ||||
| 91554-80614 | ||||
| 91626-40620 | ||||
| 93568-55016 | ||||
ILLUST NO. 1 OF 5(0107-1610)

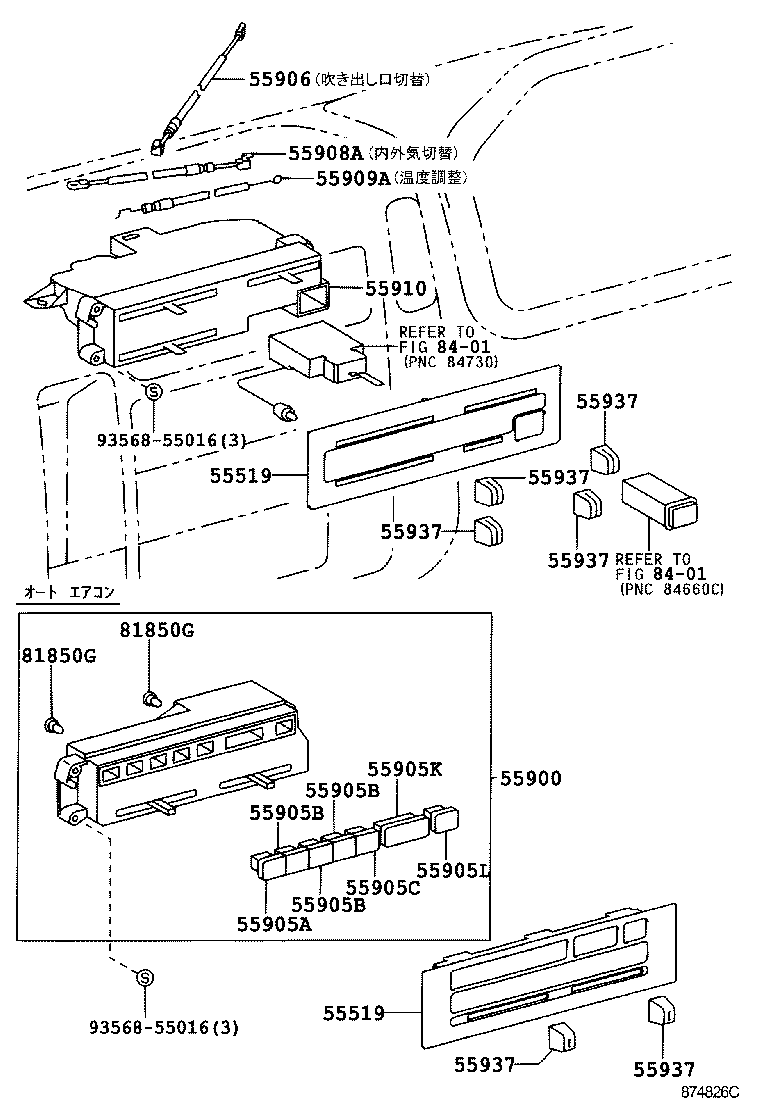

ｺﾝﾄﾛ-ﾙ ﾊﾟﾈﾙ--ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-37080 |
KDY221..T4..TB;KDY221..T2,T3,TW1;KDY220,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ﾅｼ(ｴｱｺﾝ) |
1 | ||
| 55519-37070 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 55519-37110 |
KDY221,23#..T4..TB;KDY221,23#..T2,T3,TW1,TW2,TW3,TW4;KDY220,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..DCR,DSL,EFI ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-37080 |
KDY221..T4..TB;KDY221..T2,T3,TW1;KDY220,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ﾅｼ(ｴｱｺﾝ) |
1 | ||
| 55519-37070 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 55519-37110 |
KDY221,23#..T4..TB;KDY221,23#..T2,T3,TW1,TW2,TW3,TW4;KDY220,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..DCR,DSL,EFI ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-35160 |
KDY221,23#..T4..TB;KDY221,23#..T2,T3,TW1,TW2,TW3,TW4;KDY220,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..DCR,DSL,EFI |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-35110 |
KDY221,23#..T4..TB;KDY221,23#..T2,T3,TW1,TW2,TW3,TW4;KDY220,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..DCR,DSL,EFI |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-35120 |
KDY221,23#..T4..TB;KDY221,23#..T2,T3,TW1,TW2,TW3,TW4;KDY220,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..DCR,DSL,EFI |
3 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-35120 |
KDY221,23#..T4..TB;KDY221,23#..T2,T3,TW1,TW2,TW3,TW4;KDY220,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..DCR,DSL,EFI |
3 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-35120 |
KDY221,23#..T4..TB;KDY221,23#..T2,T3,TW1,TW2,TW3,TW4;KDY220,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..DCR,DSL,EFI |
3 | ||
| 55905C - KNOB, HEATER CONTROL, NO.3 | ||||
| 55905-35130 |
KDY220,270,280;KDY230..T4..TB;KDY230..T2,T3,TW2,TW3,TW4 |
1 | ||
| 55905-35130 |
LY220..15T,1T;LY270,280..DSL;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 55905K - KNOB, HEATER CONTROL, NO.4 | ||||
| 55905-35140 |
KDY220,270,280;KDY230..T4..TB;KDY230..T2,T3,TW2,TW3,TW4 |
1 | ||
| 55905-35140 |
LY220..15T,1T;LY270,280..DSL;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 55905L - KNOB, HEATER CONTROL, NO.5 | ||||
| 55905-35150 |
KDY220,270,280;KDY230..T4..TB;KDY230..T2,T3,TW2,TW3,TW4 |
1 | ||
| 55905-35150 |
LY220..15T,1T;LY270,280..DSL;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 55906 - CABLE SUB-ASSY, HEATER CONTROL | ||||
| 55906-37050 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-37030 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-37040 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-37061 |
KDY220,230,240,270,280,290,RZY231,281 |
1 | ||
| 55910-37061 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-35100 |
KDY221,23#..T4..TB;KDY221,23#..T2,T3,TW1,TW2,TW3,TW4;KDY220,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..DCR,DSL,EFI ｵ-ﾄ ｴｱｺﾝ |
2 | ||
| 55905-89115 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ﾏﾆﾕｱﾙ ｴｱｺﾝ |
4 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-35100 |
KDY221,23#..T4..TB;KDY221,23#..T2,T3,TW1,TW2,TW3,TW4;KDY220,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..DCR,DSL,EFI ｵ-ﾄ ｴｱｺﾝ |
2 | ||
| 55905-89115 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ﾏﾆﾕｱﾙ ｴｱｺﾝ |
4 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-35100 |
KDY221,23#..T4..TB;KDY221,23#..T2,T3,TW1,TW2,TW3,TW4;KDY220,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..DCR,DSL,EFI ｵ-ﾄ ｴｱｺﾝ |
2 | ||
| 55905-89115 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ﾏﾆﾕｱﾙ ｴｱｺﾝ |
4 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-35100 |
KDY221,23#..T4..TB;KDY221,23#..T2,T3,TW1,TW2,TW3,TW4;KDY220,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..DCR,DSL,EFI ｵ-ﾄ ｴｱｺﾝ |
2 | ||
| 55905-89115 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ﾏﾆﾕｱﾙ ｴｱｺﾝ |
4 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-35100 |
KDY221,23#..T4..TB;KDY221,23#..T2,T3,TW1,TW2,TW3,TW4;KDY220,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..DCR,DSL,EFI ｵ-ﾄ ｴｱｺﾝ |
2 | ||
| 55905-89115 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ﾏﾆﾕｱﾙ ｴｱｺﾝ |
4 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-35100 |
KDY221,23#..T4..TB;KDY221,23#..T2,T3,TW1,TW2,TW3,TW4;KDY220,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..DCR,DSL,EFI ｵ-ﾄ ｴｱｺﾝ |
2 | ||
| 55905-89115 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ﾏﾆﾕｱﾙ ｴｱｺﾝ |
4 | ||
| 81850G - LAMP ASSY, INDICATOR | ||||
| 81850-35010 |
LY220..15T,1T;LY270,280..DSL;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY230..TB..(12T,15T,175T)..DSL |
2 | ||
| 81850-35010 |
KDY220,270,280;KDY230..T4..TB;KDY230..T2,T3,TW2,TW3,TW4 |
2 | ||
| 81850G - LAMP ASSY, INDICATOR | ||||
| 81850-35010 |
LY220..15T,1T;LY270,280..DSL;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY230..TB..(12T,15T,175T)..DSL |
2 | ||
| 81850-35010 |
KDY220,270,280;KDY230..T4..TB;KDY230..T2,T3,TW2,TW3,TW4 |
2 | ||
| Common parts | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 5 OF 5(0107-1610)

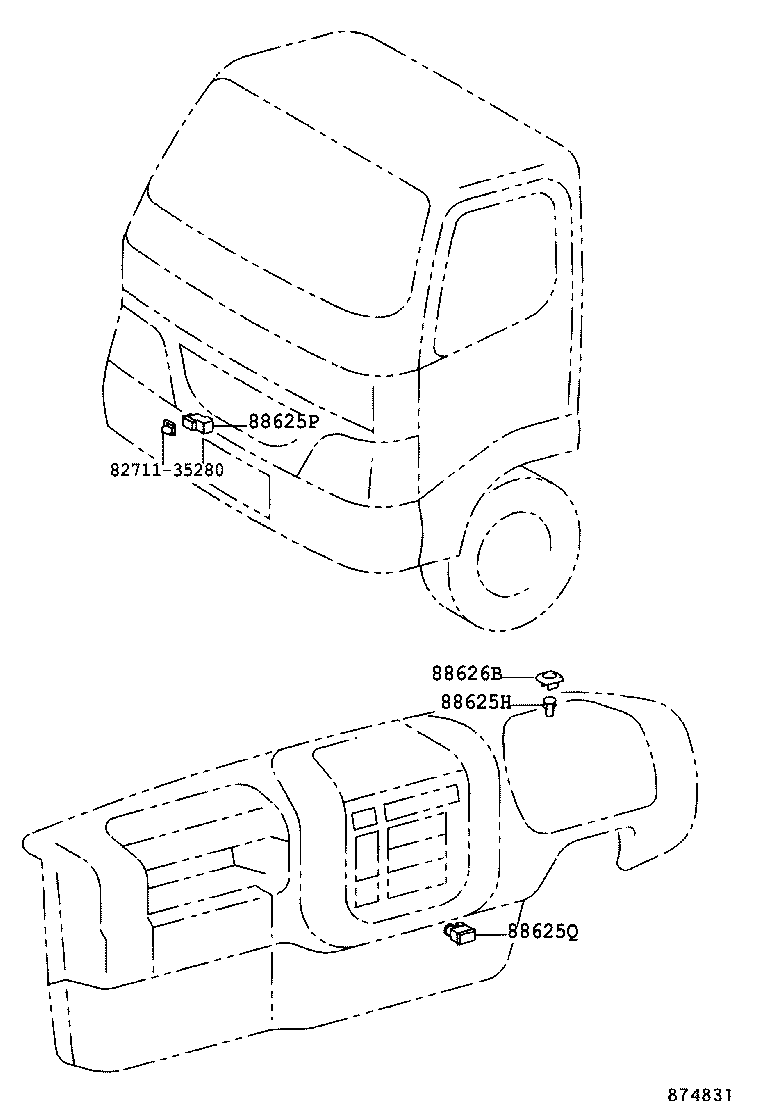

ｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625H - THERMISTOR, COOLER (SOLAR SENSOR) | ||||
| 88625-32160 |
LY220..15T,1T;LY270,280..DSL;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 88625-32160 |
KDY220,270,280;KDY230..T4..TB;KDY230..T2,T3,TW2,TW3,TW4 |
1 | ||
| 88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR) | ||||
| 88625-32171 |
KDY220,270,280;KDY230..T4..TB;KDY230..T2,T3,TW2,TW3,TW4 |
1 | ||
| 88625-32171 |
LY220..15T,1T;LY270,280..DSL;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-47021 |
LY220..15T,1T;LY270,280..DSL;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 88625-47021 |
KDY220,270,280;KDY230..T4..TB;KDY230..T2,T3,TW2,TW3,TW4 |
1 | ||
| 88626B - HOLDER, THERMISTOR | ||||
| 88626-35020B0 |
LY220..15T,1T;LY270,280..DSL;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY230..TB..(12T,15T,175T)..DSL MD.CHARCOAL,TRIM1# |
1 | ||
| 88626-35020B0 |
KDY220,270,280;KDY230..T4..TB;KDY230..T2,T3,TW2,TW3,TW4 MD.CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 82711-35280 | ||||
