LY280-TGMFS3 (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

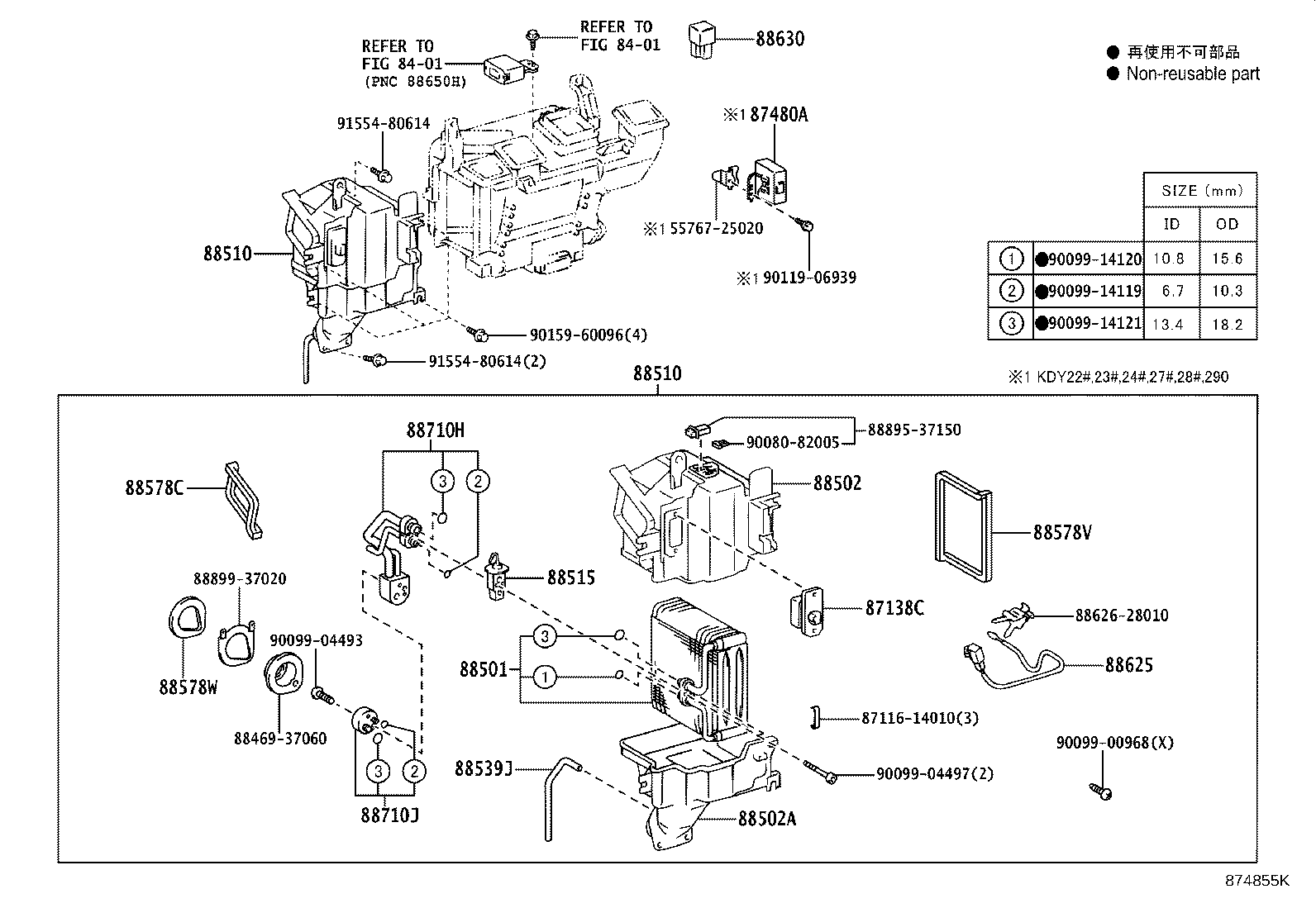

ILLUST NO. 1 OF 2(0107-1610)

Click highlighted areas on diagram

ﾌﾛﾝﾄ(ﾏﾆﾕｱﾙ ｴｱｺﾝ)

diagram 5576725020 8401 8401 8711614010 87138C 87480A 8846937060 88501 88502 88502A 88510 88510 88515 88539J 88578C 88578V 88578W 88625 8862628010 88630 88710H 88710J 8889537150 8889937020 9008082005 9009900968 9009904493 9009904497 9009914119 9009914120 9009914121 9011906939 9015960096 9155480614 9155480614
Part # Description Qty Price
87138C - RESISTOR, BLOWER
87138-37190

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-37060

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-37030

KDY221,23#..T4..TB;KDY221,23#..T2,T3,TW1,TW2,TW3,TW4;KDY220,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..DCR,DSL,EFI

ｱﾘ(ｵ-ﾄ ｴｱｺﾝ)

 1
88502-37050

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ)

 1
88502A - CASE SUB-ASSY, COOLING UNIT
88502-37040

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
88510 - UNIT ASSY, COOLER
88510-37190

KDY221,23#..T4..TB;KDY221,23#..T2,T3,TW1,TW2,TW3,TW4;KDY220,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..DCR,DSL,EFI

ｵ-ﾄ ｴｱｺﾝ

 1
88510-37180

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
88510 - UNIT ASSY, COOLER
88510-37190

KDY221,23#..T4..TB;KDY221,23#..T2,T3,TW1,TW2,TW3,TW4;KDY220,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..DCR,DSL,EFI

ｵ-ﾄ ｴｱｺﾝ

 1
88510-37180

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
88515 - VALVE, COOLER EXPANSION
88515-48040

KDY220,230,270,280,LY220,230,270,280,RZY220,230,TRY220,230

 1
88539J - HOSE, DRAIN COOLER
88539-37060

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
88578C - PACKING, COOLING UNIT, NO.2
88578-37130

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
88578V - PACKING, COOLING UNIT, NO.3
88578-37140

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
88578W - PACKING, COOLING UNIT, NO.4
88578-37150

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
88625 - THERMISTOR, COOLER, NO.1
88625-20460

LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230

 1
88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-37340

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
88710J - TUBE, AIR CONDITIONER CONNECTOR
88710-37350

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
Common parts
55767-25020
87116-14010
88469-37060
88626-28010
88895-37150
88899-37020
90080-82005
90099-00968
90099-04493
90099-04497
90099-14119
90099-14120
90099-14121
90119-06939
90159-60096
91554-80614
Linked diagrams
8401

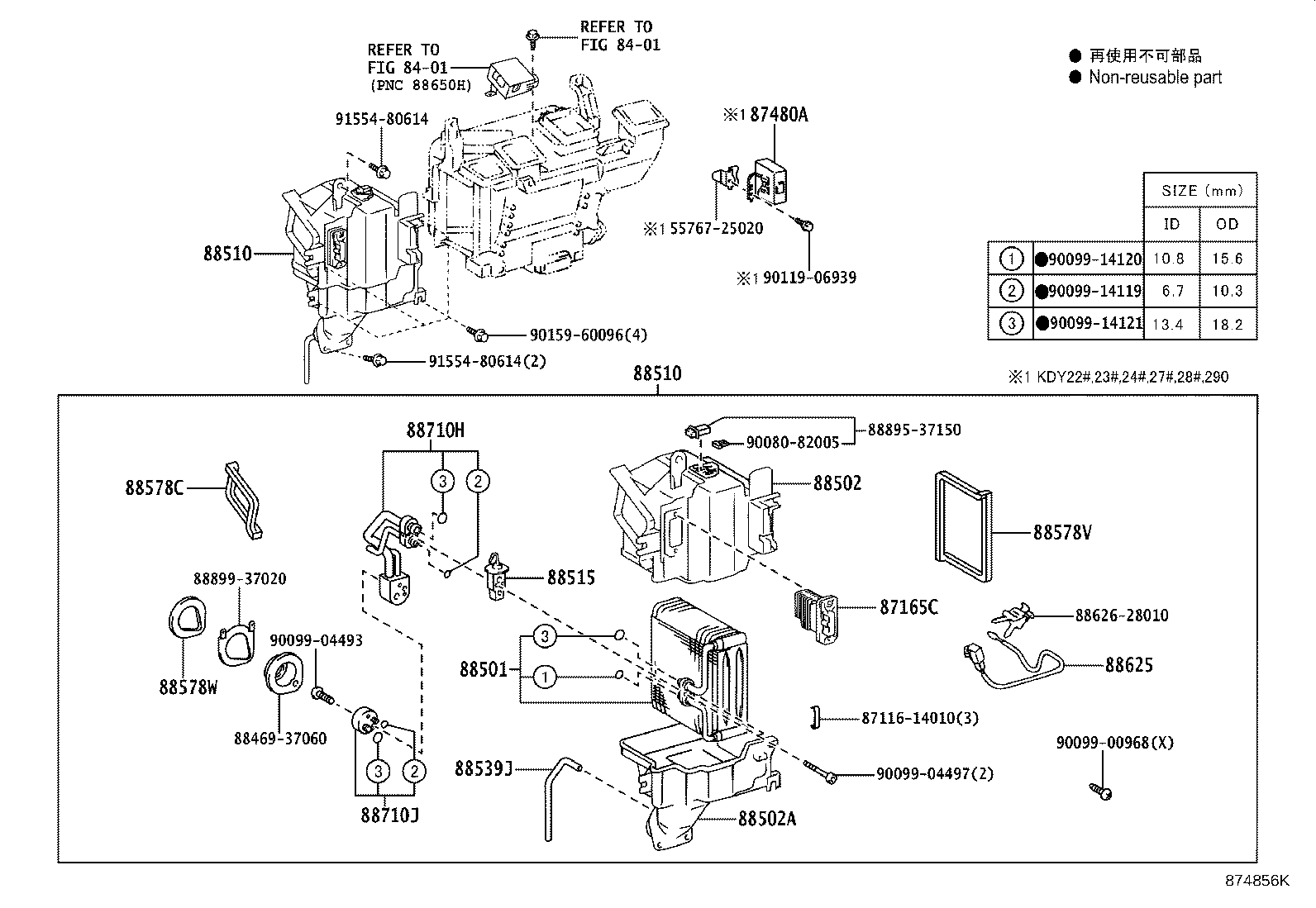

ILLUST NO. 1 OF 2(0107-1610)

Click highlighted areas on diagram

ﾌﾛﾝﾄ(ｵ-ﾄ ｴｱｺﾝ)

diagram 5576725020 8401 8401 8711614010 87165C 87480A 8846937060 88501 88502 88502A 88510 88510 88515 88539J 88578C 88578V 88578W 88625 8862628010 88710H 88710J 8889537150 8889937020 9008082005 9009900968 9009904493 9009904497 9009914119 9009914120 9009914121 9011906939 9015960096 9155480614 9155480614
Part # Description Qty Price
87165C - CONTROL, BLOWER MOTOR
87165-32010

LY220..15T,1T;LY270,280..DSL;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY230..TB..(12T,15T,175T)..DSL

 1
87165-32010

KDY220,270,280;KDY230..T4..TB;KDY230..T2,T3,TW2,TW3,TW4

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-37060

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-37030

KDY221,23#..T4..TB;KDY221,23#..T2,T3,TW1,TW2,TW3,TW4;KDY220,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..DCR,DSL,EFI

ｱﾘ(ｵ-ﾄ ｴｱｺﾝ)

 1
88502-37050

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ)

 1
88502A - CASE SUB-ASSY, COOLING UNIT
88502-37040

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
88510 - UNIT ASSY, COOLER
88510-37190

KDY221,23#..T4..TB;KDY221,23#..T2,T3,TW1,TW2,TW3,TW4;KDY220,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..DCR,DSL,EFI

ｵ-ﾄ ｴｱｺﾝ

 1
88510-37180

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
88510 - UNIT ASSY, COOLER
88510-37190

KDY221,23#..T4..TB;KDY221,23#..T2,T3,TW1,TW2,TW3,TW4;KDY220,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..DCR,DSL,EFI

ｵ-ﾄ ｴｱｺﾝ

 1
88510-37180

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
88515 - VALVE, COOLER EXPANSION
88515-48040

KDY220,230,270,280,LY220,230,270,280,RZY220,230,TRY220,230

 1
88539J - HOSE, DRAIN COOLER
88539-37060

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
88578C - PACKING, COOLING UNIT, NO.2
88578-37130

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
88578V - PACKING, COOLING UNIT, NO.3
88578-37140

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
88578W - PACKING, COOLING UNIT, NO.4
88578-37150

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
88625 - THERMISTOR, COOLER, NO.1
88625-20460

LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230

 1
88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-37340

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
88710J - TUBE, AIR CONDITIONER CONNECTOR
88710-37350

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
Common parts
55767-25020
87116-14010
88469-37060
88626-28010
88895-37150
88899-37020
90080-82005
90099-00968
90099-04493
90099-04497
90099-14119
90099-14120
90099-14121
90119-06939
90159-60096
91554-80614
Linked diagrams
8401

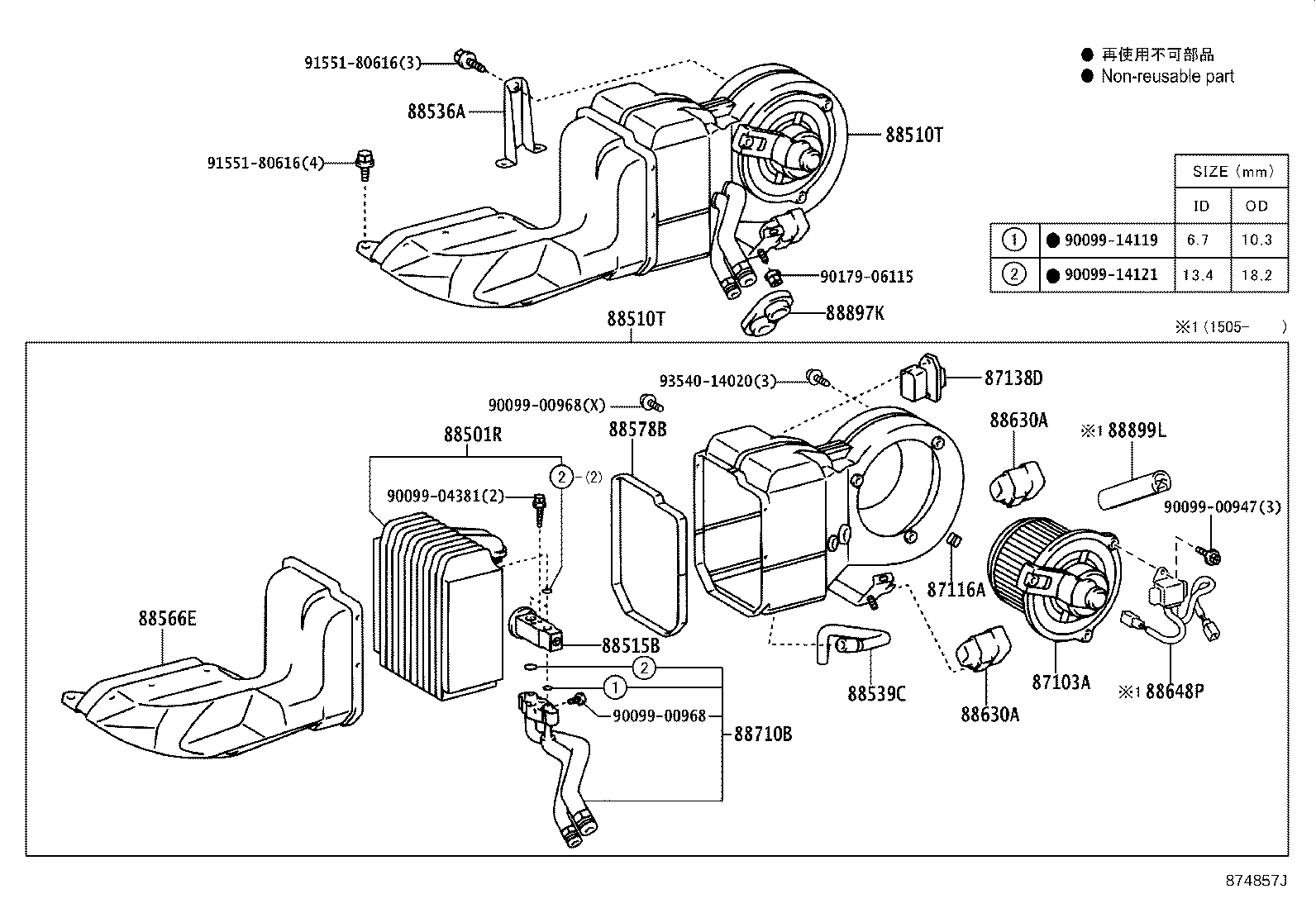

ILLUST NO. 2 OF 2(0107- )

Click highlighted areas on diagram

ﾘﾔ(ｸｰﾗ)

diagram 87103A 87116A 87138D 88501R 88510T 88510T 88515B 88536A 88539C 88566E 88578B 88630A 88630A 88648P 88710B 88897K 88899L 9009900947 9009900968 9009900968 9009904381 9009914119 9009914121 9017906115 9155180616 9155180616 9354014020
Part # Description Qty Price
Common parts
90099-00947
90099-00968
90099-04381
90099-14119
90099-14121
90179-06115
91551-80616
93540-14020

ILLUST NO. 2 OF 2(0107- )

Click highlighted areas on diagram

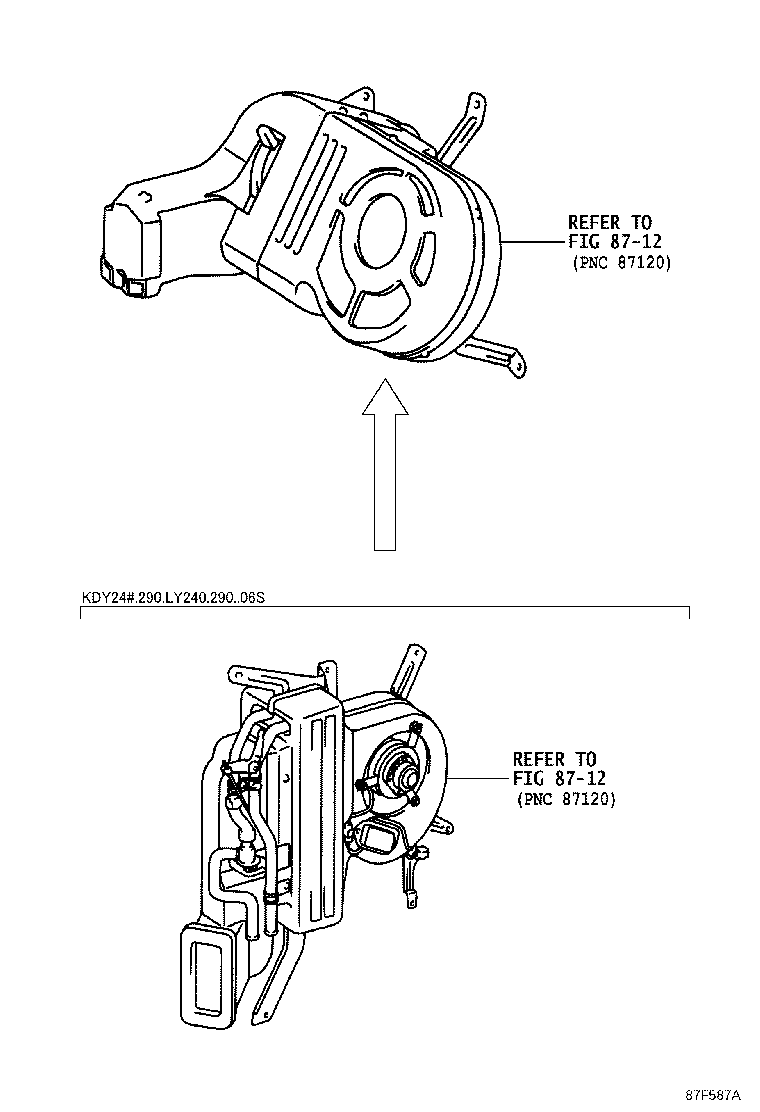

ﾘﾔ(ﾋｰﾀ)

diagram 8712 8712
Part # Description Qty Price
Linked diagrams
8712
