LY280-TGMFS3 (2001)
Toyota Dyna/Toyoace

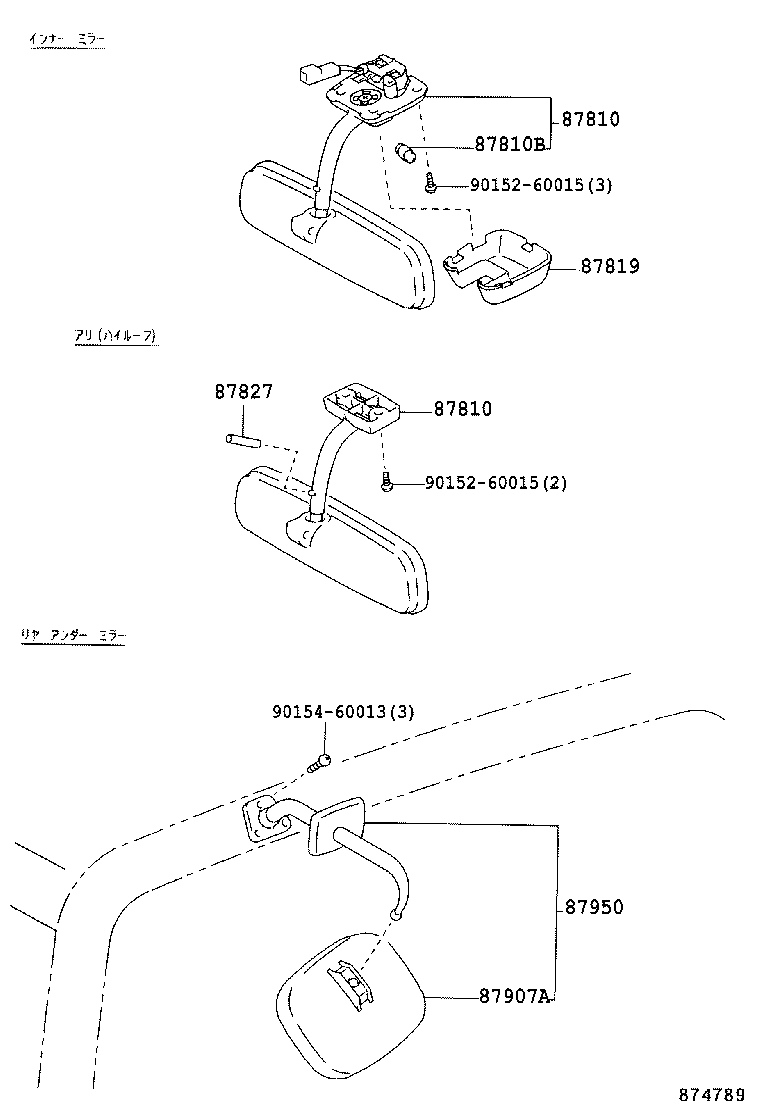

ILLUST NO. 1 OF 3(0107-0308)
ｲﾝﾅ ﾐﾗ- & ﾘﾔ ｱﾝﾀﾞ ﾐﾗ-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-25050B0 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 MD.CHARCOAL,TRIM1# |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-25050B0 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 MD.CHARCOAL,TRIM1# |
1 | ||
| 87810B - BULB, INNER REAR VIEW MIRROR LAMP | ||||
| 90981-11027 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 12V 10W |
1 | ||
| 87819 - LENS, INNER RR VIEW MIRROR ROOM LAMP | ||||
| 87819-25010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| Common parts | ||||
| 90152-60015 | ||||
| 90154-60013 | ||||

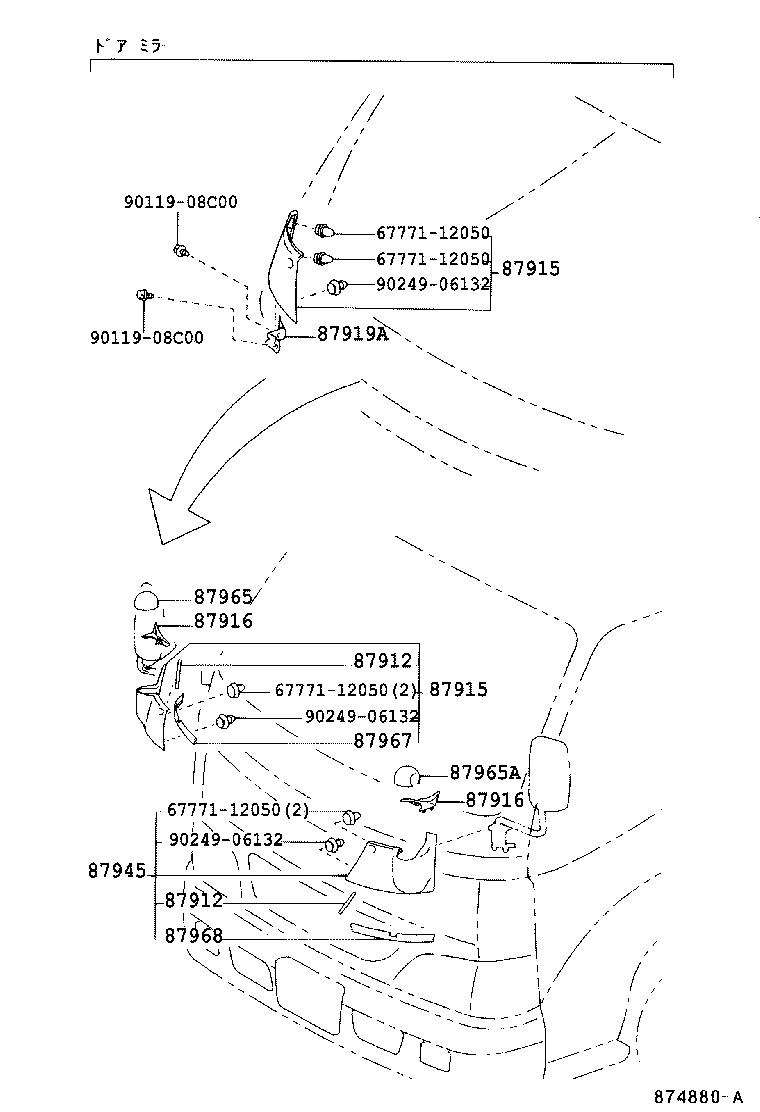

ILLUST NO. 3 OF 3(0107-1610)
ｱｳﾀ ﾐﾗ- ｶﾊﾞ-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87912 - PROTECTOR, OUTER MIRROR | ||||
| 87912-37080 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
2 | ||
| 87912-37080 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL ｱﾘ(ﾄﾞｱ ﾐﾗ-) |
1 | ||
| 87912-37080 |
KDY220,230,240,270,280,290,RZY231,281 |
2 | ||
| 87912-37080 |
KDY220,230,240,270,280,290,RZY231,281 ｱﾘ(ﾄﾞｱ ﾐﾗ-) |
1 | ||
| 87912 - PROTECTOR, OUTER MIRROR | ||||
| 87912-37080 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
2 | ||
| 87912-37080 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL ｱﾘ(ﾄﾞｱ ﾐﾗ-) |
1 | ||
| 87912-37080 |
KDY220,230,240,270,280,290,RZY231,281 |
2 | ||
| 87912-37080 |
KDY220,230,240,270,280,290,RZY231,281 ｱﾘ(ﾄﾞｱ ﾐﾗ-) |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-37010A0 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL WHITE,058 |
1 | ||
| 87915-37010J1 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL BLUE,8P0 |
1 | ||
| 87915-37030A0 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ- ﾋ-ﾀﾂｷ),WHITE,058 |
1 | ||
| 87915-37010B0 |
LY220..15T,1T;LY270,280..DSL;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY230..TB..(12T,15T,175T)..DSL SILVER ME.,199 |
1 | ||
| 87915-37220H0 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL ｱﾘ(ﾄﾞｱ ﾐﾗ-),TURQUOISE,766 |
1 | ||
| 87915-37220B0 |
LY220..15T,1T;LY270,280..DSL;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY230..TB..(12T,15T,175T)..DSL ｱﾘ(ﾄﾞｱ ﾐﾗ-),SILVER ME.,199 |
1 | ||
| 87915-37010A0 |
KDY220,230,240,270,280,290,RZY231,281 WHITE,058 |
1 | ||
| 87915-37030H0 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ- ﾋ-ﾀﾂｷ),TURQUOISE,766 |
1 | ||
| 87915-37010H0 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL TURQUOISE,766 |
1 | ||
| 87915-37030B0 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY270,280,290..DSL;LY230..(T2,T3,TW3)..TS;LY230..TB..(12T,15T,175T)..DSL ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ- ﾋ-ﾀﾂｷ),SILVER ME,199 |
1 | ||
| 87915-37220A0 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL ｱﾘ(ﾄﾞｱ ﾐﾗ-),WHITE,058 |
1 | ||
| 87915-37220J0 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL ｱﾘ(ﾄﾞｱ ﾐﾗ-),BLUE,8P0 |
1 | ||
| 87915-37030J1 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ- ﾋ-ﾀﾂｷ),BLUE,8P0 |
1 | ||
| 87915-37010B0 |
KDY220,230,270,280,RZY231,281..T2,T3,T4 SILVER ME.,199 |
1 | ||
| 87915-37030B0 |
KDY220,230,270,280,RZY231,281..T2,T3,T4 ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ- ﾋ-ﾀﾂｷ),SILVER ME,199 |
1 | ||
| 87915-37220B0 |
KDY220,230,270,280,RZY231,281..T2,T3,T4 ｱﾘ(ﾄﾞｱ ﾐﾗ-),SILVER ME.,199 |
1 | ||
| 87915-37010H0 |
KDY220,230,240,270,280,290,RZY231,281 TURQUOISE,766 |
1 | ||
| 87915-37030H0 |
KDY220,230,240,270,280,290,RZY231,281 ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ- ﾋ-ﾀﾂｷ),TURQUOISE,766 |
1 | ||
| 87915-37220J0 |
KDY220,230,240,270,280,290,RZY231,281 ｱﾘ(ﾄﾞｱ ﾐﾗ-),BLUE,8P0 |
1 | ||
| 87915-37030J1 |
KDY220,230,240,270,280,290,RZY231,281 ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ- ﾋ-ﾀﾂｷ),BLUE,8P0 |
1 | ||
| 87915-37030A0 |
KDY220,230,240,270,280,290,RZY231,281 ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ- ﾋ-ﾀﾂｷ),WHITE,058 |
1 | ||
| 87915-37220H0 |
KDY220,230,240,270,280,290,RZY231,281 ｱﾘ(ﾄﾞｱ ﾐﾗ-),TURQUOISE,766 |
1 | ||
| 87915-37220A0 |
KDY220,230,240,270,280,290,RZY231,281 ｱﾘ(ﾄﾞｱ ﾐﾗ-),WHITE,058 |
1 | ||
| 87915-37010J1 |
KDY220,230,240,270,280,290,RZY231,281 BLUE,8P0 |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-37010A0 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL WHITE,058 |
1 | ||
| 87915-37010J1 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL BLUE,8P0 |
1 | ||
| 87915-37030A0 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ- ﾋ-ﾀﾂｷ),WHITE,058 |
1 | ||
| 87915-37010B0 |
LY220..15T,1T;LY270,280..DSL;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY230..TB..(12T,15T,175T)..DSL SILVER ME.,199 |
1 | ||
| 87915-37220H0 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL ｱﾘ(ﾄﾞｱ ﾐﾗ-),TURQUOISE,766 |
1 | ||
| 87915-37220B0 |
LY220..15T,1T;LY270,280..DSL;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY230..TB..(12T,15T,175T)..DSL ｱﾘ(ﾄﾞｱ ﾐﾗ-),SILVER ME.,199 |
1 | ||
| 87915-37010A0 |
KDY220,230,240,270,280,290,RZY231,281 WHITE,058 |
1 | ||
| 87915-37030H0 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ- ﾋ-ﾀﾂｷ),TURQUOISE,766 |
1 | ||
| 87915-37010H0 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL TURQUOISE,766 |
1 | ||
| 87915-37030B0 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY270,280,290..DSL;LY230..(T2,T3,TW3)..TS;LY230..TB..(12T,15T,175T)..DSL ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ- ﾋ-ﾀﾂｷ),SILVER ME,199 |
1 | ||
| 87915-37220A0 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL ｱﾘ(ﾄﾞｱ ﾐﾗ-),WHITE,058 |
1 | ||
| 87915-37220J0 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL ｱﾘ(ﾄﾞｱ ﾐﾗ-),BLUE,8P0 |
1 | ||
| 87915-37030J1 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ- ﾋ-ﾀﾂｷ),BLUE,8P0 |
1 | ||
| 87915-37010B0 |
KDY220,230,270,280,RZY231,281..T2,T3,T4 SILVER ME.,199 |
1 | ||
| 87915-37030B0 |
KDY220,230,270,280,RZY231,281..T2,T3,T4 ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ- ﾋ-ﾀﾂｷ),SILVER ME,199 |
1 | ||
| 87915-37220B0 |
KDY220,230,270,280,RZY231,281..T2,T3,T4 ｱﾘ(ﾄﾞｱ ﾐﾗ-),SILVER ME.,199 |
1 | ||
| 87915-37010H0 |
KDY220,230,240,270,280,290,RZY231,281 TURQUOISE,766 |
1 | ||
| 87915-37030H0 |
KDY220,230,240,270,280,290,RZY231,281 ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ- ﾋ-ﾀﾂｷ),TURQUOISE,766 |
1 | ||
| 87915-37220J0 |
KDY220,230,240,270,280,290,RZY231,281 ｱﾘ(ﾄﾞｱ ﾐﾗ-),BLUE,8P0 |
1 | ||
| 87915-37030J1 |
KDY220,230,240,270,280,290,RZY231,281 ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ- ﾋ-ﾀﾂｷ),BLUE,8P0 |
1 | ||
| 87915-37030A0 |
KDY220,230,240,270,280,290,RZY231,281 ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ- ﾋ-ﾀﾂｷ),WHITE,058 |
1 | ||
| 87915-37220H0 |
KDY220,230,240,270,280,290,RZY231,281 ｱﾘ(ﾄﾞｱ ﾐﾗ-),TURQUOISE,766 |
1 | ||
| 87915-37220A0 |
KDY220,230,240,270,280,290,RZY231,281 ｱﾘ(ﾄﾞｱ ﾐﾗ-),WHITE,058 |
1 | ||
| 87915-37010J1 |
KDY220,230,240,270,280,290,RZY231,281 BLUE,8P0 |
1 | ||
| 87916 - BEZEL, OUTER MIRROR | ||||
| 87916-37020 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,右側 |
1 | ||
| 87916-37010 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL 右側 |
1 | ||
| 87916-37010 |
KDY220,230,240,270,280,290,RZY231,281 右側 |
1 | ||
| 87916-37040 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL 左側 |
1 | ||
| 87916-37040 |
KDY220,230,240,270,280,290,RZY231,281 左側 |
1 | ||
| 87916-37030 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,左側 |
1 | ||
| 87916-37020 |
KDY220,230,240,270,280,290,RZY231,281 ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,右側 |
1 | ||
| 87916-37030 |
KDY220,230,240,270,280,290,RZY231,281 ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,左側 |
1 | ||
| 87916 - BEZEL, OUTER MIRROR | ||||
| 87916-37020 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,右側 |
1 | ||
| 87916-37010 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL 右側 |
1 | ||
| 87916-37010 |
KDY220,230,240,270,280,290,RZY231,281 右側 |
1 | ||
| 87916-37040 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL 左側 |
1 | ||
| 87916-37040 |
KDY220,230,240,270,280,290,RZY231,281 左側 |
1 | ||
| 87916-37030 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,左側 |
1 | ||
| 87916-37020 |
KDY220,230,240,270,280,290,RZY231,281 ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,右側 |
1 | ||
| 87916-37030 |
KDY220,230,240,270,280,290,RZY231,281 ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,左側 |
1 | ||
| 87919A - BRACKET, OUTER MIRROR | ||||
| 87919-37010 |
KDY220,230,240,270,280,290,RZY231,281 |
1 | ||
| 87919-37010 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-37010H0 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-),TURQUOISE,766 |
1 | ||
| 87945-37010J1 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-),BLUE,8P0 |
1 | ||
| 87945-37010B0 |
LY220..15T,1T;LY270,280..DSL;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY230..TB..(12T,15T,175T)..DSL ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-),SILVER ME.,199 |
1 | ||
| 87945-37010A0 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-),WHITE,058 |
1 | ||
| 87945-37020A0 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL WHITE,058 |
1 | ||
| 87945-37020B0 |
LY220..15T,1T;LY270,280..DSL;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY230..TB..(12T,15T,175T)..DSL SILVER ME.,199 |
1 | ||
| 87945-37020B0 |
KDY220,230,270,280,RZY231,281..T2,T3,T4 SILVER ME.,199 |
1 | ||
| 87945-37010A0 |
KDY220,230,240,270,280,290,RZY231,281 ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-),WHITE,058 |
1 | ||
| 87945-37020H0 |
KDY220,230,240,270,280,290,RZY231,281 TURQUOISE,766 |
1 | ||
| 87945-37020A0 |
KDY220,230,240,270,280,290,RZY231,281 WHITE,058 |
1 | ||
| 87945-37020H0 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL TURQUOISE,766 |
1 | ||
| 87945-37020J1 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL BLUE,8P0 |
1 | ||
| 87945-37010B0 |
KDY220,230,270,280,RZY231,281..T2,T3,T4 ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-),SILVER ME.,199 |
1 | ||
| 87945-37020J1 |
KDY220,230,240,270,280,290,RZY231,281 BLUE,8P0 |
1 | ||
| 87945-37010J1 |
KDY220,230,240,270,280,290,RZY231,281 ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-),BLUE,8P0 |
1 | ||
| 87945-37010H0 |
KDY230..T4..TB;KDY230..T2,T3,TW2,TW3,TW4;KDY220,240,270,280,290,RZY231,281 ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-),TURQUOISE,766 |
1 | ||
| 87965 - GROMMET, OUTER MIRROR | ||||
| 87965-37020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
1 | ||
| 87965-37010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 87965A - GROMMET, OUTER MIRROR | ||||
| 87965-37010 |
KDY220,230,240,270,280,290,RZY231,281 |
1 | ||
| 87965-37020 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
1 | ||
| 87965-37020 |
KDY220,230,240,270,280,290,RZY231,281 ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
1 | ||
| 87965-37010 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 87967 - HOLDER, MIRROR, OUTER RH | ||||
| 87967-37020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 87968 - HOLDER, MIRROR, OUTER LH | ||||
| 87968-37020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| Common parts | ||||
| 67771-12050 | ||||
| 90119-08C00 | ||||
| 90249-06132 | ||||

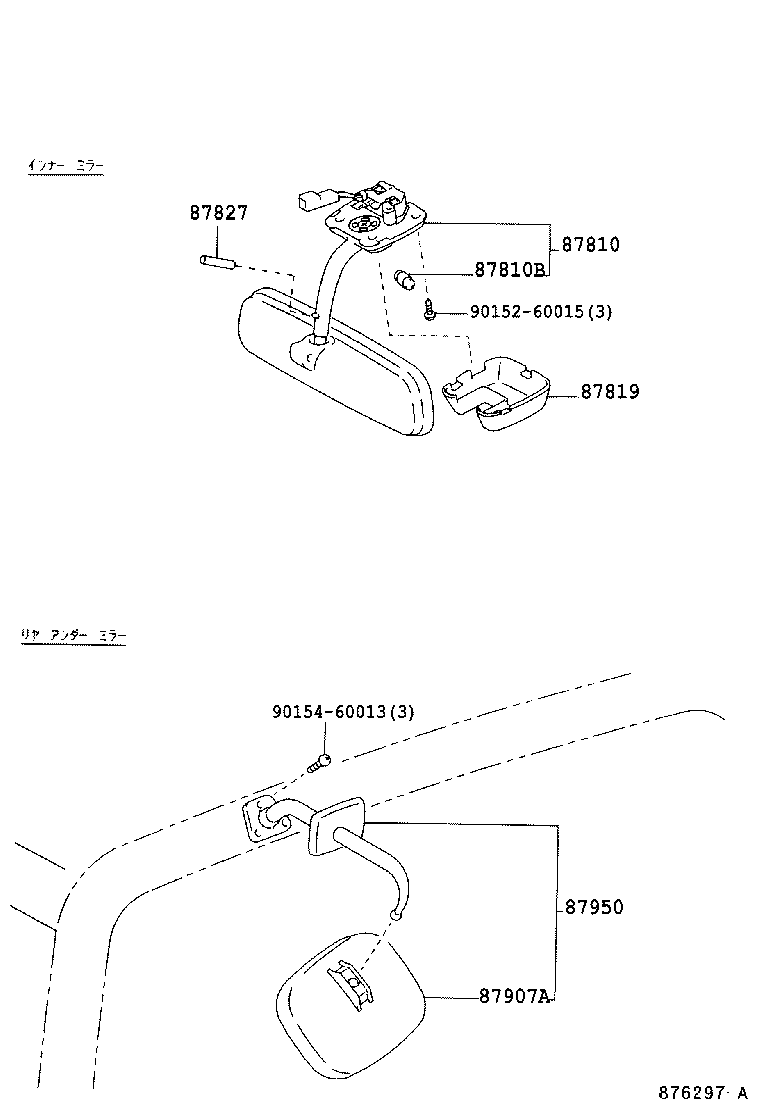

ILLUST NO. 1 OF 3(0308- )
ｲﾝﾅ ﾐﾗ- & ﾘﾔ ｱﾝﾀﾞ ﾐﾗ-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-25050B0 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 MD.CHARCOAL,TRIM1# |
1 | ||
| 87810B - BULB, INNER REAR VIEW MIRROR LAMP | ||||
| 90981-11027 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 12V 10W |
1 | ||
| 87819 - LENS, INNER RR VIEW MIRROR ROOM LAMP | ||||
| 87819-25010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| Common parts | ||||
| 90152-60015 | ||||
| 90154-60013 | ||||

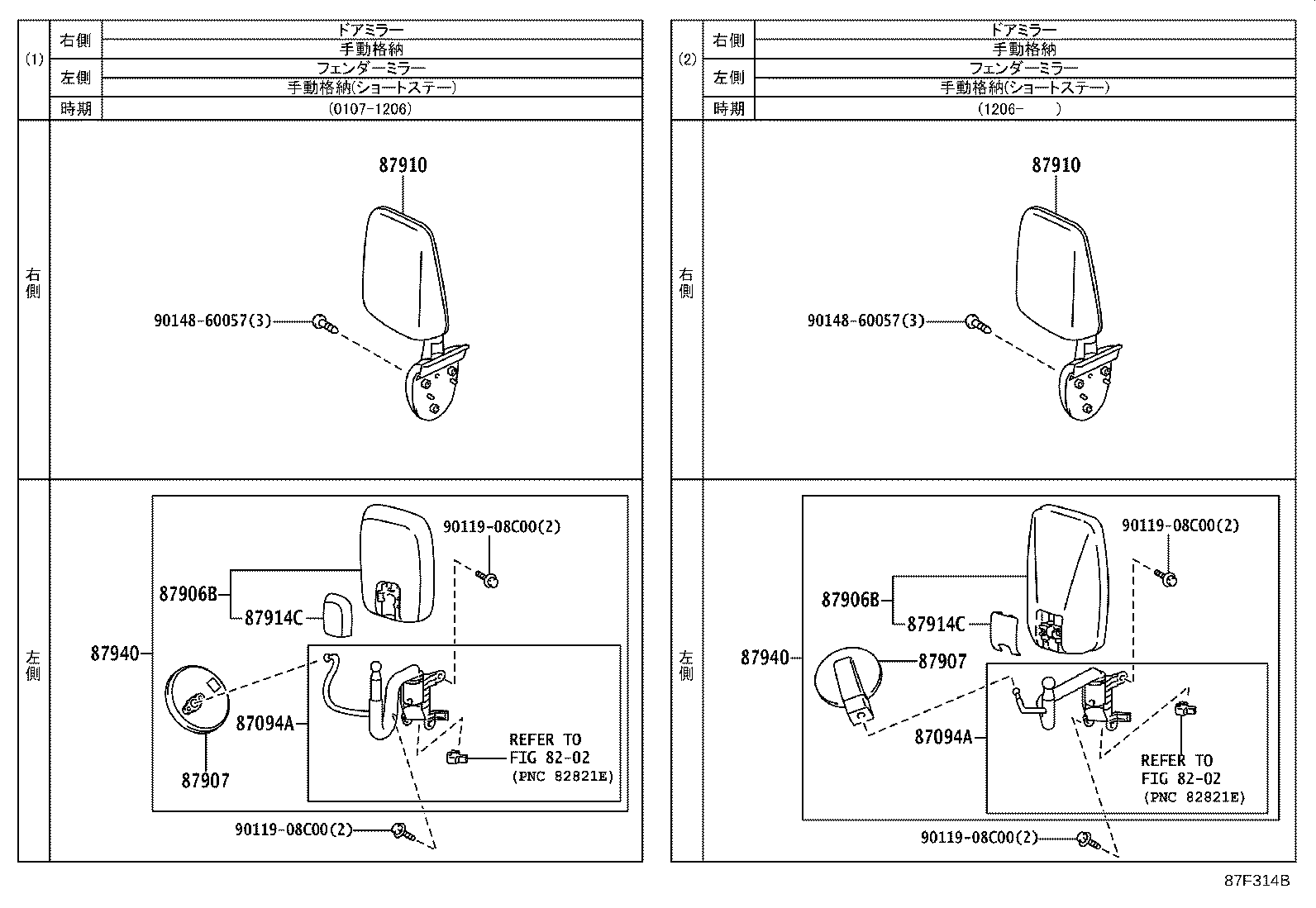

ILLUST NO. 2 OF 3(0107-1610)
ｱｳﾀﾐﾗｰ(1)(2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87094A - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, LH | ||||
| 87094-25040 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 ｲﾗｽﾄｻﾝｼｮｳ(1)=ｼｭﾄﾞｳｶｸﾉｳ(ｼｮｰﾄｽﾃｰ) |
1 | ||
| 87094-37450 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 ｲﾗｽﾄｻﾝｼｮｳ(3)=ｼｭﾄﾞｳｶｸﾉｳ(ﾛﾝｸﾞｽﾃｰ) |
1 | ||
| 87094-37513 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 ｲﾗｽﾄｻﾝｼｮｳ(6)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾘﾓｺﾝ&ﾋｰﾀﾂｷ) |
1 | ||
| 87094A - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, LH | ||||
| 87094-25040 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 ｲﾗｽﾄｻﾝｼｮｳ(1)=ｼｭﾄﾞｳｶｸﾉｳ(ｼｮｰﾄｽﾃｰ) |
1 | ||
| 87094-37450 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 ｲﾗｽﾄｻﾝｼｮｳ(3)=ｼｭﾄﾞｳｶｸﾉｳ(ﾛﾝｸﾞｽﾃｰ) |
1 | ||
| 87094-37513 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 ｲﾗｽﾄｻﾝｼｮｳ(6)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾘﾓｺﾝ&ﾋｰﾀﾂｷ) |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87901-37160 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(6)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾘﾓｺﾝ&ﾋｰﾀﾂｷ) |
1 | ||
| 87901-37130 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｲﾗｽﾄｻﾝｼｮｳ(2,3,4,5) |
1 | ||
| 87901-36030 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｲﾗｽﾄｻﾝｼｮｳ(1) |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87901-37160 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(6)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾘﾓｺﾝ&ﾋｰﾀﾂｷ) |
1 | ||
| 87901-37130 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｲﾗｽﾄｻﾝｼｮｳ(2,3,4,5) |
1 | ||
| 87901-36030 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｲﾗｽﾄｻﾝｼｮｳ(1) |
1 | ||
| 87907 - MIRROR SUB-ASSY, OUTER UNDER VIEW | ||||
| 87907-26040 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｲﾗｽﾄｻﾝｼｮｳ(1)=ｼｭﾄﾞｳｶｸﾉｳ(ｼｮｰﾄｽﾃｰ) |
1 | ||
| 87907-37070 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｲﾗｽﾄｻﾝｼｮｳ(2,3,4,5,6) |
1 | ||
| 87907 - MIRROR SUB-ASSY, OUTER UNDER VIEW | ||||
| 87907-26040 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｲﾗｽﾄｻﾝｼｮｳ(1)=ｼｭﾄﾞｳｶｸﾉｳ(ｼｮｰﾄｽﾃｰ) |
1 | ||
| 87907-37070 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｲﾗｽﾄｻﾝｼｮｳ(2,3,4,5,6) |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-37400 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(3,4)=ｼｭﾄﾞｳｶｸﾉｳ(ﾌｪﾝﾀﾞﾐﾗｰ) |
1 | ||
| 87910-37490 |
LY220,230,240,270,280,290,RZY220,230 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(6)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾘﾓｺﾝ&ﾋｰﾀﾂｷ) |
1 | ||
| 87910-25040 |
KDY231,281,TRY230..CBU,IV3;KDY22#,230,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(1,2)=ｼｭﾄﾞｳｶｸﾉｳ(ﾄﾞｱﾐﾗｰ) |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-37400 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(3,4)=ｼｭﾄﾞｳｶｸﾉｳ(ﾌｪﾝﾀﾞﾐﾗｰ) |
1 | ||
| 87910-37490 |
LY220,230,240,270,280,290,RZY220,230 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(6)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾘﾓｺﾝ&ﾋｰﾀﾂｷ) |
1 | ||
| 87910-25040 |
KDY231,281,TRY230..CBU,IV3;KDY22#,230,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(1,2)=ｼｭﾄﾞｳｶｸﾉｳ(ﾄﾞｱﾐﾗｰ) |
1 | ||
| 87914C - COVER, OUTER MIRROR KNOB, LH | ||||
| 87914-37010 |
KDY221..T3..TS;KDY221..T2,T4,TW1;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY231,TRY230..(T2,T3,T4,TW1,TW3,TW4)..(CBU,IV3);KDY220,230,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281 ｲﾗｽﾄｻﾝｼｮｳ(3,4,5)=ﾌｪﾝﾀﾞﾐﾗｰ |
1 | ||
| 87914-36030 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｲﾗｽﾄｻﾝｼｮｳ(1)=ｼｭﾄﾞｳｶｸﾉｳ(ｼｮｰﾄｽﾃｰ) |
1 | ||
| 87914-37040 |
KDY22#,23#,240,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｲﾗｽﾄｻﾝｼｮｳ(6)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾘﾓｺﾝ&ﾋｰﾀﾂｷ) |
1 | ||
| 87914C - COVER, OUTER MIRROR KNOB, LH | ||||
| 87914-37010 |
KDY221..T3..TS;KDY221..T2,T4,TW1;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY231,TRY230..(T2,T3,T4,TW1,TW3,TW4)..(CBU,IV3);KDY220,230,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281 ｲﾗｽﾄｻﾝｼｮｳ(3,4,5)=ﾌｪﾝﾀﾞﾐﾗｰ |
1 | ||
| 87914-36030 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｲﾗｽﾄｻﾝｼｮｳ(1)=ｼｭﾄﾞｳｶｸﾉｳ(ｼｮｰﾄｽﾃｰ) |
1 | ||
| 87914-37040 |
KDY22#,23#,240,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｲﾗｽﾄｻﾝｼｮｳ(6)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾘﾓｺﾝ&ﾋｰﾀﾂｷ) |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-37850 |
LY220,230,240,270,280,290,RZY220,230 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(4)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾉｿﾞｸ ｷｬﾝﾊﾟｰｼﾖｳ) |
1 | ||
| 87940-37830 |
LY220,230,240,270,280,290,RZY220,230 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(6)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾘﾓｺﾝ&ﾋｰﾀﾂｷ) |
1 | ||
| 87940-37710 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(3)=ｼｭﾄﾞｳｶｸﾉｳ(ﾛﾝｸﾞｽﾃｰ) |
1 | ||
| 87940-25050 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(1)=ｼｭﾄﾞｳｶｸﾉｳ(ｼｮｰﾄｽﾃｰ) |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-37850 |
LY220,230,240,270,280,290,RZY220,230 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(4)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾉｿﾞｸ ｷｬﾝﾊﾟｰｼﾖｳ) |
1 | ||
| 87940-37830 |
LY220,230,240,270,280,290,RZY220,230 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(6)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾘﾓｺﾝ&ﾋｰﾀﾂｷ) |
1 | ||
| 87940-37710 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(3)=ｼｭﾄﾞｳｶｸﾉｳ(ﾛﾝｸﾞｽﾃｰ) |
1 | ||
| 87940-25050 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(1)=ｼｭﾄﾞｳｶｸﾉｳ(ｼｮｰﾄｽﾃｰ) |
1 | ||
| Common parts | ||||
| 90119-08C00 | ||||
| 90148-60057 | ||||
| Linked diagrams | ||||
| 8202 | ||||

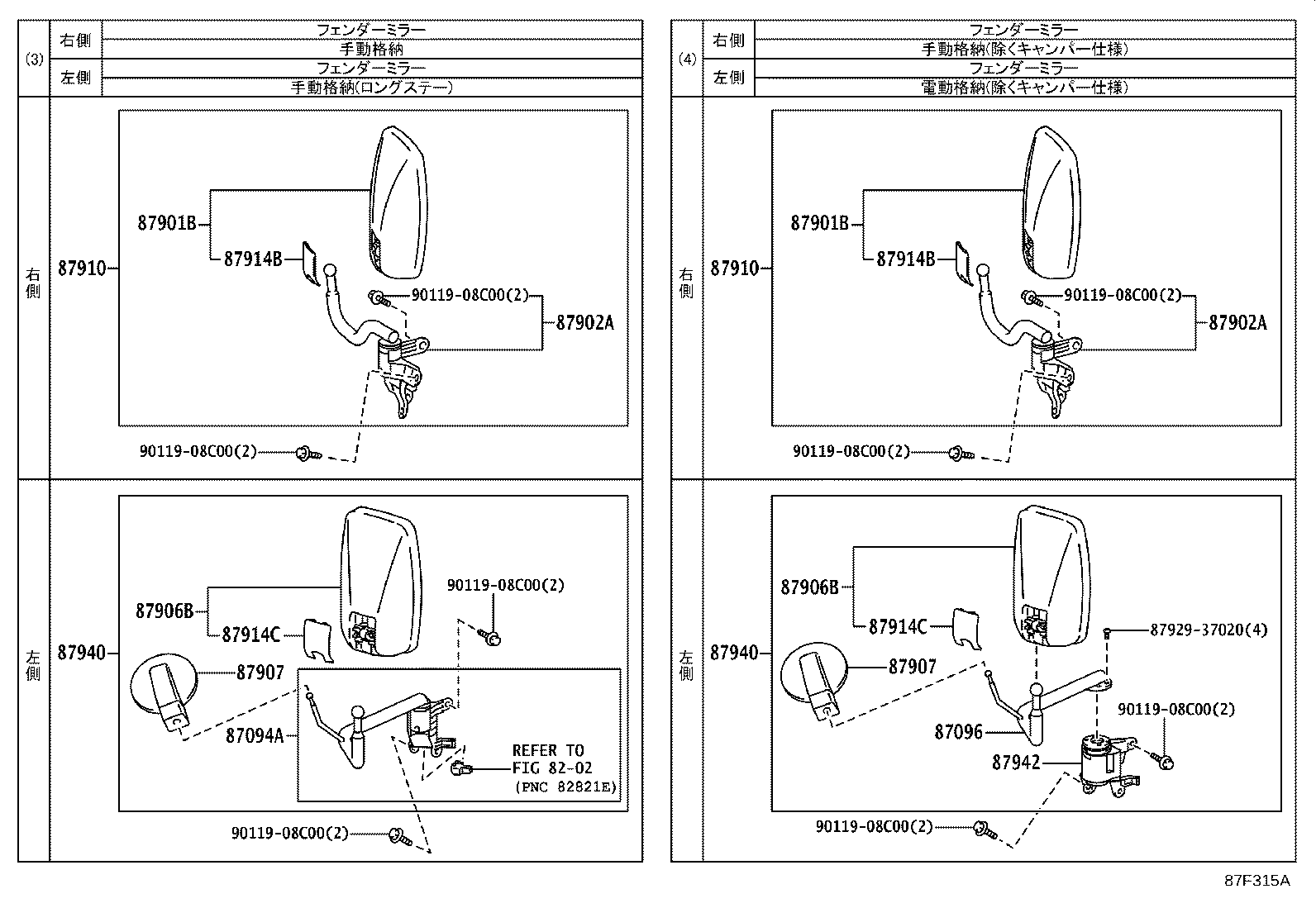

ILLUST NO. 2 OF 3(0107-1610)
ｱｳﾀﾐﾗｰ(3)(4)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87094A - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, LH | ||||
| 87094-25040 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 ｲﾗｽﾄｻﾝｼｮｳ(1)=ｼｭﾄﾞｳｶｸﾉｳ(ｼｮｰﾄｽﾃｰ) |
1 | ||
| 87094-37450 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 ｲﾗｽﾄｻﾝｼｮｳ(3)=ｼｭﾄﾞｳｶｸﾉｳ(ﾛﾝｸﾞｽﾃｰ) |
1 | ||
| 87094-37513 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 ｲﾗｽﾄｻﾝｼｮｳ(6)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾘﾓｺﾝ&ﾋｰﾀﾂｷ) |
1 | ||
| 87096 - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, LOWER LH | ||||
| 87096-37022 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL ｲﾗｽﾄｻﾝｼｮｳ(4)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾉｿﾞｸ ｷｬﾝﾊﾟｰｼﾖｳ) |
1 | ||
| 87096-37020 |
LY220,230,240,270,280,290,RZY220,230 ｲﾗｽﾄｻﾝｼｮｳ(4)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾉｿﾞｸ ｷｬﾝﾊﾟｰｼﾖｳ) |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87901-37160 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(6)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾘﾓｺﾝ&ﾋｰﾀﾂｷ) |
1 | ||
| 87901-37130 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(3,4,5)=ｼｭﾄﾞｳｶｸﾉｳ(ﾌｪﾝﾀﾞﾐﾗｰ) |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87901-37160 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(6)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾘﾓｺﾝ&ﾋｰﾀﾂｷ) |
1 | ||
| 87901-37130 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(3,4,5)=ｼｭﾄﾞｳｶｸﾉｳ(ﾌｪﾝﾀﾞﾐﾗｰ) |
1 | ||
| 87902A - ARM SUB-ASSY, OUTER REAR VIEW MIRROR, RH | ||||
| 87902-37022 |
KDY220,230,240,270,280,290,RZY231,281 ｲﾗｽﾄｻﾝｼｮｳ(3,4)=ｼｭﾄﾞｳｶｸﾉｳ(ﾌｪﾝﾀﾞﾐﾗｰ) |
1 | ||
| 87902-37022 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL ｲﾗｽﾄｻﾝｼｮｳ(3,4)=ｼｭﾄﾞｳｶｸﾉｳ(ﾌｪﾝﾀﾞﾐﾗｰ) |
1 | ||
| 87902A - ARM SUB-ASSY, OUTER REAR VIEW MIRROR, RH | ||||
| 87902-37022 |
KDY220,230,240,270,280,290,RZY231,281 ｲﾗｽﾄｻﾝｼｮｳ(3,4)=ｼｭﾄﾞｳｶｸﾉｳ(ﾌｪﾝﾀﾞﾐﾗｰ) |
1 | ||
| 87902-37022 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL ｲﾗｽﾄｻﾝｼｮｳ(3,4)=ｼｭﾄﾞｳｶｸﾉｳ(ﾌｪﾝﾀﾞﾐﾗｰ) |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87901-37160 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(6)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾘﾓｺﾝ&ﾋｰﾀﾂｷ) |
1 | ||
| 87901-37130 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｲﾗｽﾄｻﾝｼｮｳ(2,3,4,5) |
1 | ||
| 87901-36030 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｲﾗｽﾄｻﾝｼｮｳ(1) |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87901-37160 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(6)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾘﾓｺﾝ&ﾋｰﾀﾂｷ) |
1 | ||
| 87901-37130 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｲﾗｽﾄｻﾝｼｮｳ(2,3,4,5) |
1 | ||
| 87901-36030 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｲﾗｽﾄｻﾝｼｮｳ(1) |
1 | ||
| 87907 - MIRROR SUB-ASSY, OUTER UNDER VIEW | ||||
| 87907-26040 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｲﾗｽﾄｻﾝｼｮｳ(1)=ｼｭﾄﾞｳｶｸﾉｳ(ｼｮｰﾄｽﾃｰ) |
1 | ||
| 87907-37070 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｲﾗｽﾄｻﾝｼｮｳ(2,3,4,5,6) |
1 | ||
| 87907 - MIRROR SUB-ASSY, OUTER UNDER VIEW | ||||
| 87907-26040 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｲﾗｽﾄｻﾝｼｮｳ(1)=ｼｭﾄﾞｳｶｸﾉｳ(ｼｮｰﾄｽﾃｰ) |
1 | ||
| 87907-37070 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｲﾗｽﾄｻﾝｼｮｳ(2,3,4,5,6) |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-37400 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(3,4)=ｼｭﾄﾞｳｶｸﾉｳ(ﾌｪﾝﾀﾞﾐﾗｰ) |
1 | ||
| 87910-37490 |
LY220,230,240,270,280,290,RZY220,230 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(6)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾘﾓｺﾝ&ﾋｰﾀﾂｷ) |
1 | ||
| 87910-25040 |
KDY231,281,TRY230..CBU,IV3;KDY22#,230,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(1,2)=ｼｭﾄﾞｳｶｸﾉｳ(ﾄﾞｱﾐﾗｰ) |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-37400 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(3,4)=ｼｭﾄﾞｳｶｸﾉｳ(ﾌｪﾝﾀﾞﾐﾗｰ) |
1 | ||
| 87910-37490 |
LY220,230,240,270,280,290,RZY220,230 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(6)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾘﾓｺﾝ&ﾋｰﾀﾂｷ) |
1 | ||
| 87910-25040 |
KDY231,281,TRY230..CBU,IV3;KDY22#,230,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(1,2)=ｼｭﾄﾞｳｶｸﾉｳ(ﾄﾞｱﾐﾗｰ) |
1 | ||
| 87914B - COVER, OUTER MIRROR KNOB, RH | ||||
| 87914-37010 |
KDY221..(T3,TW1)..TS;KDY231,281,TRY230..IV6;KDY231,241,TRY220,230..(TW1,TW3,VAN)..(06S,TS)..(15T,1T);KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281 ｲﾗｽﾄｻﾝｼｮｳ(3,4,5)=ｼｭﾄﾞｳｶｸﾉｳ(ﾌｪﾝﾀﾞﾐﾗｰ) |
1 | ||
| 87914-37040 |
KDY22#,23#,240,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｲﾗｽﾄｻﾝｼｮｳ(6)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾘﾓｺﾝ&ﾋｰﾀﾂｷ) |
1 | ||
| 87914B - COVER, OUTER MIRROR KNOB, RH | ||||
| 87914-37010 |
KDY221..(T3,TW1)..TS;KDY231,281,TRY230..IV6;KDY231,241,TRY220,230..(TW1,TW3,VAN)..(06S,TS)..(15T,1T);KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281 ｲﾗｽﾄｻﾝｼｮｳ(3,4,5)=ｼｭﾄﾞｳｶｸﾉｳ(ﾌｪﾝﾀﾞﾐﾗｰ) |
1 | ||
| 87914-37040 |
KDY22#,23#,240,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｲﾗｽﾄｻﾝｼｮｳ(6)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾘﾓｺﾝ&ﾋｰﾀﾂｷ) |
1 | ||
| 87914C - COVER, OUTER MIRROR KNOB, LH | ||||
| 87914-37010 |
KDY221..T3..TS;KDY221..T2,T4,TW1;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY231,TRY230..(T2,T3,T4,TW1,TW3,TW4)..(CBU,IV3);KDY220,230,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281 ｲﾗｽﾄｻﾝｼｮｳ(3,4,5)=ﾌｪﾝﾀﾞﾐﾗｰ |
1 | ||
| 87914-36030 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｲﾗｽﾄｻﾝｼｮｳ(1)=ｼｭﾄﾞｳｶｸﾉｳ(ｼｮｰﾄｽﾃｰ) |
1 | ||
| 87914-37040 |
KDY22#,23#,240,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｲﾗｽﾄｻﾝｼｮｳ(6)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾘﾓｺﾝ&ﾋｰﾀﾂｷ) |
1 | ||
| 87914C - COVER, OUTER MIRROR KNOB, LH | ||||
| 87914-37010 |
KDY221..T3..TS;KDY221..T2,T4,TW1;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY231,TRY230..(T2,T3,T4,TW1,TW3,TW4)..(CBU,IV3);KDY220,230,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281 ｲﾗｽﾄｻﾝｼｮｳ(3,4,5)=ﾌｪﾝﾀﾞﾐﾗｰ |
1 | ||
| 87914-36030 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｲﾗｽﾄｻﾝｼｮｳ(1)=ｼｭﾄﾞｳｶｸﾉｳ(ｼｮｰﾄｽﾃｰ) |
1 | ||
| 87914-37040 |
KDY22#,23#,240,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｲﾗｽﾄｻﾝｼｮｳ(6)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾘﾓｺﾝ&ﾋｰﾀﾂｷ) |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-37850 |
LY220,230,240,270,280,290,RZY220,230 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(4)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾉｿﾞｸ ｷｬﾝﾊﾟｰｼﾖｳ) |
1 | ||
| 87940-37830 |
LY220,230,240,270,280,290,RZY220,230 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(6)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾘﾓｺﾝ&ﾋｰﾀﾂｷ) |
1 | ||
| 87940-37710 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(3)=ｼｭﾄﾞｳｶｸﾉｳ(ﾛﾝｸﾞｽﾃｰ) |
1 | ||
| 87940-25050 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(1)=ｼｭﾄﾞｳｶｸﾉｳ(ｼｮｰﾄｽﾃｰ) |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-37850 |
LY220,230,240,270,280,290,RZY220,230 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(4)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾉｿﾞｸ ｷｬﾝﾊﾟｰｼﾖｳ) |
1 | ||
| 87940-37830 |
LY220,230,240,270,280,290,RZY220,230 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(6)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾘﾓｺﾝ&ﾋｰﾀﾂｷ) |
1 | ||
| 87940-37710 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(3)=ｼｭﾄﾞｳｶｸﾉｳ(ﾛﾝｸﾞｽﾃｰ) |
1 | ||
| 87940-25050 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(1)=ｼｭﾄﾞｳｶｸﾉｳ(ｼｮｰﾄｽﾃｰ) |
1 | ||
| 87942 - MOTOR, MIRROR, LH | ||||
| 87942-37020 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 ｲﾗｽﾄｻﾝｼｮｳ(4)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾉｿﾞｸ ｷｬﾝﾊﾟｰｼﾖｳ) |
1 | ||
| Common parts | ||||
| 87929-37020 | ||||
| 90119-08C00 | ||||
| Linked diagrams | ||||
| 8202 | ||||

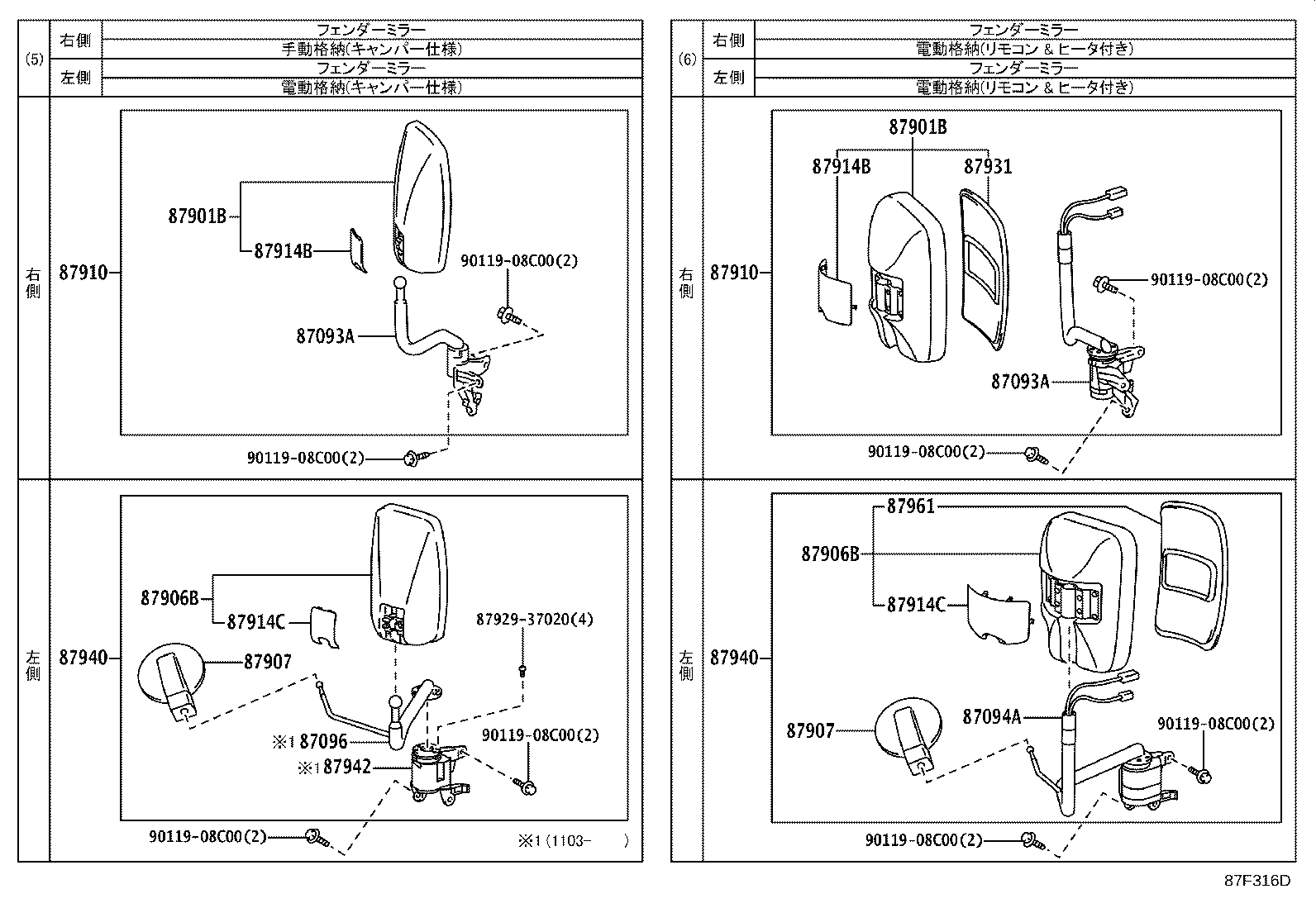

ILLUST NO. 2 OF 3(0107-1610)
ｱｳﾀﾐﾗｰ(5)(6)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87093A - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, RH | ||||
| 87093-37262 |
KDY220,230,240,270,280,290,RZY231,281 ｲﾗｽﾄｻﾝｼｮｳ(6)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾘﾓｺﾝ&ﾋｰﾀﾂｷ) |
1 | ||
| 87093-37262 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL ｲﾗｽﾄｻﾝｼｮｳ(6)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾘﾓｺﾝ&ﾋｰﾀﾂｷ) |
1 | ||
| 87093A - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, RH | ||||
| 87093-37262 |
KDY220,230,240,270,280,290,RZY231,281 ｲﾗｽﾄｻﾝｼｮｳ(6)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾘﾓｺﾝ&ﾋｰﾀﾂｷ) |
1 | ||
| 87093-37262 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL ｲﾗｽﾄｻﾝｼｮｳ(6)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾘﾓｺﾝ&ﾋｰﾀﾂｷ) |
1 | ||
| 87094A - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, LH | ||||
| 87094-25040 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 ｲﾗｽﾄｻﾝｼｮｳ(1)=ｼｭﾄﾞｳｶｸﾉｳ(ｼｮｰﾄｽﾃｰ) |
1 | ||
| 87094-37450 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 ｲﾗｽﾄｻﾝｼｮｳ(3)=ｼｭﾄﾞｳｶｸﾉｳ(ﾛﾝｸﾞｽﾃｰ) |
1 | ||
| 87094-37513 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 ｲﾗｽﾄｻﾝｼｮｳ(6)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾘﾓｺﾝ&ﾋｰﾀﾂｷ) |
1 | ||
| 87096 - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, LOWER LH | ||||
| 87096-37022 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL ｲﾗｽﾄｻﾝｼｮｳ(4)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾉｿﾞｸ ｷｬﾝﾊﾟｰｼﾖｳ) |
1 | ||
| 87096-37020 |
LY220,230,240,270,280,290,RZY220,230 ｲﾗｽﾄｻﾝｼｮｳ(4)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾉｿﾞｸ ｷｬﾝﾊﾟｰｼﾖｳ) |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87901-37160 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(6)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾘﾓｺﾝ&ﾋｰﾀﾂｷ) |
1 | ||
| 87901-37130 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(3,4,5)=ｼｭﾄﾞｳｶｸﾉｳ(ﾌｪﾝﾀﾞﾐﾗｰ) |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87901-37160 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(6)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾘﾓｺﾝ&ﾋｰﾀﾂｷ) |
1 | ||
| 87901-37130 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(3,4,5)=ｼｭﾄﾞｳｶｸﾉｳ(ﾌｪﾝﾀﾞﾐﾗｰ) |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87901-37160 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(6)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾘﾓｺﾝ&ﾋｰﾀﾂｷ) |
1 | ||
| 87901-37130 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｲﾗｽﾄｻﾝｼｮｳ(2,3,4,5) |
1 | ||
| 87901-36030 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｲﾗｽﾄｻﾝｼｮｳ(1) |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87901-37160 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(6)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾘﾓｺﾝ&ﾋｰﾀﾂｷ) |
1 | ||
| 87901-37130 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｲﾗｽﾄｻﾝｼｮｳ(2,3,4,5) |
1 | ||
| 87901-36030 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｲﾗｽﾄｻﾝｼｮｳ(1) |
1 | ||
| 87907 - MIRROR SUB-ASSY, OUTER UNDER VIEW | ||||
| 87907-26040 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｲﾗｽﾄｻﾝｼｮｳ(1)=ｼｭﾄﾞｳｶｸﾉｳ(ｼｮｰﾄｽﾃｰ) |
1 | ||
| 87907-37070 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｲﾗｽﾄｻﾝｼｮｳ(2,3,4,5,6) |
1 | ||
| 87907 - MIRROR SUB-ASSY, OUTER UNDER VIEW | ||||
| 87907-26040 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｲﾗｽﾄｻﾝｼｮｳ(1)=ｼｭﾄﾞｳｶｸﾉｳ(ｼｮｰﾄｽﾃｰ) |
1 | ||
| 87907-37070 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｲﾗｽﾄｻﾝｼｮｳ(2,3,4,5,6) |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-37400 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(3,4)=ｼｭﾄﾞｳｶｸﾉｳ(ﾌｪﾝﾀﾞﾐﾗｰ) |
1 | ||
| 87910-37490 |
LY220,230,240,270,280,290,RZY220,230 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(6)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾘﾓｺﾝ&ﾋｰﾀﾂｷ) |
1 | ||
| 87910-25040 |
KDY231,281,TRY230..CBU,IV3;KDY22#,230,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(1,2)=ｼｭﾄﾞｳｶｸﾉｳ(ﾄﾞｱﾐﾗｰ) |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-37400 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(3,4)=ｼｭﾄﾞｳｶｸﾉｳ(ﾌｪﾝﾀﾞﾐﾗｰ) |
1 | ||
| 87910-37490 |
LY220,230,240,270,280,290,RZY220,230 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(6)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾘﾓｺﾝ&ﾋｰﾀﾂｷ) |
1 | ||
| 87910-25040 |
KDY231,281,TRY230..CBU,IV3;KDY22#,230,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(1,2)=ｼｭﾄﾞｳｶｸﾉｳ(ﾄﾞｱﾐﾗｰ) |
1 | ||
| 87914B - COVER, OUTER MIRROR KNOB, RH | ||||
| 87914-37010 |
KDY221..(T3,TW1)..TS;KDY231,281,TRY230..IV6;KDY231,241,TRY220,230..(TW1,TW3,VAN)..(06S,TS)..(15T,1T);KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281 ｲﾗｽﾄｻﾝｼｮｳ(3,4,5)=ｼｭﾄﾞｳｶｸﾉｳ(ﾌｪﾝﾀﾞﾐﾗｰ) |
1 | ||
| 87914-37040 |
KDY22#,23#,240,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｲﾗｽﾄｻﾝｼｮｳ(6)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾘﾓｺﾝ&ﾋｰﾀﾂｷ) |
1 | ||
| 87914B - COVER, OUTER MIRROR KNOB, RH | ||||
| 87914-37010 |
KDY221..(T3,TW1)..TS;KDY231,281,TRY230..IV6;KDY231,241,TRY220,230..(TW1,TW3,VAN)..(06S,TS)..(15T,1T);KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281 ｲﾗｽﾄｻﾝｼｮｳ(3,4,5)=ｼｭﾄﾞｳｶｸﾉｳ(ﾌｪﾝﾀﾞﾐﾗｰ) |
1 | ||
| 87914-37040 |
KDY22#,23#,240,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｲﾗｽﾄｻﾝｼｮｳ(6)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾘﾓｺﾝ&ﾋｰﾀﾂｷ) |
1 | ||
| 87914C - COVER, OUTER MIRROR KNOB, LH | ||||
| 87914-37010 |
KDY221..T3..TS;KDY221..T2,T4,TW1;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY231,TRY230..(T2,T3,T4,TW1,TW3,TW4)..(CBU,IV3);KDY220,230,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281 ｲﾗｽﾄｻﾝｼｮｳ(3,4,5)=ﾌｪﾝﾀﾞﾐﾗｰ |
1 | ||
| 87914-36030 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｲﾗｽﾄｻﾝｼｮｳ(1)=ｼｭﾄﾞｳｶｸﾉｳ(ｼｮｰﾄｽﾃｰ) |
1 | ||
| 87914-37040 |
KDY22#,23#,240,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｲﾗｽﾄｻﾝｼｮｳ(6)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾘﾓｺﾝ&ﾋｰﾀﾂｷ) |
1 | ||
| 87914C - COVER, OUTER MIRROR KNOB, LH | ||||
| 87914-37010 |
KDY221..T3..TS;KDY221..T2,T4,TW1;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY231,TRY230..(T2,T3,T4,TW1,TW3,TW4)..(CBU,IV3);KDY220,230,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281 ｲﾗｽﾄｻﾝｼｮｳ(3,4,5)=ﾌｪﾝﾀﾞﾐﾗｰ |
1 | ||
| 87914-36030 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｲﾗｽﾄｻﾝｼｮｳ(1)=ｼｭﾄﾞｳｶｸﾉｳ(ｼｮｰﾄｽﾃｰ) |
1 | ||
| 87914-37040 |
KDY22#,23#,240,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｲﾗｽﾄｻﾝｼｮｳ(6)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾘﾓｺﾝ&ﾋｰﾀﾂｷ) |
1 | ||
| 87931 - OUTER MIRROR, RH | ||||
| 87931-37160 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 87931-37160 |
KDY220,230,240,270,280,290,RZY231,281 |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-37850 |
LY220,230,240,270,280,290,RZY220,230 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(4)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾉｿﾞｸ ｷｬﾝﾊﾟｰｼﾖｳ) |
1 | ||
| 87940-37830 |
LY220,230,240,270,280,290,RZY220,230 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(6)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾘﾓｺﾝ&ﾋｰﾀﾂｷ) |
1 | ||
| 87940-37710 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(3)=ｼｭﾄﾞｳｶｸﾉｳ(ﾛﾝｸﾞｽﾃｰ) |
1 | ||
| 87940-25050 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(1)=ｼｭﾄﾞｳｶｸﾉｳ(ｼｮｰﾄｽﾃｰ) |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-37850 |
LY220,230,240,270,280,290,RZY220,230 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(4)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾉｿﾞｸ ｷｬﾝﾊﾟｰｼﾖｳ) |
1 | ||
| 87940-37830 |
LY220,230,240,270,280,290,RZY220,230 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(6)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾘﾓｺﾝ&ﾋｰﾀﾂｷ) |
1 | ||
| 87940-37710 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(3)=ｼｭﾄﾞｳｶｸﾉｳ(ﾛﾝｸﾞｽﾃｰ) |
1 | ||
| 87940-25050 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 塗装不要,ｲﾗｽﾄｻﾝｼｮｳ(1)=ｼｭﾄﾞｳｶｸﾉｳ(ｼｮｰﾄｽﾃｰ) |
1 | ||
| 87942 - MOTOR, MIRROR, LH | ||||
| 87942-37020 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 ｲﾗｽﾄｻﾝｼｮｳ(4)=ﾃﾞﾝﾄﾞｳｶｸﾉｳ(ﾉｿﾞｸ ｷｬﾝﾊﾟｰｼﾖｳ) |
1 | ||
| 87961 - MIRROR OUTER, LH | ||||
| 87931-37160 |
KDY220,230,240,270,280,290,RZY231,281 |
1 | ||
| 87931-37160 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| Common parts | ||||
| 87929-37020 | ||||
| 90119-08C00 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
