LY280-TGMFS3 (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(0107-1610)

Click highlighted areas on diagram

diagram 86011A 86120 86203 86211 86212 86270A 9015950343 9015950343 9015950343 9015950343 9155480614 9155480614
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-37130

KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230

MATSUSHITA,ID=50208,TYPE B:ｲﾗｽﾄ参照

 1
86120-37120

KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230

HINOJIDOU,TYPE A:ｲﾗｽﾄ参照

 1
86120-37140

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

HINOJIDOU,TYPE C:ｲﾗｽﾄ参照

 1
86211 - BRACKET, RADIO, NO.1
86211-37050

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
86212 - BRACKET, RADIO, NO.2
86212-37030

KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230

 1
86270A - DISC PLAYER ASSY
86270-37020

LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL

 1
86270-37020

KDY220,230,240,270,280,290,RZY231,281

 1
Common parts
90159-50343
91554-80614

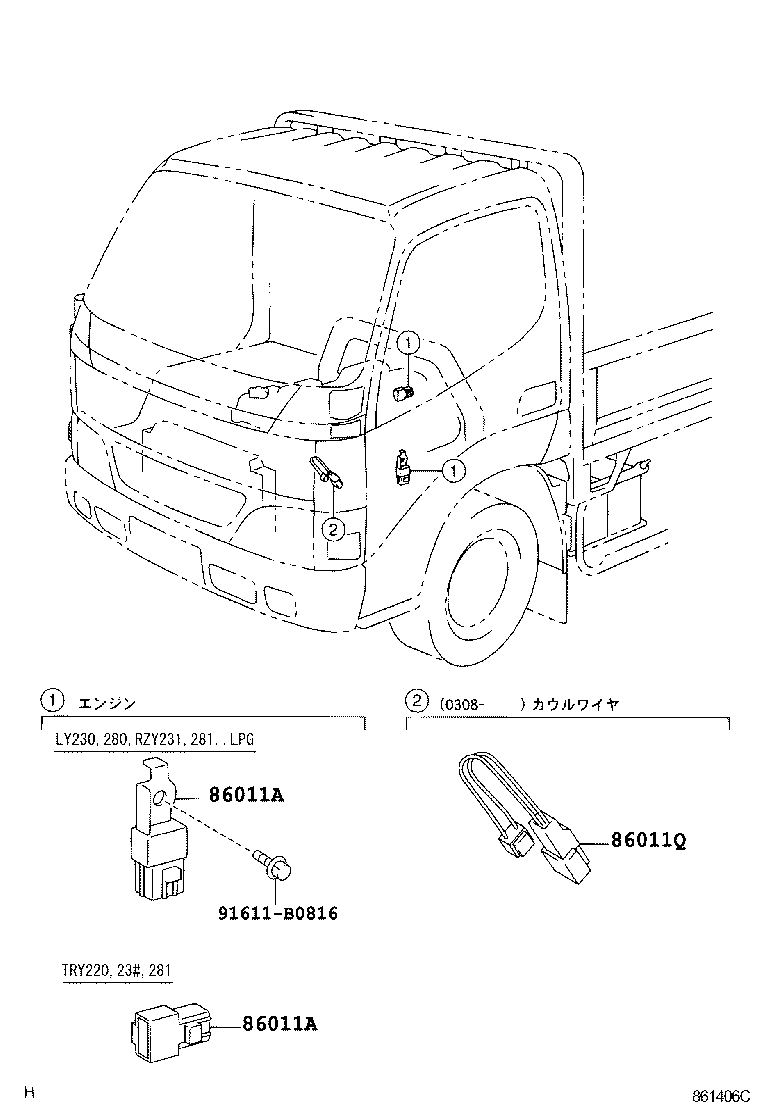

ILLUST NO. 3 OF 3(0107- )

Click highlighted areas on diagram

ｺﾝﾃﾞﾝｻ

diagram 86011A 86011A 86011Q 91611B0816
Part # Description Qty Price
Common parts
91611-B0816

ILLUST NO. 2 OF 3(0107-1502)

Click highlighted areas on diagram

diagram 86120
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-37130

KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230

MATSUSHITA,ID=50208,TYPE B:ｲﾗｽﾄ参照

 1
86120-37120

KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230

HINOJIDOU,TYPE A:ｲﾗｽﾄ参照

 1
86120-37140

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

HINOJIDOU,TYPE C:ｲﾗｽﾄ参照

 1
