LY280-TGMFS3 (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0107-1610)

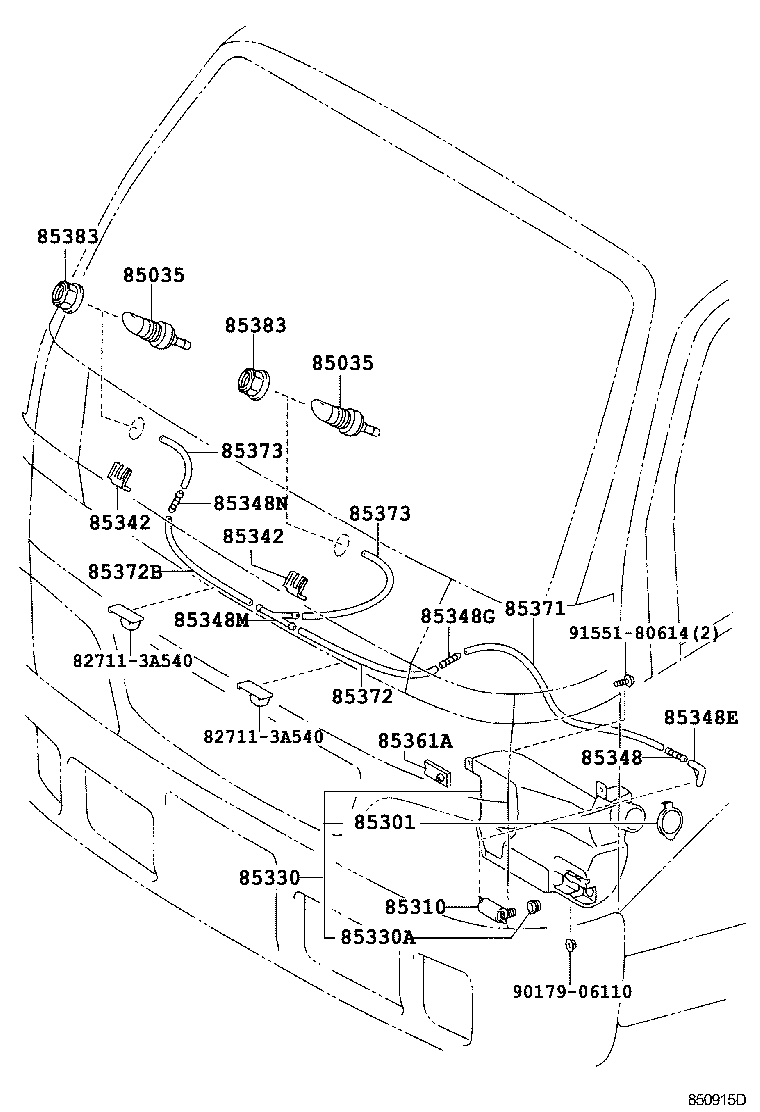

Click highlighted areas on diagram

diagram 827113A540 827113A540 85035 85035 85301 85310 85330 85330A 85342 85342 85348 85348E 85348G 85348M 85348N 85361A 85371 85372 85372B 85373 85373 85383 85383 9017906110 9155180614
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-37030

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-37030

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 2
85301 - INLET SUB-ASSY, WASHER
85301-17010

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-22080

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-37090

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
85342 - HOLDER, WASHER NOZZLE
85342-95J01

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 2
85342 - HOLDER, WASHER NOZZLE
85342-95J01

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

KDY220,230,240,270,280,290,RZY231,281,TRY220,230

 1
85349-89122

KDY221..T3..TB;KDY231,TRY230..WT..IV6;KDY231,TRY230..TS..125T..WT;LY220,230,240,270,280,290,RZY220,230

 1
85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2
85355-14481

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85376-46040

KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230

 1
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85348-12250

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
85348N - JOINT, WINDSHIELD WASHER HOSE, NO.4
85349-89122

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-07001

KDY221..T3..TS;KDY221..T2,T4,TW1;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY231,TRY230..(T2,T3,T4,TW1,TW3,TW4)..(CBU,IV3);KDY220,230,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281

*H,L=720

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

*H,L=220

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90446-06013

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

*H,L=460

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

*H,L=190,NO.1,NO.2

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

*H,L=190,NO.1,NO.2

 1
85383 - HOLDER, FRONT WASHER NOZZLE
85383-37010

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 2
85383 - HOLDER, FRONT WASHER NOZZLE
85383-37010

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 2
Common parts
82711-3A540
90179-06110
91551-80614
