LY280-TGMFS3 (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )

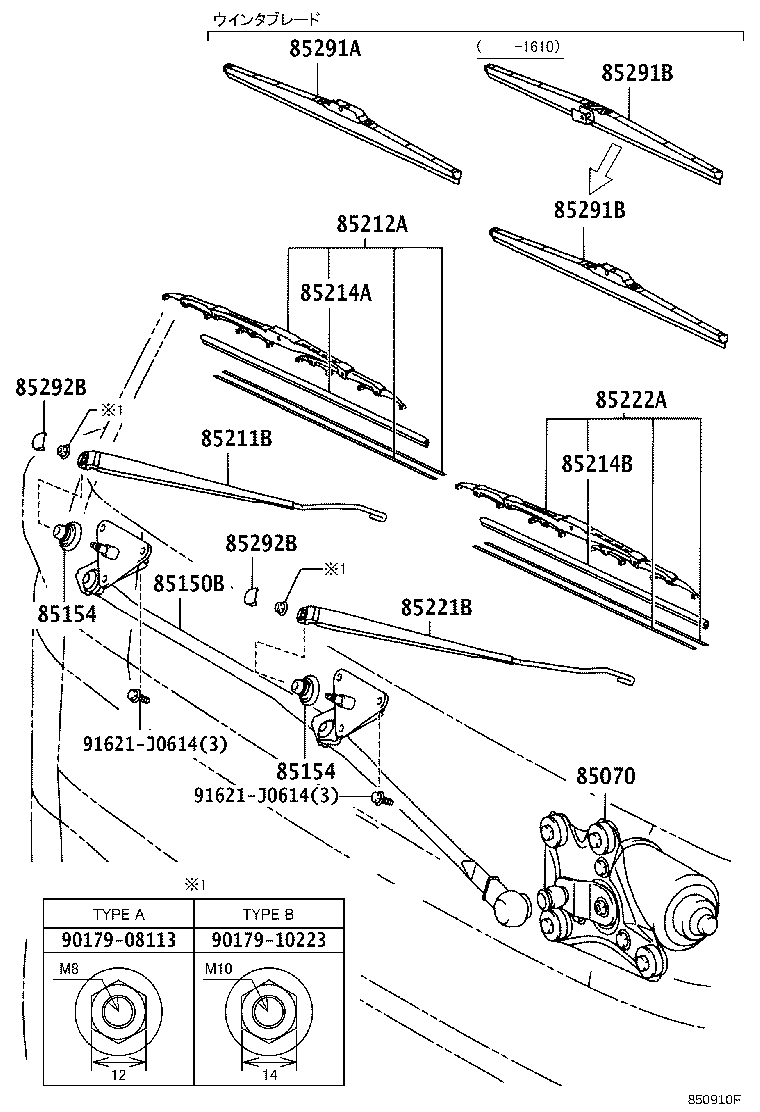

Click highlighted areas on diagram

diagram 85070 85150B 85154 85154 85211B 85212A 85214A 85214B 85221B 85222A 85291A 85291B 85291B 85292B 85292B 9017908113 9017910223 91621J0614 91621J0614
Part # Description Qty Price
85070 - MOTOR & BRACKET ASSY, FRONT WIPER
85070-37180

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

ｶﾝﾚｲﾁ ｼﾖｳ

 1
85070-37190

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
85150B - LINK ASSY, WIPER
85150-37090

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

TYPE A:ｲﾗｽﾄ参照

 1
85154 - PACKING, FRONT WIPER SHAFT
85154-37030

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

助手席

 1
85154-37020

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

運転席

 1
85154 - PACKING, FRONT WIPER SHAFT
85154-37030

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

助手席

 1
85154-37020

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

運転席

 1
85211B - ARM, FRONT WIPER, RH
85211-37070

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
85212A - BLADE, FR WIPER, RH
85212-37080

KDY230..T4..TS;LY220,230,240,270,280,290,RZY220,230

 1
85212-37080

KDY220,230,240,270,280,290,RZY231,281,TRY220,230

 1
85214A - RUBBER, WIPER, RH
85214-53050

KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230

 1
85214B - RUBBER, WIPER, LH
85214-53050

KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230

 1
85221B - ARM, FRONT WIPER, LH
85221-37150

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
85222A - BLADE, FR WIPER, LH
85222-37140

KDY230..T4..TS;LY220,230,240,270,280,290,RZY220,230

 1
85222-37140

KDY220,230,240,270,280,290,RZY231,281,TRY220,230

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-33060

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
85291B - BLADE, FRONT WIPER, WINTER, LH
85291-24110

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
85291B - BLADE, FRONT WIPER, WINTER, LH
85291-24110

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
85292B - CAP, FRONT WIPER ARM HEAD
85292-16010

LY220,230,240,270,280,290,RZY220,230

 2
85292B - CAP, FRONT WIPER ARM HEAD
85292-16010

LY220,230,240,270,280,290,RZY220,230

 2
Common parts
90179-08113
90179-10223
91621-J0614
