LY280-TGMFS3 (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

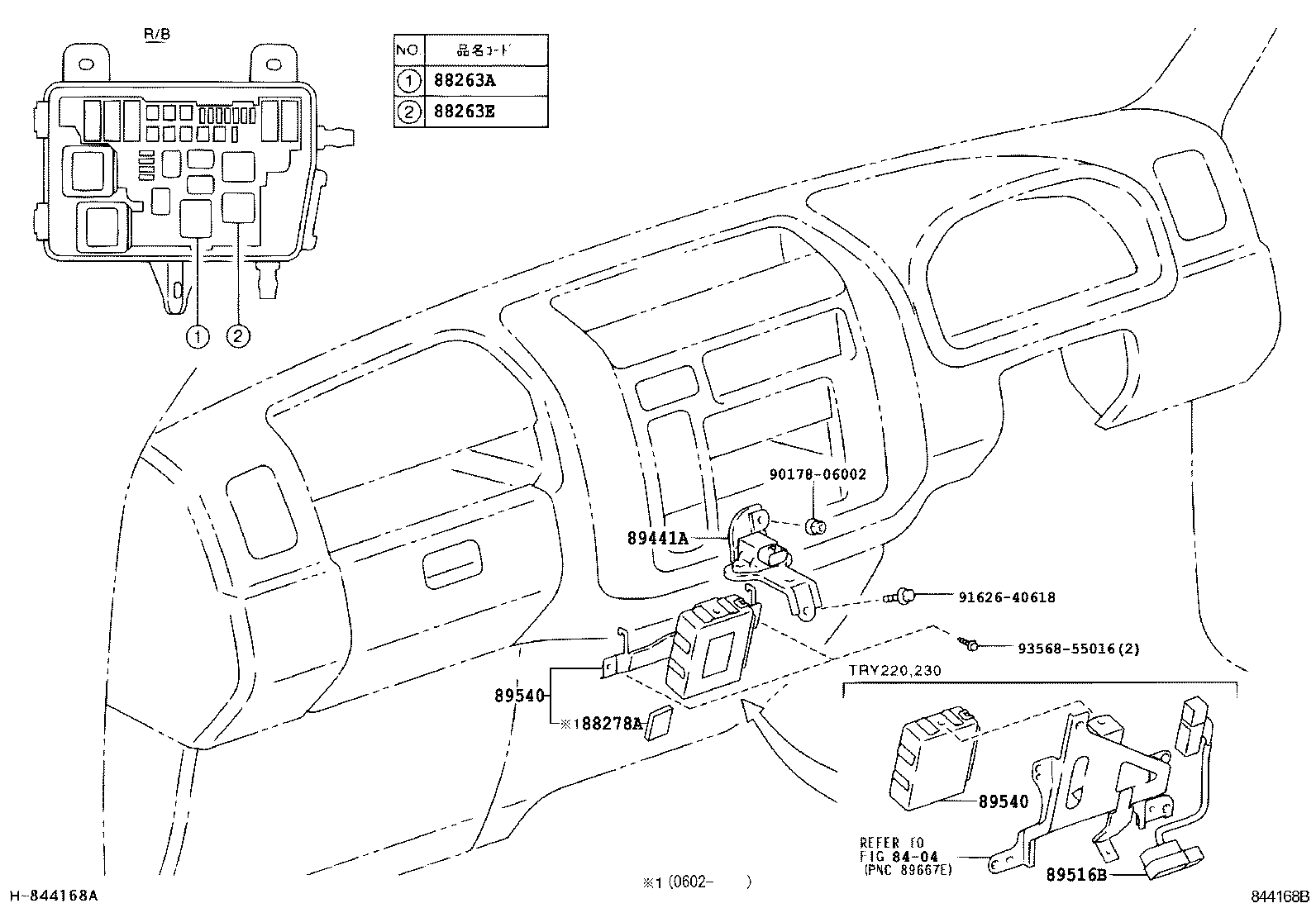

ILLUST NO. 1 OF 2(0107-0709)

Click highlighted areas on diagram

diagram 8404 88263A 88263E 88278A 89441A 89516B 89540 89540 9017806002 9162640618 9356855016
Part # Description Qty Price
88263A - RELAY, SKID CONTROL
88263-37010

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
88263E - RELAY, SKID CONTROL NO.2
88263-37020

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
89441A - SENSOR, DECELERATION
89440-37010

KDY27#,28#,290,LY270,280,290,RZY281,TRY281

 1
89540 - COMPUTER ASSY, SKID CONTROL
89540-25030

KDY270,280,290,LY270,280,290,RZY281

 1
89540 - COMPUTER ASSY, SKID CONTROL
89540-25030

KDY270,280,290,LY270,280,290,RZY281

 1
Common parts
90178-06002
91626-40618
93568-55016
Linked diagrams
8404

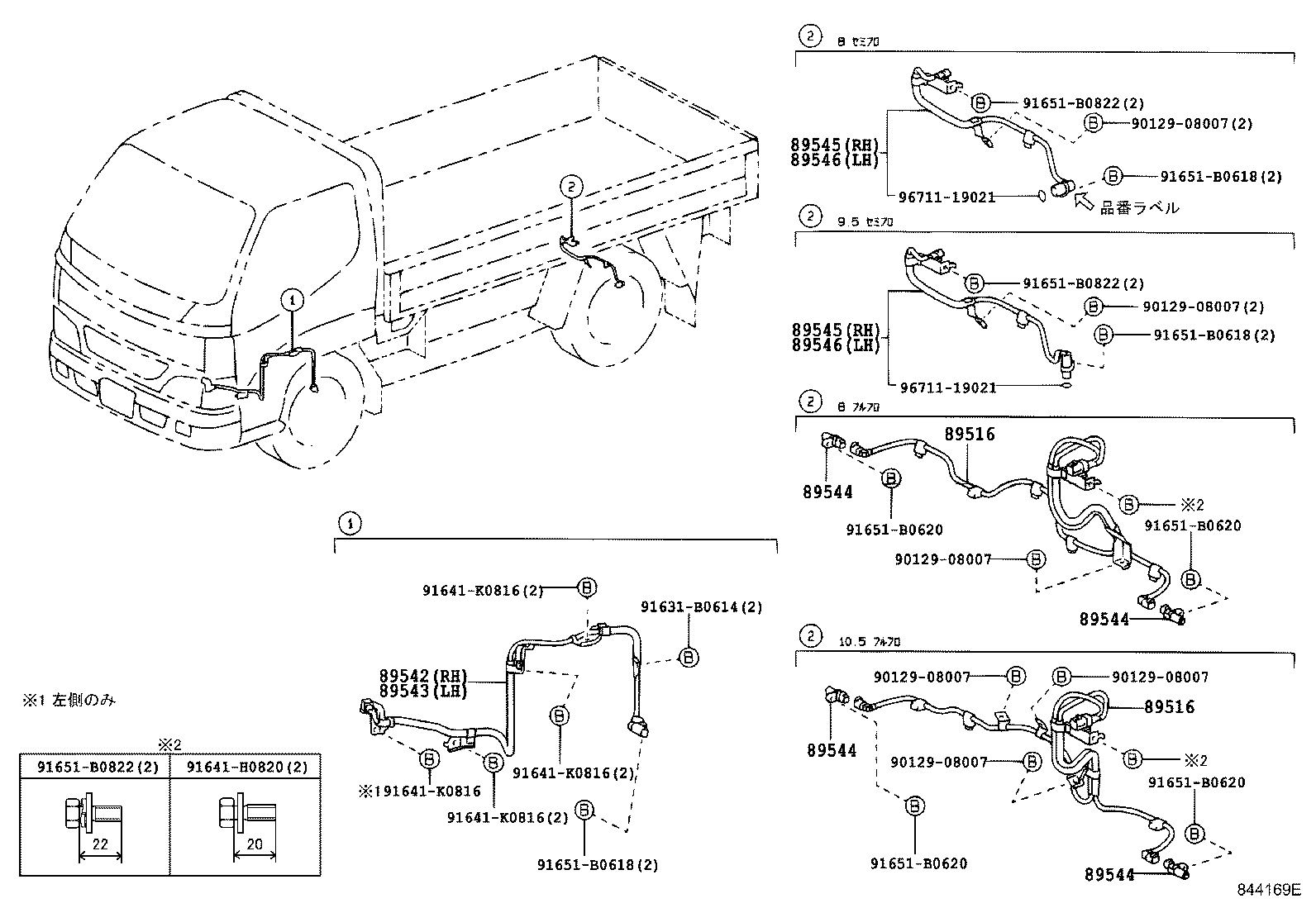

ILLUST NO. 2 OF 2(0107- )

Click highlighted areas on diagram

diagram 89516 89516 89542 89543 89544 89544 89544 89544 89545 89545 89546 89546 9012908007 9012908007 9012908007 9012908007 9012908007 9012908007 91631B0614 91641H0820 91641K0816 91641K0816 91641K0816 91641K0816 91651B0618 91651B0618 91651B0618 91651B0620 91651B0620 91651B0620 91651B0620 91651B0822 91651B0822 91651B0822 9671119021 9671119021
Part # Description Qty Price
89542 - SENSOR, SPEED, FRONT RH
89542-25010

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
89543 - SENSOR, SPEED, FRONT LH
89543-25010

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
89545 - SENSOR, SPEED, REAR RH
89545-25030

KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST

 1
89545 - SENSOR, SPEED, REAR RH
89545-25030

KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST

 1
89546 - SENSOR, SPEED, REAR LH
89546-25030

KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST

 1
89546 - SENSOR, SPEED, REAR LH
89546-25030

KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST

 1
Common parts
90129-08007
91631-B0614
91641-H0820
91641-K0816
91651-B0618
91651-B0620
91651-B0822
96711-19021
