Toyota Dyna/toyoace LY280 SWITCH & RELAY & COMPUTER

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
LY280-TGMFS3 (2001)
8401 - SWITCH & RELAY & COMPUTER

LY280-TGMFS3 (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004

Engine 5L

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

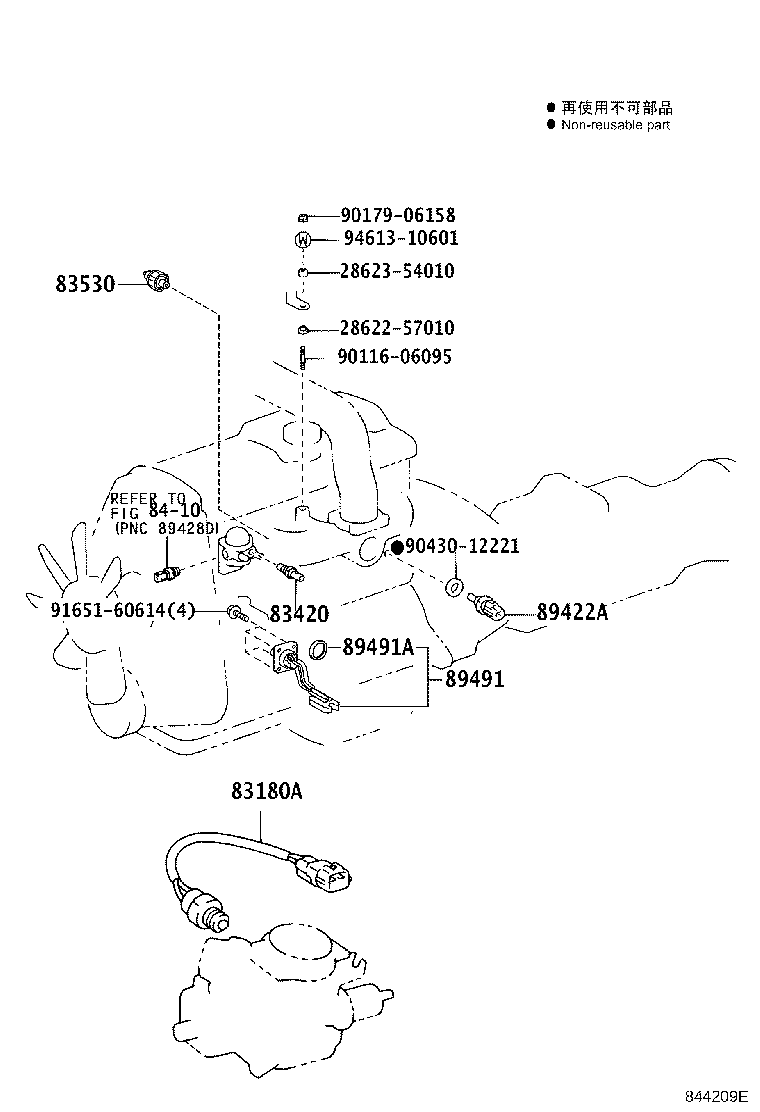

ILLUST NO. 1 OF 8(0107-0408)DSL

Click highlighted areas on diagram

ｴﾝｼﾞﾝ

Part #	Description	Period	Qty
83180A - PICKUP, REVOLUTION
83180-35020	LY280..DSL;LY220,230,240,270,290..MTM..DSL	07/2001 - 08/2004	1
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-16040	TRY220..15T,1T;TRY220..125T..IV3;TRY220..125T..ST..CBU;LY220,230,240,270,280,290,RZY220,230,TRY230..DSL,EFI	07/2001 - 10/2007	1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-60030	LY220,230,240,270,280,290..DSL	07/2001 - 08/2004	1
89422A - SENSOR, WATER TEMPERATURE
89422-35010	LY220,230,240,270,280,290..DSL	07/2001 - 08/2004	1
89491 - SENSOR, ENGINE OIL LEVEL
89491-26160	LY220,230,240,270,280,290..DSL	07/2001 - 08/2004	1
89491A - GASKET, ENGINE OIL LEVEL SENSOR
89493-60010	KDY221..T3..TB;KDY231..WT..IV6;KDY231..TS..125T..WT;KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 12/2999	1
Common parts
28622-57010
28623-54010
90116-06095
90179-06158
90430-12221
91651-60614
94613-10601
Linked diagrams
8410

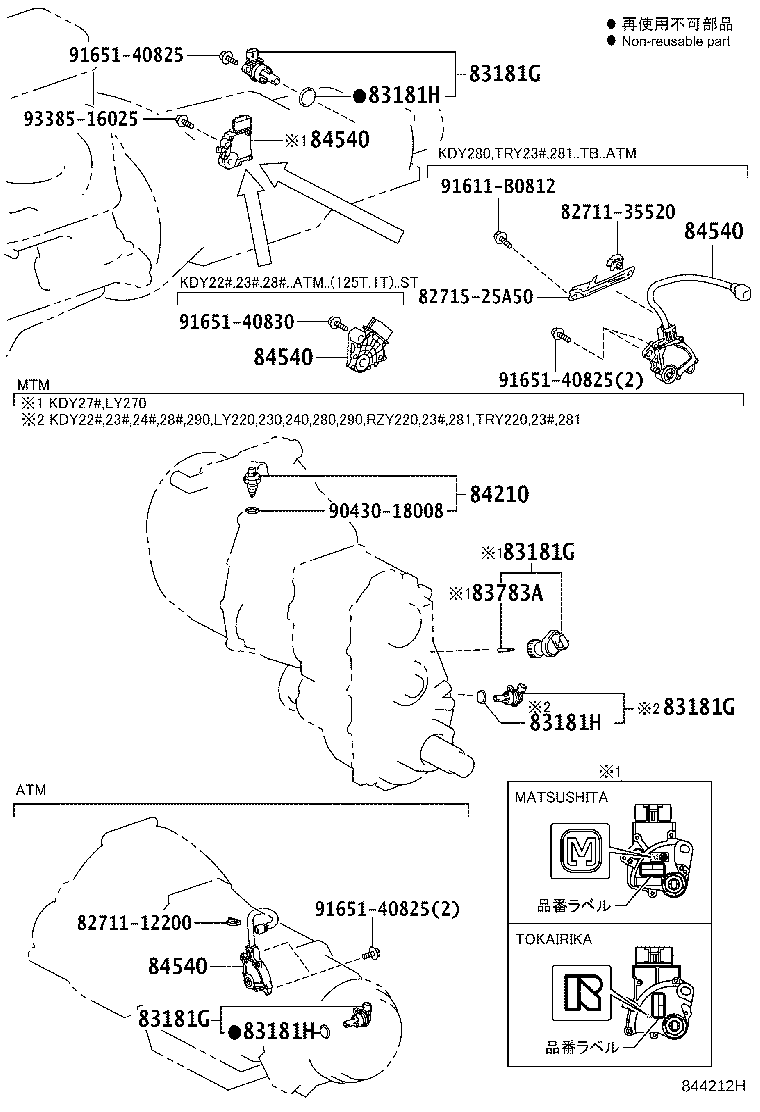

ILLUST NO. 2 OF 8(0107- )

Click highlighted areas on diagram

ﾄﾗﾝｽﾐﾂｼﾖﾝ

Part #	Description	Period	Qty
83181G - SENSOR, SPEEDOMETER
83181-36010	KDY281..15T;KDY28#,LY280..TW1;KDY280,290,LY280,290,RZY281,TRY281..03S,06S,TB	07/2001 - 10/2019	1
83181G - SENSOR, SPEEDOMETER
83181-36010	KDY281..15T;KDY28#,LY280..TW1;KDY280,290,LY280,290,RZY281,TRY281..03S,06S,TB	07/2001 - 10/2019	1
83181G - SENSOR, SPEEDOMETER
83181-36010	KDY281..15T;KDY28#,LY280..TW1;KDY280,290,LY280,290,RZY281,TRY281..03S,06S,TB	07/2001 - 10/2019	1
83181G - SENSOR, SPEEDOMETER
83181-36010	KDY281..15T;KDY28#,LY280..TW1;KDY280,290,LY280,290,RZY281,TRY281..03S,06S,TB	07/2001 - 10/2019	1
83181H - RING, O (FOR SPEEDOMETER SENSOR)
90301-18004	KDY281..15T;KDY28#,LY280..TW1;KDY280,290,LY280,290,RZY281,TRY281..03S,06S,TB;KDY22#,23#,LY220,230,RZY220,23#,TRY220,23#..ATM	07/2001 - 12/2999	1
83181H - RING, O (FOR SPEEDOMETER SENSOR)
90301-18004	KDY281..15T;KDY28#,LY280..TW1;KDY280,290,LY280,290,RZY281,TRY281..03S,06S,TB;KDY22#,23#,LY220,230,RZY220,23#,TRY220,23#..ATM	07/2001 - 12/2999	1
83181H - RING, O (FOR SPEEDOMETER SENSOR)
90301-18004	KDY281..15T;KDY28#,LY280..TW1;KDY280,290,LY280,290,RZY281,TRY281..03S,06S,TB;KDY22#,23#,LY220,230,RZY220,23#,TRY220,23#..ATM	07/2001 - 12/2999	1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-12040	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 06/2021	1
Common parts
82711-12200
82711-35520
82715-25A50
90430-18008
91611-B0812
91651-40825
91651-40830
93385-16025

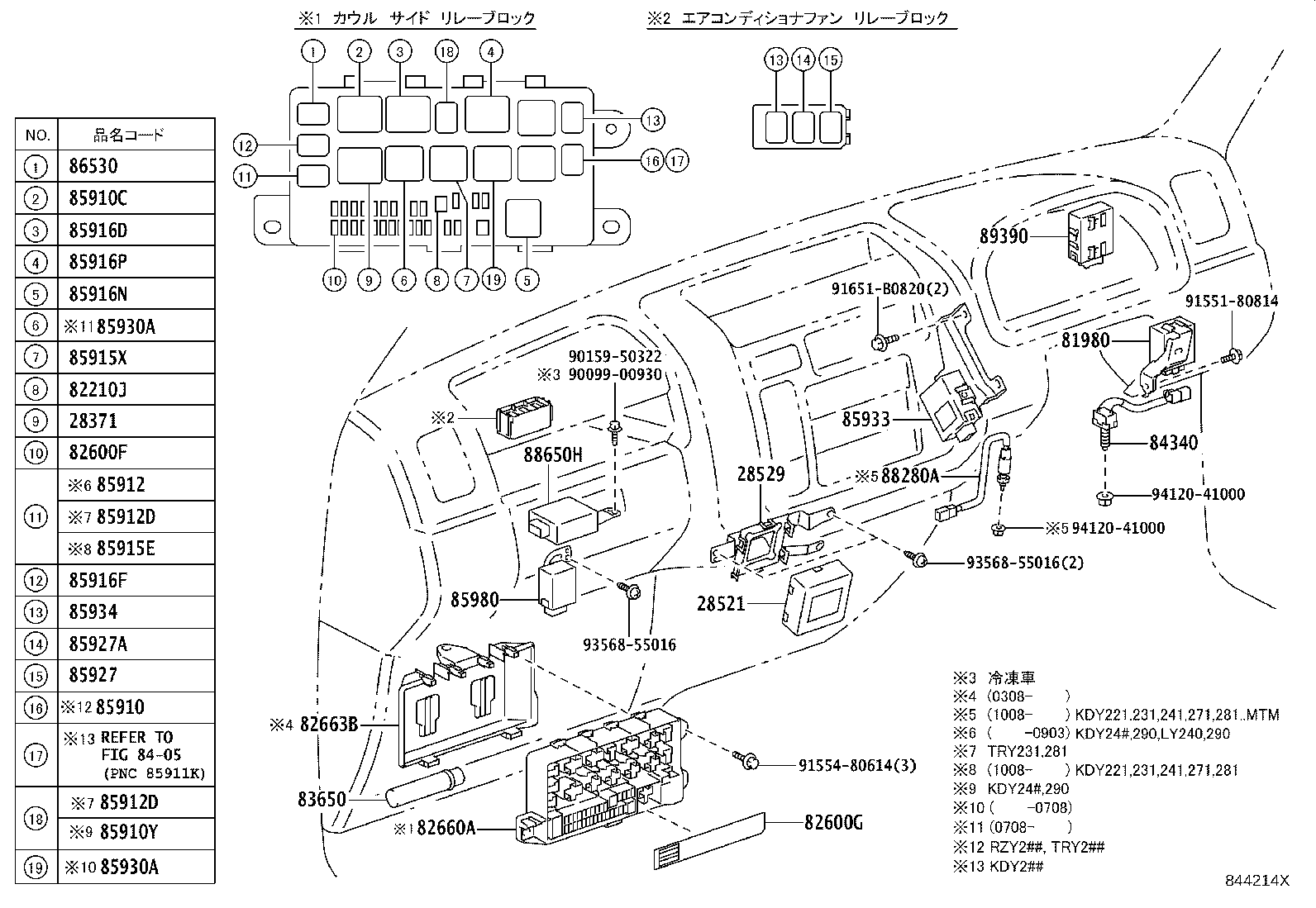

ILLUST NO. 4 OF 8(0107-1610)

Click highlighted areas on diagram

ｶｳﾙ

Part #	Description	Period	Qty
28371 - RELAY, IGNITION, NO.1
90987-02025	5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T)	07/2001 - 08/2004	1
28521 - TIMER, PREHEATING
28521-54610	5L..LY220,230,240,270,280,290	07/2001 - 08/2004	1
28529 - BRACKET, PREHEATING TIMER, NO.1
28529-54370	5L..LY220,230,240,270,280,290	07/2001 - 08/2004	1
81980 - FLASHER ASSY, TURN SIGNAL
81980-25100	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ﾏｰｸ=81980−25100	07/2001 - 03/2009	1
82210J - FUSIBLE LINK
90982-08274	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 120A,ｵｽ端子,白	07/2001 - 10/2016	1
90982-08203	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 80A,ｵｽ端子,黒	07/2001 - 12/2999	1
90982-08281	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 40A,ﾒｽ端子,緑	07/2001 - 10/2016	1
90982-08246	LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 100A,ｵｽ端子,青	07/2001 - 08/2004	1
90982-08286	KDY22#,23#,24#,27#,28#,290,TRY220,230 140A,ｵｽ端子,赤茶	08/2003 - 12/2999	1
90982-08202	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 60A,ｵｽ端子,黄	07/2001 - 12/2999	1
90982-08282	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 50A,ﾒｽ端子,赤	07/2001 - 12/2999	1
90982-08223	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 30A,ｵｽ端子,ﾋﾟﾝｸ	07/2001 - 12/2999	1
90982-08280	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 30A,ﾒｽ端子,桃	07/2001 - 12/2999	1
90982-08228	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 50A,ｵｽ端子,赤	07/2001 - 12/2999	1
82600F - FUSE, FUSE BLOCK
90982-09007	LY220,230,270,280..T2,T3,T4;KDY22#,23#,24#,27#,28#,290,LY240,290,RZY220,23#,281,TRY220,23#,281 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色	07/2001 - 10/2016	1
90982-09013	LY220,230,270,280..T2,T3,T4;KDY22#,23#,24#,27#,28#,290,LY240,290,RZY220,23#,281,TRY220,23#,281 30A,ﾐﾆﾋｭｰｽﾞ,緑	07/2001 - 12/2999	1
90982-09009	LY220,230,270,280..T2,T3,T4;KDY22#,23#,24#,27#,28#,290,LY240,290,RZY220,23#,281,TRY220,23#,281 10A,ﾐﾆﾋｭｰｽﾞ,赤	07/2001 - 12/2999	1
90982-09011	KDY22#,23#,24#,27#,28#,290,LY240,290,RZY220,23#,281,TRY220,23#,281 20A,ﾐﾆﾋｭｰｽﾞ,黄	07/2001 - 12/2999	1
90982-09011	LY220,230,270,280 20A,ﾐﾆﾋｭｰｽﾞ,黄	08/2003 - 12/2999	1
90982-09008	LY220,230,270,280..T2,T3,T4;KDY22#,23#,24#,27#,28#,290,LY240,290,RZY220,23#,281,TRY220,23#,281 7.5A,ﾐﾆﾋｭｰｽﾞ,茶	07/2001 - 10/2016	1
90982-09010	LY220,230,270,280..T2,T3,T4;KDY22#,23#,24#,27#,28#,290,LY240,290,RZY220,23#,281,TRY220,23#,281 15A,ﾐﾆﾋｭｰｽﾞ,青	07/2001 - 12/2999	1
82600G - PLATE, CAUTION(FOR FUSE)
82683-25120	RZY230..CBU,IV3;LY220,230,270,280,RZY220 MARK 25120	07/2001 - 11/2003	1
82660A - BLOCK ASSY, RELAY, COWL SIDE
82660-37030	LY220,230,240,270,280,290	08/2003 - 08/2004	1
82663B - COVER, RELAY BLOCK, LOWER, NO.3
82663-37030	LY220,230,240,270,280,290	08/2003 - 08/2004	1
83650 - FUSEE
90986-01005	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 12/2999	1
84340 - SWITCH ASSY, STOP LAMP
84340-37020	LY220,230,240,270,280,290,RZY220,23#,281	07/2001 - 08/2007	1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-04010	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 12/2999	1
85916D - RELAY, FOG LAMP
90987-02025	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 10/2016	1
85916F - RELAY, CORNERING LAMP
90987-02012	KDY220,230,240,270,280,290,RZY231,281	07/2001 - 08/2007	1
90987-02012	LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL	07/2001 - 08/2004	1
85916N - RELAY, TAIL LAMP
90987-02009	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 10/2016	1
85916P - RELAY, HEADLAMP
90987-02025	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 10/2016	1
85927 - RELAY, COOLING FAN
90987-02020	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 10/2016	1
85927A - RELAY, COOLING FAN, NO.2
90987-02020	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 10/2016	1
85930A - RELAY ASSY, POWER WINDOW, NO.1
90987-02009	LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL	07/2001 - 08/2004	1
90987-02009	KDY220,230,240,270,280,290,RZY231,281	07/2001 - 08/2007	1
85930A - RELAY ASSY, POWER WINDOW, NO.1
90987-02009	LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL	07/2001 - 08/2004	1
90987-02009	KDY220,230,240,270,280,290,RZY231,281	07/2001 - 08/2007	1
85934 - RELAY, MAGNET-CLUTCH
90987-02020	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 10/2016	1
85980 - RELAY ASSY, DOOR CONTROL
85980-25060	LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL	07/2001 - 08/2004	1
85980-25060	KDY220,230,240,270,280,290,RZY231,281	07/2001 - 08/2007	1
86530 - RELAY ASSY, HORN
90987-02012	KDY220,230,240,270,280,290,RZY231,281	07/2001 - 08/2007	1
90987-02012	LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL	07/2001 - 08/2004	1
88650H - AMPLIFIER ASSY, AIR CONDITIONER
88650-25100	LY220,230,240,270,280,290..DSL ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=88650-25100	07/2001 - 08/2004	1
88650-37250	LY220,230,270,280..DSL ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=88650-37250	07/2001 - 08/2004	1
89390 - RELAY, BRAKE WARNING
89391-20010	LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL	07/2001 - 08/2004	1
Common parts
90099-00930
90159-50322
91551-80814
91554-80614
91651-B0820
93568-55016
94120-41000
Linked diagrams
8405

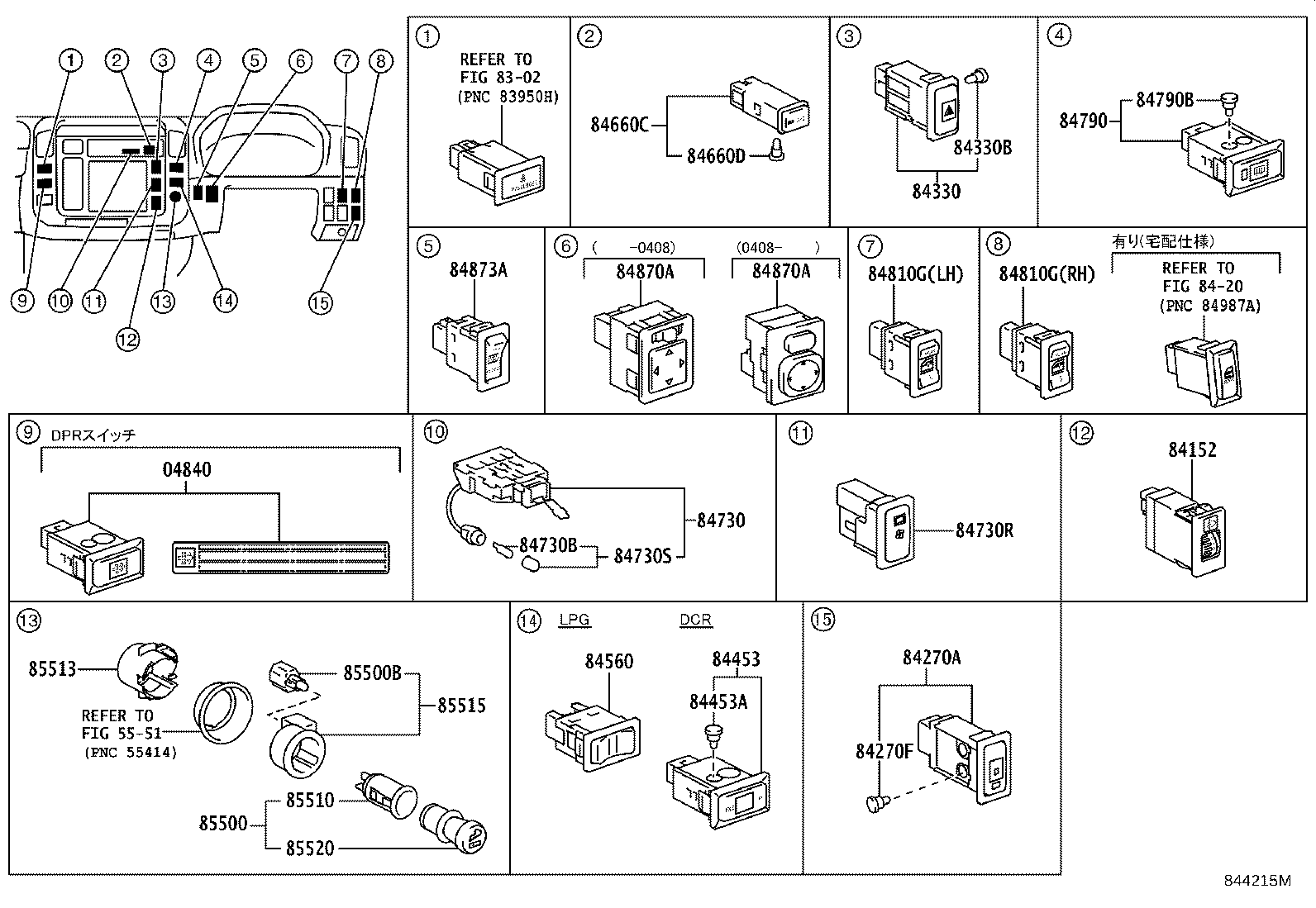

ILLUST NO. 5 OF 8(0107-1610)

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ

Part #	Description	Period	Qty
84270A - SWITCH ASSY, MIRROR HEATER
84270-37070	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 10/2016	1
84270F - BULB, MIRROR HEATER SWITCH ASSY
84999-10310	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 14V 0.91W	07/2001 - 10/2016	1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-25060	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 10/2016	1
84330B - BULB, HAZARD WARNING SIGNAL SWITCH
84999-10860	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 14V 0.91W	07/2001 - 10/2016	1
84660C - SWITCH, COOLER
84660-37040	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 10/2016	1
84660D - BULB(FOR COOLER SWITCH)
88607-16010	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 14V 0.065A	07/2001 - 10/2016	1
84730 - SWITCH ASSY, HEATER BLOWER
84732-37060	LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL	07/2001 - 08/2004	1
84732-37060	KDY220,230,240,270,280,290,RZY231,281	07/2001 - 08/2007	1
84730B - BULB, HEATER BLOWER SWITCH
90981-11014	KDY220,230,240,270,280,290,RZY231,281 14V 1.4W	07/2001 - 08/2007	1
90981-11014	LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL 14V 1.4W	07/2001 - 08/2004	1
84730S - BULB, HEATER BLOWER SWITCH
90010-01154	LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL 14V 1.4W,ｷｬｯﾌﾟ付き	07/2001 - 08/2004	1
90010-01154	KDY220,230,240,270,280,290,RZY231,281 14V 1.4W,ｷｬｯﾌﾟ付き	07/2001 - 08/2007	1
84870A - SWITCH ASSY, OUTER MIRROR
84870-22200	LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230	07/2001 - 08/2004	1
84870A - SWITCH ASSY, OUTER MIRROR
84870-22200	LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230	07/2001 - 08/2004	1
84873A - SWITCH, RETRACTABLE OUTER MIRROR
84873-37020	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 10/2016	1
85500 - LIGHTER ASSY, CIGARETTE
85500-12240	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 04/2019	1
85500B - BULB, CIGARETTE LIGHTER
90010-01015	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 14V 1.4W,ｷｬｯﾌﾟ付き	07/2001 - 10/2016	1
85510 - SOCKET & RETAINER ASSY, CIGARLIGHTER
85510-16040	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 05/2019	1
85513 - COVER, CIGARETTE LIGHTER
85513-12020	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 12/2999	1
85515 - STAY, CIGARETTE LIGHTER BEZEL
85515-47010	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 10/2016	1
85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
85520-28010	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 12/2999	1
Linked diagrams
5551
8302
8420

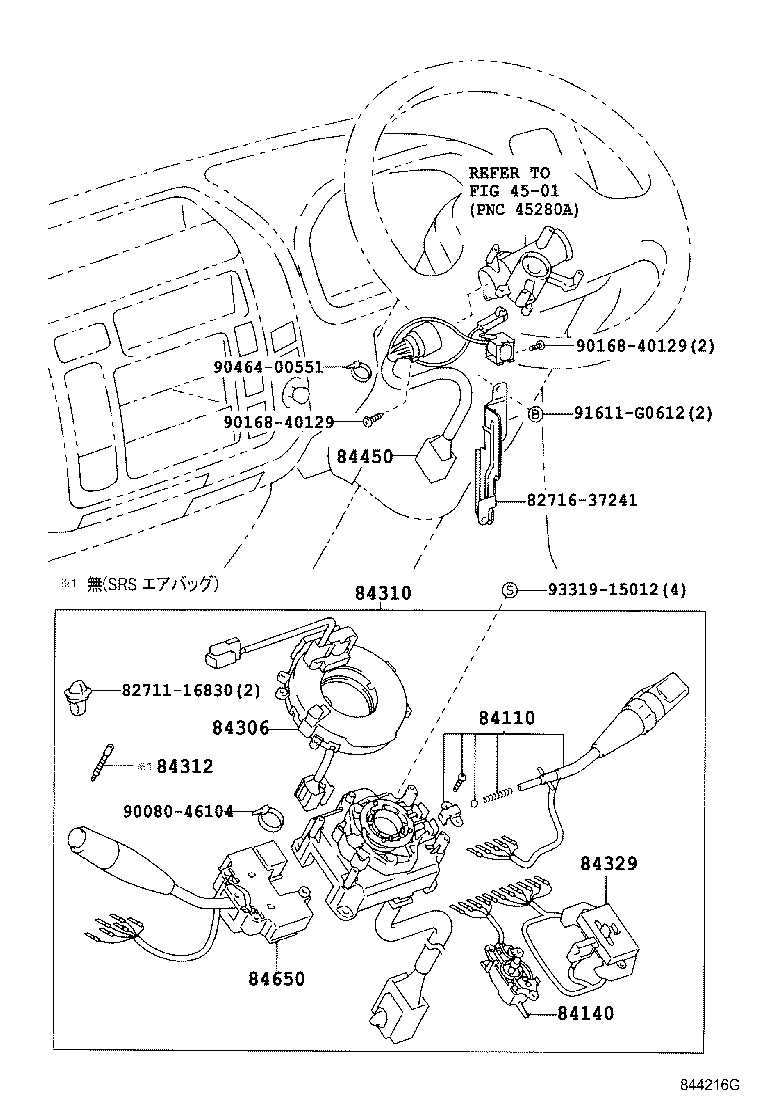

ILLUST NO. 6 OF 8(0107-1610)

Click highlighted areas on diagram

ｽﾃｱﾘﾝｸﾞ

Part #	Description	Period	Qty
84110 - SWITCH ASSY, LIGHT CONTROL, NO.1
84112-80222	KDY221,23#..T4..TB;KDY221,23#..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3);KDY220,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..CBU,IV3 ﾅｼ(ﾌｵｸﾞﾗﾝﾌﾟ)	07/2001 - 09/2016	1
84112-80221	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 09/2016	1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-37050	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 09/2016	1
84306 - CABLE SUB-ASSY, SPIRAL
84306-37020	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 09/2016	1
84310 - SWITCH ASSY, TURN SIGNAL
84310-37320	LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ & ﾌｵｸﾞﾗﾝﾌﾟ)	07/2001 - 08/2004	1
84310-37330	LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	07/2001 - 08/2004	1
84310-37350	LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..TB..(12T,15T,175T)..DSL;LY240,270,280,290..DSL..(CBU,IV3);LY230..(T2,T3,TW3)..TS..(CBU,IV3)	07/2001 - 08/2004	1
84310-37340	KDY230..T4..TB;KDY230..(T2,T3,TW2,TW3,TW4)..(CBU,IV3);KDY220,240,270,280,290,RZY231,281..CBU,IV3 ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ)	07/2001 - 08/2007	1
84310-37360	LY220..15T;LY230..(T2,T3)..TS;LY280..(T2,T3,T4)..DSL;LY220,270..(125T,12T)..ST;LY230..TB..(15T,175T)..DSL ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ & ﾌｵｸﾞﾗﾝﾌﾟ & ｼﾞｶﾝﾁﾖｳｾｲｼｷｶﾝｹﾂﾜｲﾊﾟ)	07/2001 - 08/2004	1
84310-37330	KDY220,230,240,270,280,290,RZY231,281 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	07/2001 - 08/2007	1
84310-37320	KDY220,230,240,270,280,290,RZY231,281 ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ & ﾌｵｸﾞﾗﾝﾌﾟ)	07/2001 - 08/2007	1
84310-37370	KDY230..T2,T3;KDY230..T4..TB;KDY220,270,280,RZY231,281..T2,T3,T4 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ & ｼﾞｶﾝﾁﾖｳｾｲｼｷｶﾝｹﾂﾜｲﾊﾟ)	07/2001 - 08/2007	1
84310-37370	LY220..15T;LY230..(T2,T3)..TS;LY280..(T2,T3,T4)..DSL;LY220,270..(125T,12T)..ST;LY230..TB..(15T,175T)..DSL ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ & ｼﾞｶﾝﾁﾖｳｾｲｼｷｶﾝｹﾂﾜｲﾊﾟ)	07/2001 - 08/2004	1
84310-37340	LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..TB..(12T,15T,175T)..DSL;LY240,270,280,290..DSL..(CBU,IV3);LY230..(T2,T3,TW3)..TS..(CBU,IV3) ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ)	07/2001 - 08/2004	1
84310-37360	KDY230..T2,T3;KDY230..T4..TB;KDY220,270,280,RZY231,281..T2,T3,T4 ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ & ﾌｵｸﾞﾗﾝﾌﾟ & ｼﾞｶﾝﾁﾖｳｾｲｼｷｶﾝｹﾂﾜｲﾊﾟ)	07/2001 - 08/2007	1
84310-37350	KDY230..T4..TB;KDY230..(T2,T3,TW2,TW3,TW4)..(CBU,IV3);KDY220,240,270,280,290,RZY231,281..CBU,IV3	07/2001 - 08/2007	1
84312 - PLATE, HORN CONTACT
84312-20011	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 09/2016	1
84329 - SWITCH, TURN SIGNAL
84329-37070	LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL	07/2001 - 08/2004	1
84329-37060	LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ)	07/2001 - 08/2004	1
84329-37060	KDY220,230,240,270,280,290,RZY231,281 ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ)	07/2001 - 08/2007	1
84329-37070	KDY220,230,240,270,280,290,RZY231,281	07/2001 - 08/2007	1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-37160	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 05/2013	1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-37220	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 09/2016	1
84652-37230	KDY221,23#..T2,T3;KDY221,23#..T4..TB;KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 ｱﾘ(ｼﾞｶﾝﾁﾖｳｾｲｼｷｶﾝｹﾂﾜｲﾊﾟ)	07/2001 - 09/2016	1
Common parts
82711-16830
82716-37241
90080-46104
90168-40129
90464-00551
91611-G0612
93319-15012
Linked diagrams
4501

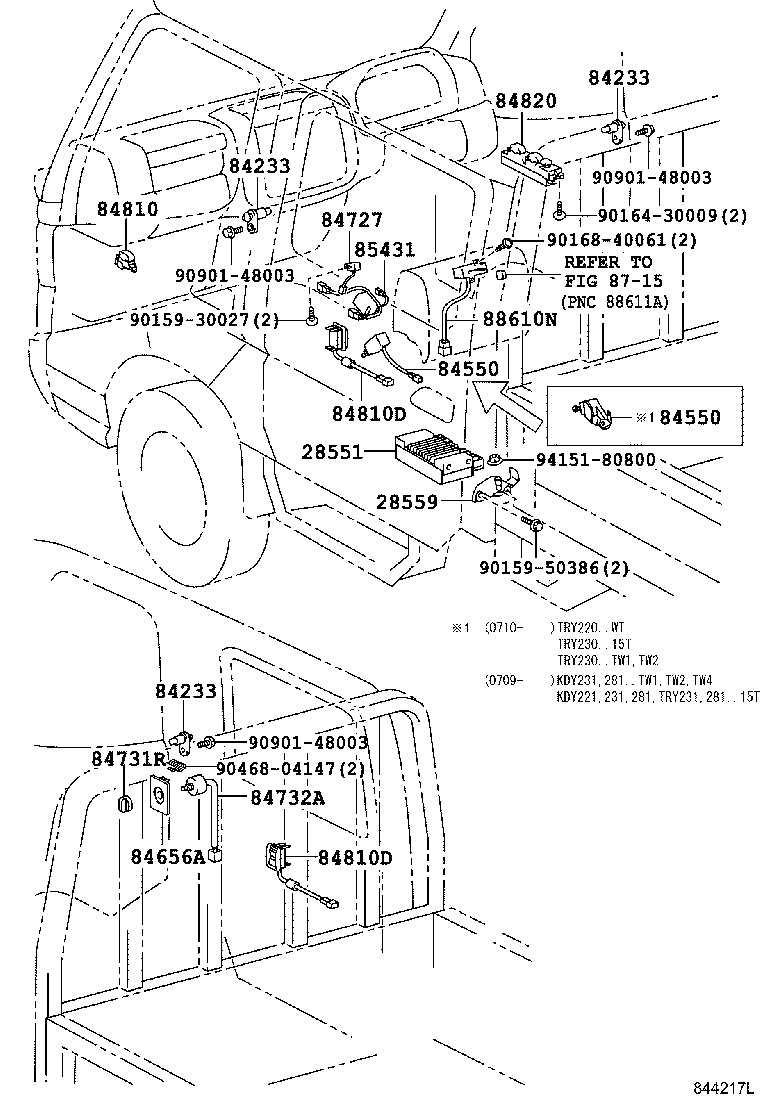

ILLUST NO. 7 OF 8(0107-1610)KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281

Click highlighted areas on diagram

ﾄﾞｱ,ﾙ-ﾌ & ﾌﾛｱ

Part #	Description	Period	Qty
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-60070	KDY221..(T2,T4)..TB;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221..(T2,T3,TW1)..TS;KDY231,TRY230..(T2,T3,T4,TW1,TW3,TW4)..(CBU,IV3);KDY220,230,24#,27#,28#,290,LY240,290,RZY231,281,TRY220,231,281 ｱﾘ(ｶ-ﾃｼﾗﾝﾌﾟｽｲﾂﾁ=ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ)	07/2001 - 12/2999	2
84231-60070	KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281	07/2001 - 10/2016	1
84231-60070	LY220,230,270,280,RZY220,230 ｱﾘ(ｶ-ﾃｼﾗﾝﾌﾟｽｲﾂﾁ=ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ)	10/2002 - 12/2999	2
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-60070	KDY221..(T2,T4)..TB;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221..(T2,T3,TW1)..TS;KDY231,TRY230..(T2,T3,T4,TW1,TW3,TW4)..(CBU,IV3);KDY220,230,24#,27#,28#,290,LY240,290,RZY231,281,TRY220,231,281 ｱﾘ(ｶ-ﾃｼﾗﾝﾌﾟｽｲﾂﾁ=ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ)	07/2001 - 12/2999	2
84231-60070	KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281	07/2001 - 10/2016	1
84231-60070	LY220,230,270,280,RZY220,230 ｱﾘ(ｶ-ﾃｼﾗﾝﾌﾟｽｲﾂﾁ=ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ)	10/2002 - 12/2999	2
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-60070	KDY221..(T2,T4)..TB;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221..(T2,T3,TW1)..TS;KDY231,TRY230..(T2,T3,T4,TW1,TW3,TW4)..(CBU,IV3);KDY220,230,24#,27#,28#,290,LY240,290,RZY231,281,TRY220,231,281 ｱﾘ(ｶ-ﾃｼﾗﾝﾌﾟｽｲﾂﾁ=ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ)	07/2001 - 12/2999	2
84231-60070	KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281	07/2001 - 10/2016	1
84231-60070	LY220,230,270,280,RZY220,230 ｱﾘ(ｶ-ﾃｼﾗﾝﾌﾟｽｲﾂﾁ=ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ)	10/2002 - 12/2999	2
84550 - SWITCH ASSY, PARKING BRAKE
84550-37021	TRY230..IV6;KDY231..WT..IV6;KDY221,TRY220..ST;KDY231..TS..(125T,1T);KDY281..(T2,T3,TW3)..(125T,1T);TRY230..(T2,T3,TW2,TW3)..TS..(125T,1T)..(CBU,IV3);KDY220,230,240,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281	07/2001 - 12/2999	1
84550 - SWITCH ASSY, PARKING BRAKE
84550-37021	TRY230..IV6;KDY231..WT..IV6;KDY221,TRY220..ST;KDY231..TS..(125T,1T);KDY281..(T2,T3,TW3)..(125T,1T);TRY230..(T2,T3,TW2,TW3)..TS..(125T,1T)..(CBU,IV3);KDY220,230,240,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281	07/2001 - 12/2999	1
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-37050	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 12/2999	1
84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84820-37051	LY220,230,240,270,280,290,RZY220,230	07/2001 - 09/2001	1
Common parts
90159-30027
90159-50386
90164-30009
90168-40061
90468-04147
90901-48003
94151-80800
Linked diagrams
8715

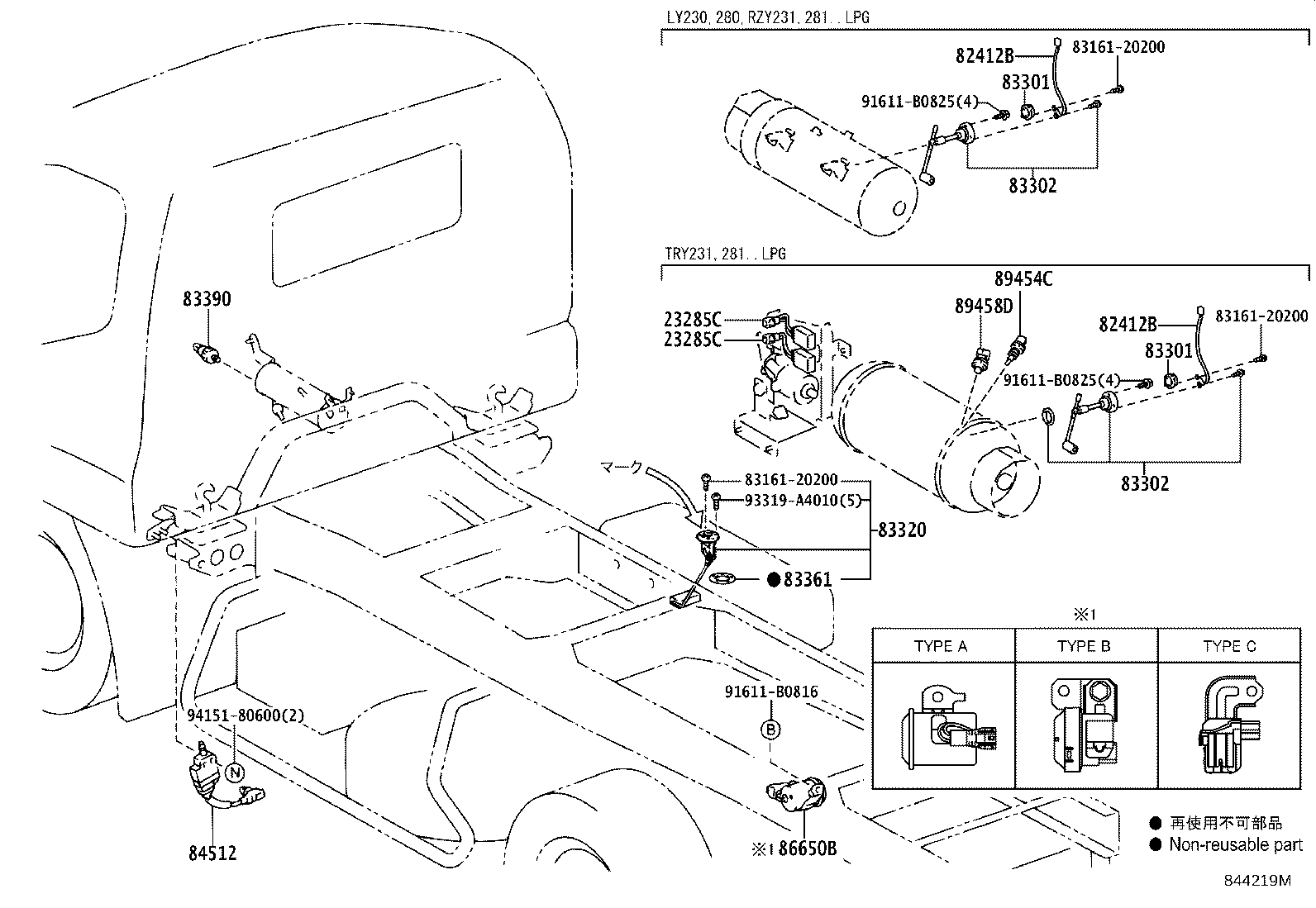

ILLUST NO. 8 OF 8(0107- )

Click highlighted areas on diagram

ﾌﾛｱ & ﾁﾙﾄｽｲﾂﾁ

Part #	Description	Period	Qty
83320 - GAGE ASSY, FUEL SENDER
83320-80390	LY220,230,270,280..DSL	07/2001 - 08/2004	1
83361 - GASKET, FUEL SENDER GAGE
77169-14020	KDY230..T4..TS;KDY221,231,24#,271,281,290,LY220,230,270,280,TRY220,230..DCR,DSL,EFI	07/2001 - 12/2999	1
77169-14020	KDY220,230,270,280	07/2001 - 02/2006	1
83390 - SWITCH ASSY, VACUUM WARNING
83390-12340	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290..DCR,DSL	07/2001 - 12/2999	1
84512 - SWITCH, TILT CAB CONTROL
84512-37010	KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)	07/2001 - 12/2999	1
86650B - BUZZER ASSY, REVERSE WARNING
86650-25050	KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 TYPE A:ｲﾗｽﾄ参照	07/2001 - 10/2007	1
Common parts
83161-20200
91611-B0816
91611-B0825
93319-A4010
94151-80600

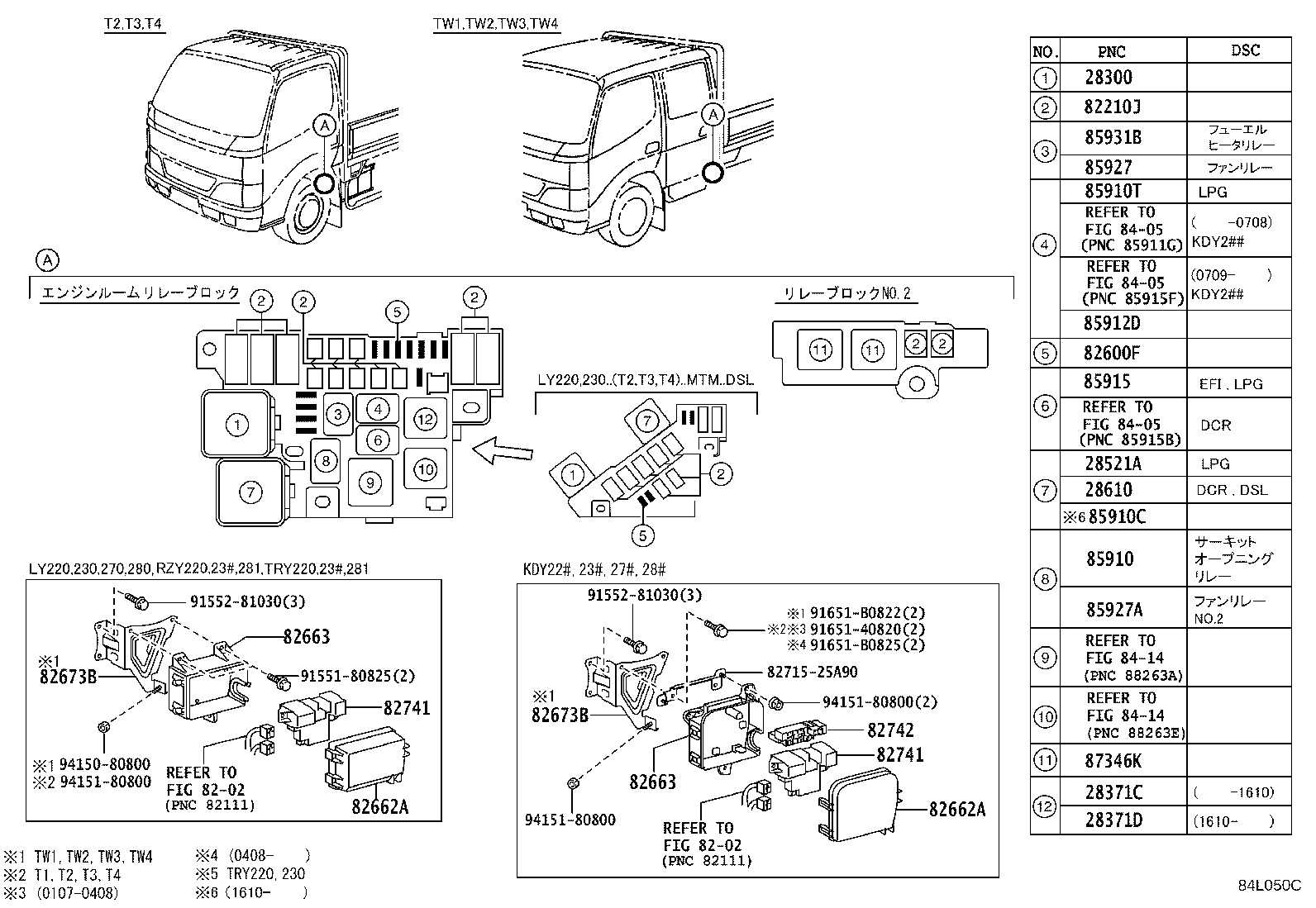

ILLUST NO. 3 OF 8(0107- )KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281

Click highlighted areas on diagram

ﾘﾚ-ﾌﾞﾛﾂｸ

Part #	Description	Period	Qty
28300 - RELAY ASSY, STARTER
90987-02025	1KDFTV,2KDFTV..KDY22#;1KDFTV,2KDFTV,5L,1RZE,3RZFPE,1TR#..KDY23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 12/2999	1
28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG
28610-54360	1KDFTV,2KDFTV,5L..KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290	07/2001 - 08/2010	1
82210J - FUSIBLE LINK
90982-08274	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 120A,ｵｽ端子,白	07/2001 - 10/2016	1
90982-08203	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 80A,ｵｽ端子,黒	07/2001 - 12/2999	1
90982-08281	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 40A,ﾒｽ端子,緑	07/2001 - 10/2016	1
90982-08246	LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 100A,ｵｽ端子,青	07/2001 - 08/2004	1
90982-08286	KDY22#,23#,24#,27#,28#,290,TRY220,230 140A,ｵｽ端子,赤茶	08/2003 - 12/2999	1
90982-08202	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 60A,ｵｽ端子,黄	07/2001 - 12/2999	1
90982-08282	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 50A,ﾒｽ端子,赤	07/2001 - 12/2999	1
90982-08223	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 30A,ｵｽ端子,ﾋﾟﾝｸ	07/2001 - 12/2999	1
90982-08280	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 30A,ﾒｽ端子,桃	07/2001 - 12/2999	1
90982-08228	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 50A,ｵｽ端子,赤	07/2001 - 12/2999	1
82600F - FUSE, FUSE BLOCK
90982-09007	LY220,230,270,280..T2,T3,T4;KDY22#,23#,24#,27#,28#,290,LY240,290,RZY220,23#,281,TRY220,23#,281 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色	07/2001 - 10/2016	1
90982-09013	LY220,230,270,280..T2,T3,T4;KDY22#,23#,24#,27#,28#,290,LY240,290,RZY220,23#,281,TRY220,23#,281 30A,ﾐﾆﾋｭｰｽﾞ,緑	07/2001 - 12/2999	1
90982-09009	LY220,230,270,280..T2,T3,T4;KDY22#,23#,24#,27#,28#,290,LY240,290,RZY220,23#,281,TRY220,23#,281 10A,ﾐﾆﾋｭｰｽﾞ,赤	07/2001 - 12/2999	1
90982-09011	KDY22#,23#,24#,27#,28#,290,LY240,290,RZY220,23#,281,TRY220,23#,281 20A,ﾐﾆﾋｭｰｽﾞ,黄	07/2001 - 12/2999	1
90982-09011	LY220,230,270,280 20A,ﾐﾆﾋｭｰｽﾞ,黄	08/2003 - 12/2999	1
90982-09008	LY220,230,270,280..T2,T3,T4;KDY22#,23#,24#,27#,28#,290,LY240,290,RZY220,23#,281,TRY220,23#,281 7.5A,ﾐﾆﾋｭｰｽﾞ,茶	07/2001 - 10/2016	1
90982-09010	LY220,230,270,280..T2,T3,T4;KDY22#,23#,24#,27#,28#,290,LY240,290,RZY220,23#,281,TRY220,23#,281 15A,ﾐﾆﾋｭｰｽﾞ,青	07/2001 - 12/2999	1
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-25040	LY230..LPG;LY220,230..(T2,T3,T4)..ATM..DSL;LY270,280,RZY220,23#,281..T2,T3,T4	07/2001 - 08/2007	1
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-25040	LY230..LPG;LY220,230..(T2,T3,T4)..ATM..DSL;LY270,280,RZY220,23#,281..T2,T3,T4	07/2001 - 08/2007	1
82663 - COVER, RELAY BLOCK, LOWER
82663-37040	LY220,230,270,280,RZY220,230	07/2001 - 08/2003	1
82663 - COVER, RELAY BLOCK, LOWER
82663-37040	LY220,230,270,280,RZY220,230	07/2001 - 08/2003	1
82741 - BLOCK, ENGINE ROOM RELAY
82741-37011	KDY22#,23#,24#,27#,28#,290,TRY220,230	08/2003 - 12/2999	1
82741-37010	LY230..LPG;LY220,230..ATM..DSL;LY220,230..(TW1,TW2,TW3,TW4)..MTM;LY240,270,280,290,RZY220,23#,281,TRY231,281	07/2001 - 12/2999	1
82741 - BLOCK, ENGINE ROOM RELAY
82741-37011	KDY22#,23#,24#,27#,28#,290,TRY220,230	08/2003 - 12/2999	1
82741-37010	LY230..LPG;LY220,230..ATM..DSL;LY220,230..(TW1,TW2,TW3,TW4)..MTM;LY240,270,280,290,RZY220,23#,281,TRY231,281	07/2001 - 12/2999	1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-04010	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 12/2999	1
85927 - RELAY, COOLING FAN
90987-02020	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 10/2016	1
85927A - RELAY, COOLING FAN, NO.2
90987-02020	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 10/2016	1
Common parts
82715-25A90
91551-80825
91552-81030
91651-40820
91651-B0822
91651-B0825
94150-80800
94151-80800
Linked diagrams
8202
8405
8414

LY280-TGMFS3 (2001)

ILLUST NO. 1 OF 8(0107-0408)DSL

ILLUST NO. 2 OF 8(0107- )

ILLUST NO. 4 OF 8(0107-1610)

ILLUST NO. 5 OF 8(0107-1610)

ILLUST NO. 6 OF 8(0107-1610)

ILLUST NO. 7 OF 8(0107-1610)KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281

ILLUST NO. 8 OF 8(0107- )

ILLUST NO. 3 OF 8(0107- )KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281

Part Price Details
