LY280-TGMFS3 (2001)
Toyota Dyna/Toyoace

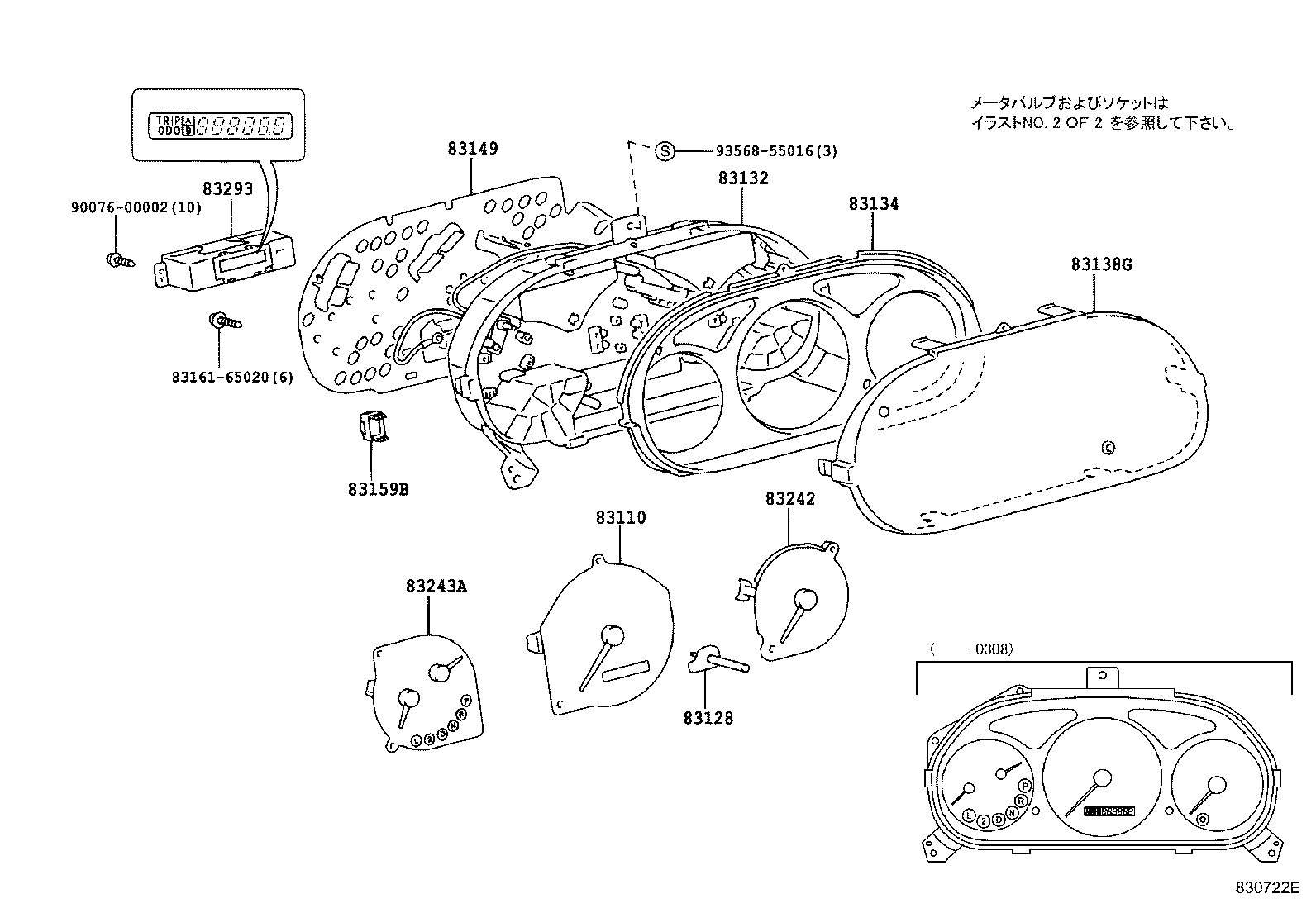

ILLUST NO. 1 OF 2(0107-0308)
ｺﾝﾋﾞﾈｰｼｮﾝﾒｰﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-25020 |
LY220,230,240,270,280,290,RZY220,230 YAZAKI |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83224-25380 |
LY220,230,240,270,280,290,RZY220,230 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-25380 |
LY220,230,240,270,280,290,RZY220,230 |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-25380 |
LY220,230,240,270,280,290,RZY220,230 |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83852-37250 |
KDY230..TS..ATM..WT;KDY220,230,270,280..(T2,T3,T4)..MTM;KDY221,231,241,271,281,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 83149 - PLATE, METER CIRCUIT | ||||
| 83861-25300 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..MTM |
1 | ||
| 83159B - RELAY ASSY, METER | ||||
| 83159-22170 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) |
2 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83881-25380 |
LY220,230,240,270,280,290..DSL |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-25160 |
LY220,230,240,270,280,290,RZY220,230..MTM |
1 | ||
| 83293 - COMPUTER, TOTAL COUNTER MODULE | ||||
| 83293-25030 |
LY220,240,270,290;LY230,280..TS..ATM;LY230,280..MTM..DSL |
1 | ||
| Common parts | ||||
| 83161-65020 | ||||
| 90076-00002 | ||||
| 93568-55016 | ||||

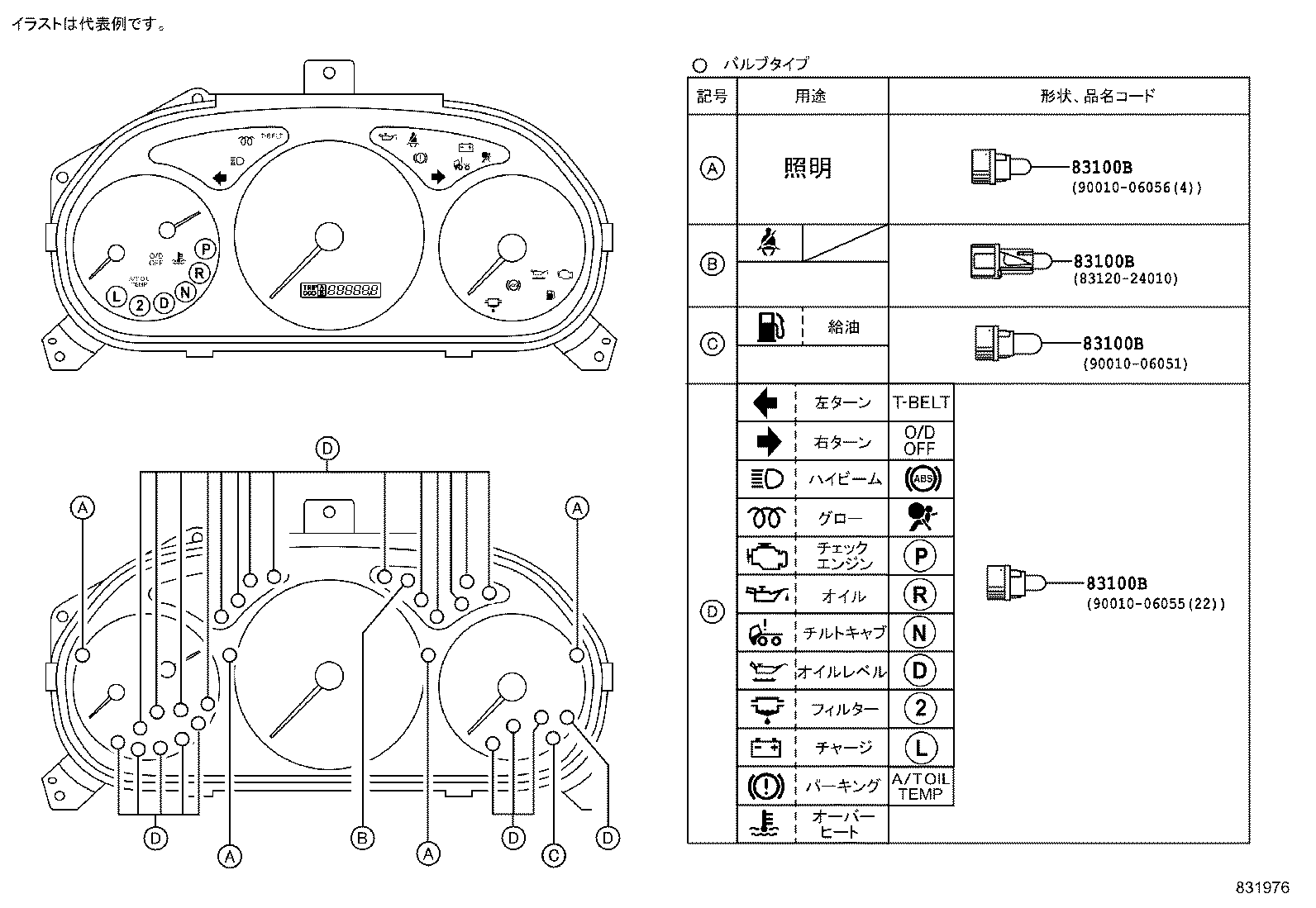

ILLUST NO. 2 OF 2(0107-0308)
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-24010 |
LY220,230,240,270,280,290,RZY220,230 13.5V,ｿｹｯﾄ付き |
1 | ||
| 90010-06051 |
LY220,230,240,270,280,290,RZY220,230..DSL,EFI 14V 3.0W |
1 | ||
| 90010-06055 |
LY220,230,240,270,280,290,RZY220,230 14V 1.12W |
1 | ||
| 90010-06056 |
LY220,230,240,270,280,290,RZY220,230 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-24010 |
LY220,230,240,270,280,290,RZY220,230 13.5V,ｿｹｯﾄ付き |
1 | ||
| 90010-06051 |
LY220,230,240,270,280,290,RZY220,230..DSL,EFI 14V 3.0W |
1 | ||
| 90010-06055 |
LY220,230,240,270,280,290,RZY220,230 14V 1.12W |
1 | ||
| 90010-06056 |
LY220,230,240,270,280,290,RZY220,230 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-24010 |
LY220,230,240,270,280,290,RZY220,230 13.5V,ｿｹｯﾄ付き |
1 | ||
| 90010-06051 |
LY220,230,240,270,280,290,RZY220,230..DSL,EFI 14V 3.0W |
1 | ||
| 90010-06055 |
LY220,230,240,270,280,290,RZY220,230 14V 1.12W |
1 | ||
| 90010-06056 |
LY220,230,240,270,280,290,RZY220,230 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-24010 |
LY220,230,240,270,280,290,RZY220,230 13.5V,ｿｹｯﾄ付き |
1 | ||
| 90010-06051 |
LY220,230,240,270,280,290,RZY220,230..DSL,EFI 14V 3.0W |
1 | ||
| 90010-06055 |
LY220,230,240,270,280,290,RZY220,230 14V 1.12W |
1 | ||
| 90010-06056 |
LY220,230,240,270,280,290,RZY220,230 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
