LY280-TGMFS3 (2001)
Toyota Dyna/Toyoace

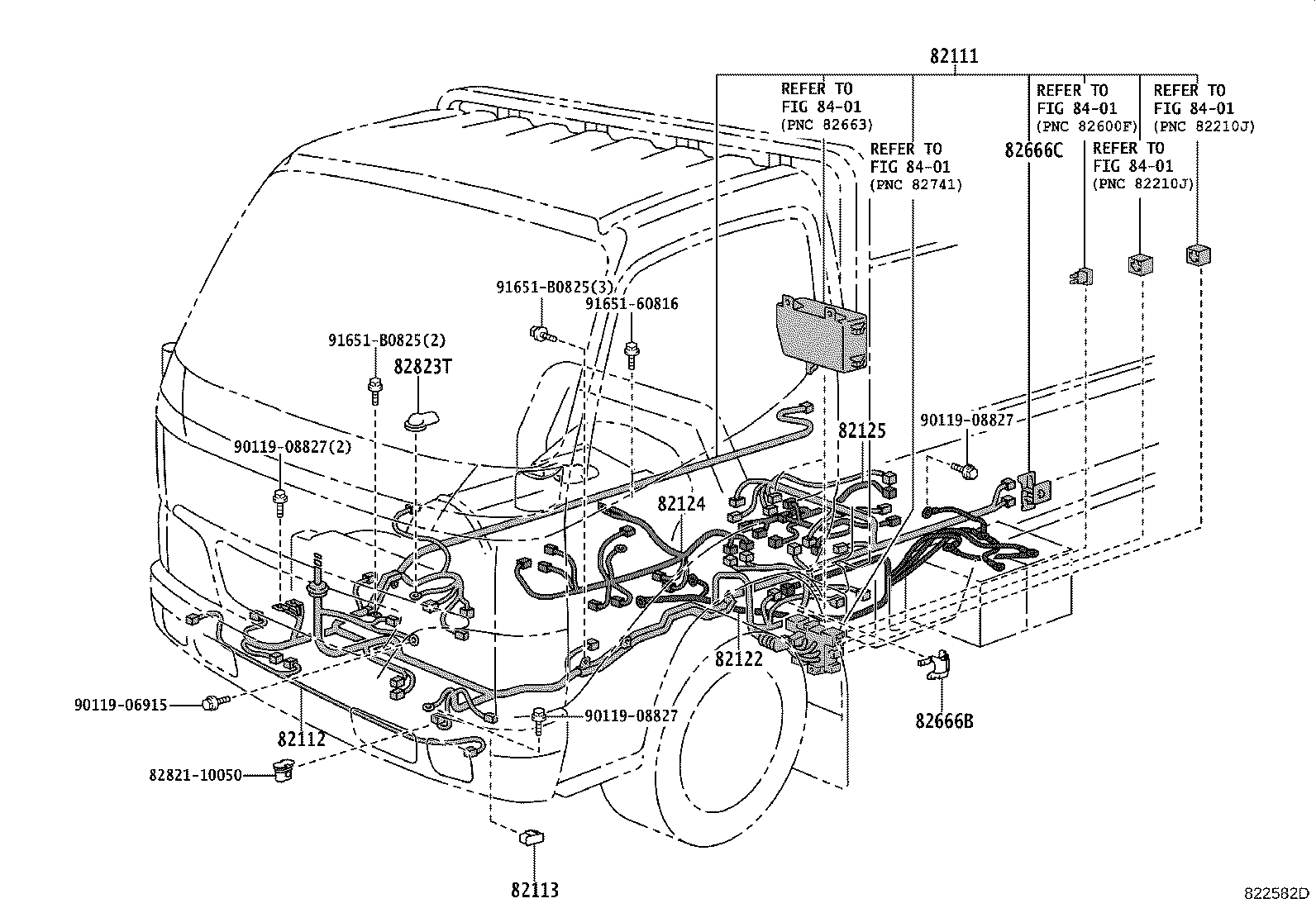

ILLUST NO. 1 OF 8(0107-0408)DSL
ｴﾝｼﾞﾝﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-25250 |
LY220,230,270,280..(T2,T3,T4)..MTM..DSL ｱﾘ(ABS) |
1 | ||
| 82111-25240 |
LY220,230,270,280..(T2,T3,T4)..MTM..DSL ｶﾝﾚｲﾁ ｼﾖｳ & ﾅｼ(ABS) OR ｱﾘ(*80) & ﾅｼ(ABS) OR ｱﾘ(ｵ-ﾄｴｱｺﾝ) & ﾅｼ(ABS);ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ) & ﾅｼ(ABS) OR ｱﾘ(ﾃﾞﾝﾄﾞｳ ﾘﾓｺﾝ ﾐﾗ-) & ﾅｼ(ABS) |
1 | ||
| 82111-25241 |
LY220,230,270,280..(T2,T3,T4)..MTM ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ);ｱﾘ(ｵ-ﾄ ｴｱｺﾝ);ｶﾝﾚｲﾁ ｼﾖｳ;ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-);ｱﾘ(*80) |
1 | ||
| 82111-25251 |
LY220,230,270,280..(T2,T3,T4)..MTM ｱﾘ(ABS & *80);ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ABS);ｱﾘ(ABS);ｱﾘ(ABS & ｵ-ﾄｴｱｺﾝ);ｱﾘ(ABS & ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ);ｱﾘ(ABS & ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-25010 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..DCR,DSL,EFI |
1 | ||
| 82112-25040 |
KDY221,23#..T4..TB;KDY221,23#..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3);KDY220,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..CBU,IV3 ﾅｼ(ﾌﾛﾝﾄﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-25010 |
KDY231..WT..IV6;KDY231..(TW2,TW3)..TS;KDY221,241..(T3,TW1,VAN)..(06S,TB,TS);KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-25140 |
LY270..125T,1T;LY220,230,280..DSL ﾊﾞﾂﾃﾘ=85D26L X2 |
1 | ||
| 82122-25130 |
LY230,280..MTM..DSL;LY220,270..MTM..(125T,15T,1T) |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-25070 |
LY270,280,290..MTM..DSL |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-25100 |
KDY280..TW1;LY280..MTM..125T..WT;LY280..MTM..(12T,15T);KDY280,290,LY290,RZY281,TRY281..(03S,06S,TB)..MTM |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-25020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,230..DCR,DSL,EFI |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-25030 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| Common parts | ||||
| 82821-10050 | ||||
| 90119-06915 | ||||
| 90119-08827 | ||||
| 91651-60816 | ||||
| 91651-B0825 | ||||
| Linked diagrams | ||||
| 8401 | ||||

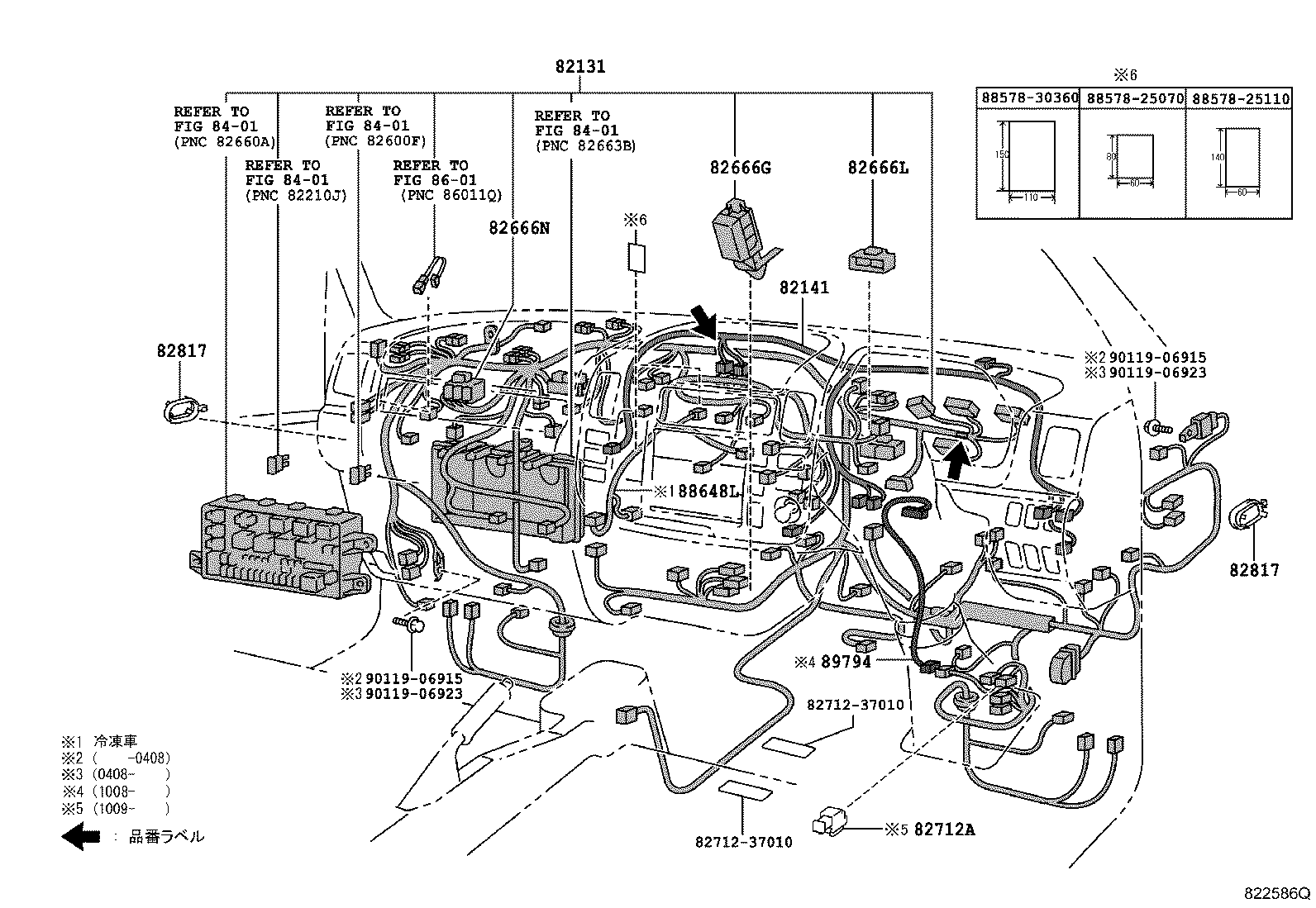

ILLUST NO. 2 OF 8(0107-1610)
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ & ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-2E020 |
LY220,230,270,280..MTM..DSL ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-2E020 |
1 | ||
| 82131-2E030 |
LY220,230,270,280..MTM..DSL ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-2E030 |
1 | ||
| 82131-2E031 |
LY220,230,270,280..MTM..DSL ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-2E031 |
1 | ||
| 82131-2E021 |
LY220,230,270,280..MTM..DSL ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-2E021 |
1 | ||
| 82131-2E022 |
LY220,230,270,280..MTM ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-2E022 |
1 | ||
| 82131-2E032 |
LY220,230,270,280..MTM ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-2E032 |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-25070 |
LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-25070 |
1 | ||
| 82141-25100 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-25100 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-37110 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-37110 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
2 | ||
| Common parts | ||||
| 82712-37010 | ||||
| 88578-25070 | ||||
| 88578-25110 | ||||
| 88578-30360 | ||||
| 90119-06915 | ||||
| 90119-06923 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8601 | ||||

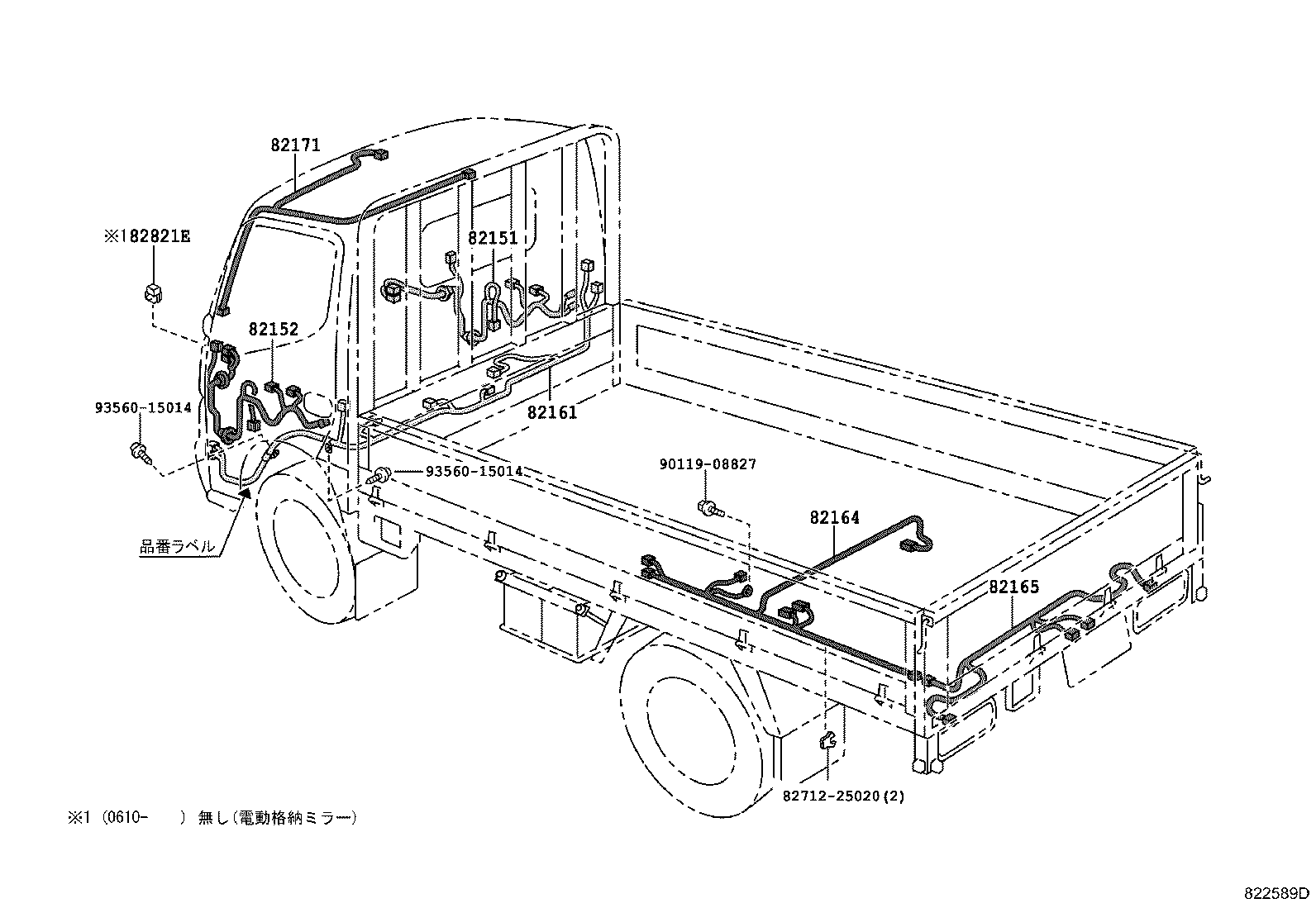

ILLUST NO. 3 OF 8(0107-1610)T2,T3,T4
ﾎﾞﾃﾞ-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-25180 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛｯｸ & ﾊﾟﾜｰｳｨﾝﾄﾞｳ) & ﾅｼ(ﾃﾞﾝｶｸﾐﾗｰ) |
1 | ||
| 82151-25200 |
LY220,230,240,270,280,290,RZY220,230 ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ & ﾃﾞﾝﾄﾞｳ ﾘﾓｺﾝ ﾐﾗ- & ﾊﾟﾜ-ｳｲﾝﾄﾞｳ & ﾜｲﾔﾚｽ ﾄﾞｱﾛﾂｸ) |
1 | ||
| 82151-25190 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛｯｸ & ﾊﾟﾜｰｳｨﾝﾄﾞｳ & ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗｰ(ｼﾞｮｼｭｾｷ)) |
1 | ||
| 82151-25140 |
KDY230..T4..TB;KDY230..(T2,T3,TW2,TW3,TW4)..(CBU,IV3);KDY220,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230..CBU,IV3 ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛｯｸ & ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) & ｱﾘ(ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗｰ(ｼﾞｮｼｭｾｷ)) |
1 | ||
| 82151-25150 |
KDY230..T4..TB;KDY230..(T2,T3,TW2,TW3,TW4)..(CBU,IV3);KDY220,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230..CBU,IV3 ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛｯｸ) & ｱﾘ(ﾊﾟﾜｰｳｨﾝﾄﾞｳ) |
1 | ||
| 82151-25130 |
KDY230..T4..TB;KDY230..(T2,T3,TW2,TW3,TW4)..(CBU,IV3);KDY220,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230..CBU,IV3 ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛｯｸ & ﾊﾟﾜ-ｳｲﾝﾄﾞｳ & ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗｰ(ｼﾞｮｼｭｾｷ)) |
1 | ||
| 82151-25160 |
KDY230..T4..TB;KDY230..T2,T3,TW2,TW3,TW4;KDY220,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛｯｸ) & ﾅｼ(ﾊﾟﾜｰｳｨﾝﾄﾞｳ) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-25180 |
LY220,230,240,270,280,290,RZY220,230 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛｯｸ & ﾊﾟﾜｰｳｨﾝﾄﾞｳ & ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗｰ(ｼﾞｮｼｭｾｷ)) |
1 | ||
| 82152-25090 |
KDY230..T4..TB;KDY230..(T2,T3,TW2,TW3,TW4)..(CBU,IV3);KDY220,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230..CBU,IV3 ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛｯｸ & ﾊﾟﾜ-ｳｲﾝﾄﾞｳ & ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗｰ(ｼﾞｮｼｭｾｷ)) |
1 | ||
| 82152-25160 |
LY220,230,240,270,280,290,RZY220,230 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛｯｸ) & ﾅｼ(ﾊﾟﾜｰｳｨﾝﾄﾞｳ) |
1 | ||
| 82152-25140 |
KDY230..T4..TB;KDY230..(T2,T3,TW2,TW3,TW4)..(CBU,IV3);KDY220,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230..CBU,IV3 ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛｯｸ & ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) & ｱﾘ(ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗｰ(ｼﾞｮｼｭｾｷ)) |
1 | ||
| 82152-25150 |
KDY230..T4..TB;KDY230..(T2,T3,TW2,TW3,TW4)..(CBU,IV3);KDY220,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230..CBU,IV3 ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛｯｸ) & ｱﾘ(ﾊﾟﾜｰｳｨﾝﾄﾞｳ) |
1 | ||
| 82152-25170 |
LY220,230,240,270,280,290,RZY220,230 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛｯｸ & ﾊﾟﾜｰｳｨﾝﾄﾞｳ) & ﾅｼ(ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗｰ(ｼﾞｮｼｭｾｷ)) |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-25060 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-25060 |
1 | ||
| 82161-25070 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-25070 |
1 | ||
| 82161-25080 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-25080 |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-2E070 |
LY230,280,RZY23#,281,TRY230 |
1 | ||
| 82164-2E090 |
LY230,280,RZY230,TRY230..ST ｱﾘ(ABS) |
1 | ||
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-25080 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..IV3,IV6 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-25060 |
LY220,230,270,280,RZY220,230..T2,T3,T4 |
1 | ||
| 82171-25070 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) ｱﾘ(ｹｲｺｳﾄｳ ﾙ-ﾑﾗﾝﾌﾟ) |
1 | ||
| Common parts | ||||
| 82712-25020 | ||||
| 90119-08827 | ||||
| 93560-15014 | ||||

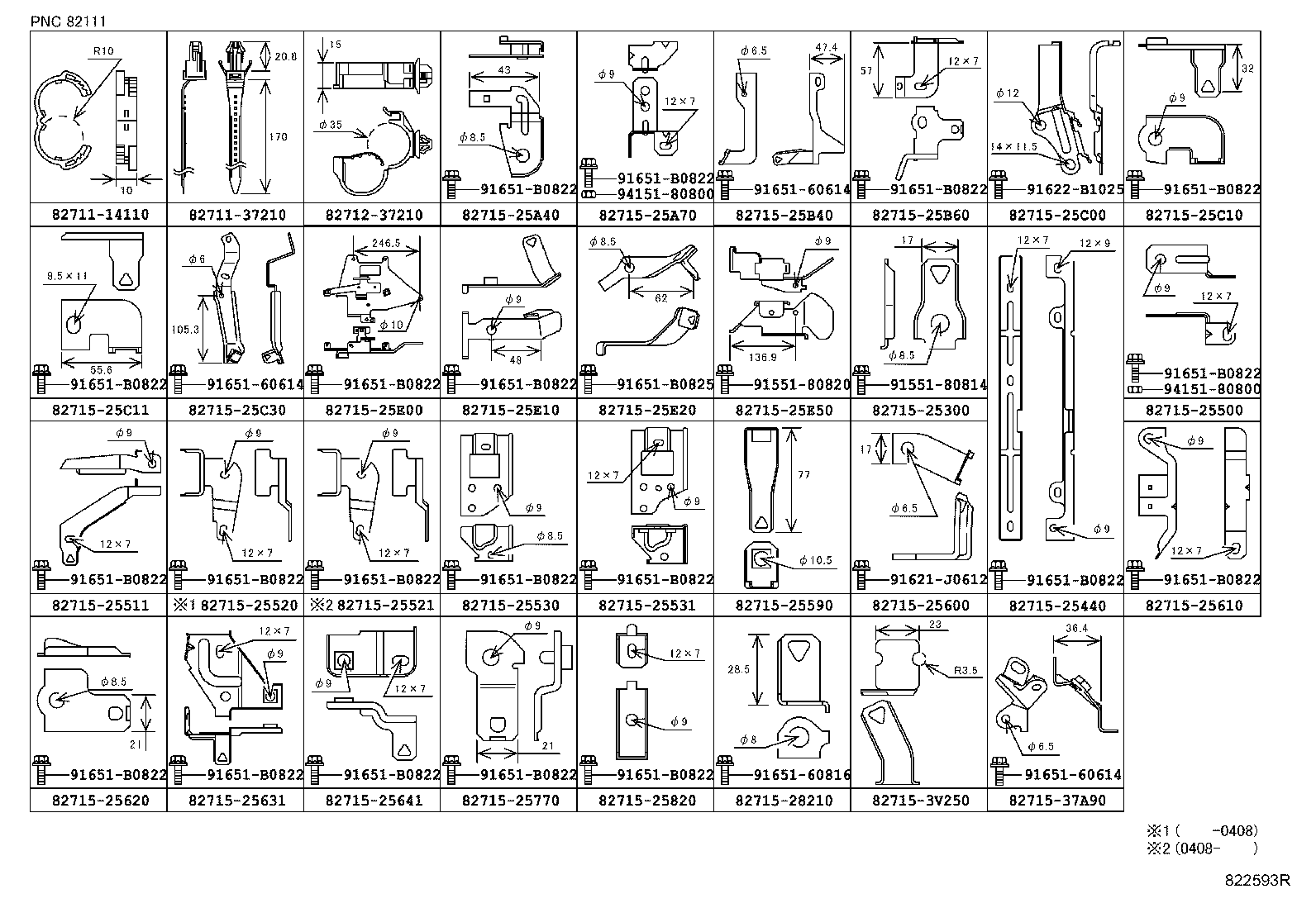

ILLUST NO. 4 OF 8(0107- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-14110 | ||||
| 82711-37210 | ||||
| 82712-37210 | ||||
| 82715-25300 | ||||
| 82715-25440 | ||||
| 82715-25500 | ||||
| 82715-25511 | ||||
| 82715-25520 | ||||
| 82715-25521 | ||||
| 82715-25530 | ||||
| 82715-25531 | ||||
| 82715-25590 | ||||
| 82715-25600 | ||||
| 82715-25610 | ||||
| 82715-25620 | ||||
| 82715-25631 | ||||
| 82715-25641 | ||||
| 82715-25770 | ||||
| 82715-25820 | ||||
| 82715-25A40 | ||||
| 82715-25A70 | ||||
| 82715-25B40 | ||||
| 82715-25B60 | ||||
| 82715-25C00 | ||||
| 82715-25C10 | ||||
| 82715-25C11 | ||||
| 82715-25C30 | ||||
| 82715-25E00 | ||||
| 82715-25E10 | ||||
| 82715-25E20 | ||||
| 82715-25E50 | ||||
| 82715-28210 | ||||
| 82715-37A90 | ||||
| 82715-3V250 | ||||
| 91551-80814 | ||||
| 91551-80820 | ||||
| 91621-J0612 | ||||
| 91622-B1025 | ||||
| 91651-60614 | ||||
| 91651-60816 | ||||
| 91651-B0822 | ||||
| 91651-B0825 | ||||
| 94151-80800 | ||||

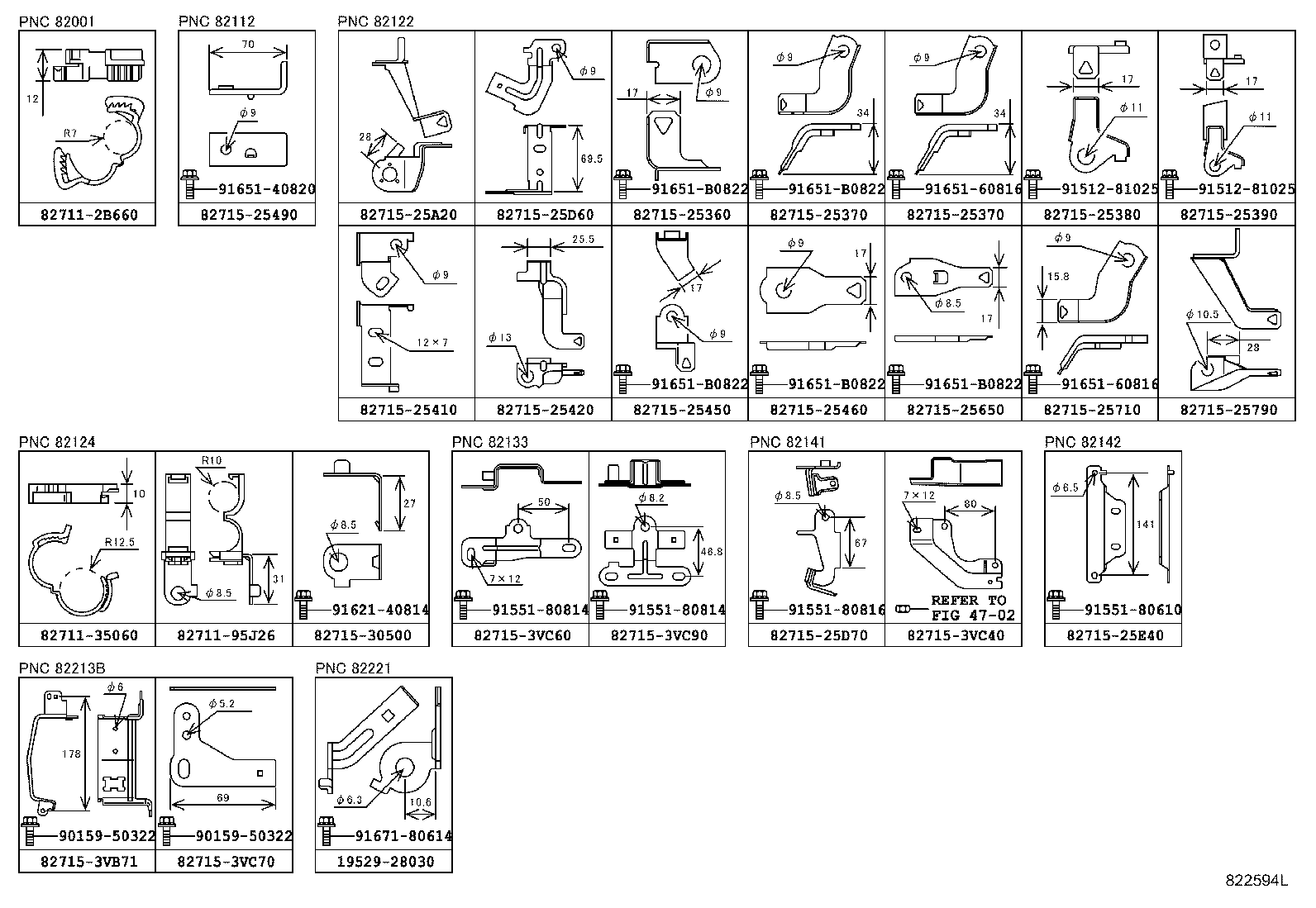

ILLUST NO. 6 OF 8(0107- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 19529-28030 | ||||
| 82711-2B660 | ||||
| 82711-35060 | ||||
| 82711-95J26 | ||||
| 82715-25360 | ||||
| 82715-25370 | ||||
| 82715-25380 | ||||
| 82715-25390 | ||||
| 82715-25410 | ||||
| 82715-25420 | ||||
| 82715-25450 | ||||
| 82715-25460 | ||||
| 82715-25490 | ||||
| 82715-25650 | ||||
| 82715-25710 | ||||
| 82715-25790 | ||||
| 82715-25A20 | ||||
| 82715-25D60 | ||||
| 82715-25D70 | ||||
| 82715-25E40 | ||||
| 82715-30500 | ||||
| 82715-3VB71 | ||||
| 82715-3VC40 | ||||
| 82715-3VC60 | ||||
| 82715-3VC70 | ||||
| 82715-3VC90 | ||||
| 90159-50322 | ||||
| 91512-81025 | ||||
| 91551-80610 | ||||
| 91551-80814 | ||||
| 91551-80816 | ||||
| 91621-40814 | ||||
| 91651-40820 | ||||
| 91651-60816 | ||||
| 91651-B0822 | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 4702 | ||||

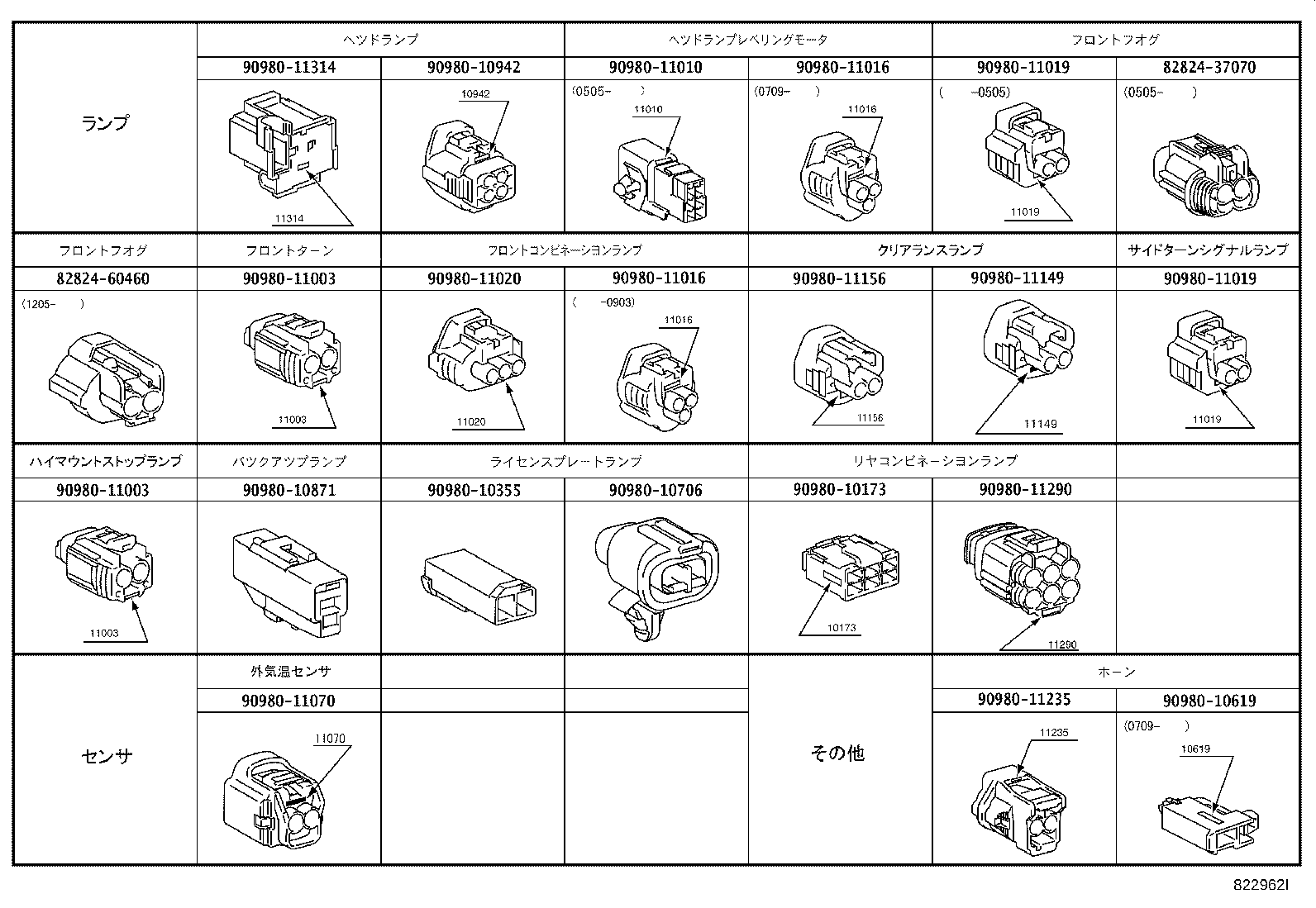

ILLUST NO. 8 OF 8(0107- )
ｺﾈｸﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-37070 | ||||
| 82824-60460 | ||||
| 90980-10173 | ||||
| 90980-10355 | ||||
| 90980-10619 | ||||
| 90980-10706 | ||||
| 90980-10871 | ||||
| 90980-10942 | ||||
| 90980-11003 | ||||
| 90980-11010 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11020 | ||||
| 90980-11070 | ||||
| 90980-11149 | ||||
| 90980-11156 | ||||
| 90980-11235 | ||||
| 90980-11290 | ||||
| 90980-11314 | ||||

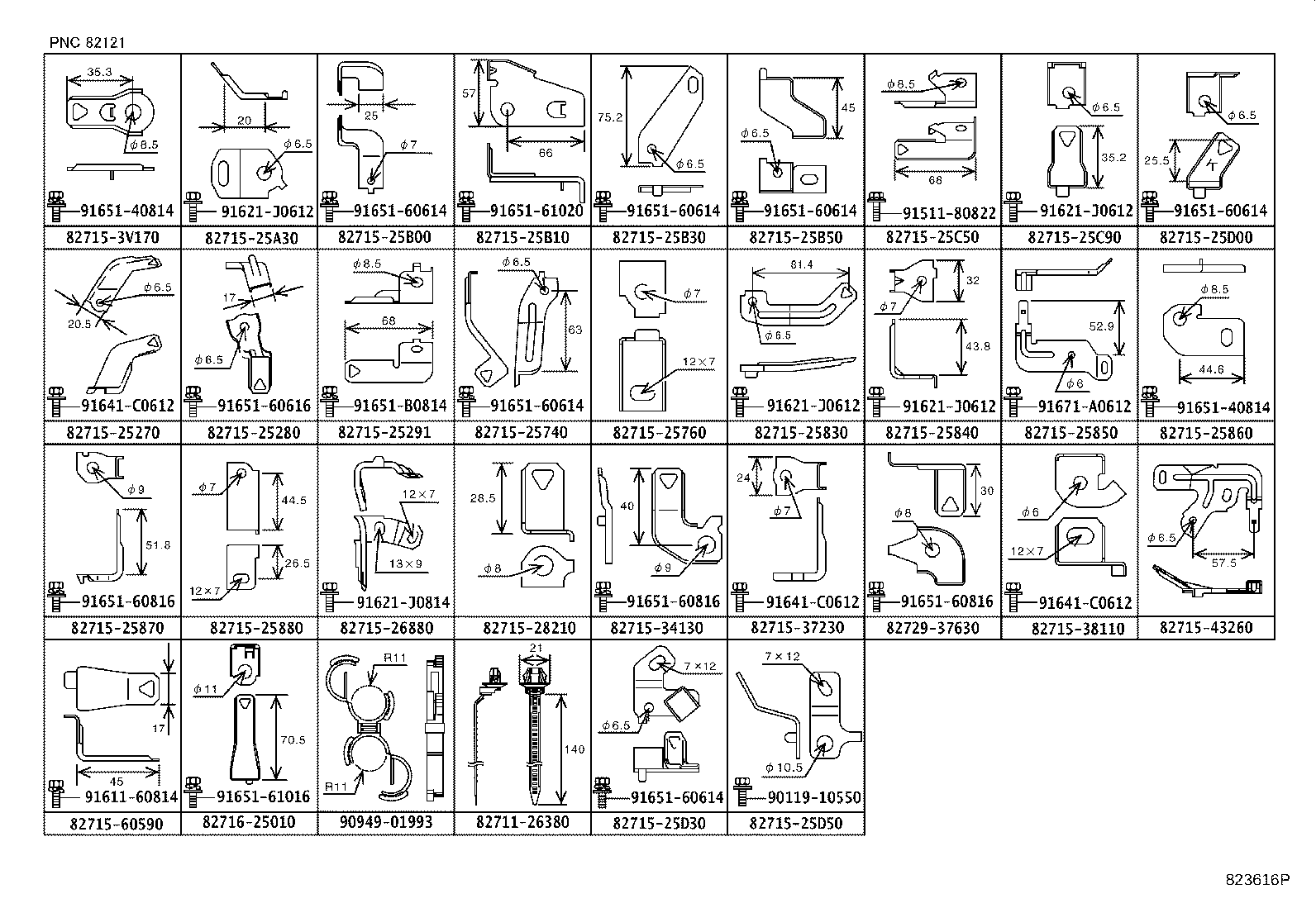

ILLUST NO. 5 OF 8(0107- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-26380 | ||||
| 82715-25270 | ||||
| 82715-25280 | ||||
| 82715-25291 | ||||
| 82715-25740 | ||||
| 82715-25760 | ||||
| 82715-25830 | ||||
| 82715-25840 | ||||
| 82715-25850 | ||||
| 82715-25860 | ||||
| 82715-25870 | ||||
| 82715-25880 | ||||
| 82715-25A30 | ||||
| 82715-25B00 | ||||
| 82715-25B10 | ||||
| 82715-25B30 | ||||
| 82715-25B50 | ||||
| 82715-25C50 | ||||
| 82715-25C90 | ||||
| 82715-25D00 | ||||
| 82715-25D30 | ||||
| 82715-25D50 | ||||
| 82715-26880 | ||||
| 82715-28210 | ||||
| 82715-34130 | ||||
| 82715-37230 | ||||
| 82715-38110 | ||||
| 82715-3V170 | ||||
| 82715-43260 | ||||
| 82715-60590 | ||||
| 82716-25010 | ||||
| 82729-37630 | ||||
| 90119-10550 | ||||
| 90949-01993 | ||||
| 91511-80822 | ||||
| 91611-60814 | ||||
| 91621-J0612 | ||||
| 91621-J0814 | ||||
| 91641-C0612 | ||||
| 91651-40814 | ||||
| 91651-60614 | ||||
| 91651-60616 | ||||
| 91651-60816 | ||||
| 91651-61016 | ||||
| 91651-61020 | ||||
| 91651-B0814 | ||||
| 91671-A0612 | ||||

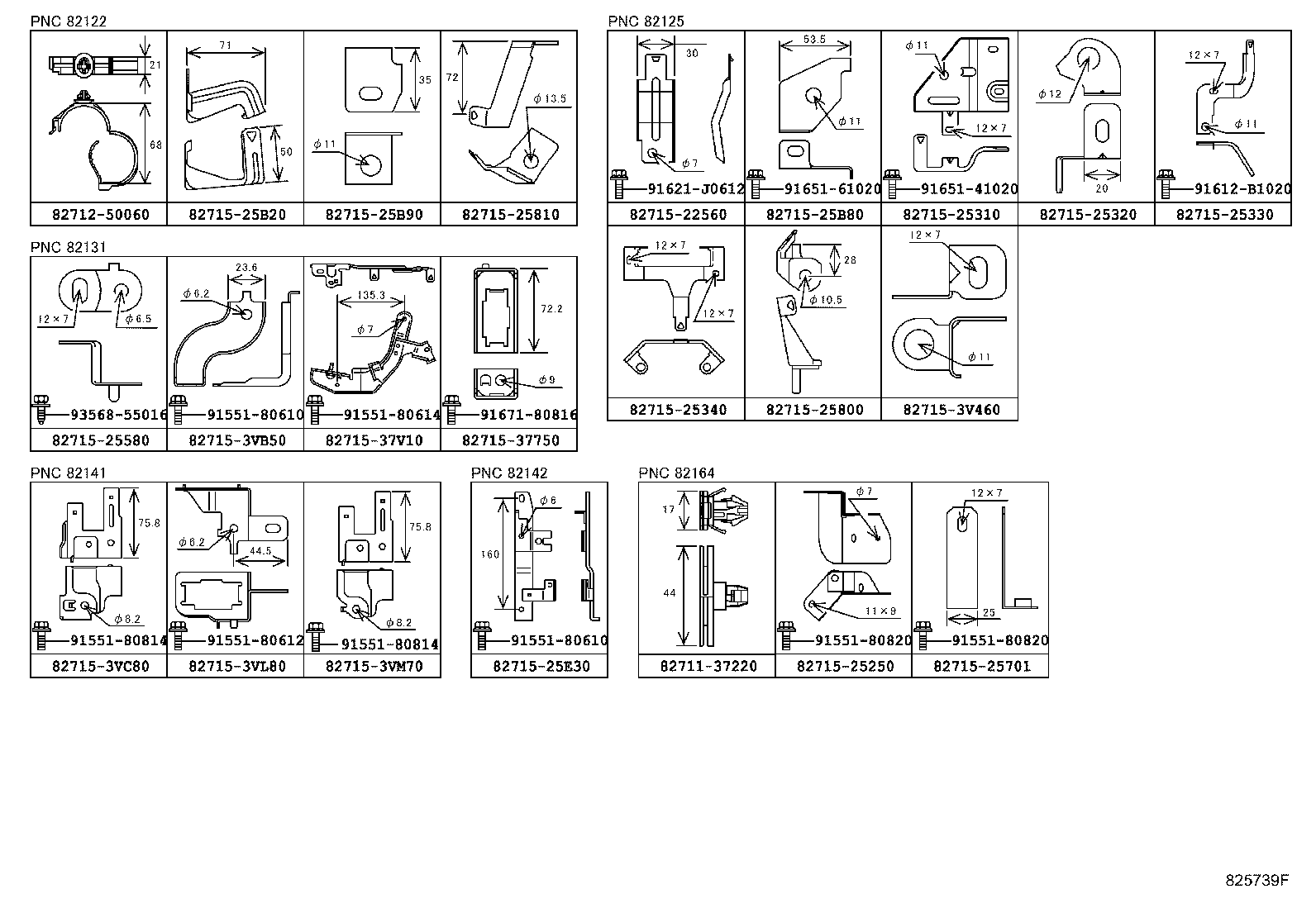

ILLUST NO. 7 OF 8(0107- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-37220 | ||||
| 82712-50060 | ||||
| 82715-22560 | ||||
| 82715-25250 | ||||
| 82715-25310 | ||||
| 82715-25320 | ||||
| 82715-25330 | ||||
| 82715-25340 | ||||
| 82715-25580 | ||||
| 82715-25701 | ||||
| 82715-25800 | ||||
| 82715-25810 | ||||
| 82715-25B20 | ||||
| 82715-25B80 | ||||
| 82715-25B90 | ||||
| 82715-25E30 | ||||
| 82715-37750 | ||||
| 82715-37V10 | ||||
| 82715-3V460 | ||||
| 82715-3VB50 | ||||
| 82715-3VC80 | ||||
| 82715-3VL80 | ||||
| 82715-3VM70 | ||||
| 91551-80610 | ||||
| 91551-80612 | ||||
| 91551-80614 | ||||
| 91551-80814 | ||||
| 91551-80820 | ||||
| 91612-B1020 | ||||
| 91621-J0612 | ||||
| 91651-41020 | ||||
| 91651-61020 | ||||
| 91671-80816 | ||||
| 93568-55016 | ||||
