LY280-TGMFS3 (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281

Click highlighted areas on diagram

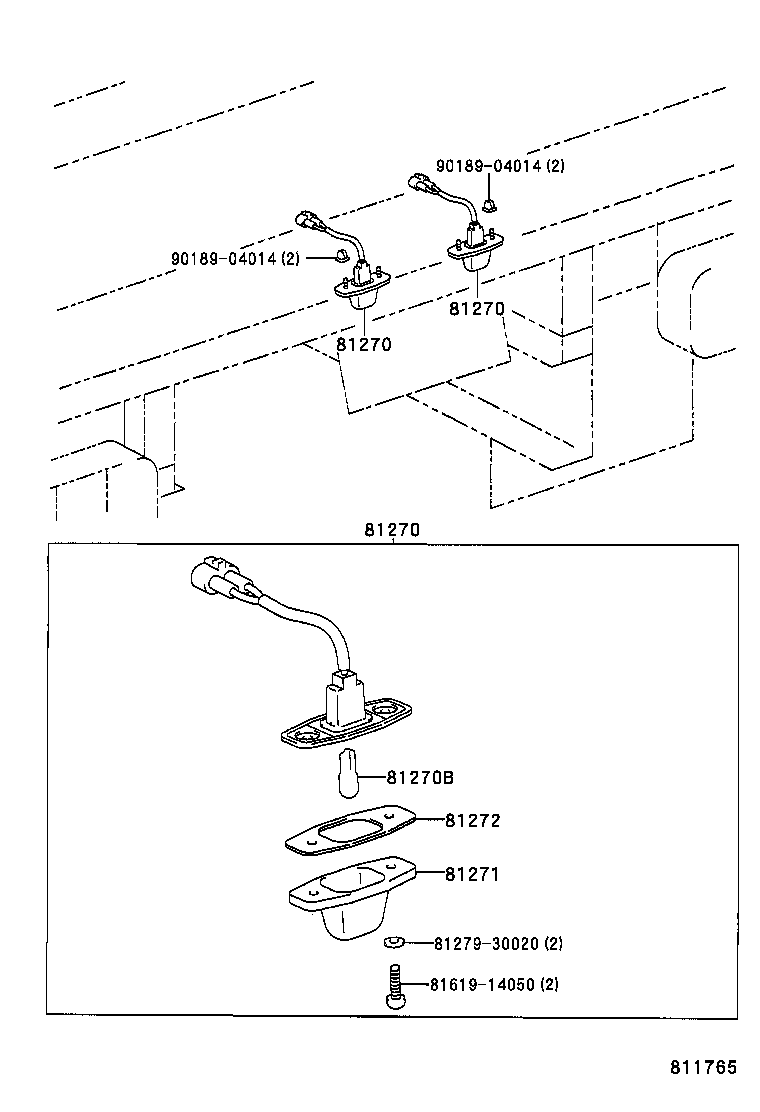

diagram 81270 81270 81270 81270B 81271 81272 8127930020 8161914050 9018904014 9018904014
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-25030

KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281

 2
81270 - LAMP ASSY, LICENSE PLATE
81270-25030

KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281

 2
81270 - LAMP ASSY, LICENSE PLATE
81270-25030

KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

12V 5W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-89110

KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-89110

KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281

 2
Common parts
81279-30020
81619-14050
90189-04014
