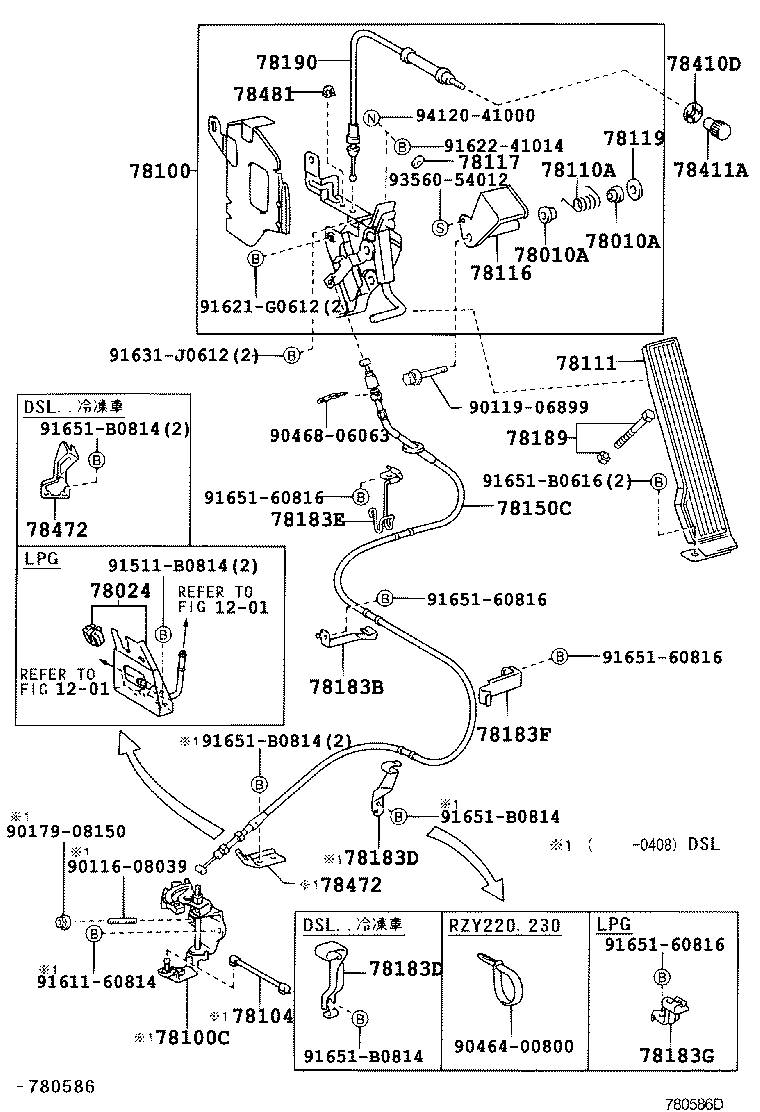

LY280-TGMFS3 (2001)
Toyota Dyna/Toyoace
(0107-0308) ; (0308- )LY220,230,240,270,280,290,RZY231,281
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78010A - BUSH (FOR ACCELERATOR LINK) | ||||
| 90386-08065 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
2 | ||
| 78010A - BUSH (FOR ACCELERATOR LINK) | ||||
| 90386-08065 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
2 | ||
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-25200 |
LY220,230,240,270,280,290..MTM..DSL |
1 | ||
| 78100C - LINK ASSY, ACCELERATOR, NO.2 | ||||
| 78100-26010 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2 | ||||
| 78104-22140 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90959-03330 |
LY220..15T,1T;LY220..MTM..125T..ST;LY230..T2..TB..MTM..15T;LY230..(T2,TW3)..TS..MTM;LY240,270,280,290..MTM..DSL;LY230..(T3,T4,TW2,TW4)..MTM..DSL |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78110-95410 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 78110-95410 |
KDY220,230,240,270,280,290,RZY231,281,TRY220,230 |
1 | ||
| 78116 - COVER, ACCELERATOR PEDAL ROD | ||||
| 78116-37010 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 78117 - CUSHION (FOR ACCELERATOR ROD) | ||||
| 90541-06038 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 78119 - STOPPER, ACCELERATOR PEDAL ROD | ||||
| 78119-95J00 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 78150C - WIRE ASSY, ACCELERATOR FLEXIBLE | ||||
| 78150-25180 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-25070 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 78183D - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-95011 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 78183D - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-95011 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 78183E - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-25080 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 78183F - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-25090 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 78189 - BOLT, ACCELERATOR PEDAL STOPPER | ||||
| 78208-37010 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 78190 - CABLE ASSY, ACCEL CONTROL W/THROTTLE | ||||
| 78190-37010 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 78410D - NUT, THROTTLE | ||||
| 78314-95010 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 78411A - KNOB, THROTTLE CONTROL CABLE | ||||
| 78411-95J01 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 78472 - SUPPORT, THROTTLE CONTROL CABLE | ||||
| 78472-26020 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 78472 - SUPPORT, THROTTLE CONTROL CABLE | ||||
| 78472-26020 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 78481 - CLAMP, THROTTLE WIRE | ||||
| 78481-37010 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| Common parts | ||||
| 90116-08039 | ||||
| 90119-06899 | ||||
| 90179-08150 | ||||
| 90464-00800 | ||||
| 90468-06063 | ||||
| 91511-B0814 | ||||
| 91611-60814 | ||||
| 91621-G0612 | ||||
| 91622-41014 | ||||
| 91631-J0612 | ||||
| 91651-60816 | ||||
| 91651-B0616 | ||||
| 91651-B0814 | ||||
| 93560-54012 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 1201 | ||||
