LY280-TGMFS3 (2001)
Toyota Dyna/Toyoace

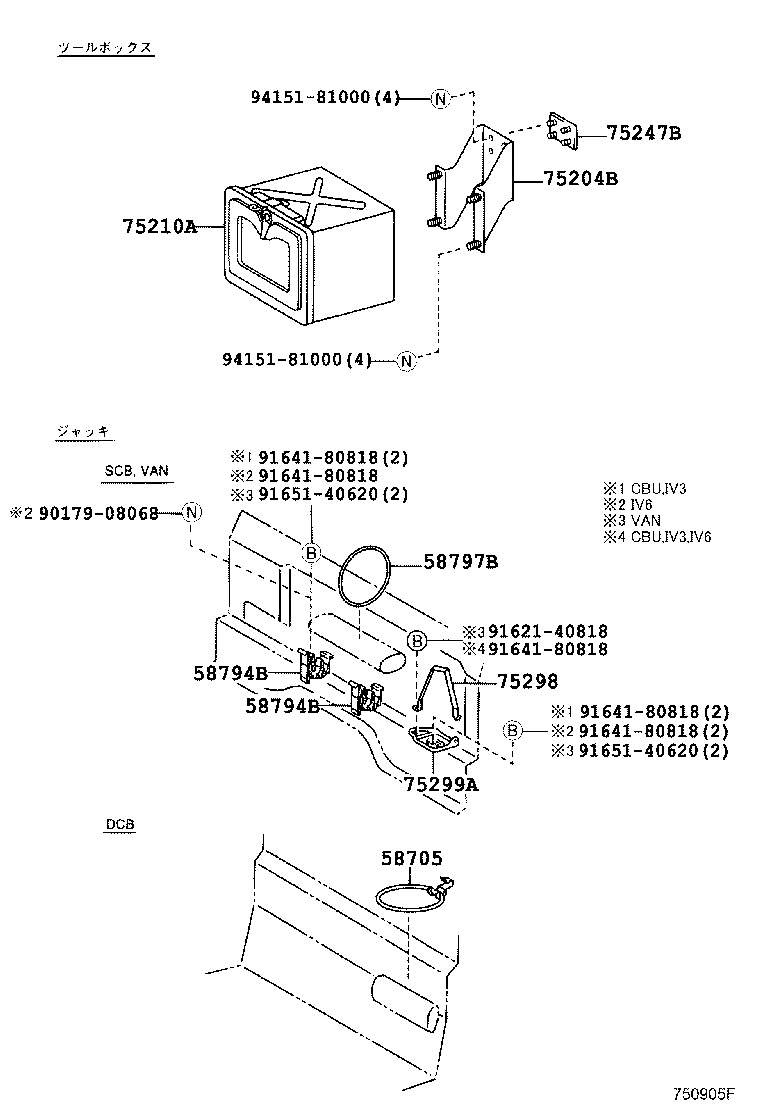

ILLUST NO. 1 OF 2(0107- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58794B - SUPPORT, JACK HANDLE | ||||
| 58794-37010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..T2,T3,T4,VAN |
2 | ||
| 58794B - SUPPORT, JACK HANDLE | ||||
| 58794-37010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..T2,T3,T4,VAN |
2 | ||
| 58797B - BAND, JACK CLAMP | ||||
| 58797-37020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..T2,T3,T4,VAN |
1 | ||
| 75204B - STAY SUB-ASSY, TOOL BOX | ||||
| 75204-25030 |
TRY220..WT;TRY220..T2..ATM;KDY221,231,271..IV3;TRY220..MTM..ST..IV3;TRY220..T3..ATM..IV3;KDY221,231..T4..TB..CBU;KDY231..ATM..125T..ST..CBU;KDY231..(T2,TW2,TW4)..WT..CBU;KDY231,TRY220..(T2,TW1,TW3)..(15T,1T)..ST..CBU;KDY220,230,270,28#,LY220,230,270,280,RZY220,23#,281,TRY23#,281..CBU,IV3 |
1 | ||
| 75210A - BOX ASSY, TOOL | ||||
| 75210-25040 |
KDY220,230,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,230..CBU,IV3 |
1 | ||
| 75247B - SUPPORT, TOOL BOX | ||||
| 75247-25040 |
KDY220,230,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,230..CBU,IV3 |
1 | ||
| 75298 - PLATE, JACK HOLDER | ||||
| 75298-25020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..T2,T3,T4,VAN |
1 | ||
| 75299A - BASE, JACK HOLDER | ||||
| 75299-25020 |
KDY24#,290,LY220,230,240,270,280,290,RZY220,230..T2,T3,T4,VAN |
1 | ||
| 75299-25020 |
KDY220,230,270,280,RZY231,281,TRY220,230..T2,T3,T4 |
1 | ||
| Common parts | ||||
| 90179-08068 | ||||
| 91621-40818 | ||||
| 91641-80818 | ||||
| 91651-40620 | ||||
| 94151-81000 | ||||

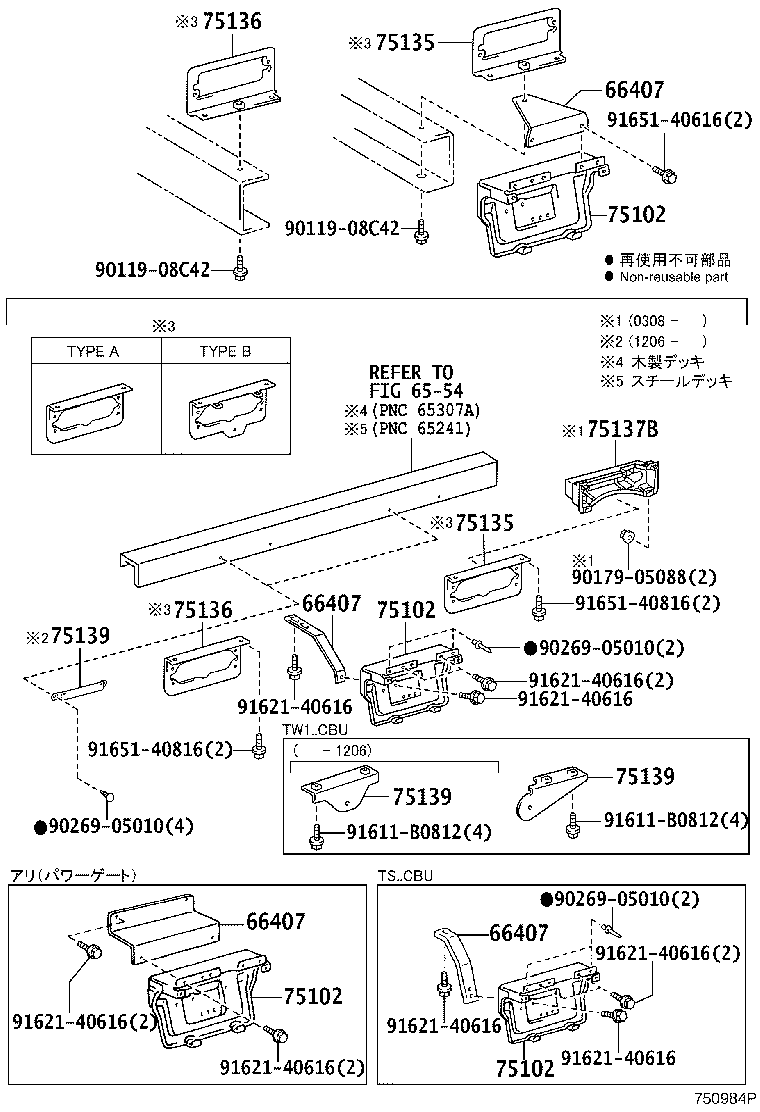

ILLUST NO. 2 OF 2(0107- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66407 - STAY SUB-ASSY, LICENSE PLATE BRACKET | ||||
| 66495-25010 |
LY220,230,270,280,RZY220,230..IV3,IV6 |
1 | ||
| 66407 - STAY SUB-ASSY, LICENSE PLATE BRACKET | ||||
| 66495-25010 |
LY220,230,270,280,RZY220,230..IV3,IV6 |
1 | ||
| 66407 - STAY SUB-ASSY, LICENSE PLATE BRACKET | ||||
| 66495-25010 |
LY220,230,270,280,RZY220,230..IV3,IV6 |
1 | ||
| 66407 - STAY SUB-ASSY, LICENSE PLATE BRACKET | ||||
| 66495-25010 |
LY220,230,270,280,RZY220,230..IV3,IV6 |
1 | ||
| 75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE | ||||
| 66490-95019 |
TRY230..15T;RZY230..1T..IV3;KDY231..TB..ATM;RZY230..125T,15T;LY230,280..T3..15T;KDY231..T4..TB..MTM;KDY221..(T3,T4)..IV3;KDY270,280,LY270..TB;KDY231..T2..ATM..125T;KDY281..(T2,TW1)..CBU;KDY281..125T..(IV3,IV6);KDY230,281..(T3,T4)..TB;KDY221,230..T2,TW1,TW2,TW4;TRY230..(T2,TW1,TW2)..125T;KDY231..(T2,T3,TW2,TW4)..MTM;KDY221,271..(T3,T4)..TB..CBU;KDY270,280,LY270..(T2,TW1)..TS;KDY220,271,LY220,230,280,RZY220,231,281,TRY220,231,281..T2,T4,TW1,TW2,TW4;KDY220,23#,27#,280,LY220,230,270,280,RZY220,TRY220,230..(T3,T4,TW3)..TS..(IV3,IV6) |
1 | ||
| 75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE | ||||
| 66490-95019 |
TRY230..15T;RZY230..1T..IV3;KDY231..TB..ATM;RZY230..125T,15T;LY230,280..T3..15T;KDY231..T4..TB..MTM;KDY221..(T3,T4)..IV3;KDY270,280,LY270..TB;KDY231..T2..ATM..125T;KDY281..(T2,TW1)..CBU;KDY281..125T..(IV3,IV6);KDY230,281..(T3,T4)..TB;KDY221,230..T2,TW1,TW2,TW4;TRY230..(T2,TW1,TW2)..125T;KDY231..(T2,T3,TW2,TW4)..MTM;KDY221,271..(T3,T4)..TB..CBU;KDY270,280,LY270..(T2,TW1)..TS;KDY220,271,LY220,230,280,RZY220,231,281,TRY220,231,281..T2,T4,TW1,TW2,TW4;KDY220,23#,27#,280,LY220,230,270,280,RZY220,TRY220,230..(T3,T4,TW3)..TS..(IV3,IV6) |
1 | ||
| 75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE | ||||
| 66490-95019 |
TRY230..15T;RZY230..1T..IV3;KDY231..TB..ATM;RZY230..125T,15T;LY230,280..T3..15T;KDY231..T4..TB..MTM;KDY221..(T3,T4)..IV3;KDY270,280,LY270..TB;KDY231..T2..ATM..125T;KDY281..(T2,TW1)..CBU;KDY281..125T..(IV3,IV6);KDY230,281..(T3,T4)..TB;KDY221,230..T2,TW1,TW2,TW4;TRY230..(T2,TW1,TW2)..125T;KDY231..(T2,T3,TW2,TW4)..MTM;KDY221,271..(T3,T4)..TB..CBU;KDY270,280,LY270..(T2,TW1)..TS;KDY220,271,LY220,230,280,RZY220,231,281,TRY220,231,281..T2,T4,TW1,TW2,TW4;KDY220,23#,27#,280,LY220,230,270,280,RZY220,TRY220,230..(T3,T4,TW3)..TS..(IV3,IV6) |
1 | ||
| 75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE | ||||
| 66490-95019 |
TRY230..15T;RZY230..1T..IV3;KDY231..TB..ATM;RZY230..125T,15T;LY230,280..T3..15T;KDY231..T4..TB..MTM;KDY221..(T3,T4)..IV3;KDY270,280,LY270..TB;KDY231..T2..ATM..125T;KDY281..(T2,TW1)..CBU;KDY281..125T..(IV3,IV6);KDY230,281..(T3,T4)..TB;KDY221,230..T2,TW1,TW2,TW4;TRY230..(T2,TW1,TW2)..125T;KDY231..(T2,T3,TW2,TW4)..MTM;KDY221,271..(T3,T4)..TB..CBU;KDY270,280,LY270..(T2,TW1)..TS;KDY220,271,LY220,230,280,RZY220,231,281,TRY220,231,281..T2,T4,TW1,TW2,TW4;KDY220,23#,27#,280,LY220,230,270,280,RZY220,TRY220,230..(T3,T4,TW3)..TS..(IV3,IV6) |
1 | ||
| 75135 - BRACKET, COMBINATION REAR LAMP, RH | ||||
| 75135-25030 |
LY220,230,270,280,RZY220,230..IV3 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 75135 - BRACKET, COMBINATION REAR LAMP, RH | ||||
| 75135-25030 |
LY220,230,270,280,RZY220,230..IV3 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 75136 - BRACKET, COMBINATION REAR LAMP, LH | ||||
| 75135-25030 |
LY220,230,270,280,RZY220,230..IV3 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 75136 - BRACKET, COMBINATION REAR LAMP, LH | ||||
| 75135-25030 |
LY220,230,270,280,RZY220,230..IV3 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| Common parts | ||||
| 90119-08C42 | ||||
| 90179-05088 | ||||
| 90269-05010 | ||||
| 91611-B0812 | ||||
| 91621-40616 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| Linked diagrams | ||||
| 6554 | ||||
