LY280-TGMFS3 (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )

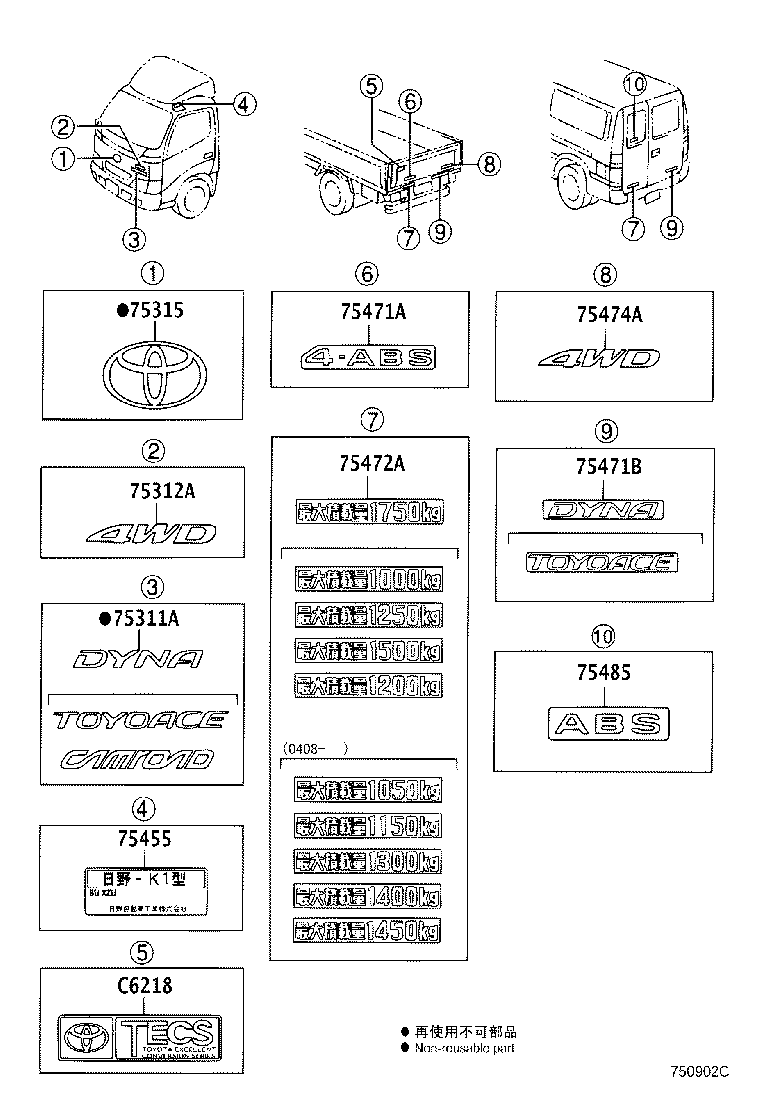

Click highlighted areas on diagram

diagram 75311A 75312A 75315 75455 75471A 75471B 75472A 75474A 75485 C6218
Part # Description Qty Price
75311A - PLATE, FRONT NAME, NO.1
75311-25061

KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230..CBU,IV3

TOYOACE

 1
75311-25051

KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230..CBU,IV3

DYNA

 1
75312A - PLATE, FRONT NAME, NO.2
75312-25020

LY270,280,290..DSL

4WD

 1
75312-25020

KDY270,280,290,RZY281

4WD

 1
75315 - ORNAMENT, RADIATOR GRILLE
75315-25010

KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230

 1
75455 - MARK, ROOF AIR DEFLECTOR
75455-37120

KDY221..T2,T4;KDY230..T2,T3;KDY221..T3..TS;KDY23#..T4..TB;KDY231,TRY230..ST..IV6;KDY231..(T2,T3)..(CBU,IV3);TRY230..(T2,T3,T4)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,231,281..T2,T3,T4

K1 GATA

 1
75455-37150

KDY221..T2,T4;KDY230..T2,T3;KDY221..T3..TS;KDY23#..T4..TB;KDY231,TRY230..ST..IV6;KDY231..(T2,T3)..(CBU,IV3);TRY230..(T2,T3,T4)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,231,281..T2,T3,T4

J1 GATA

 1
75471A - MARK, MAXIMUM LOAD
75475-37010

LY220,230,270,280,RZY220,230

 1
75471B - PLATE, REAR BODY NAME, NO.1
75471-25030

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..CBU,IV3

DYNA

 1
75471-25060

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..CBU,IV3

TOYOACE

 1
75472A - PLATE, REAR BODY NAME, NO.2
75472-25040

KDY230..T4..TS;KDY231..T2..TS..WT;KDY22#,230..(T2,T3)..15T;LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..15T

1500KG

 1
75474A - PLATE, REAR BODY NAME, NO.4
75312-25020

LY270,280,290

 1
