LY280-TGMFS3 (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

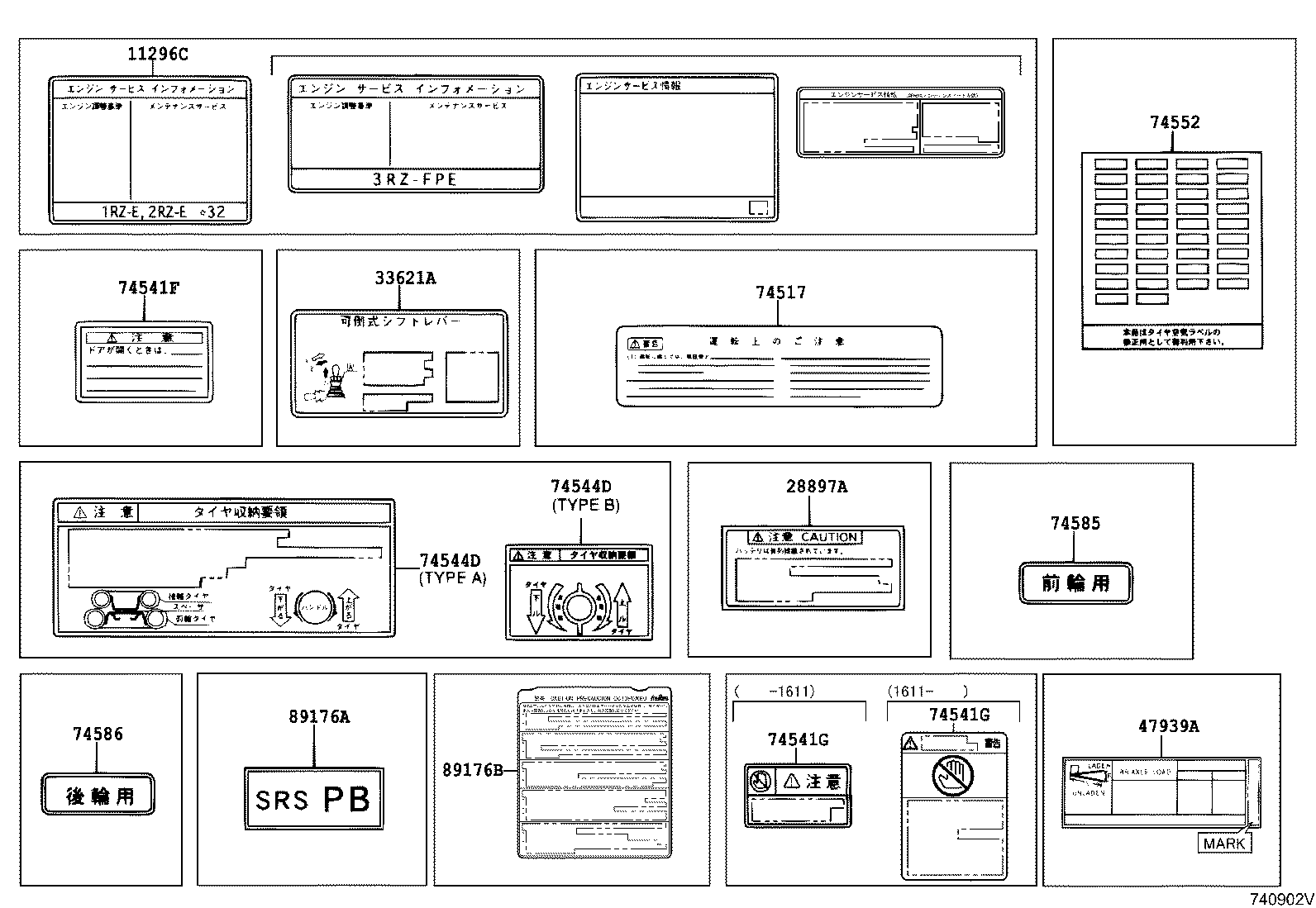

ILLUST NO. 1 OF 3(0107- )

Click highlighted areas on diagram

diagram 11296C 28897A 33621A 47939A 74517 74541F 74541G 74541G 74544D 74544D 74552 74585 74586 89176A 89176B
Part # Description Qty Price
28897A - PLATE, BATTERY CAUTION
28897-54030

1KDFTV,2KDFTV,5L..KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290

 1
33621A - PLATE, CONTROL LEVER CAUTION
33621-37020

LY220,230,240,270,280,290,RZY220,230..MTM

 1
74517 - PLATE, EXHAUST TEMPERATURE CAUTION
74517-26020

LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL

 1
74517-26020

KDY220,230,240,270,280,290,RZY231,281

 1
74544D - PLATE, TIRE CARRIER CAUTION
74544-36050

LY230..T2..CBU;LY230..T2..ST..IV3;RZY230..T2..TB..WT;KDY22#,LY220,RZY220,230,TRY220..T2..ST;KDY23#,270,28#,LY270,280,TRY230..T2..(CBU,IV3)

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 2
74544D - PLATE, TIRE CARRIER CAUTION
74544-36050

LY230..T2..CBU;LY230..T2..ST..IV3;RZY230..T2..TB..WT;KDY22#,LY220,RZY220,230,TRY220..T2..ST;KDY23#,270,28#,LY270,280,TRY230..T2..(CBU,IV3)

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 2
74552 - PLATE, SAFETY CAUTION
74582-37720

KDY23#..15T..IV3;KDY23#..ATM..125T..IV3;KDY221..T3..TB..MTM..CBU;KDY23#..MTM..125T..WT..IV3;KDY22#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..IV3

 1
74585 - PLATE, TIRE CARRIER CAUTION, NO.2
74585-25010

LY230..T2..CBU;LY230..T2..ST..IV3;RZY230..T2..TB..WT;KDY23#,270,28#,LY270,280,TRY230..T2;KDY22#,LY220,RZY220,230,TRY220..T2..ST

 1
74586 - PLATE, TIRE CARRIER CAUTION, NO.3
74586-25010

LY230..T2..CBU;LY230..T2..ST..IV3;RZY230..T2..TB..WT;KDY23#,270,28#,LY270,280,TRY230..T2;KDY22#,LY220,RZY220,230,TRY220..T2..ST

 1
89176A - LABEL, AIR BAG DEPLOYMENT INFORMATION
89176-27010

TRY230..(TW2,TW3)..TS;KDY231,TRY230..WT..IV6;KDY231,TRY220..(TW1,TW2,TW3)..TS;KDY221,241..(T3,TW1,VAN)..(06S,TB,TS);KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281

 1

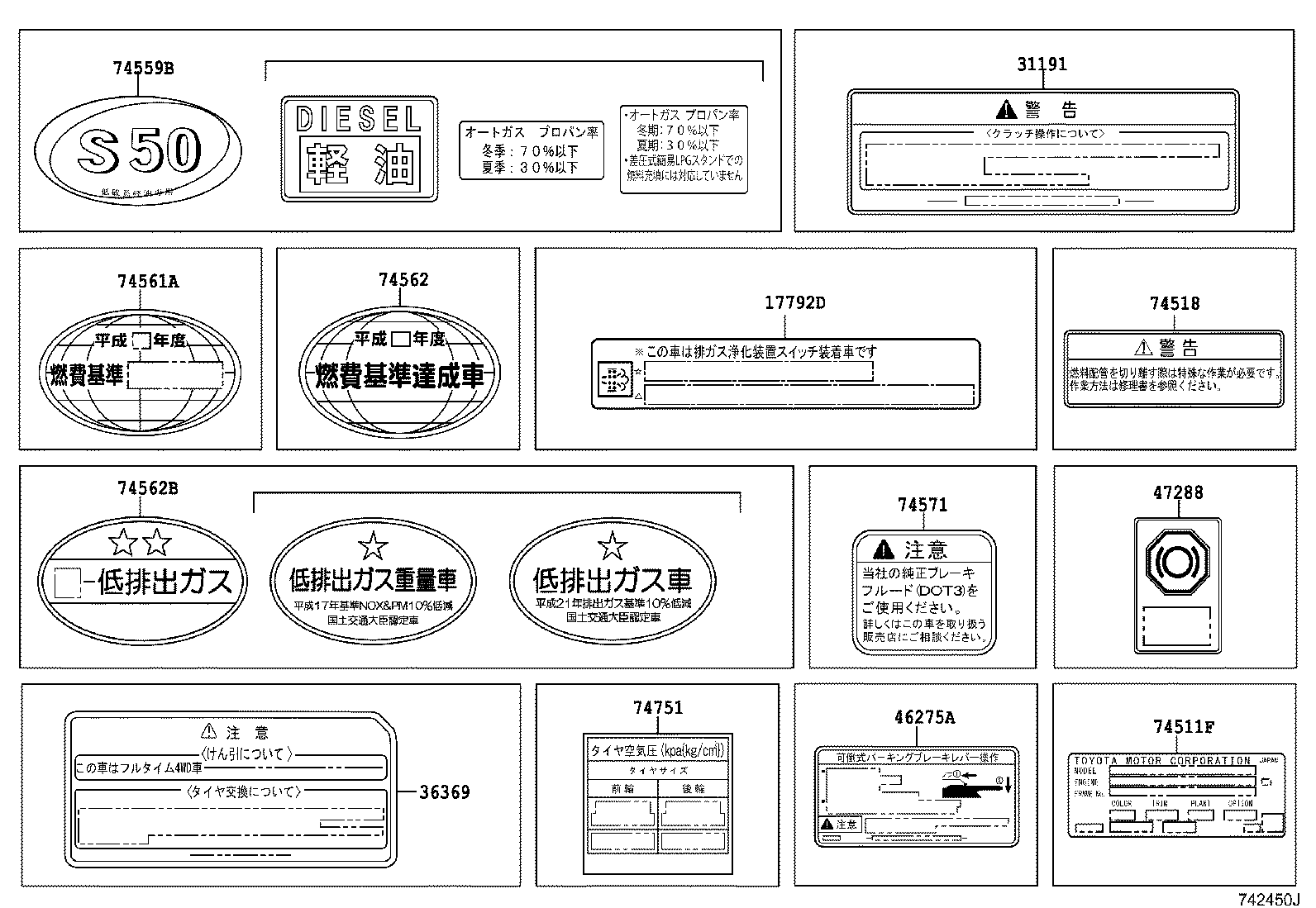

ILLUST NO. 2 OF 3(0107- )

Click highlighted areas on diagram

diagram 17792D 31191 36369 46275A 47288 74511F 74518 74559B 74561A 74562 74562B 74571 74751
Part # Description Qty Price
46275A - LABEL, PARKING BRAKE RELEASE INFORMATION, NO.1
46275-37010

KDY221,231,TRY220..(125T,1T)..ST;KDY281,TRY230..(T2,T3,TW3)..(125T,1T);KDY220,230,240,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281

 1
74571 - PLATE, BRAKE FLUID CAUTION
47288-27020

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-25220

KDY280,LY280..T2..15T

 1

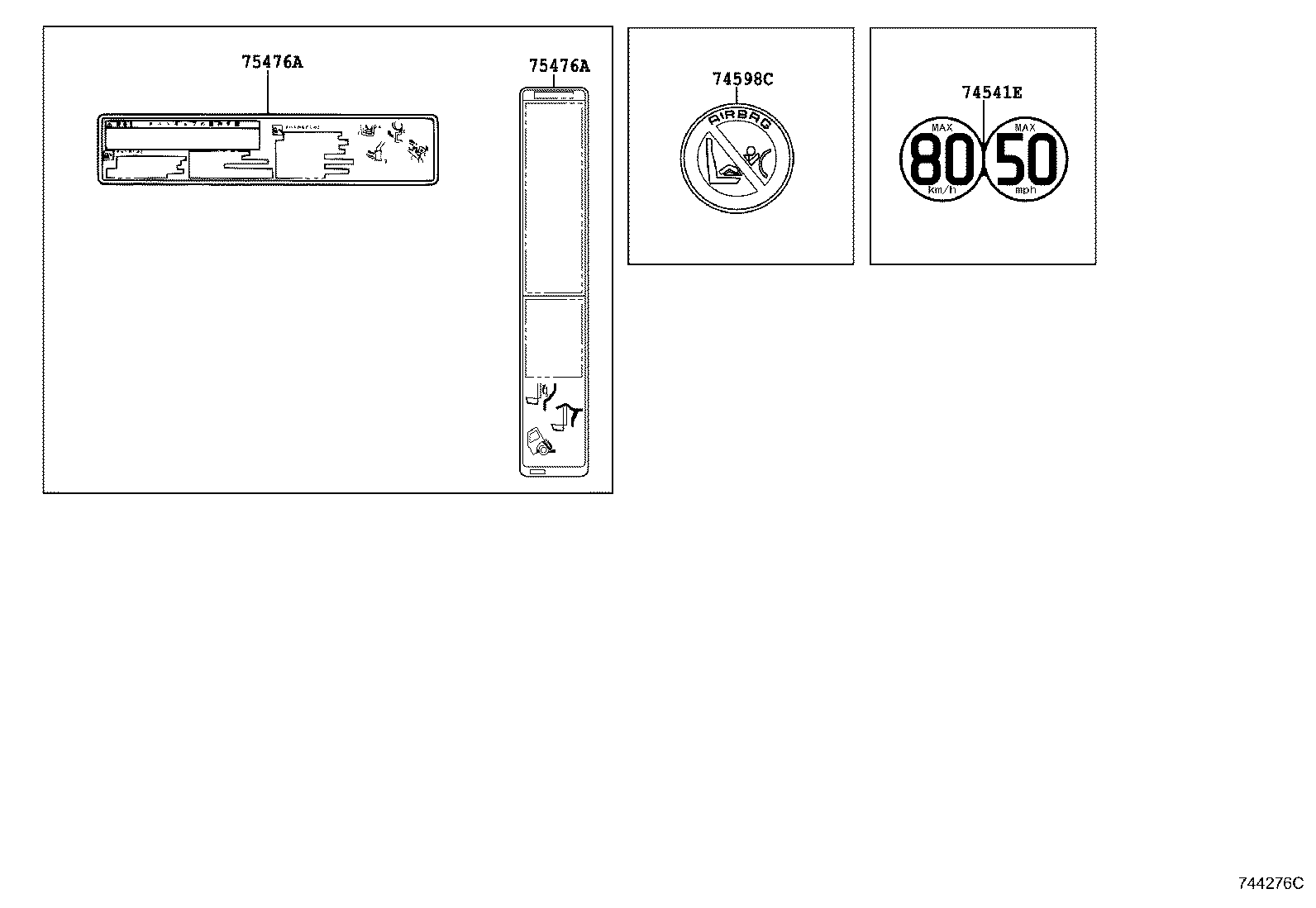

ILLUST NO. 3 OF 3(0107- )

Click highlighted areas on diagram

diagram 74541E 74598C 75476A 75476A
Part # Description Qty Price
75476A - PLATE, TILT OPERATIONAL CAUTION
75476-37051

KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)

 1
75476A - PLATE, TILT OPERATIONAL CAUTION
75476-37051

KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)

 1
