LY280-TGMFS3 (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )T2,T3,T4

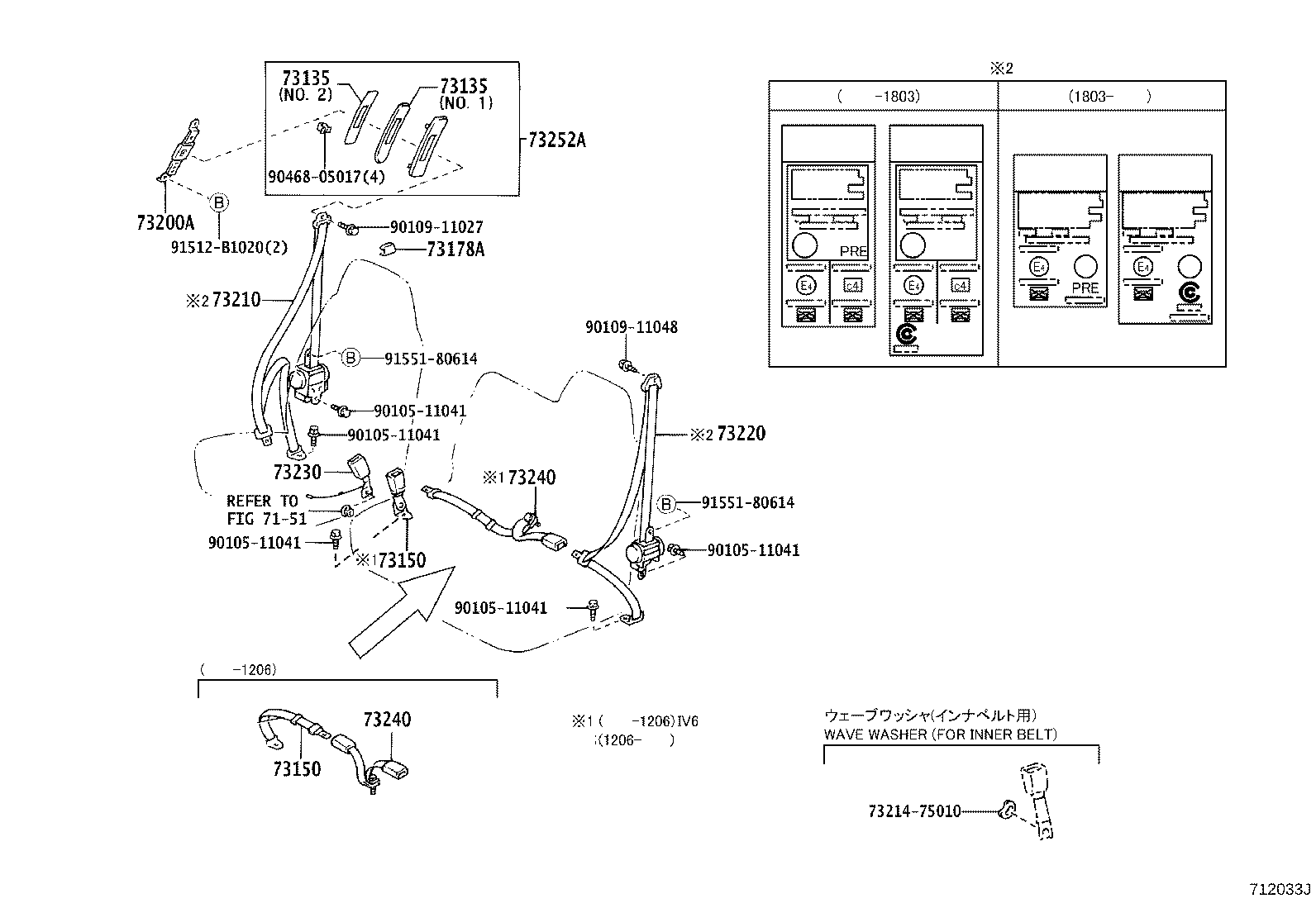

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 7151 73135 73135 73150 73150 73178A 73200A 73210 7321475010 73220 73230 73240 73240 73252A 9010511041 9010511041 9010511041 9010511041 9010511041 9010911027 9010911048 9046805017 91512B1020 9155180614 9155180614
Part # Description Qty Price
73135 - COVER, SHOULDER BELT ANCHORAGE PLATE
73135-35020B1

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

MD.CHARCOAL,TRIM1#,NO.2

 1
73135-35010B1

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

MD.CHARCOAL,TRIM1#,NO.1

 1
73135 - COVER, SHOULDER BELT ANCHORAGE PLATE
73135-35020B1

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

MD.CHARCOAL,TRIM1#,NO.2

 1
73135-35010B1

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

MD.CHARCOAL,TRIM1#,NO.1

 1
73150 - BELT ASSY, FRONT SEAT LAP TYPE, CENTER
73150-37030B1

KDY221,23#..T4..TB;KDY221,23#..(T2,T3)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)

DK.CHARCOAL,TRIM1#

 1
73150 - BELT ASSY, FRONT SEAT LAP TYPE, CENTER
73150-37030B1

KDY221,23#..T4..TB;KDY221,23#..(T2,T3)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)

DK.CHARCOAL,TRIM1#

 1
73178A - CAP, SEAT BELT ANCHOR COVER
73178-12040B4

LY220,230,240,270,280,290,RZY220,230

MD.CHARCOAL,TRIM1#

 1
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-34030

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-37110B0

LY220,230,240,270,280,290,RZY220,230

GRAY,TRIM1#

 1
73210-37120B0

LY220,230,240,270,280,290,RZY220,230

ｱﾘ(SRS ｳﾝﾃﾝｾｷ ｴｱﾊﾞﾂｸﾞ),GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-37130B0

LY220,230,240,270,280,290,RZY220,230

GRAY,TRIM1#

 1
73210-37140B0

LY220,230,240,270,280,290,RZY220,230

ｱﾘ(SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ),GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-37090B0

KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230

DK.CHARCOAL,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-37160B1

KDY221,23#..T4..TB;KDY221,23#..(T2,T3)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)

GRAY,TRIM1#

 1
73240-37170B0

KDY221,23#..T4..TB;KDY221,23#..(T2,T3)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)

ｱﾘ(SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ),GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-37160B1

KDY221,23#..T4..TB;KDY221,23#..(T2,T3)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)

GRAY,TRIM1#

 1
73240-37170B0

KDY221,23#..T4..TB;KDY221,23#..(T2,T3)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)

ｱﾘ(SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ),GRAY,TRIM1#

 1
73252A - COVER, SHOULDER BELT ANCHOR ADJUST
73252-37010B0

KDY221,23#..T2,T3;KDY221,23#..T4..TB;KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4

MD.CHARCOAL,TRIM1#

 1
Common parts
73214-75010
90105-11041
90109-11027
90109-11048
90468-05017
91512-B1020
91551-80614
Linked diagrams
7151
