LY280-TGMFS3 (2001)
Toyota Dyna/Toyoace

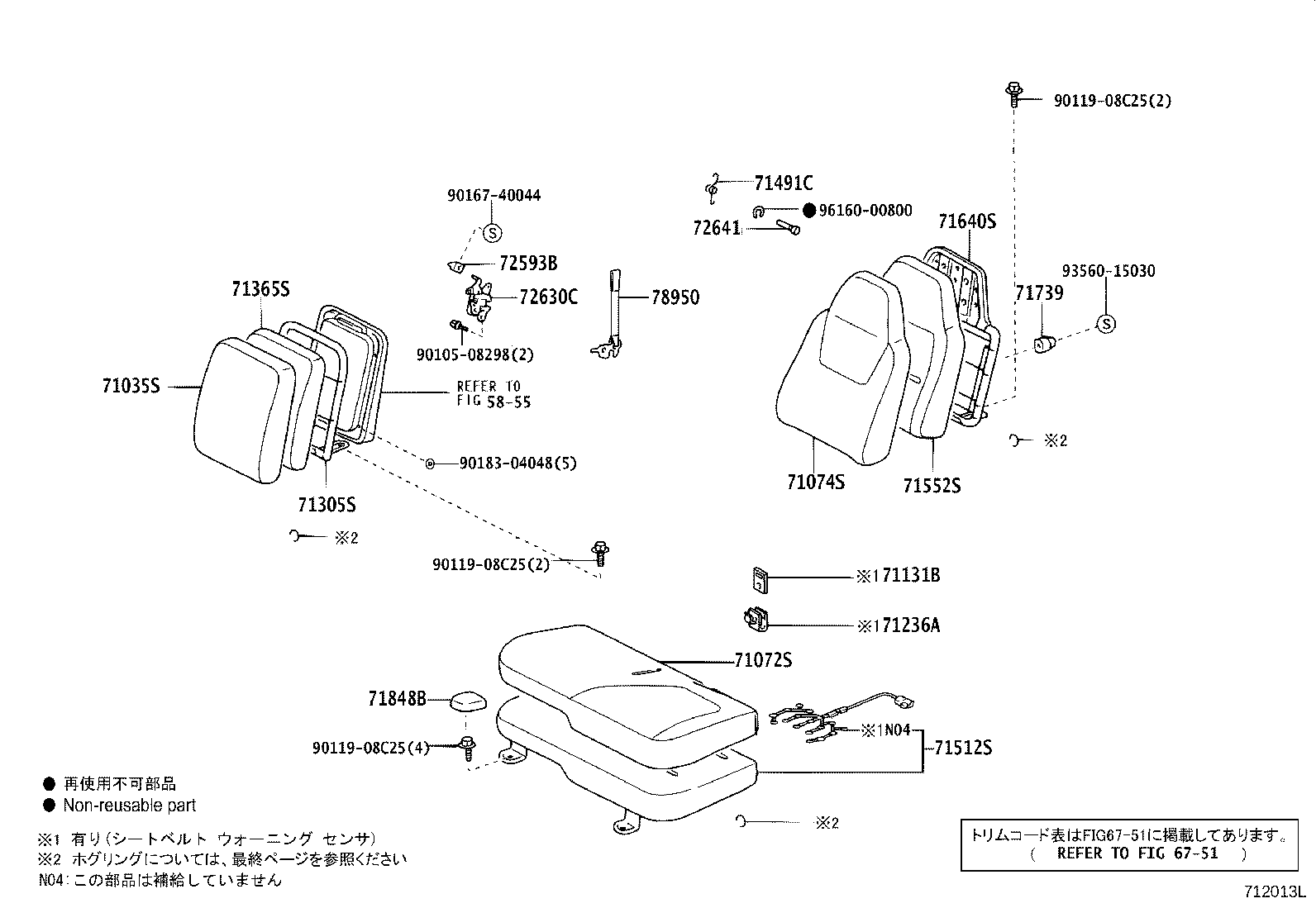

ILLUST NO. 2 OF 3(0107-0709)T2,T3,T4..CBU,IV3
ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄ ﾀｲﾌﾟ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71035S - COVER, FRONT SEAT BACK, CENTER | ||||
| 71095-25070B0 |
LY220,230,270,280,RZY220,23#,281,TRY220,230..(T2,T3,T4)..(CBU,IV3) ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71095-37200B0 |
LY220,230,270,280,RZY220,23#,281,TRY220,230..(T2,T3,T4)..(CBU,IV3) ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71095-25090B0 |
LY220,230,270,280,RZY220,23#,281,TRY220,230..(T2,T3,T4)..(CBU,IV3) ｼ-ﾄ = TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-37790B1 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71072-25160B1 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) ｼ-ﾄ = TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71072-25200B0 |
LY220,230,270,280,RZY231,281,TRY220,230..(T2,T3,T4)..(CBU,IV3) ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71072-37790 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 71072-25210B0 |
LY220,230,270,280,RZY231,281,TRY220,230..(T2,T3,T4)..(CBU,IV3) ｼ-ﾄ = TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71072-25100B1 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-25120B0 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71074-37810B4 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71074-25180B0 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) ｼ-ﾄ = TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71074-25170B0 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ｾﾊﾟﾚ-ﾄ ｼ-ﾄ),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71074-25230B0 |
LY220,230,270,280,RZY231,281,TRY220,230..(T2,T3,T4)..(CBU,IV3) ｼ-ﾄ = TYPE C-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71074-25220B0 |
LY220,230,270,280,RZY231,281,TRY220,230..(T2,T3,T4)..(CBU,IV3) ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ｾﾊﾟﾚ-ﾄ ｼ-ﾄ),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 70169-37210B0 |
LY220,230,270,280..(T2,T3,T4)..(CBU,IV3) ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71074-37850B4 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ｾﾊﾟﾚ-ﾄ ｼ-ﾄ),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71074-25240B0 |
LY220,230,270,280,RZY231,281,TRY220,230..(T2,T3,T4)..(CBU,IV3) ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71131B - PLATE, FRONT SEAT CUSHION, NO.1 | ||||
| 71131-37030 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 71236A - CLAMP, REAR SEAT CUSHION SPRING | ||||
| 71236-37010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 71305S - FRAME SUB-ASSY, CENTER SEAT BACK | ||||
| 71305-37090 |
KDY220,230,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 71365S - PAD, CENTER SEAT BACK | ||||
| 71365-37060 |
KDY221,23#..T4..TB;KDY221,23#..(T2,T3)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 71491C - SPRING, REAR SEAT SET | ||||
| 71491-89101 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..CBU,IV3 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-37160 |
KDY230..T4..TB;KDY230..(T2,T3)..(CBU,IV3);KDY220,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 71052-37030 |
KDY230..T4..TB;KDY230..(T2,T3)..(CBU,IV3);KDY220,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,230..(T2,T3,T4)..(CBU,IV3) ｱﾘ(ｼﾞﾖｼﾕｾｷ ｼ-ﾄﾍﾞﾙﾄ ｳｵ-ﾆﾝｸﾞｾﾝｻ) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-37100 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 71552-37090 |
KDY230..T4..TB;KDY230..(T2,T3,TW2,TW3,TW4)..(CBU,IV3);KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4;KDY220,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281..CBU,IV3 E ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-37080 |
KDY220,230,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,230..(T2,T3,T4)..(CBU,IV3) ｱﾘ(ｼﾞﾖｼﾕｾｷ ｲﾂﾀｲ ﾀｲﾌﾟ) |
1 | ||
| 71014-37100 |
KDY220,230,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 71739 - CUSHION, SEAT SUPPORT | ||||
| 71739-37010 |
KDY22#,23#,240,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..CBU,IV3 |
2 | ||
| 71848B - CAP, SEAT ADJUSTER COVER, RH | ||||
| 72137-35050B1 |
KDY221,23#..T4..TB;KDY221,23#..(T2,T3)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3) DK.CHARCOAL,TRIM1# |
1 | ||
| 72593B - KNOB, RECLINING REMOTE CONTROL LEVER, RH | ||||
| 72593-37020B0 |
KDY221,23#..T4..TB;KDY221,23#..(T2,T3)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3) MD.CHARCOAL,TRIM1# |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-37020 |
KDY221,23#..T4..TB;KDY221,23#..(T2,T3)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 72641 - PIN, REAR SEAT BACK LOCK | ||||
| 72641-37010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..CBU,IV3 |
1 | ||
| 78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1 | ||||
| 71026-37010B0 |
LY220..15T;LY220,270..(125T,12T)..ST;LY230..TB..(15T,175T)..DSL;LY230..(T2,T3)..TS..(CBU,IV3);LY280..(T2,T3,T4)..DSL..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-08298 | ||||
| 90119-08C25 | ||||
| 90167-40044 | ||||
| 90183-04048 | ||||
| 93560-15030 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 5855 | ||||
| 6751 | ||||
ILLUST NO. 1 OF 3(0107-0709)

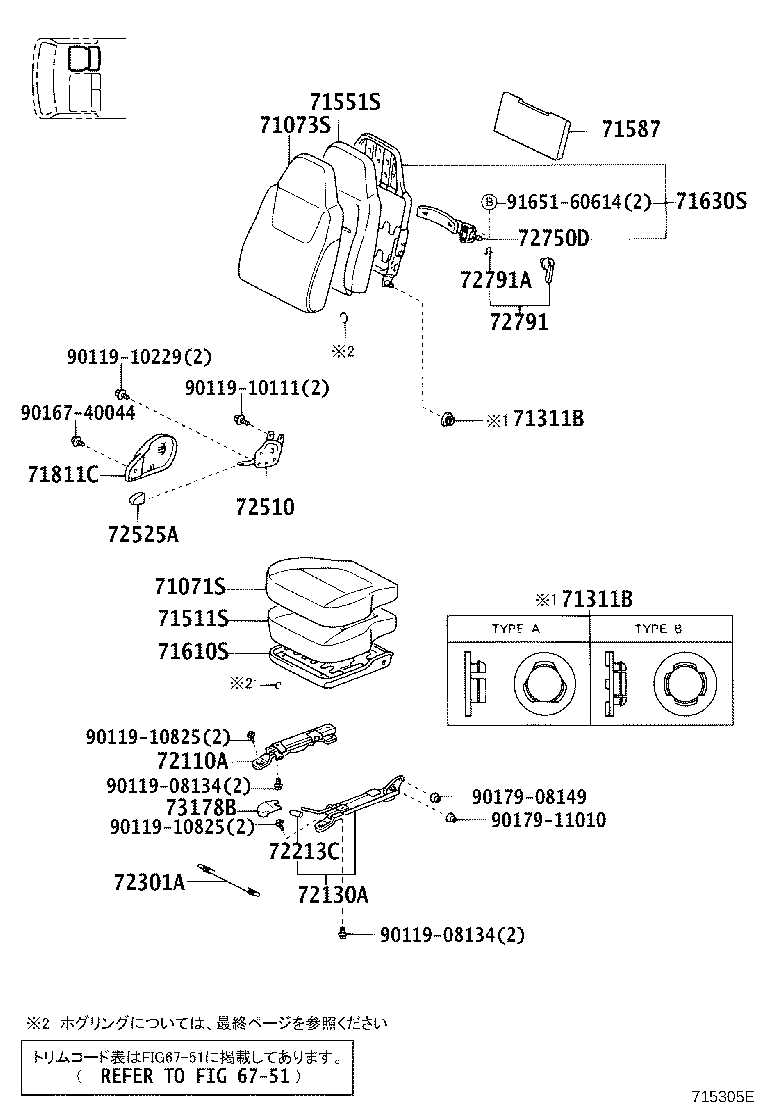

ｳﾝﾃﾝｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-25070B0 |
LY220,230,240,270,280,290,RZY220,230 ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71071-37550B4 |
LY220,230,240,270,280,290,RZY220,230..CBU,IV3 ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71071-25110B0 |
LY220,230,240,270,280,290,RZY231,281,TRY220,230 ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71071-25080B0 |
LY220,230,270,280,RZY220,230..T2,T3,T4 ｼ-ﾄ = TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71071-25120B0 |
LY220,230,270,280,RZY231,281,TRY220,230..T2,T3,T4 ｼ-ﾄ = TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-25150B0 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71073-25160B0 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) ｼ-ﾄ = TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71073-25200B0 |
LY220,230,270,280,RZY231,281,TRY220,230..(T2,T3,T4)..(CBU,IV3) ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71073-25210B0 |
LY220,230,270,280,RZY231,281,TRY220,230..(T2,T3,T4)..(CBU,IV3) ｼ-ﾄ = TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71073-37630B4 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71311B - BUSH (FOR FRONT SEAT HINGE PIN) | ||||
| 90386-12051 |
LY220,230,240,270,280,290,RZY220,230 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90386-12053 |
LY220,230,270,280,RZY220,230 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 71311B - BUSH (FOR FRONT SEAT HINGE PIN) | ||||
| 90386-12051 |
LY220,230,240,270,280,290,RZY220,230 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90386-12053 |
LY220,230,270,280,RZY220,230 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-37080 |
KDY221,231..T4..TB;KDY221,231..T2,T3,TW1,TW2,TW3,TW4;KDY220,230,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-37170 |
KDY220,230,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 71551-37160 |
KDY230..T4..TB;KDY230..(T2,T3)..(CBU,IV3);KDY220,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,230..(T2,T3,T4)..(CBU,IV3) E ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-37030 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-37030 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-37090 |
KDY220,230,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,230..T2,T3,T4 ｱﾘ(ﾗﾝﾊﾞ-ｻﾎﾟ-ﾄ) |
1 | ||
| 71630-37060 |
KDY220,230,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,230..CBU,IV3 E ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 71630-37050 |
KDY220,230,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,230 |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-37010B0 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-37020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-37020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 72213C - KNOB, SEAT TRACK ADJUSTING HANDLE, LH | ||||
| 72213-28030D0 |
LY220,230,270,280..CBU,IV3 ORANGE |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-37030 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-37020 |
KDY221,231..T4..TB;KDY221,231..T2,T3,TW1,TW2,TW3,TW4;KDY220,230,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-37010B0 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-37030 |
TRY230..WT..IV6;KDY221,231..T2,T3;KDY221,231..T4..TB;KDY231,TRY230..TS..125T..WT;KDY271,281,LY220,230,270,280,RZY220,230,TRY231,281..T2,T3,T4 |
1 | ||
| 72750-37030 |
KDY220,230,270,280,RZY231,281,TRY220,230..T2,T3,T4 |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-12010B9 |
KDY221,23#..T2,T3;KDY221,23#..T4..TB;KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 MD.CHARCOAL,TRIM1# |
1 | ||
| 72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER) | ||||
| 90520-01006 |
KDY221,23#..T2,T3;KDY221,23#..T4..TB;KDY231,TRY230..TS..125T..WT;KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 73178B - CAP, SEAT BELT ANCHOR COVER | ||||
| 72137-37010B0 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 DK.CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08134 | ||||
| 90119-10111 | ||||
| 90119-10229 | ||||
| 90119-10825 | ||||
| 90167-40044 | ||||
| 90179-08149 | ||||
| 90179-11010 | ||||
| 91651-60614 | ||||
| Linked diagrams | ||||
| 6751 | ||||
(0107- )

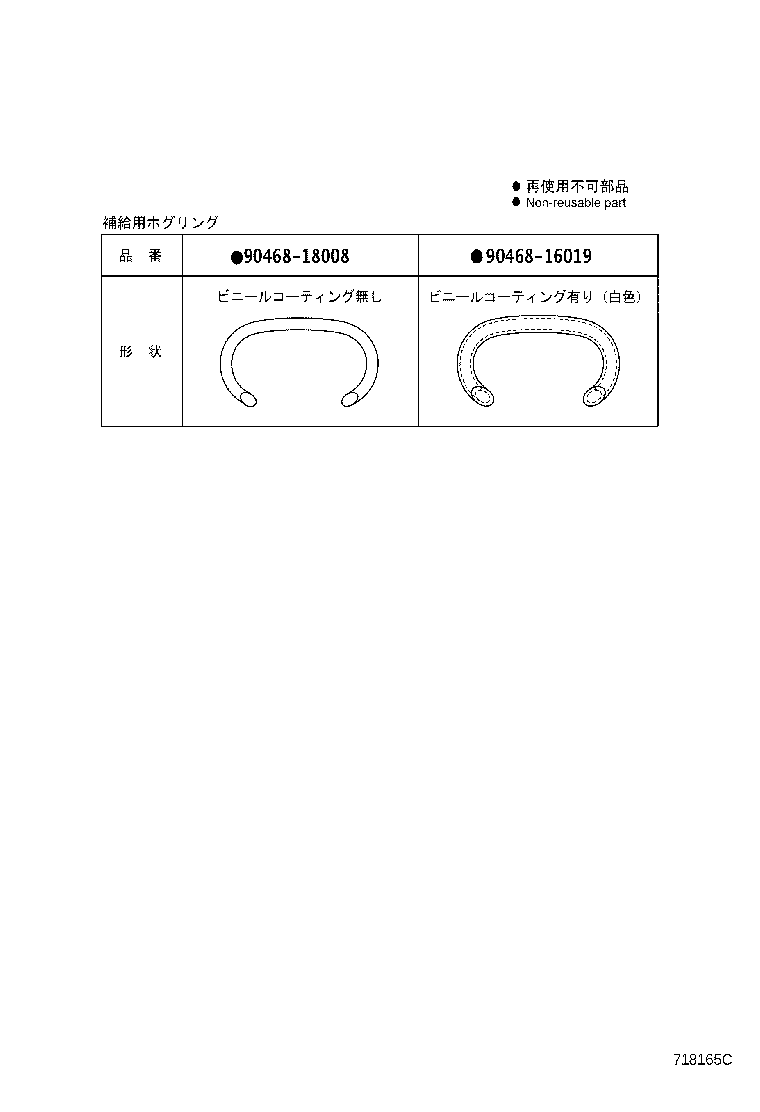

ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
