LY280-TGMFS3 (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281

Click highlighted areas on diagram

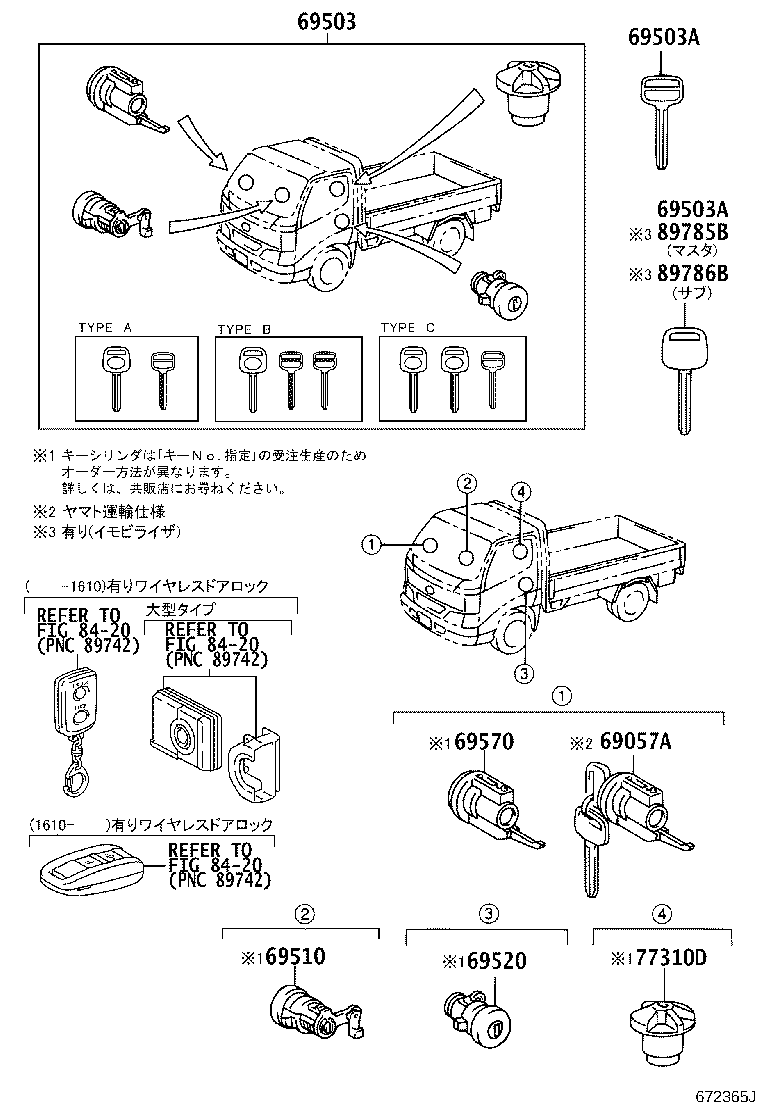

diagram 69057A 69503 69503A 69503A 69510 69520 69570 77310D 8420 8420 8420 89785B 89786B
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69005-37010

KDY221..TB..IV3;KDY231..T4..MTM..IV3;KDY220,230,270,280,LY220,230,270,280..DCR,DSL

TYPE B:ｲﾗｽﾄ参照

 1
69503A - KEY, BLANK
90999-00185

KDY22#,23#,27#,28#,LY220,230,270,280..DCR,DSL

ﾏｽﾀｰｷｰ,*68付き,2ｺ ｼﾖｳ

 2
90999-00186

KDY221..TB..WT..IV3;KDY231..T4..MTM..IV3;KDY220,230,270,280,LY220,230,270,280..DCR,DSL

ﾏｽﾀｰｷｰ,2ｺ ｼﾖｳ

 2
69503A - KEY, BLANK
90999-00185

KDY22#,23#,27#,28#,LY220,230,270,280..DCR,DSL

ﾏｽﾀｰｷｰ,*68付き,2ｺ ｼﾖｳ

 2
90999-00186

KDY221..TB..WT..IV3;KDY231..T4..MTM..IV3;KDY220,230,270,280,LY220,230,270,280..DCR,DSL

ﾏｽﾀｰｷｰ,2ｺ ｼﾖｳ

 2
69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH
69510-37020

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH
69520-37040

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
69570 - CYLINDER ASSY, IGNITION SWITCH LOCK
69570-37040

KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY231,281

 1
77310D - CAP ASSY, FUEL TANK
77310-37020

KDY22#,23#,27#,28#,LY220,230,270,280..DCR,DSL

 1
