LY280-TGMFS3 (2001)
Toyota Dyna/Toyoace

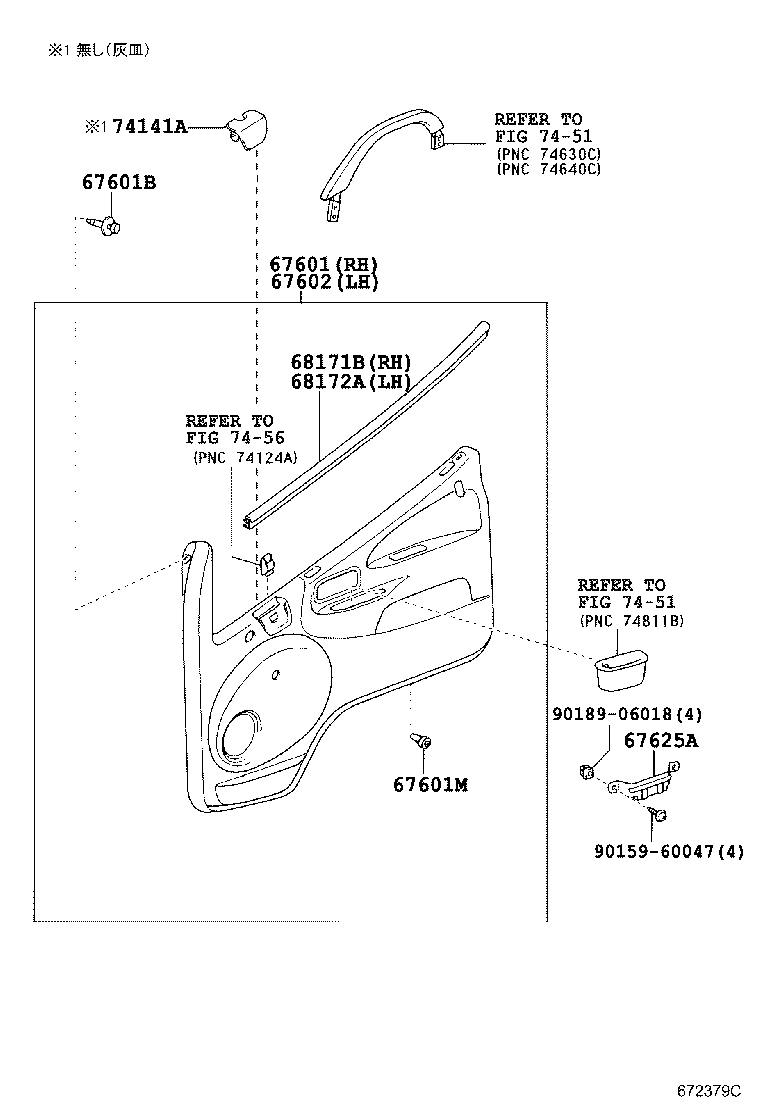

ILLUST NO. 1 OF 3(0107- )
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-37080B0 |
KDY221,23#..T4..TB;KDY221,23#..T2,T3,TW1,TW2,TW3,TW4;KDY220,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ﾅｼ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ),MD.CHACORL,TRIM1# |
1 | ||
| 67610-37090B0 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-07071B6 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
2 | ||
| 67601M - RETAINER, DOOR TRIM, NO.2 | ||||
| 67771-12050 |
LY220,230,240,270,280,290,RZY220,230 |
16 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-37130B0 |
KDY221,23#..T4..TB;KDY221,23#..T2,T3,TW1,TW2,TW3,TW4;KDY220,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ﾅｼ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ),MD.CHARCORL,TRIM1# |
1 | ||
| 67620-37140B0 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 67625A - BRACKET, FRONT DOOR TRIM, NO.1 | ||||
| 67625-26010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
2 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-37010 |
LY220,230,240,270,280,290,RZY231,281,TRY220,230 |
1 | ||
| 68171-37010 |
LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY220,RZY231,281..15T,1T;LY230..TB..(12T,15T,175T)..DSL;LY240,270,280,290,TRY220,230..DSL,EFI |
1 | ||
| 68171-37010 |
LY220,230,240,270,280,290,RZY231,281,TRY220,230 |
1 | ||
| 68171-37011 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281 |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-37010 |
LY220,230,240,270,280,290,RZY231,281,TRY220,230 |
1 | ||
| 68172-37011 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281 |
1 | ||
| 68172-37010 |
LY220,230,240,270,280,290,RZY231,281,TRY220,230 |
1 | ||
| 68172-37010 |
LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY220,RZY231,281..15T,1T;LY230..TB..(12T,15T,175T)..DSL;LY240,270,280,290,TRY220,230..DSL,EFI |
1 | ||
| Common parts | ||||
| 90159-60047 | ||||
| 90189-06018 | ||||
| Linked diagrams | ||||
| 7451 | ||||
| 7456 | ||||

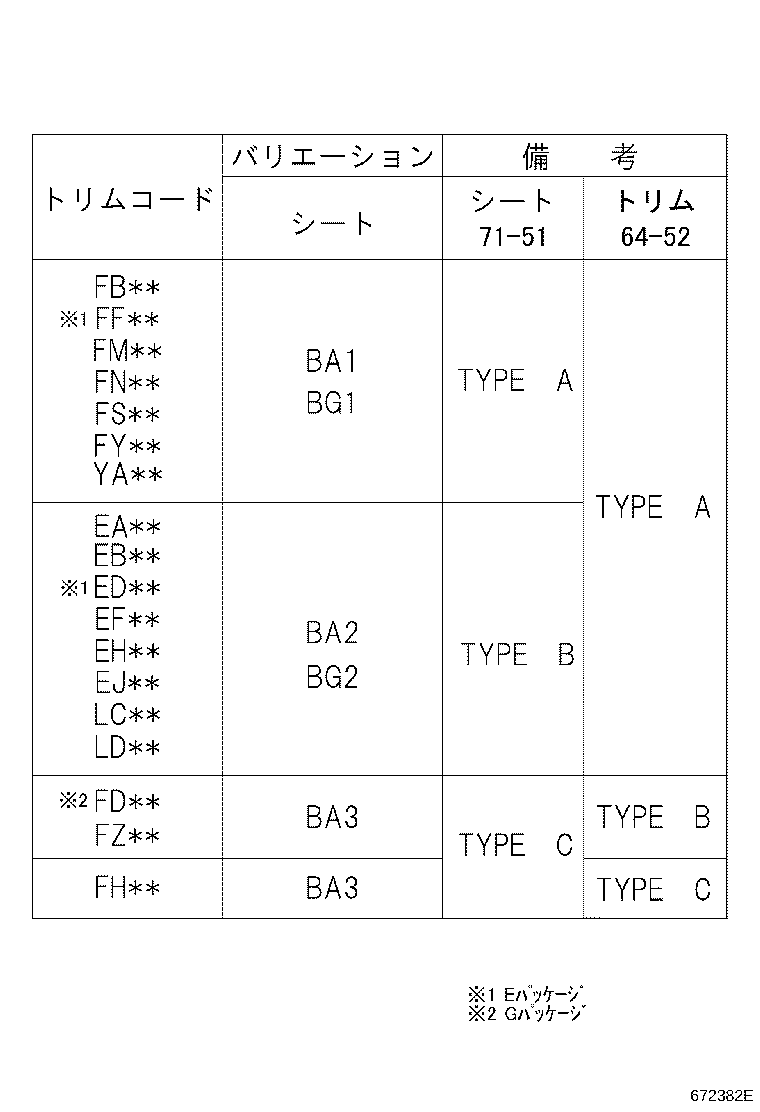

ILLUST NO. 3 OF 3(0107- )
ﾄﾘﾑｺｰﾄﾞ
| Part # | Description | Qty | Price |
|---|

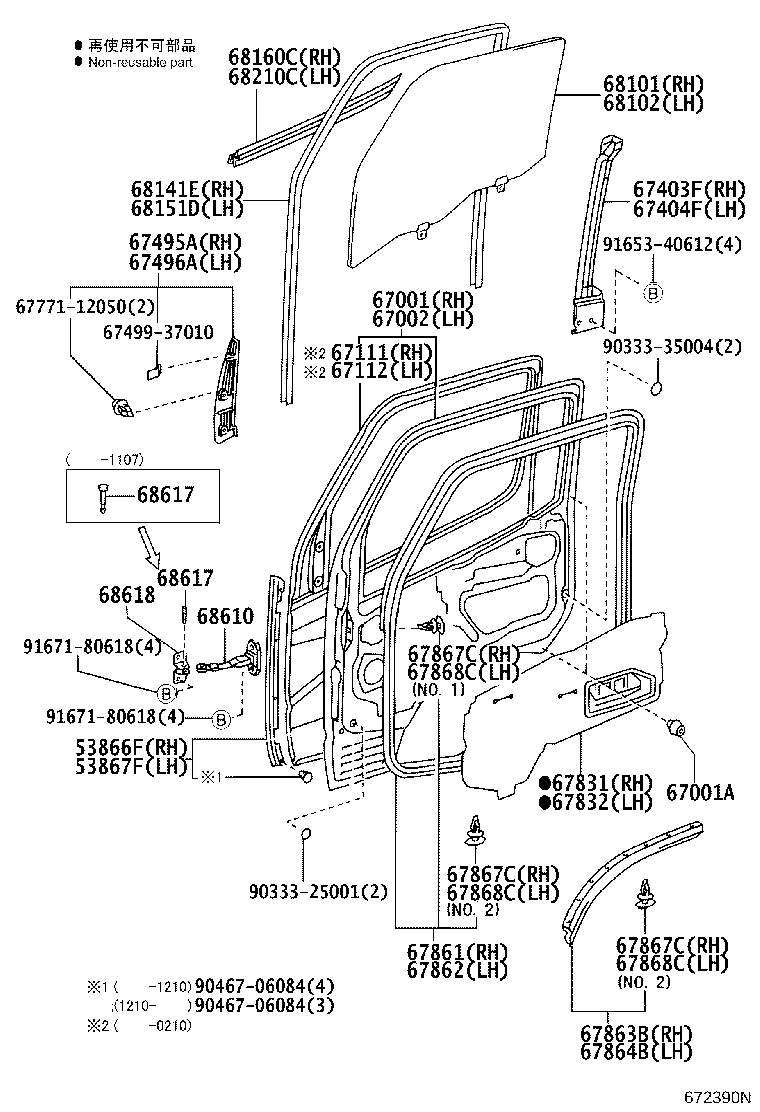

ILLUST NO. 2 OF 3(0107- )
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53866F - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-37040 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 53867F - SEAL, FR FENDER TO COWL SIDE, LH | ||||
| 53867-37030 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-25151 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 |
1 | ||
| 67001-25101 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 ｱﾘ(ﾄﾞｱ ﾐﾗ-) |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09031 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-37071 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281 |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-25081 |
LY220,230,240,270,280,290,RZY220,230 |
1 | ||
| 67111-37061 |
LY220,230,240,270,280,290,RZY220,230 ｱﾘ(ｱｳﾄｻｲﾄﾞﾘﾔﾋﾞﾕ-ﾐﾗ-=ﾄﾞｱ) |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-37071 |
LY220,230,240,270,280,290,RZY220,230 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-37020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-37020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH | ||||
| 67495-37010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 67496A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH | ||||
| 67496-37010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-37010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-37010 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY231,281 |
1 | ||
| 67832-37020 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY231,281 ﾅｼ(ｽﾋﾟ-ｶ) |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-37020 |
LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 |
1 | ||
| 67861-37021 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-37021 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281 |
1 | ||
| 67862-37020 |
LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 |
1 | ||
| 67863B - WEATHERSTRIP, FRONT DOOR, NO.2 RH | ||||
| 67863-37010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 67864B - WEATHERSTRIP, FRONT DOOR, NO.2 LH | ||||
| 67864-37010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-89103 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 NO.1 |
1 | ||
| 67867-12150 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 NO.2 |
35 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-89103 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 NO.1 |
1 | ||
| 67867-12150 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 NO.2 |
35 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-89103 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 NO.1 |
1 | ||
| 67867-12150 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 NO.2 |
35 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-89103 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 NO.1 |
1 | ||
| 67867-12150 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 NO.2 |
35 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-89103 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 NO.1 |
1 | ||
| 67867-12150 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 NO.2 |
35 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-89103 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 NO.1 |
1 | ||
| 67867-12150 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 NO.2 |
35 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-37110 |
LY220,230,270,280,RZY220,230..T2,T3,T4 *UVCTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68101-37130 |
LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230..CBU,IV3 *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68101-37100 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 *UVCTT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-37130 |
LY220,230,270,280,RZY220,230..T2,T3,T4 *UVCTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68102-37120 |
KDY221..(T3,TW1)..TS;KDY231,241,TRY220,230..(TW1,TW3,VAN)..(06S,TS)..(15T,1T);KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281 *UVCTT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68102-37140 |
LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230..CBU,IV3 *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68141E - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-37030 |
LY220,230,240,270,280,290,RZY220,230 |
1 | ||
| 68141-37030 |
LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY220,RZY231,281..15T,1T;LY230..TB..(12T,15T,175T)..DSL;LY240,270,280,290,TRY220,230..DSL,EFI |
1 | ||
| 68151D - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-37030 |
LY220,230,240,270,280,290,RZY220,230 |
1 | ||
| 68151-37030 |
LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY220,RZY231,281..15T,1T;LY230..TB..(12T,15T,175T)..DSL;LY240,270,280,290,TRY220,230..DSL,EFI |
1 | ||
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68161-37010 |
LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 |
1 | ||
| 68161-37011 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281 |
1 | ||
| 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH | ||||
| 68162-37011 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281 |
1 | ||
| 68162-37010 |
LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-37030 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
2 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-90K00 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
2 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-90K00 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
2 | ||
| 68618 - BRACKET, FRONT DOOR CHECK ARM, RH | ||||
| 68618-37020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
2 | ||
| Common parts | ||||
| 67499-37010 | ||||
| 67771-12050 | ||||
| 90333-25001 | ||||
| 90333-35004 | ||||
| 90467-06084 | ||||
| 91653-40612 | ||||
| 91671-80618 | ||||
