LY280-TGMFS3 (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )T2,T3,T4

Click highlighted areas on diagram

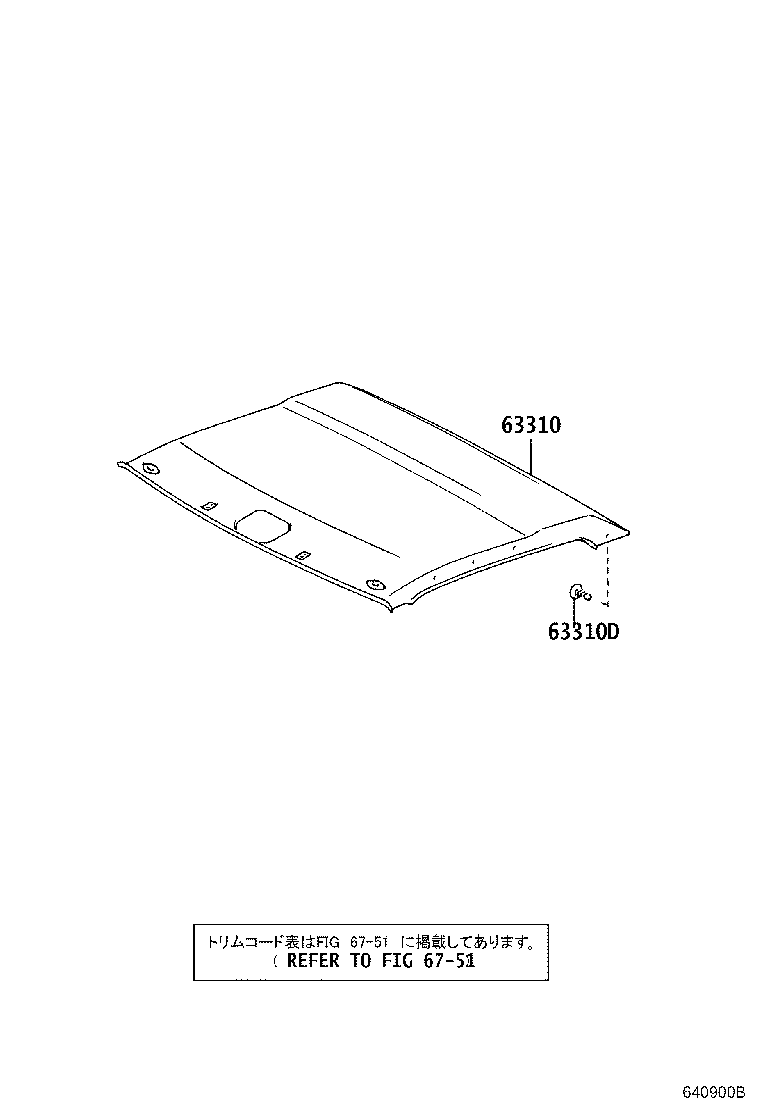

diagram 63310 63310D 6751
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63311-25090B0

KDY220,230,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,230..T2,T3,T4

MEDIUM CHARCOAL,TRIM1#

 1
63311-25110B0

KDY220,230,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,230..(T2,T3,T4)..(CBU,IV3)

ｱﾘ(ｼﾂﾅｲ ｹｲｺｳﾄｳ),MEDIUM CHARCOAL,TRIM1#

 1
63310D - CLIP, ROOF HEADLINING
90467-05101B2

KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4

MD.CHARCOAL,TRIM1#

 9
Linked diagrams
6751
