LY280-TGMFS3 (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )T2,T3,T4

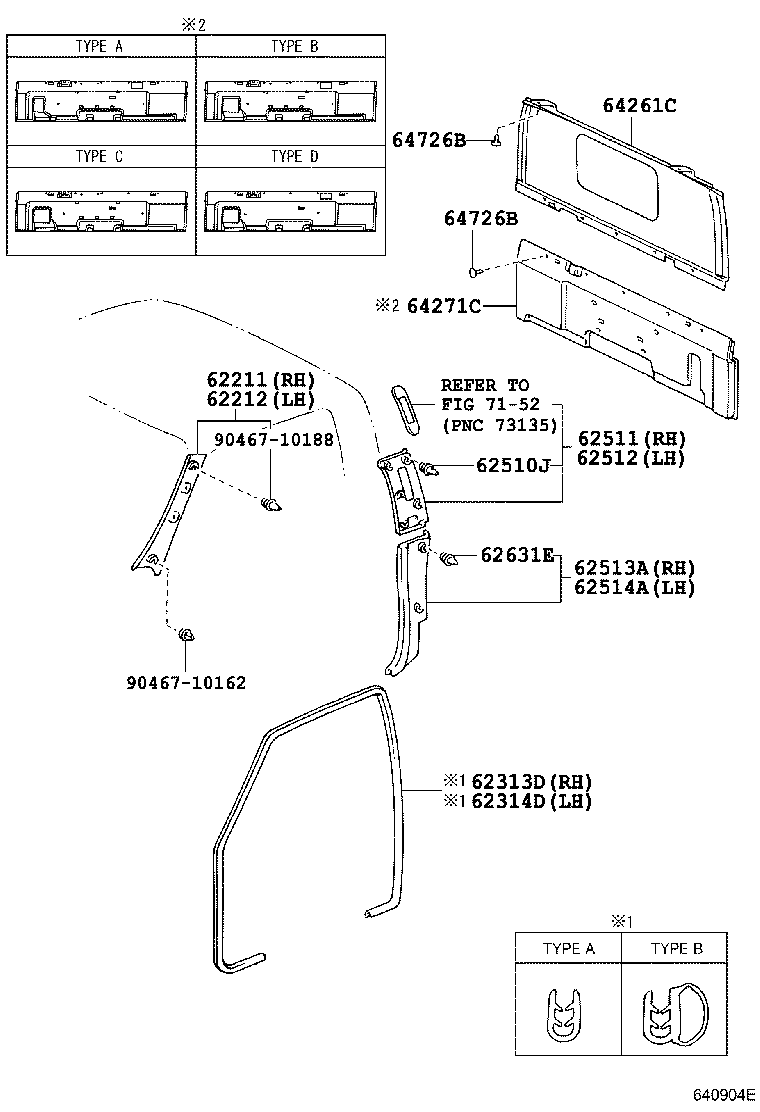

Click highlighted areas on diagram

diagram 62211 62212 62313D 62314D 62510J 62511 62512 62513A 62514A 62631E 64261C 64271C 64726B 64726B 7152 9046710162 9046710188
Part # Description Qty Price
62211 - GARNISH, FRONT PILLAR, RH
62211-37010B0

KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230

MD.CHARCOAL,TRIM1#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-37010B0

KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230

MD.CHARCOAL,TRIM1#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-37040B0

LY220,230,240,270,280,290,RZY231,281,TRY220,230

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,MD.CHARCOAL,TRIM1#

 1
62313-37040B0

LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,MD.CHARCOAL,TRIM1#

 1
62313-37050B0

KDY221,23#..T2,T3;KDY221,23#..T4..TB;KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,MD.CHARCOAL,TRIM1#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62313-37040B0

LY220,230,240,270,280,290,RZY231,281,TRY220,230

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,MD.CHARCOAL,TRIM1#

 1
62313-37040B0

LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,MD.CHARCOAL,TRIM1#

 1
62314-37010B0

KDY221,23#..T2,T3;KDY221,23#..T4..TB;KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,MD.CHARCOAL,TRIM1#

 1
62510J - RETAINER, QUARTER TRIM
67771-12050

LY220,230,270,280,RZY220,230..T2,T3,T4

 10
62511 - BOARD, QUARTER INSIDE TRIM, RH
62511-37010B0

KDY220,230,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,230..T2,T3,T4

MD.CHARCOAL,TRIM1#

 1
62512 - BOARD, QUARTER INSIDE TRIM, LH
62512-37010B0

KDY220,230,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,230..(T2,T3,T4)..(CBU,IV3)

MD.CHARCOAL,TRIM1#

 1
62513A - PANEL, QUARTER TRIM, LOWER RH
62513-37010B0

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

MD.CHARCOAL,TRIM1#

 1
62514A - PANEL, QUARTER TRIM, LOWER LH
62514-37010B0

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

MD.CHARCOAL,TRIM1#

 1
62631E - RETAINER, QUATER TRIM
90467-10161

TRY230..WT..IV6;KDY231..T3..125T;TRY230..(TW2,TW3)..TS;KDY231..T2,T4,TW2,TW3,TW4;KDY22#,230,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,231,281

 4
67771-12050

LY220,230,240,270,280,290,RZY220,230

 4
64261C - GARNISH, BACK PANEL, UPPER
64261-37010B0

KDY230..T4..TB;KDY230..(T2,T3)..(CBU,IV3);KDY220,270,280,LY220,230,270,280,RZY220,23#,281,TRY220..(T2,T3,T4)..(CBU,IV3)

MD.CHARCOAL,TRIM1#

 1
64271C - TRIM, BACK PANEL
64271-37012B0

LY220,230,270,280,RZY220,23#,281,TRY220,230..(T2,T3,T4)..(CBU,IV3)

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,MD.CHARCOAL,TRIM1#

 1
64271-37100B0

LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3)

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & E ﾊﾟﾂｹ-ｼﾞ,MD.CHACOAL,TRIM1#

 1
64271-37011B0

LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3)

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,MD.CHARCOAL,TRIM1#

 1
64271-37101B0

LY220,230,270,280,RZY220,23#,281,TRY220,230..(T2,T3,T4)..(CBU,IV3)

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & E ﾊﾟﾂｹ-ｼﾞ,MD.CHARCOAL,TRIM1#

 1
64726B - CLIP, DECK REAR TRIM
64726-37010B0

KDY221,23#..T4..TB;KDY221,23#..(T2,T3)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)

MD.CHARCOAL,TRIM1#

 7
64726-37010B0

KDY221,23#..T4..TB;KDY221,23#..(T2,T3)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)

ｱﾘ(ﾊﾞﾂｸﾊﾟﾈﾙ ｶﾞ-ﾆﾂｼﾕ),MD.CHARCOAL,TRIM1#

 9
64726B - CLIP, DECK REAR TRIM
64726-37010B0

KDY221,23#..T4..TB;KDY221,23#..(T2,T3)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)

MD.CHARCOAL,TRIM1#

 7
64726-37010B0

KDY221,23#..T4..TB;KDY221,23#..(T2,T3)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)

ｱﾘ(ﾊﾞﾂｸﾊﾟﾈﾙ ｶﾞ-ﾆﾂｼﾕ),MD.CHARCOAL,TRIM1#

 9
Common parts
90467-10162
90467-10188
Linked diagrams
7152
