LY280-TGMFS3 (2001)
Toyota Dyna/Toyoace

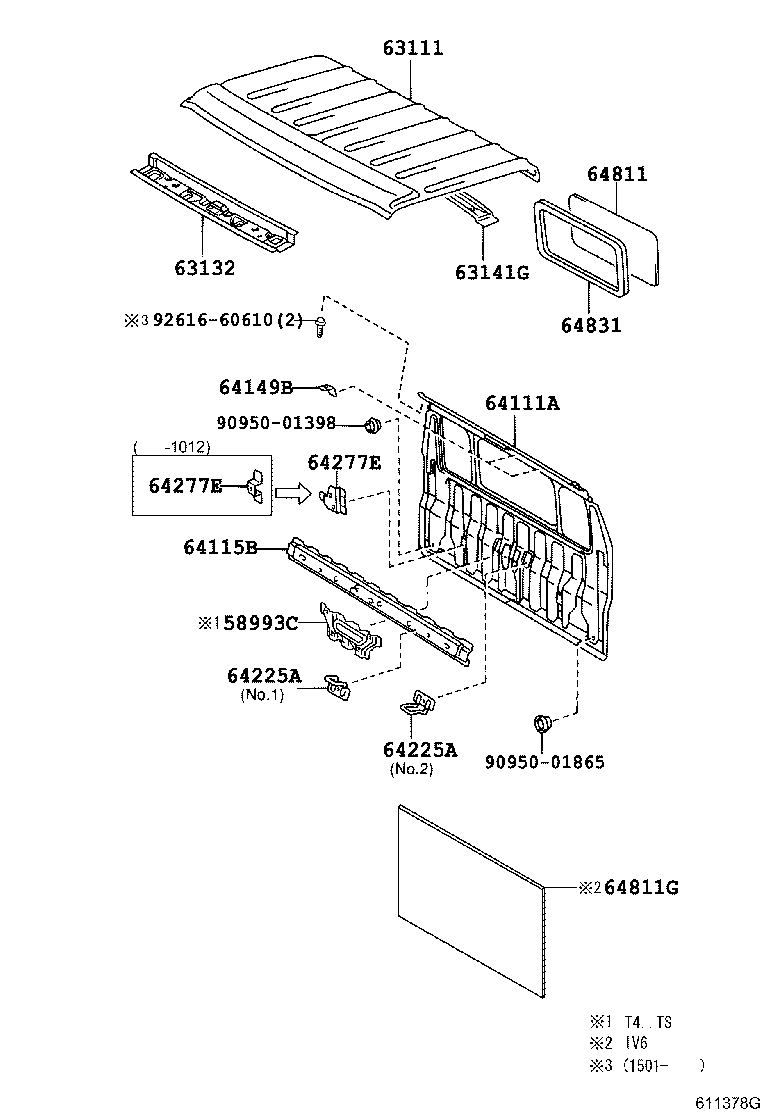

ILLUST NO. 1 OF 2(0107- )T2,T3,T4
ﾙｰﾌ & ﾊﾞｯｸﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63111 - PANEL, ROOF | ||||
| 63111-37120 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-37070 |
KDY220,230,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,230 |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-37060 |
KDY281..T2,T3;KDY231,271,TRY230..T2,T3,T4,TW3;KDY22#,230,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,231,281 |
1 | ||
| 64111A - PANEL, BACK | ||||
| 64111-37372 |
KDY220,230,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,230..T2,T3,T4 |
1 | ||
| 64115B - REINFORCEMENT, BACK PANEL | ||||
| 64115-37121 |
KDY220,230,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,230 |
1 | ||
| 64149B - RETAINER, BACK PANEL HEADREST | ||||
| 64149-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3) |
2 | ||
| 64225A - HANGER, REAR SEAT CUSHION SUPPORT | ||||
| 64209-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3) NO.1 |
1 | ||
| 64209-37030 |
KDY221,23#..T4..TB;KDY221,23#..(T2,T3)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3) NO.2 |
1 | ||
| 64225A - HANGER, REAR SEAT CUSHION SUPPORT | ||||
| 64209-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3) NO.1 |
1 | ||
| 64209-37030 |
KDY221,23#..T4..TB;KDY221,23#..(T2,T3)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3) NO.2 |
1 | ||
| 64277E - BRACKET, BACK PANEL TRIM, LOWER | ||||
| 64277-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3) |
2 | ||
| 64277E - BRACKET, BACK PANEL TRIM, LOWER | ||||
| 64277-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3) |
2 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-37130 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 64811-37120 |
LY220,230,270,280,RZY220,23#,281,TRY220,230..(T2,T3,T4)..(CBU,IV3) *TEM,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64831-37040 |
LY220,230,270,280,RZY220,23#,281,TRY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 64831-37041 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY231,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| Common parts | ||||
| 90950-01398 | ||||
| 90950-01865 | ||||
| 92616-60610 | ||||

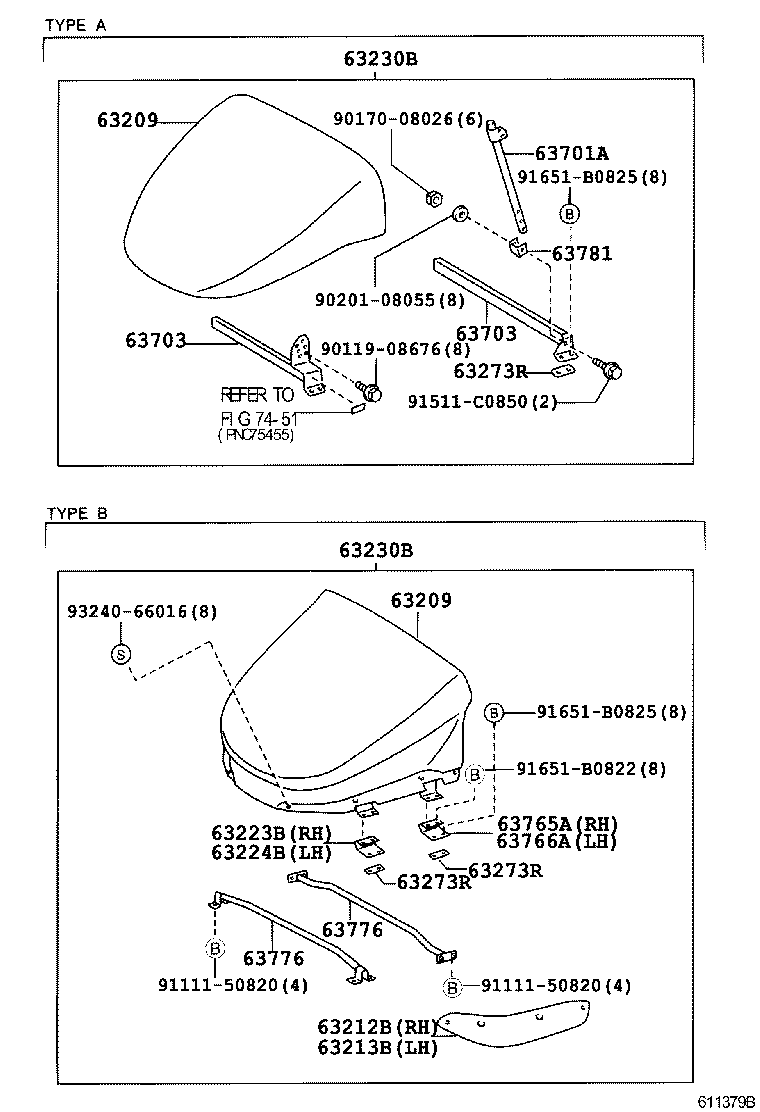

ILLUST NO. 2 OF 2(0107- )T2,T3,T4
ｴｱﾃﾞﾌﾚｸﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-37010 |
KDY221..T2,T4;KDY230..T2,T3;KDY221..T3..TS;KDY23#..T4..TB;KDY231,TRY230..ST..IV6;KDY231..(T2,T3)..(CBU,IV3);TRY230..(T2,T3,T4)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,231,281..T2,T3,T4 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 63209-37040 |
KDY221..T2,T4;KDY230..T2,T3;KDY221..T3..TS;KDY23#..T4..TB;KDY231,TRY230..ST..IV6;KDY231..(T2,T3)..(CBU,IV3);TRY230..(T2,T3,T4)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,231,281..T2,T3,T4 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-37010 |
KDY221..T2,T4;KDY230..T2,T3;KDY221..T3..TS;KDY23#..T4..TB;KDY231,TRY230..ST..IV6;KDY231..(T2,T3)..(CBU,IV3);TRY230..(T2,T3,T4)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,231,281..T2,T3,T4 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 63209-37040 |
KDY221..T2,T4;KDY230..T2,T3;KDY221..T3..TS;KDY23#..T4..TB;KDY231,TRY230..ST..IV6;KDY231..(T2,T3)..(CBU,IV3);TRY230..(T2,T3,T4)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,231,281..T2,T3,T4 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 63212B - PANEL, ROOF WIND DEFLECTOR | ||||
| 63212-37010 |
KDY23#..T2,T3;KDY23#..T4..TB;KDY22#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 63213B - PANEL, SLIDING ROOF, INNER | ||||
| 63213-37010 |
KDY23#..T2,T3;KDY23#..T4..TB;KDY22#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 63223B - BRACKET, ROOF WIND DEFLECTOR, RH | ||||
| 63223-37010 |
KDY23#..T2,T3;KDY23#..T4..TB;KDY22#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 63224B - BRACKET, ROOF WIND DEFLECTOR, LH | ||||
| 63224-37010 |
KDY23#..T2,T3;KDY23#..T4..TB;KDY22#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 63230B - PANEL ASSY, ROOF WIND DEFLECTOR | ||||
| 63230-37020 |
KDY221..T2,T4;KDY230..T2,T3;KDY221..T3..TS;KDY23#..T4..TB;KDY231,TRY230..ST..IV6;KDY231..(T2,T3)..(CBU,IV3);TRY230..(T2,T3,T4)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,231,281..T2,T3,T4 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 63230-37010 |
KDY221..T2,T4;KDY230..T2,T3;KDY221..T3..TS;KDY23#..T4..TB;KDY231,TRY230..ST..IV6;KDY231..(T2,T3)..(CBU,IV3);TRY230..(T2,T3,T4)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,231,281..T2,T3,T4 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 63230B - PANEL ASSY, ROOF WIND DEFLECTOR | ||||
| 63230-37020 |
KDY221..T2,T4;KDY230..T2,T3;KDY221..T3..TS;KDY23#..T4..TB;KDY231,TRY230..ST..IV6;KDY231..(T2,T3)..(CBU,IV3);TRY230..(T2,T3,T4)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,231,281..T2,T3,T4 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 63230-37010 |
KDY221..T2,T4;KDY230..T2,T3;KDY221..T3..TS;KDY23#..T4..TB;KDY231,TRY230..ST..IV6;KDY231..(T2,T3)..(CBU,IV3);TRY230..(T2,T3,T4)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,231,281..T2,T3,T4 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 63273R - PACKING, ROOF WINDOW DEFRECTOR | ||||
| 63273-37020 |
KDY23#..T2,T3;KDY23#..T4..TB;KDY22#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
4 | ||
| 63273R - PACKING, ROOF WINDOW DEFRECTOR | ||||
| 63273-37020 |
KDY23#..T2,T3;KDY23#..T4..TB;KDY22#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
4 | ||
| 63273R - PACKING, ROOF WINDOW DEFRECTOR | ||||
| 63273-37020 |
KDY23#..T2,T3;KDY23#..T4..TB;KDY22#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
4 | ||
| 63701A - BRACKET SUB-ASSY, ROOF AIR DEFLECTOR, FRONT | ||||
| 63702-37040 |
KDY23#..T2,T3;KDY23#..T4..TB;KDY22#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 左側 |
1 | ||
| 63701-37040 |
KDY23#..T2,T3;KDY23#..T4..TB;KDY22#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 右側 |
1 | ||
| 63703 - BAR SUB-ASSY, ROOF AIR DEFLECTOR, NO.1 | ||||
| 63704-37010 |
KDY23#..T2,T3;KDY23#..T4..TB;KDY22#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 ﾘﾔ |
1 | ||
| 63703-37010 |
KDY23#..T2,T3;KDY23#..T4..TB;KDY22#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 ﾌﾛﾝﾄ |
1 | ||
| 63703 - BAR SUB-ASSY, ROOF AIR DEFLECTOR, NO.1 | ||||
| 63704-37010 |
KDY23#..T2,T3;KDY23#..T4..TB;KDY22#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 ﾘﾔ |
1 | ||
| 63703-37010 |
KDY23#..T2,T3;KDY23#..T4..TB;KDY22#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 ﾌﾛﾝﾄ |
1 | ||
| 63765A - BRACKET, ROOF AIR DEFLECTOR, RH | ||||
| 63765-37030 |
KDY23#..T2,T3;KDY23#..T4..TB;KDY22#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 63766A - BRACKET, ROOF AIR DEFLECTOR, LH | ||||
| 63765-37030 |
KDY23#..T2,T3;KDY23#..T4..TB;KDY22#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 63776 - BAR, ROOF AIR DEFLECTOR, NO.2 | ||||
| 63776-37080 |
KDY23#..T2,T3;KDY23#..T4..TB;KDY22#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 ﾘﾔ |
1 | ||
| 63776-37070 |
KDY23#..T2,T3;KDY23#..T4..TB;KDY22#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 ﾌﾛﾝﾄ |
1 | ||
| 63776 - BAR, ROOF AIR DEFLECTOR, NO.2 | ||||
| 63776-37080 |
KDY23#..T2,T3;KDY23#..T4..TB;KDY22#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 ﾘﾔ |
1 | ||
| 63776-37070 |
KDY23#..T2,T3;KDY23#..T4..TB;KDY22#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 ﾌﾛﾝﾄ |
1 | ||
| 63781 - STAY, ROOF AIR DEFLECTOR | ||||
| 63781-37030 |
KDY23#..T2,T3;KDY23#..T4..TB;KDY22#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
2 | ||
| Common parts | ||||
| 90119-08676 | ||||
| 90170-08026 | ||||
| 90201-08055 | ||||
| 91111-50820 | ||||
| 91511-C0850 | ||||
| 91651-B0822 | ||||
| 91651-B0825 | ||||
| 93240-66016 | ||||
| Linked diagrams | ||||
| 7451 | ||||
