LY280-TGMFS3 (2001)
Toyota Dyna/Toyoace

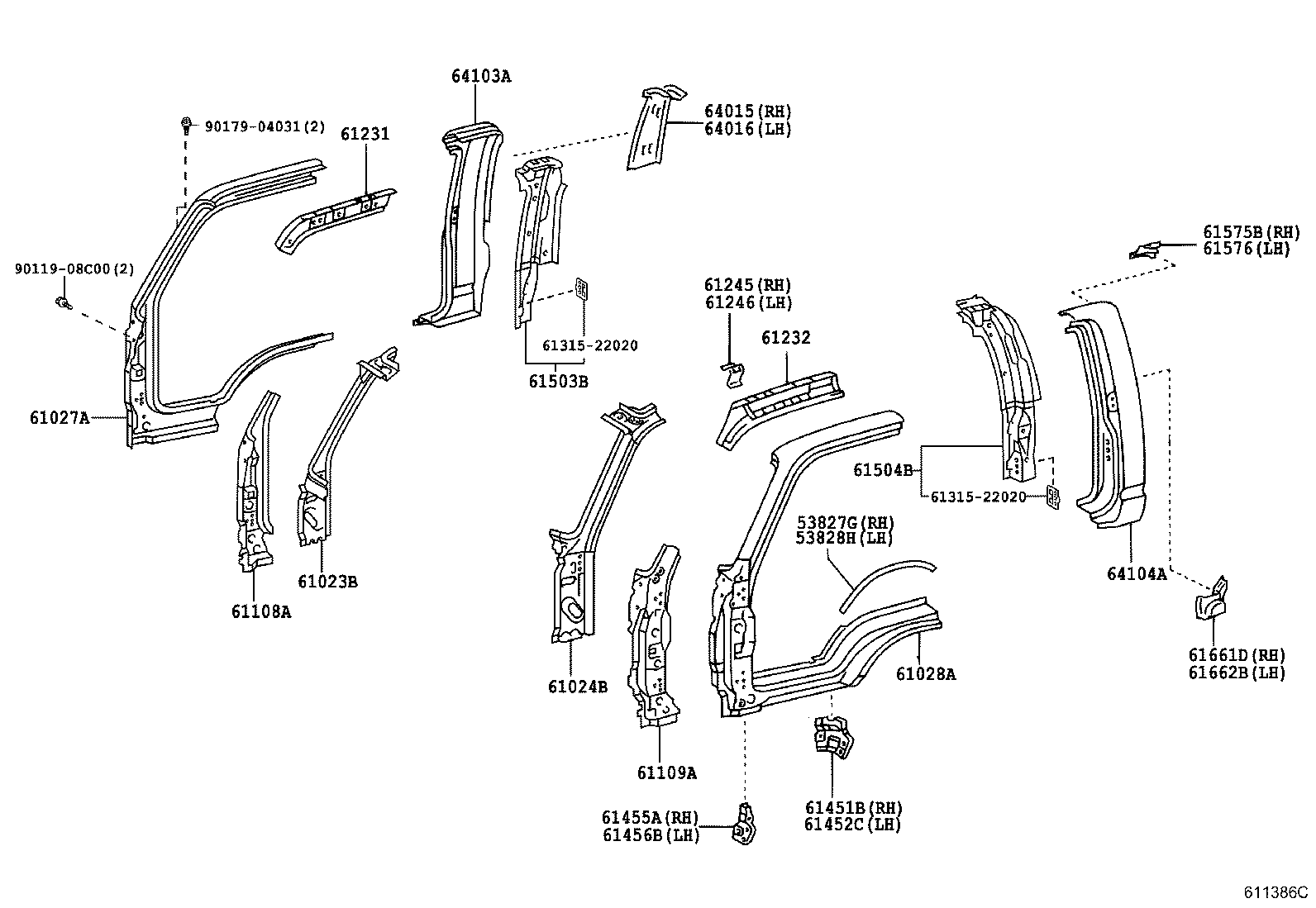

ILLUST NO. 1 OF 2(0107-1610)T2,T3,T4
ﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53827G - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-37010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 53828H - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53827-37010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-37040 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-37090 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH | ||||
| 61131-37061 |
RZY220,230..CBU,IV3;LY280,TRY230..(T2,T3,T4)..(CBU,IV3);LY220,230,270,RZY231,281,TRY220..(T2,T3,T4,TW1)..(125T,12T,15T,175T)..(CBU,IV3) |
1 | ||
| 61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH | ||||
| 61132-37061 |
LY220,230,270,280,RZY220,23#,281,TRY220,230 |
1 | ||
| 61132-37041 |
LY220,230,270,280,RZY220,23#,281,TRY220,230 ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ ｱﾝﾃﾅ) |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-37031 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-37011 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-37050 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-37050 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 61245 - REINFORCEMENT, ROOF SIDE RAIL, OUTER RH | ||||
| 61245-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 61246 - REINFORCEMENT, ROOF SIDE RAIL, OUTER LH | ||||
| 61245-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 61451B - PLATE, STEP, LOWER RH | ||||
| 61451-37010 |
LY280..125T..WT..CBU;LY280..T2,T3,T4,TW1,TW3;LY280..MTM..125T..WT..IV3;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 61452C - PLATE, STEP, LOWER LH | ||||
| 61452-37010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 61455A - RETAINER, FRONT STEP, RH | ||||
| 61455-37010 |
LY280..125T..WT..CBU;LY280..T2,T3,T4,TW1,TW3;LY280..MTM..125T..WT..IV3;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 61456B - RETAINER, FRONT STEP, LH | ||||
| 61456-37010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 61503B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH | ||||
| 61503-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 61504B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH | ||||
| 61504-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 61575B - PLATE, CAB REAR PILLAR, UPPER RH | ||||
| 61575-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 61576 - PLATE, CAB REAR PILLAR, UPPER LH | ||||
| 61576-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 61661D - EXTENSION, QUARTER PANEL TO UPPER BACK, RH | ||||
| 61661-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 61662B - EXTENSION, QUARTER PANEL TO UPPER BACK, LH | ||||
| 61662-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 64015 - PANEL SUB-ASSY, BACK CORNER, INNER RH | ||||
| 61531-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 ｱﾘ(ﾄﾘﾑ) |
1 | ||
| 61531-37020 |
KDY221,23#..T2,T3;KDY221,23#..T4..TB;KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 64016 - PANEL SUB-ASSY, BACK CORNER, INNER LH | ||||
| 61532-37010 |
KDY221,23#..T4..TB;KDY221,23#..(T2,T3)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 61532-37021 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3) ｱﾘ(ﾄﾘﾑ) |
1 | ||
| 64103A - PANEL SUB-ASSY, BACK CORNER, OUTER RH | ||||
| 61611-37140 |
LY220,230,270,280,RZY220,23#,281,TRY220,230..T2,T3,T4 |
1 | ||
| 64104A - PANEL SUB-ASSY, BACK CORNER, OUTER LH | ||||
| 61612-37110 |
LY220,230,270,280,RZY220,23#,281,TRY220,230..T2,T3,T4 |
1 | ||
| Common parts | ||||
| 61315-22020 | ||||
| 90119-08C00 | ||||
| 90179-04031 | ||||

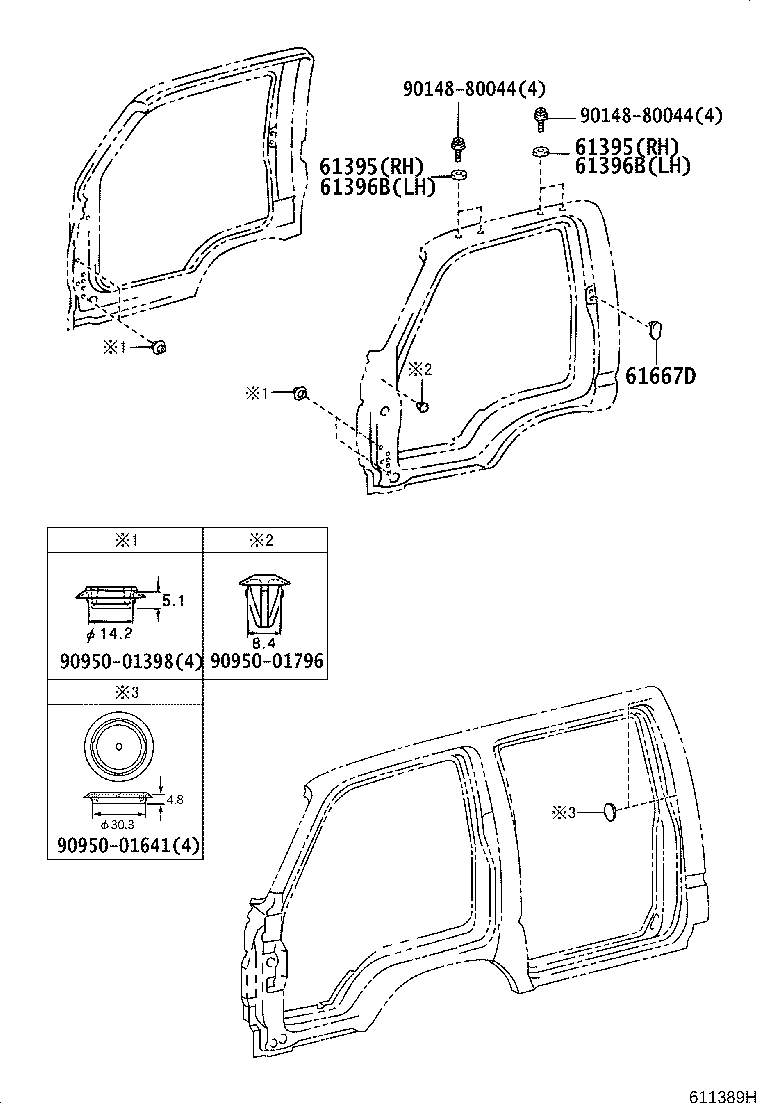

ILLUST NO. 2 OF 2(0107- )KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281
ﾌﾟﾗｸﾞﾎ-ﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61395 - SEAL, CENTER BODY PILLAR, RH | ||||
| 61395-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281 |
4 | ||
| 61395 - SEAL, CENTER BODY PILLAR, RH | ||||
| 61395-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281 |
4 | ||
| 61396B - SEAL, CENTER BODY PILLAR, LH | ||||
| 61395-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281 |
4 | ||
| 61396B - SEAL, CENTER BODY PILLAR, LH | ||||
| 61395-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281 |
4 | ||
| 61667D - SEAL, QUARTER PANEL | ||||
| 61667-37010 |
KDY220,230,270,280,RZY231,281 |
1 | ||
| 61667-37010 |
LY220..15T,1T;LY270,280..DSL;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| Common parts | ||||
| 90148-80044 | ||||
| 90950-01398 | ||||
| 90950-01641 | ||||
| 90950-01796 | ||||
