LY280-TGMFS3 (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )T2,T3,T4..CBU,IV3

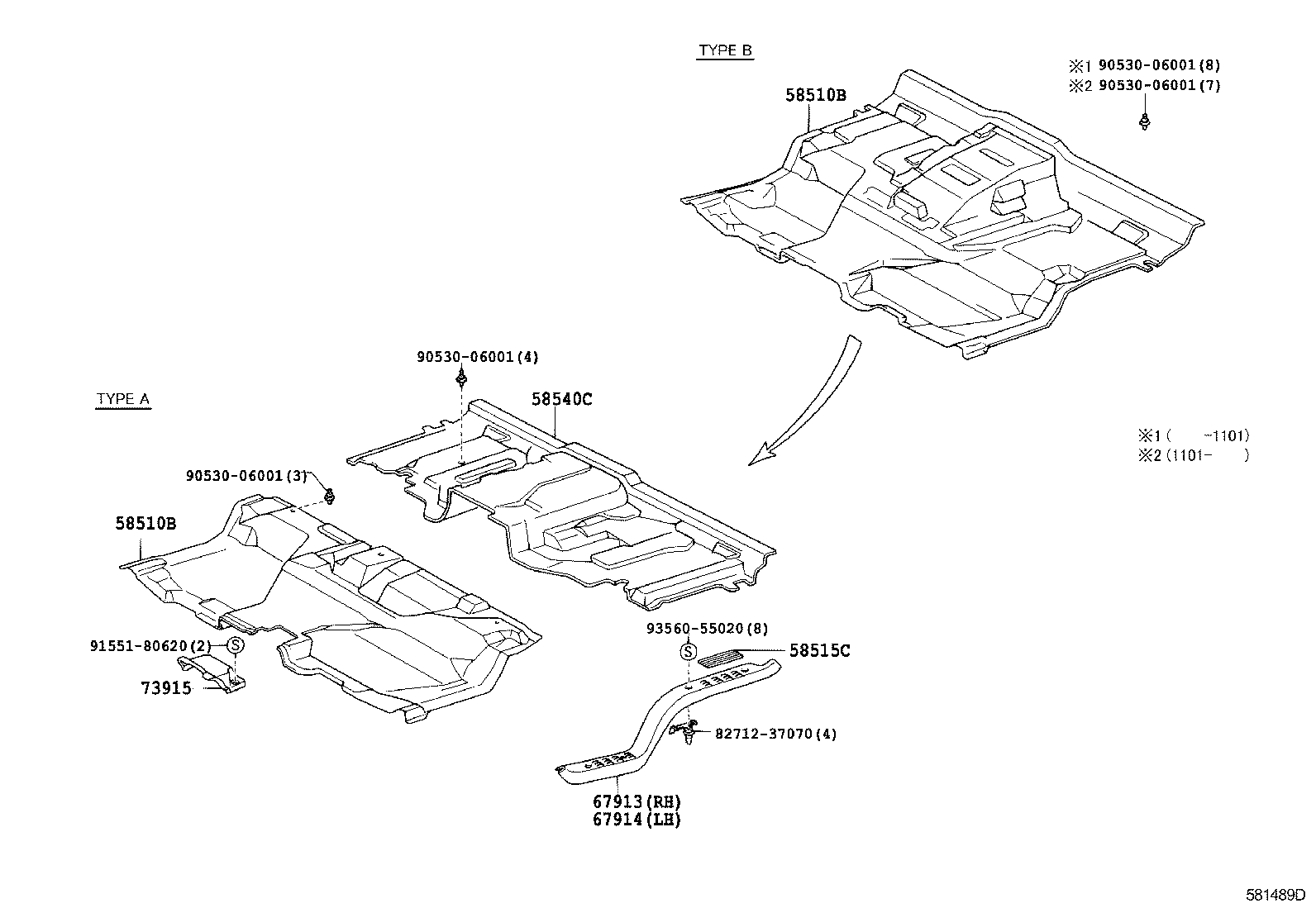

Click highlighted areas on diagram

diagram 58510B 58510B 58515C 58540C 67913 67914 73915 8271237070 9053006001 9053006001 9053006001 9053006001 9155180620 9356055020
Part # Description Qty Price
58510B - MAT, FRONT FLOOR, FRONT
58510-3V110B0

LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3)

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,DARK CHARCOAL,TRIM1#

 1
58510-3V130B0

LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3)

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(*80),DARK CHARCOAL,TRIM1#

 1
58510-3V050B0

LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3)

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,DARK CHARCOAL,TRIM1#

 1
58510B - MAT, FRONT FLOOR, FRONT
58510-3V110B0

LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3)

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,DARK CHARCOAL,TRIM1#

 1
58510-3V130B0

LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3)

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(*80),DARK CHARCOAL,TRIM1#

 1
58510-3V050B0

LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3)

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,DARK CHARCOAL,TRIM1#

 1
58515C - MAT, FRONT FLOOR, REAR NO.1
58515-37080B1

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

MD.CHARCOAL,TRIM1#

 1
58540C - MAT ASSY, FLOOR, REAR
58540-25040B0

LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3)

ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ｺﾝｿ-ﾙ),DARK CHARCOAL,TRIM1#

 1
58540-37100B1

LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3)

DARK CHARCOAL,TRIM1#

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-37010B0

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

MD.CHARCOAL,TRIM1#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-37010B0

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

MD.CHARCOAL,TRIM1#

 1
73915 - COVER, SEAT AIR BAG NO.1, RH
73915-37010

TRY230..1T;KDY231..T3..125T;KDY231..T2,T4,TW2,TW3,TW4;KDY22#,230,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281

 1
Common parts
82712-37070
90530-06001
91551-80620
93560-55020
