LY280-TGMFS3 (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )T2,T3,T4

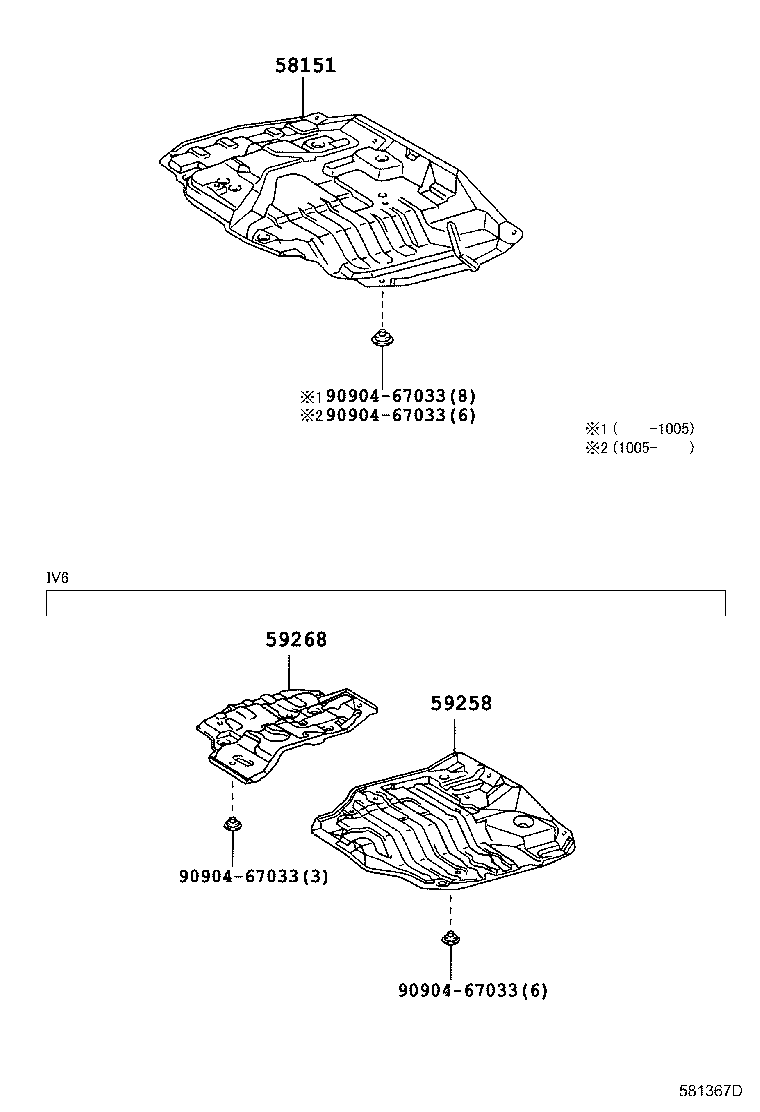

Click highlighted areas on diagram

diagram 58151 59258 59268 9090467033 9090467033 9090467033 9090467033
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-37012

LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3)

 1
58151-37014

LY220,230,270,280,RZY220,23#,281,TRY220,230..(T2,T3,T4)..(CBU,IV3)

 1
58151-37013

LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3)

 1
58151-37015

LY220,230,270,280,RZY231,281,TRY220,230..(T2,T3,T4)..(CBU,IV3)

 1
Common parts
90904-67033
