LY280-TGMFS3 (2001)
Toyota Dyna/Toyoace

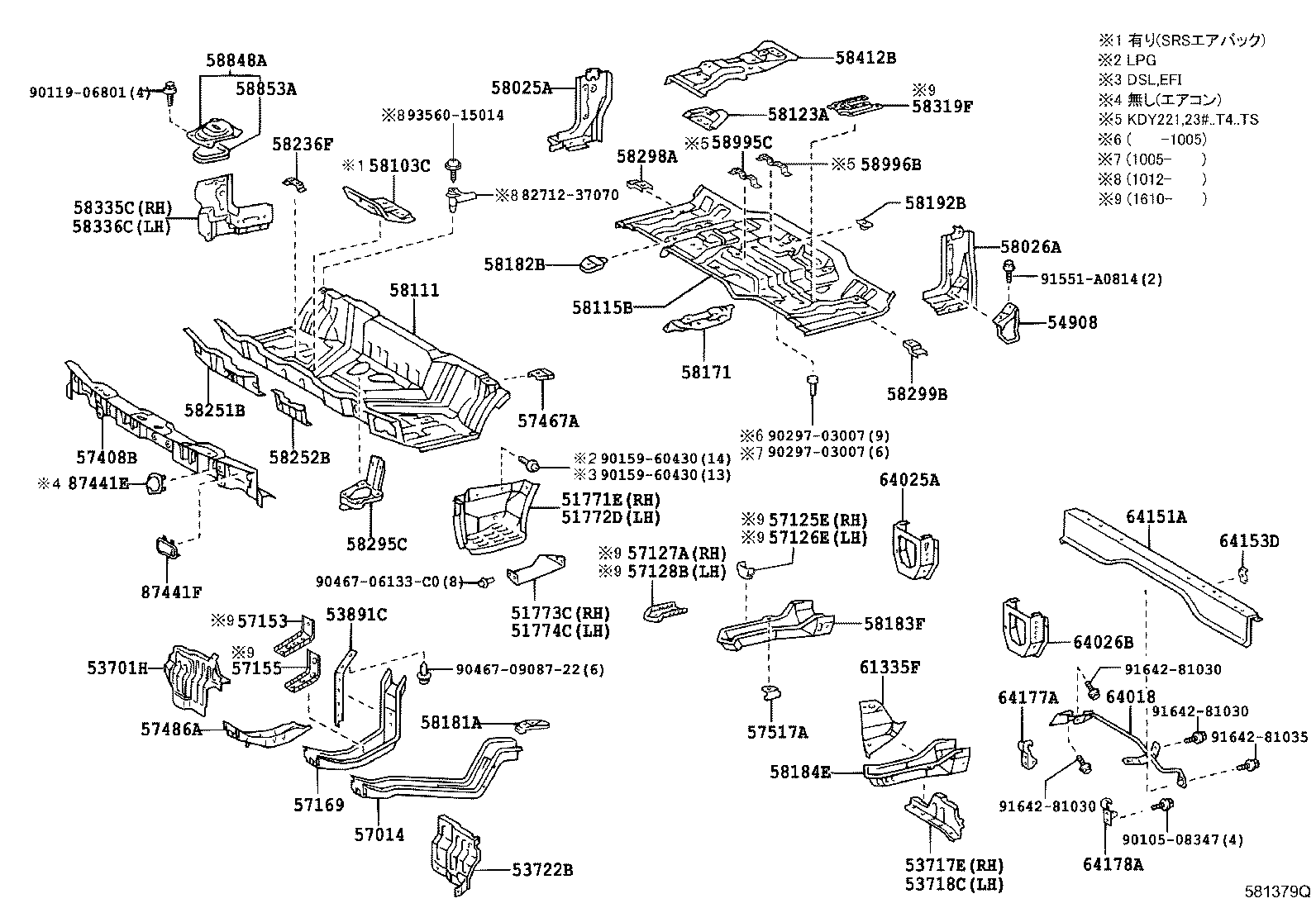

ILLUST NO. 1 OF 3(0107-0708)LY220,230,270,280,RZY220,23#,281..T2,T3,T4..CBU,IV3 ; (0308- )TRY220,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51771E - PLATE, STEP, RH | ||||
| 51771-37100 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 |
1 | ||
| 51771-37100 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 |
1 | ||
| 51772D - PLATE, STEP, LH | ||||
| 51772-37080 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..DCR,DSL,EFI |
1 | ||
| 51772-37080 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..DCR,DSL,EFI |
1 | ||
| 51773C - COVER, STEP PLATE, RH | ||||
| 51773-37020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 塗装不要 |
1 | ||
| 51773-37020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 塗装不要 |
1 | ||
| 51774C - COVER, STEP PLATE, LH | ||||
| 51774-37010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 塗装不要 |
1 | ||
| 51774-37010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 塗装不要 |
1 | ||
| 53701H - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-37040 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 53701-37040 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 53717E - APRON, FRONT FENDER, NO.2 RH | ||||
| 53717-25050 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 53717-25050 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 53718C - APRON, FRONT FENDER, NO.2 LH | ||||
| 53718-37110 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 53718-37110 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 53722B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53722-37030 |
LY220,230,240,270,280,290,RZY220,230..DSL,EFI |
1 | ||
| 53722-37030 |
LY220,230,240,270,280,290,RZY220,230..DSL,EFI |
1 | ||
| 53891C - SEAL, FRONT FENDER SPLASH SHEILD, FRONT | ||||
| 53891-37030 |
LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 |
1 | ||
| 53891-37030 |
LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 |
1 | ||
| 54908 - BRACKET SUB-ASSY, TILT CAB GRIP | ||||
| 54908-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 54908-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 57014 - MEMBER SUB-ASSY, FLOOR, FRONT LH | ||||
| 57014-25030 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 57014-25030 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 57169 - MEMBER, FRONT FLOOR, FRONT RH | ||||
| 57169-37080 |
LY220,230,270,280,RZY220,230 |
1 | ||
| 57169-37080 |
LY220,230,270,280,RZY220,230 |
1 | ||
| 57408B - MEMBER SUB-ASSY, FRONT FLOOR CROSS | ||||
| 57408-37262 |
LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 |
1 | ||
| 57408-37262 |
LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 |
1 | ||
| 57408-37261 |
LY220,230,240,270,280,290,RZY220,230 |
1 | ||
| 57408-37261 |
LY220,230,240,270,280,290,RZY220,230 |
1 | ||
| 57408-37260 |
LY220,230,240,270,280,290,RZY220,230 |
1 | ||
| 57408-37260 |
LY220,230,240,270,280,290,RZY220,230 |
1 | ||
| 57467A - BRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT LH | ||||
| 57467-37011 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY231,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 57467-37011 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY231,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 57467-37010 |
LY270,280..(T2,T3,T4)..(CBU,IV3);LY230,RZY231,281,TRY220,230..(T2,T3,T4)..(EFI,LPG)..(CBU,IV3) |
1 | ||
| 57467-37010 |
LY270,280..(T2,T3,T4)..(CBU,IV3);LY230,RZY231,281,TRY220,230..(T2,T3,T4)..(EFI,LPG)..(CBU,IV3) |
1 | ||
| 57486A - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH | ||||
| 57486-37011 |
KDY22#,23#,24#,27#,28#,290,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 57486-37011 |
KDY22#,23#,24#,27#,28#,290,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 57517A - RETAINER, FRONT FLOOR REINFORCEMENT, REAR | ||||
| 57517-37010 |
LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 |
1 | ||
| 57517-37010 |
LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 |
1 | ||
| 57517-37011 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281 |
1 | ||
| 57517-37011 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281 |
1 | ||
| 58025A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH | ||||
| 58043-25020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 58043-25020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 58026A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH | ||||
| 58044-37070 |
LY220,230,270,280,RZY220,230..T2,T3,T4 |
1 | ||
| 58044-37070 |
LY220,230,270,280,RZY220,230..T2,T3,T4 |
1 | ||
| 58044-37090 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 58044-37090 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-25220 |
LY270,280..(T2,T3,T4)..(CBU,IV3) ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ) |
1 | ||
| 58111-25220 |
LY270,280..(T2,T3,T4)..(CBU,IV3) ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ) |
1 | ||
| 58111-37301 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) ﾅｼ(ABS) |
1 | ||
| 58111-37301 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) ﾅｼ(ABS) |
1 | ||
| 58111-37171 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ);ﾅｼ(ABS) |
1 | ||
| 58111-37171 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ);ﾅｼ(ABS) |
1 | ||
| 58111-25240 |
LY270,280..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 58111-25240 |
LY270,280..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 58115B - PANEL, FRONT FLOOR, REAR | ||||
| 58115-37012 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 58115-37012 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 58115-37013 |
LY220,230,270,280,RZY220,23#,281,TRY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 58115-37013 |
LY220,230,270,280,RZY220,23#,281,TRY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 58115-37011 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 58115-37011 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58123-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 58123-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58107-37010 |
KDY221,23#..T4..TB;KDY221,23#..(T2,T3)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 58107-37010 |
KDY221,23#..T4..TB;KDY221,23#..(T2,T3)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 58181A - RETAINER, SEAT RAIL, FRONT | ||||
| 58181-37030 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 58181-37030 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 58182B - RETAINER, SEAT RAIL, FRONT LH | ||||
| 58182-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 58182-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 58183F - REINFORCEMENT, REAR MOUNTING, RH | ||||
| 58183-37060 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 58183-37060 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 58184E - REINFORCEMENT, REAR MOUNTING, LH | ||||
| 58184-25020 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 58184-25020 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 58192B - PLATE, FRONT FLOOR, REAR | ||||
| 58192-37020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3) |
3 | ||
| 58192-37020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3) |
3 | ||
| 58236F - BRACKET, CLUTCH TUBE | ||||
| 58236-95J01 |
RZY230..IV6;LY240,270,280,290..(T2,T3,T4,VAN)..(CBU,IV3);KDY22#,23#,24#,27#,28#,290,LY230,RZY231,281,TRY220,23#,281..DCR,EFI,LPG |
1 | ||
| 58236-95J01 |
RZY230..IV6;LY240,270,280,290..(T2,T3,T4,VAN)..(CBU,IV3);KDY22#,23#,24#,27#,28#,290,LY230,RZY231,281,TRY220,23#,281..DCR,EFI,LPG |
1 | ||
| 58251B - BRACE, FLOOR PANEL, FRONT | ||||
| 58251-37031 |
RZY230..IV6;LY240,270,280,290..(T2,T3,T4,VAN)..(CBU,IV3);KDY220,230,240,270,280,290,LY230,RZY231,281,TRY220,230..DCR,EFI,LPG |
1 | ||
| 58251-37031 |
RZY230..IV6;LY240,270,280,290..(T2,T3,T4,VAN)..(CBU,IV3);KDY220,230,240,270,280,290,LY230,RZY231,281,TRY220,230..DCR,EFI,LPG |
1 | ||
| 58252B - BRACE, FLOOR PANEL, FRONT LH | ||||
| 58252-37031 |
RZY230..IV6;LY240,270,280,290..(T2,T3,T4,VAN)..(CBU,IV3);KDY22#,23#,24#,27#,28#,290,LY230,RZY231,281,TRY220,23#,281..DCR,EFI,LPG |
1 | ||
| 58252-37031 |
RZY230..IV6;LY240,270,280,290..(T2,T3,T4,VAN)..(CBU,IV3);KDY22#,23#,24#,27#,28#,290,LY230,RZY231,281,TRY220,23#,281..DCR,EFI,LPG |
1 | ||
| 58295C - BRACKET, FLOOR SHIFT LEVER, NO.1 | ||||
| 58295-37060 |
RZY230..IV6;LY240,270,280,290..(T2,T3,T4,VAN)..(CBU,IV3);KDY22#,23#,24#,27#,28#,290,LY230,RZY231,281,TRY220,23#,281..DCR,EFI,LPG |
1 | ||
| 58295-37060 |
RZY230..IV6;LY240,270,280,290..(T2,T3,T4,VAN)..(CBU,IV3);KDY22#,23#,24#,27#,28#,290,LY230,RZY231,281,TRY220,23#,281..DCR,EFI,LPG |
1 | ||
| 58298A - REINFORCEMENT, SEAT BELT ANCHOR FLOOR, RH | ||||
| 58298-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 58298-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 58299B - REINFORCEMENT, SEAT BELT ANCHOR FLOOR, LH | ||||
| 58298-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 58298-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 58335C - PLATE, FLOOR SIDE, FRONT RH | ||||
| 58335-37040 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 58335-37040 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 58336C - PLATE, FLOOR SIDE, FRONT LH | ||||
| 58336-37031 |
KDY221..(T3,TW1)..TS;KDY231,TRY220,230..1T;KDY220,230,24#,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281 |
1 | ||
| 58336-37031 |
KDY221..(T3,TW1)..TS;KDY231,TRY220,230..1T;KDY220,230,24#,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281 |
1 | ||
| 58412B - REINFORCEMENT, ENGINE SUB COVER | ||||
| 58412-37030 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 58412-37030 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 58848A - COVER, SHIFT LEVER HOLE | ||||
| 58840-37010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 58840-37010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 58853A - PACKING, SHIFT LEVER HOLE | ||||
| 58853-37020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 58853-37020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 61335F - RETAINER, SEAT BELT ANCHOR | ||||
| 61335-37010 |
KDY221,23#..T4..TB;KDY221,23#..(T2,T3)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 61335-37010 |
KDY221,23#..T4..TB;KDY221,23#..(T2,T3)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 64018 - BAR SUB-ASSY, BODY | ||||
| 64018-25030 |
KDY221,23#..T4..TB;KDY221,23#..(T2,T3)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 64018-25030 |
KDY221,23#..T4..TB;KDY221,23#..(T2,T3)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 64025A - BRACKET SUB-ASSY, REAR MOUNTING, RH | ||||
| 64171-37010 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 64171-37010 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 64026B - BRACKET SUB-ASSY, REAR MOUNTING, LH | ||||
| 64172-37020 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 64172-37020 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 64172-37021 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 64172-37021 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 64151A - FRAME, BACK | ||||
| 64151-37181 |
KDY220,230,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 64151-37181 |
KDY220,230,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 64153D - REINFORCEMENT, BACK FRAME | ||||
| 52123-32040 |
KDY221,23#..T4..TB;KDY221,23#..(T2,T3)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 52123-32040 |
KDY221,23#..T4..TB;KDY221,23#..(T2,T3)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 64153-37020 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 64153-37020 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 64177A - STOPPER, REAR MOUNTING BRACKET, RH | ||||
| 64177-25010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 64177-25010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 64178A - STOPPER, REAR MOUNTING BRACKET, LH | ||||
| 64178-25010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 64178-25010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 87441E - FILTER, HEATER AIR | ||||
| 87441-25010 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 87441-25010 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 87441F - FILTER, HEATER AIR | ||||
| 87441-37010 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 87441-37010 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 87441-37010 |
KDY220,230,240,270,280,290,RZY231,281 |
1 | ||
| 87441-37010 |
KDY220,230,240,270,280,290,RZY231,281 |
1 | ||
| Common parts | ||||
| 82712-37070 | ||||
| 90105-08347 | ||||
| 90119-06801 | ||||
| 90159-60430 | ||||
| 90297-03007 | ||||
| 90467-06133C0 | ||||
| 90467-0908722 | ||||
| 91551-A0814 | ||||
| 91642-81030 | ||||
| 91642-81035 | ||||
| 93560-15014 | ||||

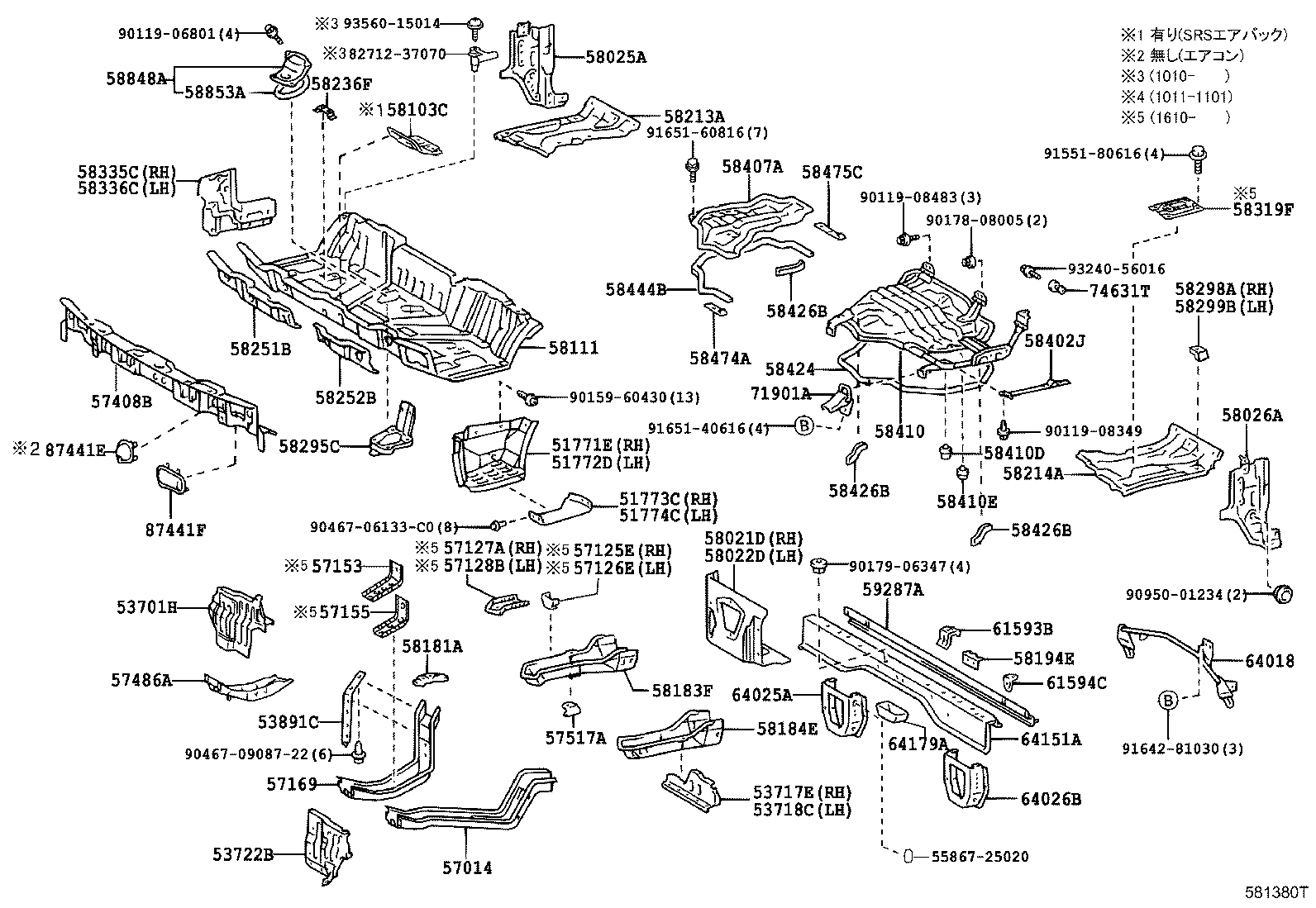

ILLUST NO. 1 OF 3(0107- )KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,TRY220,230..
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51771E - PLATE, STEP, RH | ||||
| 51771-37100 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 |
1 | ||
| 51771-37100 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 |
1 | ||
| 51772D - PLATE, STEP, LH | ||||
| 51772-37080 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..DCR,DSL,EFI |
1 | ||
| 51772-37080 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..DCR,DSL,EFI |
1 | ||
| 51773C - COVER, STEP PLATE, RH | ||||
| 51773-37020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 塗装不要 |
1 | ||
| 51773-37020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 塗装不要 |
1 | ||
| 51774C - COVER, STEP PLATE, LH | ||||
| 51774-37010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 塗装不要 |
1 | ||
| 51774-37010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 塗装不要 |
1 | ||
| 53701H - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-37040 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 53701-37040 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 53717E - APRON, FRONT FENDER, NO.2 RH | ||||
| 53717-25050 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 53717-25050 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 53718C - APRON, FRONT FENDER, NO.2 LH | ||||
| 53718-37110 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 53718-37110 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 53722B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53722-37030 |
LY220,230,240,270,280,290,RZY220,230..DSL,EFI |
1 | ||
| 53722-37030 |
LY220,230,240,270,280,290,RZY220,230..DSL,EFI |
1 | ||
| 53891C - SEAL, FRONT FENDER SPLASH SHEILD, FRONT | ||||
| 53891-37030 |
LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 |
1 | ||
| 53891-37030 |
LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 |
1 | ||
| 57014 - MEMBER SUB-ASSY, FLOOR, FRONT LH | ||||
| 57014-25030 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 57014-25030 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 57169 - MEMBER, FRONT FLOOR, FRONT RH | ||||
| 57169-37080 |
LY220,230,270,280,RZY220,230 |
1 | ||
| 57169-37080 |
LY220,230,270,280,RZY220,230 |
1 | ||
| 57408B - MEMBER SUB-ASSY, FRONT FLOOR CROSS | ||||
| 57408-37262 |
LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 |
1 | ||
| 57408-37262 |
LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 |
1 | ||
| 57408-37261 |
LY220,230,240,270,280,290,RZY220,230 |
1 | ||
| 57408-37261 |
LY220,230,240,270,280,290,RZY220,230 |
1 | ||
| 57408-37260 |
LY220,230,240,270,280,290,RZY220,230 |
1 | ||
| 57408-37260 |
LY220,230,240,270,280,290,RZY220,230 |
1 | ||
| 57486A - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH | ||||
| 57486-37011 |
KDY22#,23#,24#,27#,28#,290,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 57486-37011 |
KDY22#,23#,24#,27#,28#,290,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 57517A - RETAINER, FRONT FLOOR REINFORCEMENT, REAR | ||||
| 57517-37010 |
LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 |
1 | ||
| 57517-37010 |
LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 |
1 | ||
| 57517-37011 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281 |
1 | ||
| 57517-37011 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281 |
1 | ||
| 58025A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH | ||||
| 58043-25020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 58043-25020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 58026A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH | ||||
| 58044-37070 |
LY220,230,270,280,RZY220,230..T2,T3,T4 |
1 | ||
| 58044-37070 |
LY220,230,270,280,RZY220,230..T2,T3,T4 |
1 | ||
| 58044-37090 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 58044-37090 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-25220 |
LY270,280..(T2,T3,T4)..(CBU,IV3) ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ) |
1 | ||
| 58111-25220 |
LY270,280..(T2,T3,T4)..(CBU,IV3) ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ) |
1 | ||
| 58111-37301 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) ﾅｼ(ABS) |
1 | ||
| 58111-37301 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) ﾅｼ(ABS) |
1 | ||
| 58111-37171 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ);ﾅｼ(ABS) |
1 | ||
| 58111-37171 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ);ﾅｼ(ABS) |
1 | ||
| 58111-25240 |
LY270,280..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 58111-25240 |
LY270,280..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 58181A - RETAINER, SEAT RAIL, FRONT | ||||
| 58181-37030 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 58181-37030 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 58183F - REINFORCEMENT, REAR MOUNTING, RH | ||||
| 58183-37060 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 58183-37060 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 58184E - REINFORCEMENT, REAR MOUNTING, LH | ||||
| 58184-25020 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 58184-25020 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 58236F - BRACKET, CLUTCH TUBE | ||||
| 58236-95J01 |
RZY230..IV6;LY240,270,280,290..(T2,T3,T4,VAN)..(CBU,IV3);KDY22#,23#,24#,27#,28#,290,LY230,RZY231,281,TRY220,23#,281..DCR,EFI,LPG |
1 | ||
| 58236-95J01 |
RZY230..IV6;LY240,270,280,290..(T2,T3,T4,VAN)..(CBU,IV3);KDY22#,23#,24#,27#,28#,290,LY230,RZY231,281,TRY220,23#,281..DCR,EFI,LPG |
1 | ||
| 58251B - BRACE, FLOOR PANEL, FRONT | ||||
| 58251-37031 |
RZY230..IV6;LY240,270,280,290..(T2,T3,T4,VAN)..(CBU,IV3);KDY220,230,240,270,280,290,LY230,RZY231,281,TRY220,230..DCR,EFI,LPG |
1 | ||
| 58251-37031 |
RZY230..IV6;LY240,270,280,290..(T2,T3,T4,VAN)..(CBU,IV3);KDY220,230,240,270,280,290,LY230,RZY231,281,TRY220,230..DCR,EFI,LPG |
1 | ||
| 58252B - BRACE, FLOOR PANEL, FRONT LH | ||||
| 58252-37031 |
RZY230..IV6;LY240,270,280,290..(T2,T3,T4,VAN)..(CBU,IV3);KDY22#,23#,24#,27#,28#,290,LY230,RZY231,281,TRY220,23#,281..DCR,EFI,LPG |
1 | ||
| 58252-37031 |
RZY230..IV6;LY240,270,280,290..(T2,T3,T4,VAN)..(CBU,IV3);KDY22#,23#,24#,27#,28#,290,LY230,RZY231,281,TRY220,23#,281..DCR,EFI,LPG |
1 | ||
| 58295C - BRACKET, FLOOR SHIFT LEVER, NO.1 | ||||
| 58295-37060 |
RZY230..IV6;LY240,270,280,290..(T2,T3,T4,VAN)..(CBU,IV3);KDY22#,23#,24#,27#,28#,290,LY230,RZY231,281,TRY220,23#,281..DCR,EFI,LPG |
1 | ||
| 58295-37060 |
RZY230..IV6;LY240,270,280,290..(T2,T3,T4,VAN)..(CBU,IV3);KDY22#,23#,24#,27#,28#,290,LY230,RZY231,281,TRY220,23#,281..DCR,EFI,LPG |
1 | ||
| 58298A - REINFORCEMENT, SEAT BELT ANCHOR FLOOR, RH | ||||
| 58298-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 58298-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 58299B - REINFORCEMENT, SEAT BELT ANCHOR FLOOR, LH | ||||
| 58298-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 58298-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 58335C - PLATE, FLOOR SIDE, FRONT RH | ||||
| 58335-37040 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 58335-37040 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 58336C - PLATE, FLOOR SIDE, FRONT LH | ||||
| 58336-37031 |
KDY221..(T3,TW1)..TS;KDY231,TRY220,230..1T;KDY220,230,24#,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281 |
1 | ||
| 58336-37031 |
KDY221..(T3,TW1)..TS;KDY231,TRY220,230..1T;KDY220,230,24#,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281 |
1 | ||
| 58848A - COVER, SHIFT LEVER HOLE | ||||
| 58840-37010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 58840-37010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 58853A - PACKING, SHIFT LEVER HOLE | ||||
| 58853-37020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 58853-37020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 64018 - BAR SUB-ASSY, BODY | ||||
| 64018-25030 |
KDY221,23#..T4..TB;KDY221,23#..(T2,T3)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 64018-25030 |
KDY221,23#..T4..TB;KDY221,23#..(T2,T3)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 64025A - BRACKET SUB-ASSY, REAR MOUNTING, RH | ||||
| 64171-37010 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 64171-37010 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 64026B - BRACKET SUB-ASSY, REAR MOUNTING, LH | ||||
| 64172-37020 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 64172-37020 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 64172-37021 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 64172-37021 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 64151A - FRAME, BACK | ||||
| 64151-37181 |
KDY220,230,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 64151-37181 |
KDY220,230,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 87441E - FILTER, HEATER AIR | ||||
| 87441-25010 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 87441-25010 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 87441F - FILTER, HEATER AIR | ||||
| 87441-37010 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 87441-37010 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 87441-37010 |
KDY220,230,240,270,280,290,RZY231,281 |
1 | ||
| 87441-37010 |
KDY220,230,240,270,280,290,RZY231,281 |
1 | ||
| Common parts | ||||
| 55867-25020 | ||||
| 82712-37070 | ||||
| 90119-06801 | ||||
| 90119-08349 | ||||
| 90119-08483 | ||||
| 90159-60430 | ||||
| 90178-08005 | ||||
| 90179-06347 | ||||
| 90467-06133C0 | ||||
| 90467-0908722 | ||||
| 90950-01234 | ||||
| 91551-80616 | ||||
| 91642-81030 | ||||
| 91651-40616 | ||||
| 91651-60816 | ||||
| 93240-56016 | ||||
| 93560-15014 | ||||
ILLUST NO. 1 OF 3(0107-0708)RZY230..T3,TW1,TW2,TW3,TW4..125T,1T ;(0107- )KDY23#,28#,LY230,280,TR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51771E - PLATE, STEP, RH | ||||
| 51771-37100 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 |
1 | ||
| 51771-37100 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 |
1 | ||
| 51772D - PLATE, STEP, LH | ||||
| 51772-37080 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..DCR,DSL,EFI |
1 | ||
| 51772-37080 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..DCR,DSL,EFI |
1 | ||
| 51773C - COVER, STEP PLATE, RH | ||||
| 51773-37020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 塗装不要 |
1 | ||
| 51773-37020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 塗装不要 |
1 | ||
| 51774C - COVER, STEP PLATE, LH | ||||
| 51774-37010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 塗装不要 |
1 | ||
| 51774-37010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 塗装不要 |
1 | ||
| 53701H - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-37040 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 53701-37040 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 53717E - APRON, FRONT FENDER, NO.2 RH | ||||
| 53717-25050 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 53717-25050 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 53718C - APRON, FRONT FENDER, NO.2 LH | ||||
| 53718-37110 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 53718-37110 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 53722B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53722-37030 |
LY220,230,240,270,280,290,RZY220,230..DSL,EFI |
1 | ||
| 53722-37030 |
LY220,230,240,270,280,290,RZY220,230..DSL,EFI |
1 | ||
| 53891C - SEAL, FRONT FENDER SPLASH SHEILD, FRONT | ||||
| 53891-37030 |
LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 |
1 | ||
| 53891-37030 |
LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 |
1 | ||
| 57014 - MEMBER SUB-ASSY, FLOOR, FRONT LH | ||||
| 57014-25030 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 57014-25030 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 57169 - MEMBER, FRONT FLOOR, FRONT RH | ||||
| 57169-37080 |
LY220,230,270,280,RZY220,230 |
1 | ||
| 57169-37080 |
LY220,230,270,280,RZY220,230 |
1 | ||
| 57408B - MEMBER SUB-ASSY, FRONT FLOOR CROSS | ||||
| 57408-37262 |
LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 |
1 | ||
| 57408-37262 |
LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 |
1 | ||
| 57408-37261 |
LY220,230,240,270,280,290,RZY220,230 |
1 | ||
| 57408-37261 |
LY220,230,240,270,280,290,RZY220,230 |
1 | ||
| 57408-37260 |
LY220,230,240,270,280,290,RZY220,230 |
1 | ||
| 57408-37260 |
LY220,230,240,270,280,290,RZY220,230 |
1 | ||
| 57486A - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH | ||||
| 57486-37011 |
KDY22#,23#,24#,27#,28#,290,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 57486-37011 |
KDY22#,23#,24#,27#,28#,290,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 57517A - RETAINER, FRONT FLOOR REINFORCEMENT, REAR | ||||
| 57517-37010 |
LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 |
1 | ||
| 57517-37010 |
LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 |
1 | ||
| 57517-37011 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281 |
1 | ||
| 57517-37011 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281 |
1 | ||
| 58025A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH | ||||
| 58043-25020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 58043-25020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 58026A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH | ||||
| 58044-37070 |
LY220,230,270,280,RZY220,230..T2,T3,T4 |
1 | ||
| 58044-37070 |
LY220,230,270,280,RZY220,230..T2,T3,T4 |
1 | ||
| 58044-37090 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 58044-37090 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-25220 |
LY270,280..(T2,T3,T4)..(CBU,IV3) ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ) |
1 | ||
| 58111-25220 |
LY270,280..(T2,T3,T4)..(CBU,IV3) ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ) |
1 | ||
| 58111-37301 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) ﾅｼ(ABS) |
1 | ||
| 58111-37301 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) ﾅｼ(ABS) |
1 | ||
| 58111-37171 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ);ﾅｼ(ABS) |
1 | ||
| 58111-37171 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ);ﾅｼ(ABS) |
1 | ||
| 58111-25240 |
LY270,280..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 58111-25240 |
LY270,280..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 58181A - RETAINER, SEAT RAIL, FRONT | ||||
| 58181-37030 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 58181-37030 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 58183F - REINFORCEMENT, REAR MOUNTING, RH | ||||
| 58183-37060 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 58183-37060 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 58184E - REINFORCEMENT, REAR MOUNTING, LH | ||||
| 58184-25020 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 58184-25020 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 58236F - BRACKET, CLUTCH TUBE | ||||
| 58236-95J01 |
RZY230..IV6;LY240,270,280,290..(T2,T3,T4,VAN)..(CBU,IV3);KDY22#,23#,24#,27#,28#,290,LY230,RZY231,281,TRY220,23#,281..DCR,EFI,LPG |
1 | ||
| 58236-95J01 |
RZY230..IV6;LY240,270,280,290..(T2,T3,T4,VAN)..(CBU,IV3);KDY22#,23#,24#,27#,28#,290,LY230,RZY231,281,TRY220,23#,281..DCR,EFI,LPG |
1 | ||
| 58251B - BRACE, FLOOR PANEL, FRONT | ||||
| 58251-37031 |
RZY230..IV6;LY240,270,280,290..(T2,T3,T4,VAN)..(CBU,IV3);KDY220,230,240,270,280,290,LY230,RZY231,281,TRY220,230..DCR,EFI,LPG |
1 | ||
| 58251-37031 |
RZY230..IV6;LY240,270,280,290..(T2,T3,T4,VAN)..(CBU,IV3);KDY220,230,240,270,280,290,LY230,RZY231,281,TRY220,230..DCR,EFI,LPG |
1 | ||
| 58252B - BRACE, FLOOR PANEL, FRONT LH | ||||
| 58252-37031 |
RZY230..IV6;LY240,270,280,290..(T2,T3,T4,VAN)..(CBU,IV3);KDY22#,23#,24#,27#,28#,290,LY230,RZY231,281,TRY220,23#,281..DCR,EFI,LPG |
1 | ||
| 58252-37031 |
RZY230..IV6;LY240,270,280,290..(T2,T3,T4,VAN)..(CBU,IV3);KDY22#,23#,24#,27#,28#,290,LY230,RZY231,281,TRY220,23#,281..DCR,EFI,LPG |
1 | ||
| 58295C - BRACKET, FLOOR SHIFT LEVER, NO.1 | ||||
| 58295-37060 |
RZY230..IV6;LY240,270,280,290..(T2,T3,T4,VAN)..(CBU,IV3);KDY22#,23#,24#,27#,28#,290,LY230,RZY231,281,TRY220,23#,281..DCR,EFI,LPG |
1 | ||
| 58295-37060 |
RZY230..IV6;LY240,270,280,290..(T2,T3,T4,VAN)..(CBU,IV3);KDY22#,23#,24#,27#,28#,290,LY230,RZY231,281,TRY220,23#,281..DCR,EFI,LPG |
1 | ||
| 58298A - REINFORCEMENT, SEAT BELT ANCHOR FLOOR, RH | ||||
| 58298-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 58298-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 58299B - REINFORCEMENT, SEAT BELT ANCHOR FLOOR, LH | ||||
| 58298-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 58298-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 58335C - PLATE, FLOOR SIDE, FRONT RH | ||||
| 58335-37040 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 58335-37040 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 58336C - PLATE, FLOOR SIDE, FRONT LH | ||||
| 58336-37031 |
KDY221..(T3,TW1)..TS;KDY231,TRY220,230..1T;KDY220,230,24#,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281 |
1 | ||
| 58336-37031 |
KDY221..(T3,TW1)..TS;KDY231,TRY220,230..1T;KDY220,230,24#,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281 |
1 | ||
| 58848A - COVER, SHIFT LEVER HOLE | ||||
| 58840-37010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 58840-37010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 58853A - PACKING, SHIFT LEVER HOLE | ||||
| 58853-37020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 58853-37020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 64018 - BAR SUB-ASSY, BODY | ||||
| 64018-25030 |
KDY221,23#..T4..TB;KDY221,23#..(T2,T3)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 64018-25030 |
KDY221,23#..T4..TB;KDY221,23#..(T2,T3)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 64025A - BRACKET SUB-ASSY, REAR MOUNTING, RH | ||||
| 64171-37010 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 64171-37010 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 64026B - BRACKET SUB-ASSY, REAR MOUNTING, LH | ||||
| 64172-37020 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 64172-37020 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 64172-37021 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 64172-37021 |
LY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 64151A - FRAME, BACK | ||||
| 64151-37181 |
KDY220,230,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 64151-37181 |
KDY220,230,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 87441E - FILTER, HEATER AIR | ||||
| 87441-25010 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 87441-25010 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 87441F - FILTER, HEATER AIR | ||||
| 87441-37010 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 87441-37010 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 87441-37010 |
KDY220,230,240,270,280,290,RZY231,281 |
1 | ||
| 87441-37010 |
KDY220,230,240,270,280,290,RZY231,281 |
1 | ||
| Common parts | ||||
| 55867-25020 | ||||
| 82712-37070 | ||||
| 90119-06801 | ||||
| 90119-08349 | ||||
| 90119-08483 | ||||
| 90159-60430 | ||||
| 90178-08005 | ||||
| 90179-06347 | ||||
| 90467-06133C0 | ||||
| 90467-0908722 | ||||
| 90950-01234 | ||||
| 91551-80616 | ||||
| 91642-81030 | ||||
| 91651-40616 | ||||
| 91651-60816 | ||||
| 93240-56016 | ||||
| 93560-15014 | ||||
ILLUST NO. 2 OF 3(0107-0708)LY220,230,240,270,280,290,RZY220,23#,281 ; (0308- )KDY22#,23#,24#,27#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53089A - MUDGUARD SUB-ASSY, FRONT | ||||
| 53089-25010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 NO.1 OR NO.2 |
2 | ||
| 53089A - MUDGUARD SUB-ASSY, FRONT | ||||
| 53089-25010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 NO.1 OR NO.2 |
2 | ||
| 53089B - CLIP, FRONT MUDGUARD | ||||
| 67868-95401 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
10 | ||
| 53089B - CLIP, FRONT MUDGUARD | ||||
| 67868-95401 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
10 | ||
| 53705D - BRACE SUB-ASSY, FENDER APRON, RH | ||||
| 53705-25020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 53706C - BRACE SUB-ASSY, FENDER APRON, LH | ||||
| 53706-25010 |
LY230,280..(T2,T3,T4)..DSL;KDY22#,23#,27#,28#,LY220,270,RZY220,230,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 53707B - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53715-25020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 53707B - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53715-25020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 53707B - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53715-25020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 53708B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53716-25040 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 53708B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53716-25040 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 53708B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53716-25040 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 53719A - BRACE, FENDER APRON | ||||
| 53719-25010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
1 | ||
| 53881D - MUDGUARD, FRONT RH | ||||
| 53881-25020 |
LY220,230,270,280,RZY220,23#,281..T2,T3,T4 |
1 | ||
| 53881-25020 |
KDY220,230,270,280,TRY220,230..T2,T3,T4 |
1 | ||
| 53881D - MUDGUARD, FRONT RH | ||||
| 53881-25020 |
LY220,230,270,280,RZY220,23#,281..T2,T3,T4 |
1 | ||
| 53881-25020 |
KDY220,230,270,280,TRY220,230..T2,T3,T4 |
1 | ||
| 53881D - MUDGUARD, FRONT RH | ||||
| 53881-25020 |
LY220,230,270,280,RZY220,23#,281..T2,T3,T4 |
1 | ||
| 53881-25020 |
KDY220,230,270,280,TRY220,230..T2,T3,T4 |
1 | ||
| 53882D - MUDGUARD, FRONT LH | ||||
| 53881-25020 |
KDY220,230,270,280,TRY220,230..T2,T3,T4 |
1 | ||
| 53881-25020 |
LY220,230,270,280,RZY220,23#,281..T2,T3,T4 |
1 | ||
| 53882D - MUDGUARD, FRONT LH | ||||
| 53881-25020 |
KDY220,230,270,280,TRY220,230..T2,T3,T4 |
1 | ||
| 53881-25020 |
LY220,230,270,280,RZY220,23#,281..T2,T3,T4 |
1 | ||
| 53882D - MUDGUARD, FRONT LH | ||||
| 53881-25020 |
KDY220,230,270,280,TRY220,230..T2,T3,T4 |
1 | ||
| 53881-25020 |
LY220,230,270,280,RZY220,23#,281..T2,T3,T4 |
1 | ||
| 53887E - PLATE, FRONT MUDGUARD | ||||
| 53887-25010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 |
2 | ||
| 53892C - SEAL, FRONT FENDER SPLASH SHIELD, FRONT LH | ||||
| 53892-25010 |
LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 |
1 | ||
| 53892C - SEAL, FRONT FENDER SPLASH SHIELD, FRONT LH | ||||
| 53892-25010 |
LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 |
1 | ||
| 58142A - APRON, FRONT FLOOR SIDE, NO.1 LH | ||||
| 58142-25030 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 58142A - APRON, FRONT FLOOR SIDE, NO.1 LH | ||||
| 58142-25030 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| Common parts | ||||
| 90119-06065 | ||||
| 90119-06424 | ||||
| 90467-08008 | ||||
| 90467-0908722 | ||||
| 91551-80820 | ||||
| 91551-A0814 | ||||
| 91651-B0616 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1703 | ||||

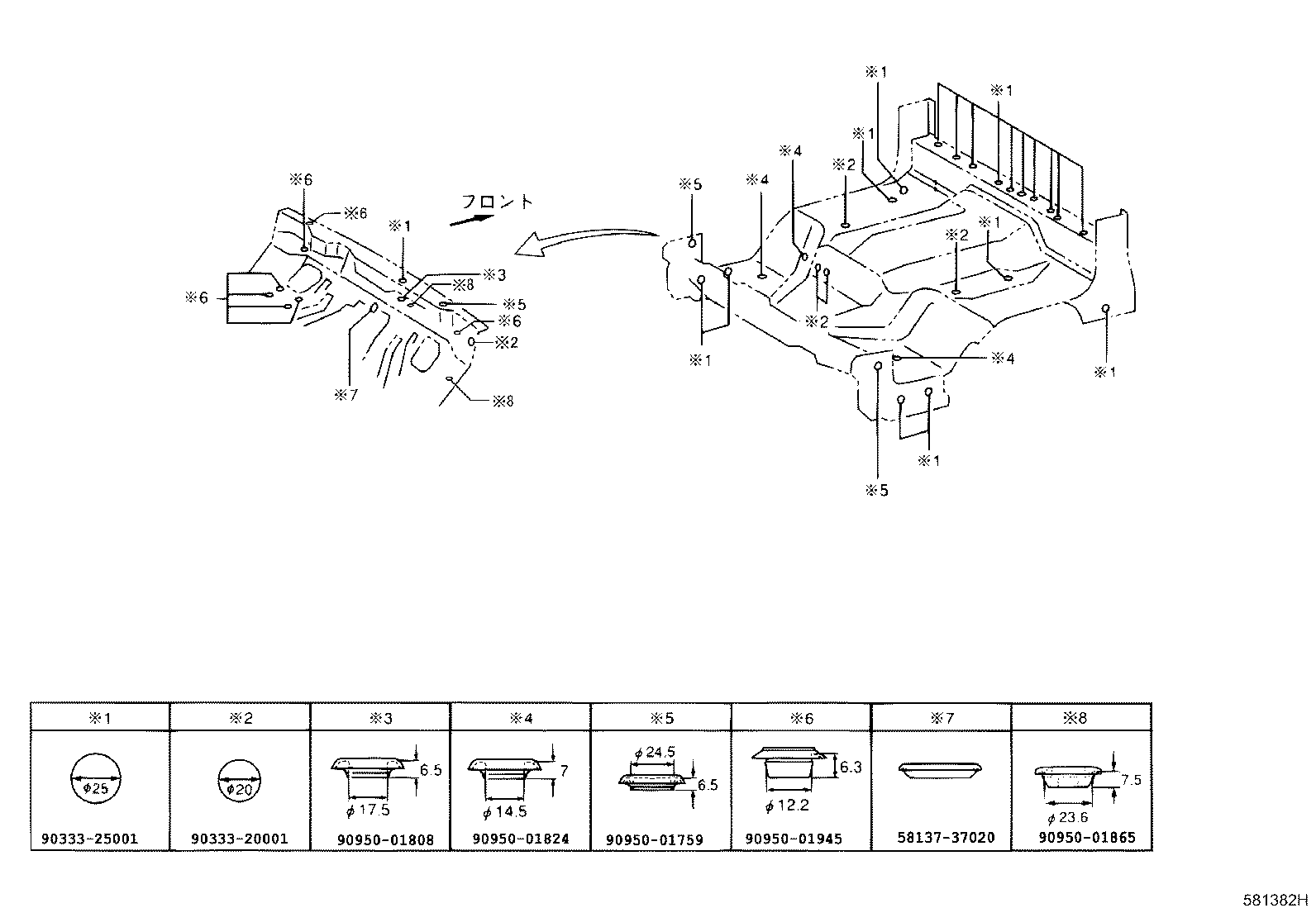

ILLUST NO. 3 OF 3(0107- )KDY221..T3..TB ; (0107- )KDY230..T4..TS ; (0107- )LY220,230,270,28
ﾌﾟﾗｸﾞﾎ-ﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 58137-37020 | ||||
| 90333-20001 | ||||
| 90333-25001 | ||||
| 90950-01759 | ||||
| 90950-01808 | ||||
| 90950-01824 | ||||
| 90950-01865 | ||||
| 90950-01945 | ||||

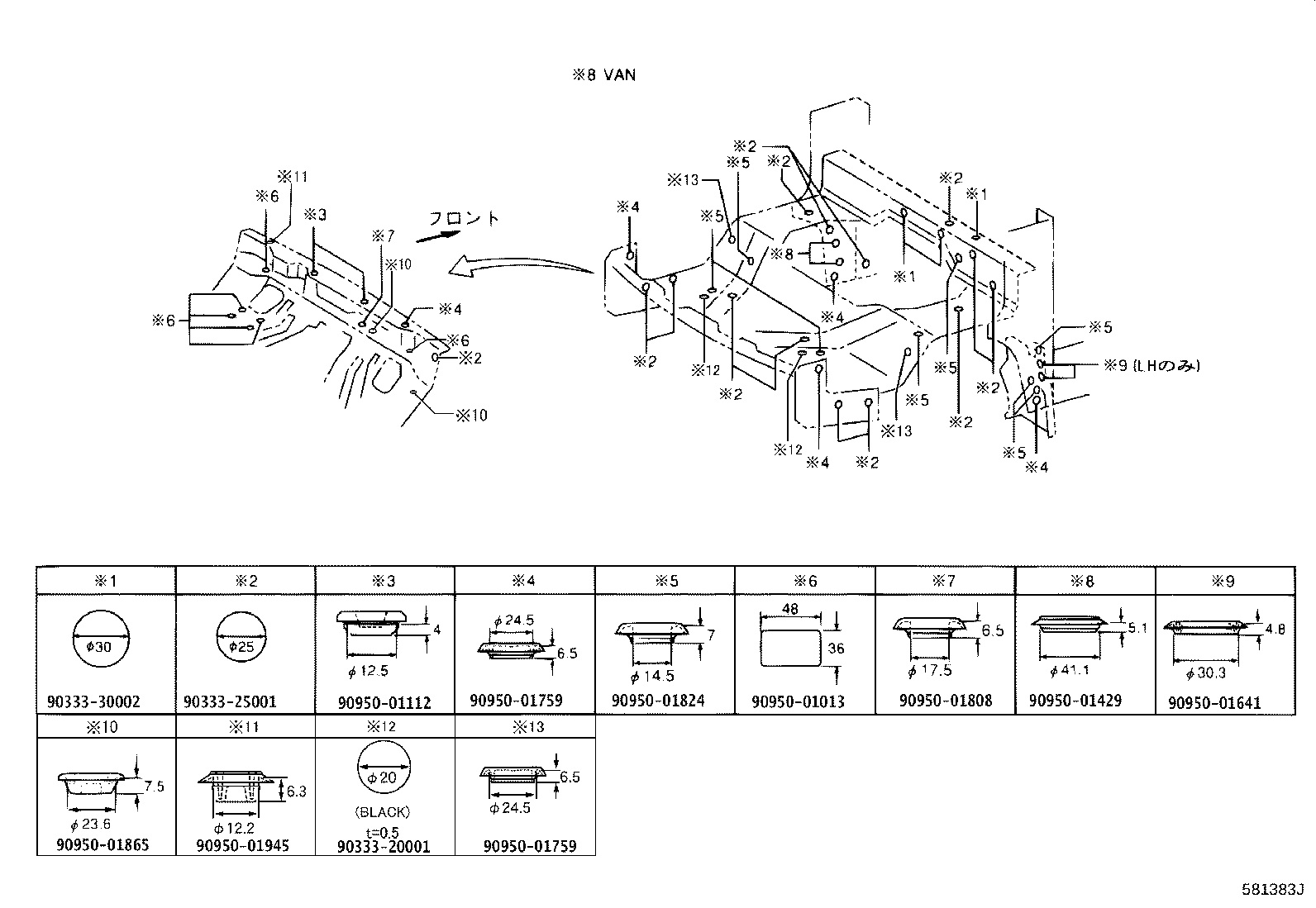

ILLUST NO. 3 OF 3(0107- )LY220,230,240,270,280,290,RZY220,TRY220..TW1,TW2,TW3,TW4,VAN ; (0408-
ﾌﾟﾗｸﾞﾎ-ﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90333-20001 | ||||
| 90333-25001 | ||||
| 90333-30002 | ||||
| 90950-01013 | ||||
| 90950-01112 | ||||
| 90950-01429 | ||||
| 90950-01641 | ||||
| 90950-01759 | ||||
| 90950-01808 | ||||
| 90950-01824 | ||||
| 90950-01865 | ||||
| 90950-01945 | ||||
ILLUST NO. 3 OF 3(0107- )LY230,280,TRY230..ST..IV6 ; (0107-)TRY230..T2,TW1,TW2,TW3..TS ; (010
ﾌﾟﾗｸﾞﾎ-ﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90333-20001 | ||||
| 90333-25001 | ||||
| 90333-30002 | ||||
| 90950-01013 | ||||
| 90950-01112 | ||||
| 90950-01429 | ||||
| 90950-01641 | ||||
| 90950-01759 | ||||
| 90950-01808 | ||||
| 90950-01824 | ||||
| 90950-01865 | ||||
| 90950-01945 | ||||
ILLUST NO. 3 OF 3(0107-0708)RZY230..T3,TW1,TW2,TW3,TW4..125T,1T ;(0107- )TRY230..ATM..WT ; (0107
ﾌﾟﾗｸﾞﾎ-ﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90333-20001 | ||||
| 90333-25001 | ||||
| 90333-30002 | ||||
| 90950-01013 | ||||
| 90950-01112 | ||||
| 90950-01429 | ||||
| 90950-01641 | ||||
| 90950-01759 | ||||
| 90950-01808 | ||||
| 90950-01824 | ||||
| 90950-01865 | ||||
| 90950-01945 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
