LY280-TGMFS3 (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

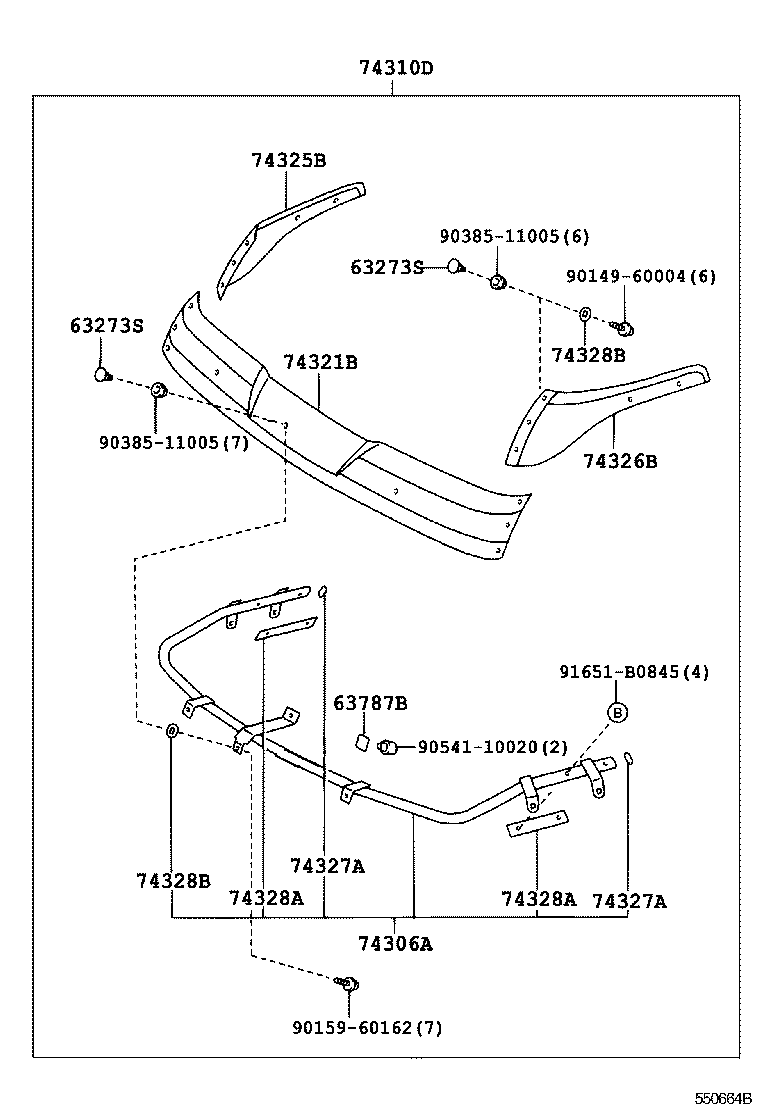

ILLUST NO. 2 OF 2(0107- )KDY221,23#..T2,T3,TW1,TW2,TW3,TW4..CBU,IV3 ; (0107- )KDY220,27#,28#,L

Click highlighted areas on diagram

diagram 63273S 63273S 63787B 74306A 74310D 74321B 74325B 74326B 74327A 74327A 74328A 74328A 74328B 74328B 9014960004 9015960162 9038511005 9038511005 9054110020 91651B0845
Part # Description Qty Price
63273S - RETAINER, ROOF WINDOW HINGE
63273-28030

TRY230..15T,1T;KDY231..WT..IV6;KDY221,23#..T4..TB;TRY230..125T..(CBU,IV3);KDY221,23#..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,231,281..CBU,IV3

 13
63273-28030

TRY230..15T,1T;KDY231..WT..IV6;KDY221,23#..T4..TB;TRY230..125T..(CBU,IV3);KDY221,23#..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,231,281..CBU,IV3

 13
63273S - RETAINER, ROOF WINDOW HINGE
63273-28030

TRY230..15T,1T;KDY231..WT..IV6;KDY221,23#..T4..TB;TRY230..125T..(CBU,IV3);KDY221,23#..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,231,281..CBU,IV3

 13
63273-28030

TRY230..15T,1T;KDY231..WT..IV6;KDY221,23#..T4..TB;TRY230..125T..(CBU,IV3);KDY221,23#..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,231,281..CBU,IV3

 13
63787B - PAD, ROOF AIR DEFLECTOR, NO.1
63787-95400

TRY230..15T,1T;KDY231..WT..IV6;KDY221,23#..T4..TB;TRY230..125T..(CBU,IV3);KDY221,23#..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,231,281..CBU,IV3

 1
63787-95400

TRY230..15T,1T;KDY231..WT..IV6;KDY221,23#..T4..TB;TRY230..125T..(CBU,IV3);KDY221,23#..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,231,281..CBU,IV3

 1
74306A - SUPPORT SUB-ASSY, FRONT VISOR
74306-37040

TRY230..15T,1T;KDY231..WT..IV6;KDY221,23#..T4..TB;TRY230..125T..(CBU,IV3);KDY221,23#..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,231,281..CBU,IV3

 1
74306-37040

TRY230..15T,1T;KDY231..WT..IV6;KDY221,23#..T4..TB;TRY230..125T..(CBU,IV3);KDY221,23#..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,231,281..CBU,IV3

 1
74310D - VISOR ASSY
74310-37060

TRY230..15T,1T;KDY231..WT..IV6;KDY221,23#..T4..TB;TRY230..125T..(CBU,IV3);KDY221,23#..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,231,281..CBU,IV3

 1
74310-37060

TRY230..15T,1T;KDY231..WT..IV6;KDY221,23#..T4..TB;TRY230..125T..(CBU,IV3);KDY221,23#..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,231,281..CBU,IV3

 1
74321B - VISOR, FRONT
74321-37010

KDY221,23#..T4..TB;KDY221,23#..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..CBU,IV3

TOYOTA

 1
74321-37010

KDY221,23#..T4..TB;KDY221,23#..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..CBU,IV3

TOYOTA

 1
74321-37020

KDY221,23#..T4..TB;KDY221,23#..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..CBU,IV3

HINO

 1
74321-37020

KDY221,23#..T4..TB;KDY221,23#..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..CBU,IV3

HINO

 1
74325B - SUPPORT, FRONT VISOR, RH
74325-37020

KDY221,23#..T4..TB;KDY221,23#..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..CBU,IV3

 1
74325-37020

KDY221,23#..T4..TB;KDY221,23#..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..CBU,IV3

 1
74326B - SUPPORT, FRONT VISOR, LH
74326-37020

KDY221,23#..T4..TB;KDY221,23#..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..CBU,IV3

 1
74326-37020

KDY221,23#..T4..TB;KDY221,23#..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..CBU,IV3

 1
74327A - PAD, FRONT VISOR
74327-37020

TRY230..15T,1T;KDY231..WT..IV6;KDY221,23#..T4..TB;TRY230..125T..(CBU,IV3);KDY221,23#..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,231,281..CBU,IV3

 2
74327-37020

TRY230..15T,1T;KDY231..WT..IV6;KDY221,23#..T4..TB;TRY230..125T..(CBU,IV3);KDY221,23#..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,231,281..CBU,IV3

 2
74327A - PAD, FRONT VISOR
74327-37020

TRY230..15T,1T;KDY231..WT..IV6;KDY221,23#..T4..TB;TRY230..125T..(CBU,IV3);KDY221,23#..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,231,281..CBU,IV3

 2
74327-37020

TRY230..15T,1T;KDY231..WT..IV6;KDY221,23#..T4..TB;TRY230..125T..(CBU,IV3);KDY221,23#..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,231,281..CBU,IV3

 2
74328A - PAD, FRONT VISOR, NO.2
74328-37010

TRY230..15T,1T;KDY231..WT..IV6;KDY221,23#..T4..TB;TRY230..125T..(CBU,IV3);KDY221,23#..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,231,281..CBU,IV3

 2
74328-37010

TRY230..15T,1T;KDY231..WT..IV6;KDY221,23#..T4..TB;TRY230..125T..(CBU,IV3);KDY221,23#..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,231,281..CBU,IV3

 2
74328A - PAD, FRONT VISOR, NO.2
74328-37010

TRY230..15T,1T;KDY231..WT..IV6;KDY221,23#..T4..TB;TRY230..125T..(CBU,IV3);KDY221,23#..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,231,281..CBU,IV3

 2
74328-37010

TRY230..15T,1T;KDY231..WT..IV6;KDY221,23#..T4..TB;TRY230..125T..(CBU,IV3);KDY221,23#..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,231,281..CBU,IV3

 2
74328B - PAD, FRONT VISOR, NO.2
74328-95400

TRY230..15T,1T;KDY231..WT..IV6;KDY221,23#..T4..TB;TRY230..125T..(CBU,IV3);KDY221,23#..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,231,281..CBU,IV3

 15
74328-95400

TRY230..15T,1T;KDY231..WT..IV6;KDY221,23#..T4..TB;TRY230..125T..(CBU,IV3);KDY221,23#..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,231,281..CBU,IV3

 15
74328B - PAD, FRONT VISOR, NO.2
74328-95400

TRY230..15T,1T;KDY231..WT..IV6;KDY221,23#..T4..TB;TRY230..125T..(CBU,IV3);KDY221,23#..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,231,281..CBU,IV3

 15
74328-95400

TRY230..15T,1T;KDY231..WT..IV6;KDY221,23#..T4..TB;TRY230..125T..(CBU,IV3);KDY221,23#..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,231,281..CBU,IV3

 15
Common parts
90149-60004
90159-60162
90385-11005
90541-10020
91651-B0845

ILLUST NO. 1 OF 2(0107-1610)

Click highlighted areas on diagram

diagram 53145F 53801J 53802J 53821A 53822A 53921A 53922A 53923C 53924 53928A 55078 55145G 55211B 55212A 55700 55711A 55717F 55718E 55738B 55739B 55739B 55785C 55785C 56111 56121 8714 8714 8714 9015960076 9015960076 9016350011 9018905046 9018906006 9018906028 9018906029 9018906111 9046708214 9046708215 9046708223 9046712079 9095001948 9155180614
Part # Description Qty Price
53145F - CLIP, RADIATOR GRILLE GARNISH
90467-08208

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 4
53801J - PANEL SUB-ASSY, FRONT SIDE, RH
53801-37020

LY220,230,240,270,280,290,RZY220,230

ｿｼﾞ(ｼｼﾞｮｳﾄｿｳ)

 1
53801-37040

LY220,230,240,270,280,290,RZY220,230

ﾒﾂｷ

 1
53801-37021

LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL

ｿｼﾞ(ｼｼﾞｮｳﾄｿｳ)

 1
53801-37041

LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL

ﾒﾂｷ

 1
53802J - PANEL SUB-ASSY, FRONT SIDE, LH
53802-37020

LY220,230,240,270,280,290,RZY220,230

ｿｼﾞ(ｼｼﾞｮｳﾄｿｳ)

 1
53802-37040

LY220,230,240,270,280,290,RZY220,230

ﾒﾂｷ

 1
53802-37021

LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL

ｿｼﾞ(ｼｼﾞｮｳﾄｿｳ)

 1
53802-37041

LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL

ﾒﾂｷ

 1
53821A - PROTECTOR, FRONT SIDE PANEL, NO.1 RH
53821-37070

KDY220,230,240,270,280,290,RZY231,281

 1
53821-37070

LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL

 1
53822A - PROTECTOR, FRONT SIDE PANEL, NO.1 LH
53821-37070

KDY220,230,240,270,280,290,RZY231,281

 1
53821-37070

LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL

 1
53921A - PANEL, FRONT VALANCE, RH
53921-25010

LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL

 1
53921-25010

KDY220,230,240,270,280,290,RZY231,281

 1
53922A - PANEL, FRONT VALANCE, LH
53922-25010

LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL

 1
53922-25010

KDY220,230,240,270,280,290,RZY231,281

 1
53923C - SUPPORT, FRONT SIDE GARNISH, RH
53923-25010

KDY220,230,240,270,280,290,RZY231,281

 1
53923-25010

LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL

 1
53924 - PLATE, NOISE SHUTTER SUPPORT, NO.2
53924-25010

KDY220,230,240,270,280,290,RZY231,281

 1
53924-25010

LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL

 1
53928A - GARNISH, FRONT PANEL, CENTER
53928-37010

LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY220,RZY231,281..15T,1T;LY230..TB..(12T,15T,175T)..DSL;LY240,270,280,290,TRY220,230..DSL,EFI

 1
53928-37011

LY220,230,240,270,280,290

 1
55078 - COVER SUB-ASSY, FRONT PANEL
55078-37070

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
55145G - CLIP, RADIATOR GRILLE GARNISH
53145-27010

KDY220,230,240,270,280,290,RZY231,281

 7
53145-27010

LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL

 7
55211B - SILENCER, FRONT PANEL
55211-37030

LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY220,RZY231,281..15T,1T;LY230..TB..(12T,15T,175T)..DSL;LY240,270,280,290,TRY220,230..DSL,EFI

 2
55212A - SILENCER, FRONT PANEL, LOWER
55212-37010

LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY220,RZY231,281..15T,1T;LY230..TB..(12T,15T,175T)..DSL;LY240,270,280,290,TRY220,230..DSL,EFI

 1
55700 - PANEL ASSY, FRONT
55700-37110

LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230

 1
55711A - PANEL, FRONT, LOWER
55711-37050

KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230

 1
55717F - EXTENSION, FRONT PANEL REINFORCEMENT, RH
55717-37020

KDY220,230,240,270,280,290,RZY231,281

 1
55717-37020

LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL

 1
55718E - EXTENSION, FRONT PANEL REINFORCEMENT, LH
55718-37010

KDY220,230,240,270,280,290,RZY231,281

 1
55718-37010

LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL

 1
55738B - PROTECTOR, FRONT PANEL COVER, NO.1
55738-37050

LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230

 1
55739B - PROTECTOR, FRONT PANEL COVER, NO.2
55739-37070

KDY220,230,240,270,280,290,RZY231,281

 2
55739-37070

LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL

 2
55739B - PROTECTOR, FRONT PANEL COVER, NO.2
55739-37070

KDY220,230,240,270,280,290,RZY231,281

 2
55739-37070

LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL

 2
55785C - PAD, FRONT PANEL COVER
55785-37020

LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL

 2
55785-37020

KDY220,230,240,270,280,290,RZY231,281

 2
55785C - PAD, FRONT PANEL COVER
55785-37020

LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL

 2
55785-37020

KDY220,230,240,270,280,290,RZY231,281

 2
56111 - GLASS, WINDSHIELD
56111-37140

LY220,230,270,280,RZY220,230..T2,T3,T4

ｱﾘ(ﾄｯﾌﾟｼｪｰﾄﾞ = ﾌﾞﾛﾝｽﾞ)

 1
56111-37120

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

ﾅｼ(ﾄｯﾌﾟｼｪｰﾄﾞ)

 1
56121 - WEATHERSTRIP, WINDSHIELD
56121-25030

LY220,230,240,270,280,290,RZY220,230

ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ)

 1
56121-37040

LY220,230,240,270,280,290,RZY220,230

ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ)

 1
56121-37030

LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230

 1
56121-37040

KDY220,230,240,270,280,290,RZY231,281,TRY220,230

ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ)

 1
Common parts
90159-60076
90163-50011
90189-05046
90189-06006
90189-06028
90189-06029
90189-06111
90467-08214
90467-08215
90467-08223
90467-12079
90950-01948
91551-80614
Linked diagrams
8714
