LY280-TGMFS3 (2001)
Toyota Dyna/Toyoace
(0107- )T2,T3,T4..CBU,IV3

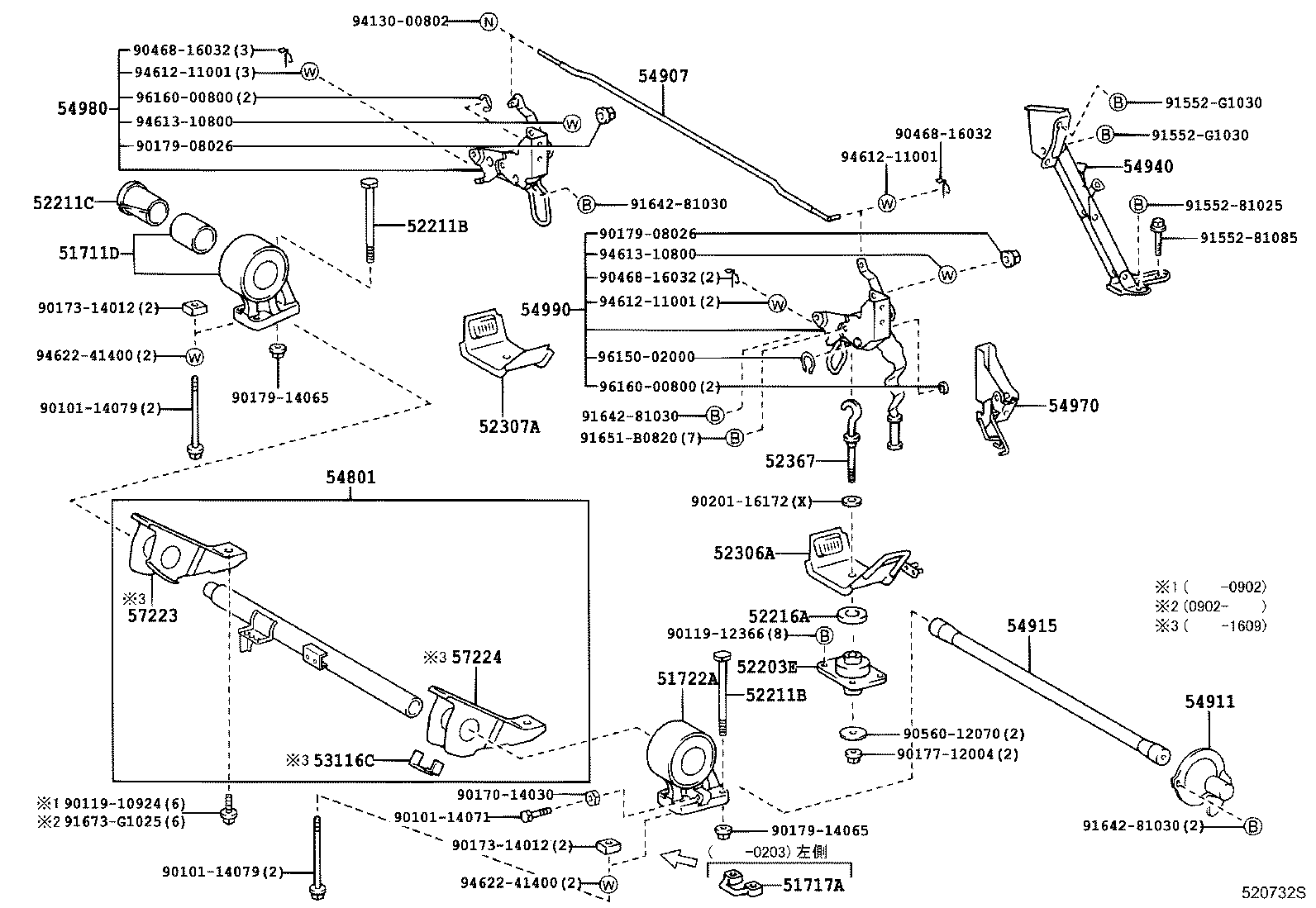

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51711D - BRACKET, CAB FRONT MOUNTING | ||||
| 51701-25080 |
TRY231,281;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..DCR,DSL,EFI |
1 | ||
| 51717A - PLATE, BODY SUPPORT BRACKET | ||||
| 51717-37100 |
LY220,230,240,270,280,290,RZY220,230 |
1 | ||
| 51722A - BRACKET SUB-ASSY, CAB FRONT MOUNTING, LH | ||||
| 51702-25030 |
TRY231,281;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..DCR,DSL,EFI |
1 | ||
| 52203E - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 | ||||
| 52203-25050 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3) |
2 | ||
| 52211B - BOLT(FOR BODY MOUNTING NO.1 CUSHION) | ||||
| 90109-14011 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
2 | ||
| 52211B - BOLT(FOR BODY MOUNTING NO.1 CUSHION) | ||||
| 90109-14011 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
2 | ||
| 52211C - SPACER(FOR BODY MOUNTING NO.1 CUSHION) | ||||
| 52211-37010 |
TRY230..(TW2,TW3)..TS;KDY231,TRY230..WT..IV6;KDY231,TRY220..(TW1,TW2,TW3)..TS;KDY221,241..(T3,TW1,VAN)..(06S,TB,TS);KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281 |
2 | ||
| 52216A - STOPPER, CAB MOUNTING CUSHION | ||||
| 52216-25010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3) |
2 | ||
| 52306A - BRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.1 | ||||
| 52306-37021 |
LY220,230,270,280,RZY220,23#,281,TRY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 52307A - BRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.2 | ||||
| 52307-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 52367 - HOOK, CAB REAR MOUNTING | ||||
| 52367-37020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3) |
2 | ||
| 53116C - BRACKET, RADIATOR GRILLE, NO.2 | ||||
| 53116-37030 |
KDY220,230,240,270,280,290,RZY231,281 |
2 | ||
| 53116-37030 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
2 | ||
| 54801 - TUBE SUB-ASSY, TILT CAB, NO.1 | ||||
| 54801-25010 |
LY220,230,270,280,RZY220,23#,281,TRY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 54907 - PIPE SUB-ASSY, TILT CAB LOCK CONNECTING | ||||
| 54907-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 54911 - ARM, TILT CAB SPRING SUPPORT, NO.1 | ||||
| 54911-37030 |
KDY221..T3;KDY220,230,270,280,LY220,230,270,280,RZY220,23#,281..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 54915 - SPRING, TILT CAB, NO.1 | ||||
| 54915-37090 |
KDY221..T3;KDY220,230,270,280,LY220,230,270,280,RZY220,23#,281..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 54940 - STAY ASSY, TILT CAB | ||||
| 54940-25010 |
KDY221..T3;KDY220,230,270,280,LY220,230,270,280,RZY220,230..(T2,T3,T4)..(DCR,DSL,EFI)..(CBU,IV3) |
1 | ||
| 54970 - LATCH ASSY, TILT CAB STOPPER | ||||
| 54970-37013 |
KDY220,230,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 54980 - LOCK ASSY, TILT CAB MOUNTING, RH | ||||
| 54980-25010 |
KDY221..T3;KDY220,230,270,280,LY220,230,270,280,RZY220,23#,281..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 54990 - LOCK ASSY, TILT CAB MOUNTING, LH | ||||
| 54990-25020 |
KDY220,230,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,230..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 57223 - BRACKET, FRONT MOUNTING, RH | ||||
| 57223-37011 |
KDY220,230,240,270,280,290,RZY231,281 |
1 | ||
| 57223-37011 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 57224 - BRACKET, FRONT MOUNTING, LH | ||||
| 57224-37011 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 57224-37011 |
KDY220,230,240,270,280,290,RZY231,281 |
1 | ||
| Common parts | ||||
| 90101-14071 | ||||
| 90101-14079 | ||||
| 90119-10924 | ||||
| 90119-12366 | ||||
| 90170-14030 | ||||
| 90173-14012 | ||||
| 90177-12004 | ||||
| 90179-08026 | ||||
| 90179-14065 | ||||
| 90201-16172 | ||||
| 90468-16032 | ||||
| 90560-12070 | ||||
| 91552-81025 | ||||
| 91552-81085 | ||||
| 91552-G1030 | ||||
| 91642-81030 | ||||
| 91651-B0820 | ||||
| 91673-G1025 | ||||
| 94130-00802 | ||||
| 94612-11001 | ||||
| 94613-10800 | ||||
| 94622-41400 | ||||
| 96150-02000 | ||||
| 96160-00800 | ||||
