LY280-TGMFS3 (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0107- )

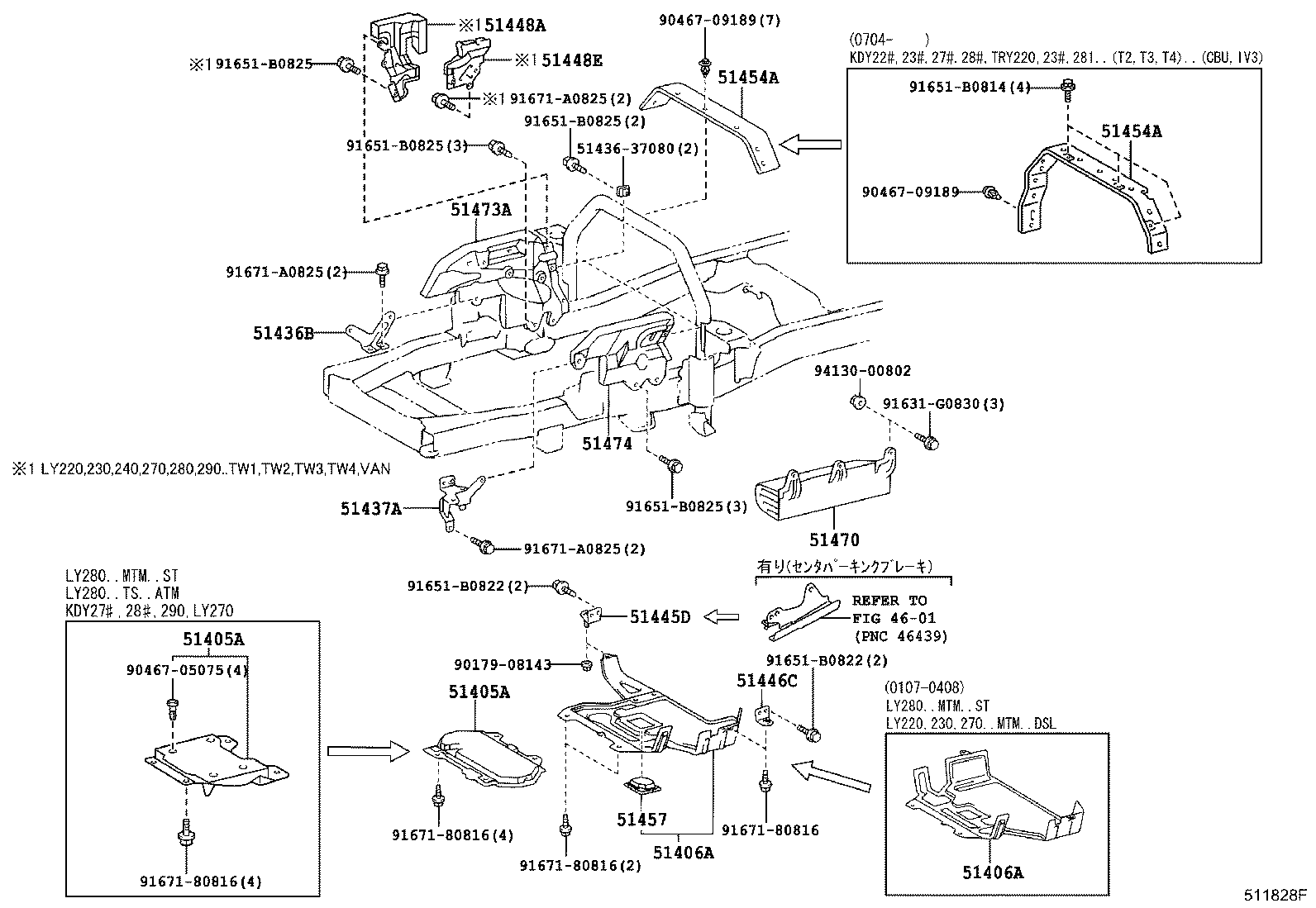

Click highlighted areas on diagram

diagram 4601 51405A 51405A 51406A 51406A 5143637080 51436B 51437A 51445D 51446C 51448A 51448E 51454A 51454A 51457 51470 51473A 51474 9017908143 9046705075 9046709189 9046709189 91631G0830 91651B0814 91651B0822 91651B0822 91651B0825 91651B0825 91651B0825 91651B0825 9167180816 9167180816 9167180816 9167180816 91671A0825 91671A0825 91671A0825 9413000802
Part # Description Qty Price
51405A - COVER SUB-ASSY, ENGINE UNDER, NO.1
51405-25100

LY280..MTM..ST;LY280..TS..ATM;KDY27#,28#,290,LY270

 1
51405A - COVER SUB-ASSY, ENGINE UNDER, NO.1
51405-25100

LY280..MTM..ST;LY280..TS..ATM;KDY27#,28#,290,LY270

 1
51406A - COVER SUB-ASSY, ENGINE UNDER, NO.2
51406-25060

LY280..MTM..ST;LY220,230,270..MTM..DSL

 1
51406A - COVER SUB-ASSY, ENGINE UNDER, NO.2
51406-25060

LY280..MTM..ST;LY220,230,270..MTM..DSL

 1
51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH
51436-25030

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY231,281

 1
51437A - BRACKET, ENGINE SIDE COVER, NO.1 LH
51047-25010

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
51445D - BRACKET, ENGINE UNDER COVER, RH
51445-25070

TRY220..ST;KDY221..T3..TB;LY280..MTM..ST;LY220,230..MTM..DSL;KDY220,230,240,270,280,290,LY270;TRY230..(T2,T3,TW3)..TS..ST..(CBU,IV3)

 1
51446C - BRACKET, ENGINE UNDER COVER, LH
51446-25050

LY280..MTM..ST;TRY230..15T,1T;LY220,230..MTM..DSL;TRY230..125T..(CBU,IV3);KDY22#,23#,24#,27#,28#,290,LY270,TRY220

 1
51454A - SILENCER, ENGINE REAR COVER
51454-25030

KDY220,230,270,280,TRY220,230..(T2,T3,T4)..(CBU,IV3)

 1
51454-25030

LY220,230,270,280,RZY220,23#,281..(T2,T3,T4)..(CBU,IV3)

 1
51454A - SILENCER, ENGINE REAR COVER
51454-25030

KDY220,230,270,280,TRY220,230..(T2,T3,T4)..(CBU,IV3)

 1
51454-25030

LY220,230,270,280,RZY220,23#,281..(T2,T3,T4)..(CBU,IV3)

 1
51457 - SEAL, ENGINE SIDE COVER, FRONT
51409-35010

LY280..MTM..ST;TRY230..CBU,IV3;LY220,230..MTM..DSL;KDY220,230,240,270,280,290,LY270,TRY220

 1
51473A - COVER SUB-ASSY, ENGINE SIDE, RH
51473-25050

KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..DCR,DSL,EFI

 1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51474-25040

TRY231,281;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..DCR,DSL,EFI

 1
Common parts
51436-37080
90179-08143
90467-05075
90467-09189
91631-G0830
91651-B0814
91651-B0822
91651-B0825
91671-80816
91671-A0825
94130-00802
Linked diagrams
4601
