LY280-TGMFS3 (2001)
Toyota Dyna/Toyoace

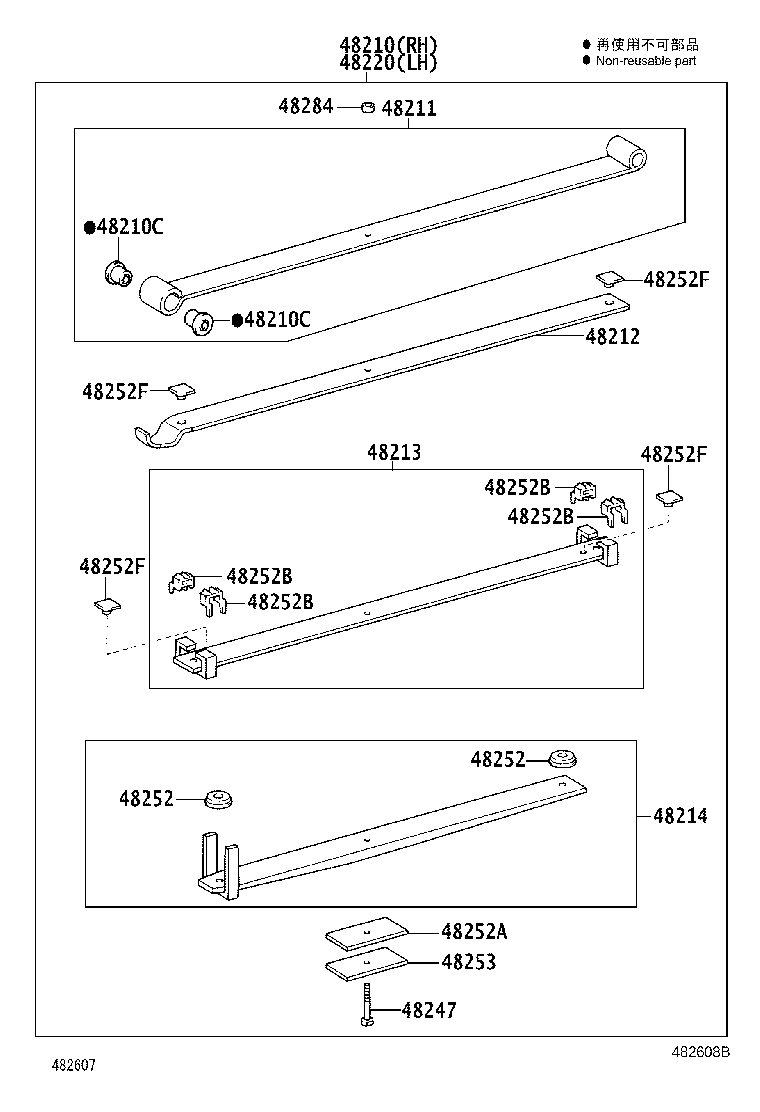

ILLUST NO. 2 OF 3(0107- )KDY28#,LY230,280,RZY230..15T..ST ; (0308-0408)TRY230..15T..ST
4-LEAF ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-2E350 |
KDY280,LY230,280,RZY230..T2..15T..ST 4枚ﾘｰﾌ,MARK=R-2E350:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=44.8 |
1 | ||
| 48210-2E370 |
KDY280,LY230,280,RZY230..T2..15T..ST 4枚ﾘｰﾌ,ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=R-2E370:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=47 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
LY280,TRY230..T2..15T..ST;KDY280,LY230,RZY230..T3..125T;KDY280,LY230,RZY230..(T2,TW1,TW3)..ST;KDY281,LY280,TRY230..(125T,12T,1T)..ST;KDY22#,23#,27#,LY220,270,RZY220,TRY220..ST |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
LY280,TRY230..T2..15T..ST;KDY280,LY230,RZY230..T3..125T;KDY280,LY230,RZY230..(T2,TW1,TW3)..ST;KDY281,LY280,TRY230..(125T,12T,1T)..ST;KDY22#,23#,27#,LY220,270,RZY220,TRY220..ST |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-2E370 |
KDY280,LY230,280,RZY230..T2..15T..ST ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=R-2E370:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=47 |
2 | ||
| 48201-2E350 |
KDY280,LY230,280,RZY230..T2..15T..ST MARK=R-2E350:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=44.8 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-2E350 |
KDY280,LY230,280,RZY230..T2..15T..ST MARK=R-2E350:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=44.8 |
2 | ||
| 48212-2E370 |
KDY280,LY230,280,RZY230..T2..15T..ST ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=R-2E370:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=47 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-2E370 |
KDY280,LY230,280,RZY230..T2..15T..ST ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=R-2E370:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=47 |
2 | ||
| 48202-2E350 |
KDY280,LY230,280,RZY230..T2..15T..ST MARK=R-2E350:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=44.8 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-2E350 |
KDY280,LY230,280,RZY230..T2..15T..ST MARK=R-2E350:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=44.8 |
2 | ||
| 48203-2E370 |
KDY280,LY230,280,RZY230..T2..15T..ST ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=R-2E370:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=47 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-2E350 |
KDY280,LY230,280,RZY230..T2..15T..ST 4枚ﾘｰﾌ,MARK=R-2E350:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=44.8 |
1 | ||
| 48210-2E370 |
KDY280,LY230,280,RZY230..T2..15T..ST 4枚ﾘｰﾌ,ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=R-2E370:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=47 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36052 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..ST..(CBU,IV3) |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26401 |
TRY230..15T,1T;KDY231..WT..IV6;KDY281,TRY230..125T..(CBU,IV3);KDY22#,23#,27#,280,LY220,230,270,280,RZY220,23#,281,TRY220,231,281..CBU,IV3 |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26401 |
TRY230..15T,1T;KDY231..WT..IV6;KDY281,TRY230..125T..(CBU,IV3);KDY22#,23#,27#,280,LY220,230,270,280,RZY220,23#,281,TRY220,231,281..CBU,IV3 |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48216-3B060 |
KDY281..T3..(CBU,IV3);KDY270,LY270..(T3,TW1)..CBU;KDY231,LY280,TRY230..T2..15T..ST;KDY280,LY230..T3..125T..(CBU,IV3);KDY230,280,LY230,RZY230..(15T,1T)..ST;KDY231,271,LY280,TRY230..(T3,TW3)..(CBU,IV3);KDY22#,230,LY220,RZY220,TRY220..(T3,TW1)..(125T,1T)..(CBU,IV3) |
2 | ||
| 48253-25670 |
KDY23#,280,LY230,280,RZY230,TRY230..T2..15T..ST ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37380 |
KDY281..125T;KDY23#,TRY230..T3..125T;KDY23#,TRY230..T2,T4,TW1,TW2,TW3,TW4;KDY22#,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281 |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37380 |
KDY281..125T;KDY23#,TRY230..T3..125T;KDY23#,TRY230..T2,T4,TW1,TW2,TW3,TW4;KDY22#,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281 |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37380 |
KDY281..125T;KDY23#,TRY230..T3..125T;KDY23#,TRY230..T2,T4,TW1,TW2,TW3,TW4;KDY22#,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281 |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37380 |
KDY281..125T;KDY23#,TRY230..T3..125T;KDY23#,TRY230..T2,T4,TW1,TW2,TW3,TW4;KDY22#,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281 |
8 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-26070 |
TRY230..15T,1T;KDY231..WT..IV6;KDY281,TRY230..125T..(CBU,IV3);KDY22#,23#,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281..CBU,IV3 |
8 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-26070 |
TRY230..15T,1T;KDY231..WT..IV6;KDY281,TRY230..125T..(CBU,IV3);KDY22#,23#,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281..CBU,IV3 |
8 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-26070 |
TRY230..15T,1T;KDY231..WT..IV6;KDY281,TRY230..125T..(CBU,IV3);KDY22#,23#,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281..CBU,IV3 |
8 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-26070 |
TRY230..15T,1T;KDY231..WT..IV6;KDY281,TRY230..125T..(CBU,IV3);KDY22#,23#,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281..CBU,IV3 |
8 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-25670 |
LY280..T2..15T;LY280..T3..(CBU,IV3);KDY22#,23#,280,LY220,230,RZY220,230,TRY220,230..(T2,T3)..15T;KDY22#,23#,27#,28#,LY220,230,270,RZY220,TRY220,230..T3..125T..(CBU,IV3) |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-37130 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
2 | ||
ILLUST NO. 1 OF 3(0107- )ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-25030 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..ST |
2 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14036 |
TRY230..15T..ST;LY220..T2..TS..ST;KDY231,TRY230..WT..IV6;KDY230,281,LY280..T3..15T;KDY231,LY230..ATM..15T..ST;KDY231,LY230..T2..ATM..125T;KDY280,LY220..(T2,T3)..TB..15T;RZY230..(125T,15T)..ST..(CBU,IV3);KDY231,LY230..MTM..(125T,15T)..ST;KDY221,280,RZY220,TRY220,230..(T2,TW1)..125T..ST;KDY220,230,270,281,LY270,280..(T2,TW1)..(125T,12T,15T) 長さ=190 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14036 |
TRY230..15T..ST;LY220..T2..TS..ST;KDY231,TRY230..WT..IV6;KDY230,281,LY280..T3..15T;KDY231,LY230..ATM..15T..ST;KDY231,LY230..T2..ATM..125T;KDY280,LY220..(T2,T3)..TB..15T;RZY230..(125T,15T)..ST..(CBU,IV3);KDY231,LY230..MTM..(125T,15T)..ST;KDY221,280,RZY220,TRY220,230..(T2,TW1)..125T..ST;KDY220,230,270,281,LY270,280..(T2,TW1)..(125T,12T,15T) 長さ=190 |
4 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-2E350 |
KDY280,LY230,280,RZY230..T2..15T..ST 4枚ﾘｰﾌ,MARK=R-2E350:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=44.8 |
1 | ||
| 48210-2E370 |
KDY280,LY230,280,RZY230..T2..15T..ST 4枚ﾘｰﾌ,ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=R-2E370:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=47 |
1 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18023 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..ST |
8 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18023 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..ST |
8 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18023 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..ST |
8 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18023 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..ST |
8 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-2E350 |
KDY280,LY230,280,RZY230..T2..15T..ST 4枚ﾘｰﾌ,MARK=R-2E350:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=44.8 |
1 | ||
| 48210-2E370 |
KDY280,LY230,280,RZY230..T2..15T..ST 4枚ﾘｰﾌ,ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=R-2E370:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=47 |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-25040 |
KDY23#,280,LY230,280,RZY230,TRY230..T2..15T..ST |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-25040 |
KDY23#,280,LY230,280,RZY230,TRY230..T2..15T..ST |
1 | ||
| 48473 - SEAT, REAR SPRING U BOLT | ||||
| 48473-25130 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80229 |
KDY22#,270,LY220,270,RZY220,TRY220..T2..ST;KDY23#,280,LY230,280,RZY230,TRY230..T2..15T..ST ﾏｰｸ 48531−25260 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..ST |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..ST |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80229 |
KDY22#,270,LY220,270,RZY220,TRY220..T2..ST;KDY23#,280,LY230,280,RZY230,TRY230..T2..15T..ST ﾏｰｸ 48531−25260 |
1 | ||
| Common parts | ||||
| 90101-16043 | ||||
| 90105-12151 | ||||
| 90105-16081 | ||||
| 90119-10355 | ||||
| 90170-12008 | ||||
| 90170-14026 | ||||
| 90170-16016 | ||||
| 90179-14023 | ||||
| 90201-16035 | ||||
| 94621-11400 | ||||
| 94622-11200 | ||||
ILLUST NO. 3 OF 3(0107- )
