LY280-TGMFS3 (2001)
Toyota Dyna/Toyoace
(0107- )

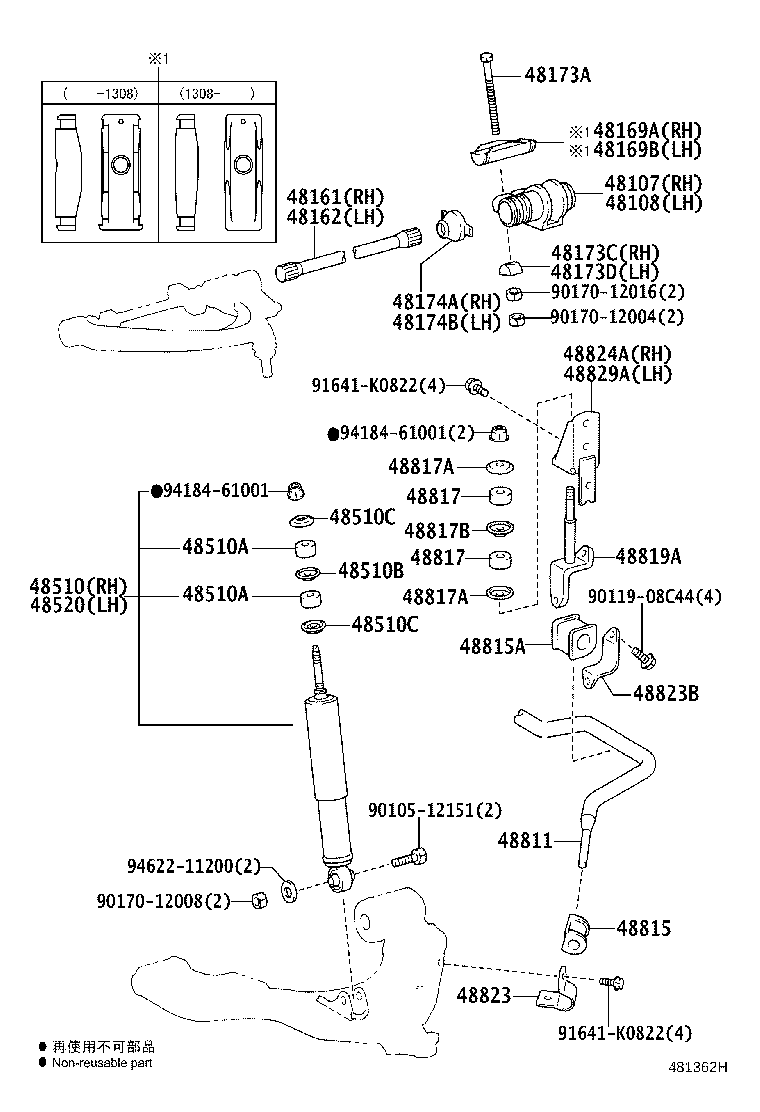

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48107 - ARM SUB-ASSY, ANCHOR, RH | ||||
| 48107-25010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 48108 - ARM SUB-ASSY, ANCHOR, LH | ||||
| 48108-25010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 48161 - SPRING, TORSION BAR, RH | ||||
| 48161-25030 |
LY280..TB;LY280..12T;LY270,RZY231,281;LY230,280,TRY230..IV6;LY220,RZY220,TRY220..125T..ST;RZY230..(T3,TW1,TW2,TW4)..125T;LY230,TRY230..(TW1,TW2,TW4)..125T;LY220,230,RZY220,230,TRY220,230..(T2,T3,T4,TW1,TW2)..(12T,15T,175T,1T) |
1 | ||
| 48162 - SPRING, TORSION BAR, LH | ||||
| 48162-25030 |
LY280..TB;LY280..12T;LY270,RZY231,281;LY230,280,TRY230..IV6;LY220,RZY220,TRY220..125T..ST;RZY230..(T3,TW1,TW2,TW4)..125T;LY230,TRY230..(TW1,TW2,TW4)..125T;LY220,230,RZY220,230,TRY220,230..(T2,T3,T4,TW1,TW2)..(12T,15T,175T,1T) |
1 | ||
| 48169A - SWIVEL, ANCHOR ARM, RH | ||||
| 48169-25010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 48169B - SWIVEL, ANCHOR ARM, LH | ||||
| 48169-25010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 48173A - BOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING) | ||||
| 90101-12197 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
2 | ||
| 48173C - SEAT, ANCHOR ARM ADJUSTER, RH | ||||
| 48173-27010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 48173D - SEAT, ANCHOR ARM ADJUSTER, LH | ||||
| 48173-27010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 48174A - COVER, TORSION BAR DUST, RH | ||||
| 48174-34010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 48174B - COVER, TORSION BAR DUST, LH | ||||
| 48174-34010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-80090 |
KDY280,LY280..TB;KDY280,LY280..TW1;LY220,RZY220,TRY220..125T..ST;RZY230..(T3,TW1,TW2,TW4)..125T;KDY23#,28#,LY230,280,TRY230..ST..IV6;KDY23#,281,LY230,TRY230..(TW1,TW2,TW4)..125T;KDY22#,24#,27#,290,LY240,270,290,RZY231,281,TRY231,281;KDY23#,281,LY220,230,RZY220,230,TRY220,230..(T2,T3,T4,TW1,TW2)..(12T,15T,175T,1T) ﾏｰｸ 48511−25220 |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01031 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01031 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02017 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02180 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02180 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
4 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-80090 |
KDY280,LY280..TB;KDY280,LY280..TW1;LY220,RZY220,TRY220..125T..ST;RZY230..(T3,TW1,TW2,TW4)..125T;KDY23#,28#,LY230,280,TRY230..ST..IV6;KDY23#,281,LY230,TRY230..(TW1,TW2,TW4)..125T;KDY22#,24#,27#,290,LY240,270,290,RZY231,281,TRY231,281;KDY23#,281,LY220,230,RZY220,230,TRY220,230..(T2,T3,T4,TW1,TW2)..(12T,15T,175T,1T) ﾏｰｸ 48511−25220 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-25050 |
KDY280,LY280..TB;KDY280,LY280..TW1;RZY230..(T3,TW1,TW2,TW4)..125T;KDY230,280,LY230,280,TRY230..IV6;KDY230,LY230,TRY230..(TW1,TW2,TW4)..125T;KDY220,230,240,290,LY220,230,240,290,RZY220,23#,281,TRY220,230..12T,15T,175T |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-25050 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 |
2 | ||
| 48815A - BUSH, FRONT STABILIZER BAR, NO.2 | ||||
| 48815-25040 |
KDY280,LY280..TB;KDY280,LY280..TW1;RZY230..(T3,TW1,TW2,TW4)..125T;KDY23#,28#,LY230,280,TRY230..ST..IV6;KDY23#,281,LY230,TRY230..(TW1,TW2,TW4)..125T;KDY22#,23#,24#,281,290,LY220,230,240,290,RZY220,23#,281,TRY220,23#,281..12T,15T,175T |
2 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 90948-01061 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
4 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 90948-01061 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
4 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-03007 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
4 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-03007 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
4 | ||
| 48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) | ||||
| 90948-02005 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
2 | ||
| 48819A - BOLT, FRONT STABILIZER | ||||
| 48819-25020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
2 | ||
| 48823 - COVER, STABILIZER LINK(FOR FRONT) | ||||
| 48823-25020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
2 | ||
| 48823B - COVER, FRONT STABILIZER BRACKET | ||||
| 48823-25010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
2 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-25020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48829-25010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| Common parts | ||||
| 90105-12151 | ||||
| 90119-08C44 | ||||
| 90170-12004 | ||||
| 90170-12008 | ||||
| 90170-12016 | ||||
| 91641-K0822 | ||||
| 94184-61001 | ||||
| 94622-11200 | ||||
