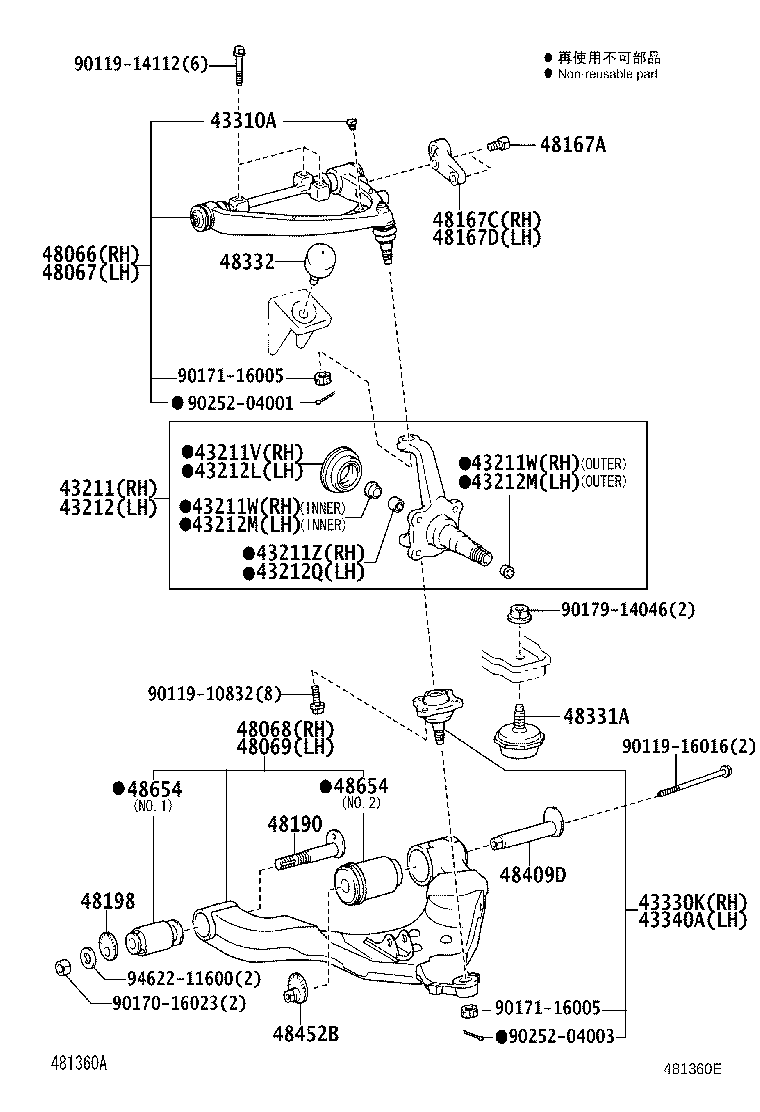

LY280-TGMFS3 (2001)
Toyota Dyna/Toyoace
(0107- )KDY27#,28#,290,LY270,280,290,RZY281,TRY281
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43201-25121 |
KDY27#,28#,290,LY270,280,290,RZY281,TRY281 |
1 | ||
| 43201-25111 |
KDY27#,28#,290,LY270,280,290,RZY281,TRY281 ｱﾘ(ABS) |
1 | ||
| 43211V - SEAL, OIL (FOR STEERING KNUCKLE RH) | ||||
| 90316-60004 |
LY270,280,290..DSL |
1 | ||
| 90316-60004 |
KDY270,280,290,RZY281 |
1 | ||
| 43211W - BUSH (FOR STEERING KNUCKLE RH) | ||||
| 90381-32001 |
KDY270,280,290,RZY281 内側 |
1 | ||
| 90381-30003 |
KDY270,280,290,RZY281 外側 |
1 | ||
| 90381-32001 |
LY270,280,290..DSL 内側 |
1 | ||
| 90381-30003 |
LY270,280,290..DSL 外側 |
1 | ||
| 43211W - BUSH (FOR STEERING KNUCKLE RH) | ||||
| 90381-32001 |
KDY270,280,290,RZY281 内側 |
1 | ||
| 90381-30003 |
KDY270,280,290,RZY281 外側 |
1 | ||
| 90381-32001 |
LY270,280,290..DSL 内側 |
1 | ||
| 90381-30003 |
LY270,280,290..DSL 外側 |
1 | ||
| 43211Z - BEARING, NEEDLE ROLLER(FOR STEERING KNUCKLE RH) | ||||
| 90364-30011 |
KDY270,280,290,RZY281 |
1 | ||
| 90364-30011 |
LY270,280,290..DSL |
1 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43202-25111 |
KDY27#,28#,290,LY270,280,290,RZY281,TRY281 |
1 | ||
| 43202-25101 |
KDY27#,28#,290,LY270,280,290,RZY281,TRY281 ｱﾘ(ABS) |
1 | ||
| 43212L - SEAL, OIL (FOR STEERING KNUCKLE LH) | ||||
| 90316-60004 |
KDY270,280,290,RZY281 |
1 | ||
| 90316-60004 |
LY270,280,290..DSL |
1 | ||
| 43212M - BUSH (FOR STEERING KNUCKLE LH) | ||||
| 90381-30003 |
KDY270,280,290,RZY281 外側 |
1 | ||
| 90381-32001 |
KDY270,280,290,RZY281 内側 |
1 | ||
| 90381-30003 |
LY270,280,290..DSL 外側 |
1 | ||
| 90381-32001 |
LY270,280,290..DSL 内側 |
1 | ||
| 43212M - BUSH (FOR STEERING KNUCKLE LH) | ||||
| 90381-30003 |
KDY270,280,290,RZY281 外側 |
1 | ||
| 90381-32001 |
KDY270,280,290,RZY281 内側 |
1 | ||
| 90381-30003 |
LY270,280,290..DSL 外側 |
1 | ||
| 90381-32001 |
LY270,280,290..DSL 内側 |
1 | ||
| 43212Q - BEARING, NEEDLE ROLLER(FOR STEERING KNUCKLE LH) | ||||
| 90364-30011 |
LY270,280,290..DSL |
1 | ||
| 90364-30011 |
KDY270,280,290,RZY281 |
1 | ||
| 43310A - PLUG (FOR BALL JOINT) | ||||
| 90345-06014 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
2 | ||
| 43330K - JOINT ASSY, LOWER BALL, FRONT RH | ||||
| 43330-29105 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 43340A - JOINT ASSY, LOWER BALL, FRONT LH | ||||
| 43330-29105 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 48066 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH | ||||
| 48066-29165 |
KDY221..T3..TS;KDY221..T2,T4,TW1;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY231,TRY230..(T2,T3,T4,TW1,TW3,TW4)..(CBU,IV3);KDY220,230,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281 ｱﾘ(ABS) |
1 | ||
| 48066-29175 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 48067 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH | ||||
| 48067-29175 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 48067-29165 |
KDY221..T3..TS;KDY221..T2,T4,TW1;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY231,TRY230..(T2,T3,T4,TW1,TW3,TW4)..(CBU,IV3);KDY220,230,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281 ｱﾘ(ABS) |
1 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-25020 |
LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 |
1 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-25020 |
LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 |
1 | ||
| 48167A - BOLT(FOR TORQUE ARM SETTING) | ||||
| 90105-12200 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
4 | ||
| 48167C - ARM, FRONT SUSPENSION TORQUE, RH | ||||
| 48106-25020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 48167D - ARM, FRONT SUSPENSION TORQUE, LH | ||||
| 48106-25020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 48190 - CAM ASSY, CAMBER ADJUST | ||||
| 48190-25010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
2 | ||
| 48198 - CAM, CAMBER ADJUST, NO.2 | ||||
| 48198-25010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
2 | ||
| 48331A - BUMPER, FRONT SPRING, NO.1 | ||||
| 48331-25050 |
KDY23#..TW2;TRY230..WT..IV6;TRY230..TS..125T..WT;KDY22#,23#..(T2,T3)..15T;KDY24#,27#,28#,290,LY240,270,280,290,RZY281,TRY281 |
2 | ||
| 48332 - BUMPER, FRONT SPRING, NO.2 | ||||
| 48332-25010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
2 | ||
| 48409D - CAM SUB-ASSY, FRONT SUSPENSION TOE ADJUST | ||||
| 48409-25020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
2 | ||
| 48452B - PLATE, FRONT SUSPENSION TOE ADJUST, NO.2 | ||||
| 48452-25010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
2 | ||
| 48654 - BUSH, LOWER ARM | ||||
| 48061-25010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 NO.1 |
2 | ||
| 48061-25020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 NO.2 |
2 | ||
| 48654 - BUSH, LOWER ARM | ||||
| 48061-25010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 NO.1 |
2 | ||
| 48061-25020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 NO.2 |
2 | ||
| Common parts | ||||
| 90119-10832 | ||||
| 90119-14112 | ||||
| 90119-16016 | ||||
| 90170-16023 | ||||
| 90171-16005 | ||||
| 90179-14046 | ||||
| 90252-04001 | ||||
| 90252-04003 | ||||
| 94622-11600 | ||||
