LY280-TGMFS3 (2001)
Toyota Dyna/Toyoace
(0107- )

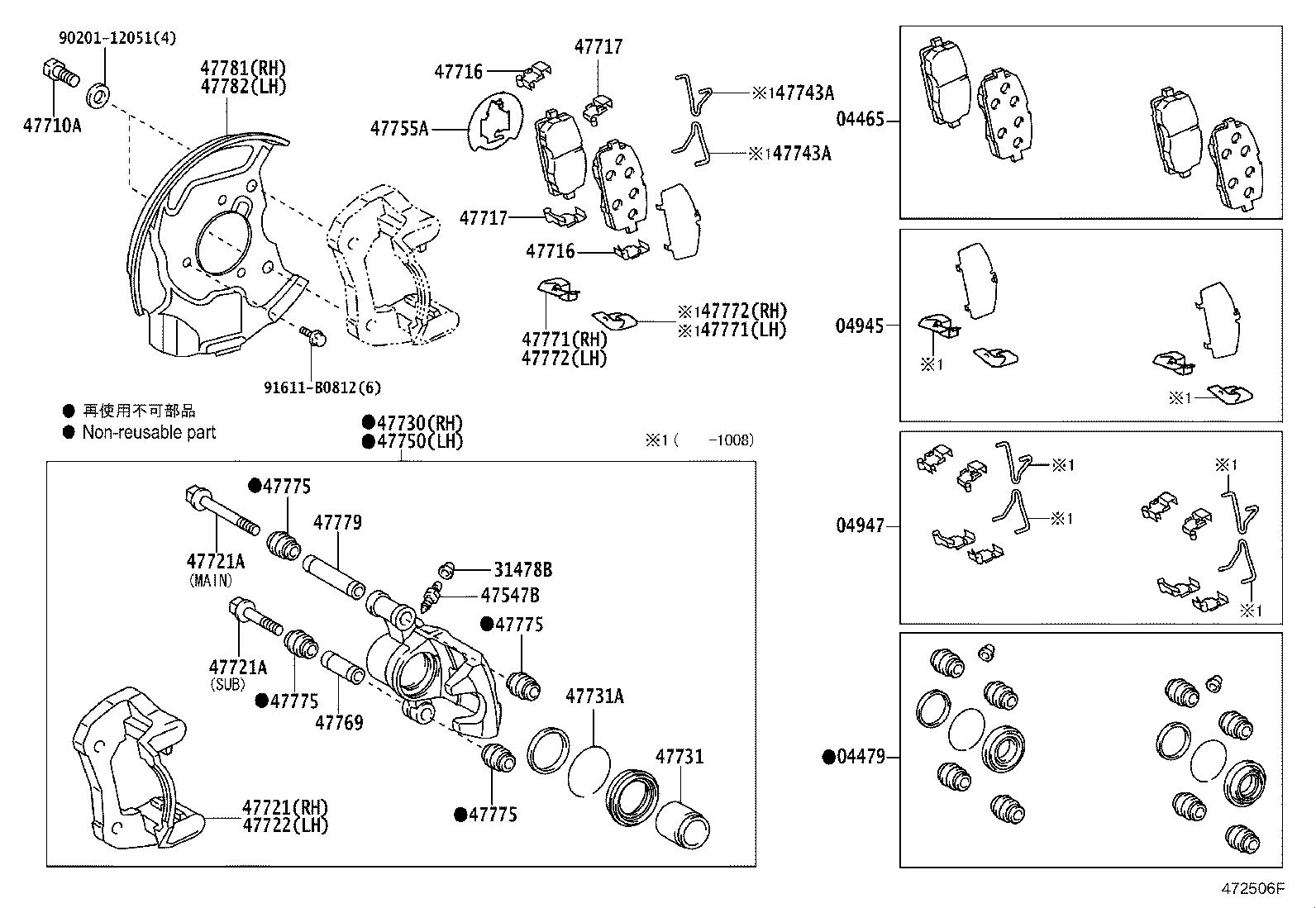

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-25040 |
LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 ﾏｰｸ AISIN T536 |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-26030 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-26100 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-25020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-12010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90101-12149 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 *12−1.25P−41X20 |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-26050 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-26050 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-26020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-26020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
4 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-25030 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90119-10014 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 *10−1.25PX65.5−30,ｻﾌﾞ |
2 | ||
| 90119-10249 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 *10−1.25PX95.5−30,ﾒｲﾝ |
2 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90119-10014 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 *10−1.25PX65.5−30,ｻﾌﾞ |
2 | ||
| 90119-10249 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 *10−1.25PX95.5−30,ﾒｲﾝ |
2 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47721-25030 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-25080 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-25010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
2 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-76001 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
2 | ||
| 47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE) | ||||
| 47743-40020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
4 | ||
| 47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE) | ||||
| 47743-40020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
4 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-25080 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 47755A - INSULATOR, DISC BRAKE HEAT | ||||
| 47755-25010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
2 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-40010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
2 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-26020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
2 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-26020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
2 | ||
| 47772 - PLATE, PAD WEAR INDICATOR, NO.2 | ||||
| 47772-26020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
2 | ||
| 47772 - PLATE, PAD WEAR INDICATOR, NO.2 | ||||
| 47772-26020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
2 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-26010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
8 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-26010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
8 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-26010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
8 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-26010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
8 | ||
| 47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47779-40010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
2 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-25030 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 47781-25040 |
KDY221..T3..TS;KDY221..T2,T4,TW1;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY231,TRY230..(T2,T3,T4,TW1,TW3,TW4)..(CBU,IV3);KDY220,230,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281 ｱﾘ(ABS) |
1 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-25030 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 47782-25040 |
KDY221..T3..TS;KDY221..T2,T4,TW1;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY231,TRY230..(T2,T3,T4,TW1,TW3,TW4)..(CBU,IV3);KDY220,230,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281 ｱﾘ(ABS) |
1 | ||
| Common parts | ||||
| 90201-12051 | ||||
| 91611-B0812 | ||||
