Toyota Dyna/toyoace LY280 BRAKE BOOSTER & VACUUM TUBE

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
LY280-TGMFS3 (2001)

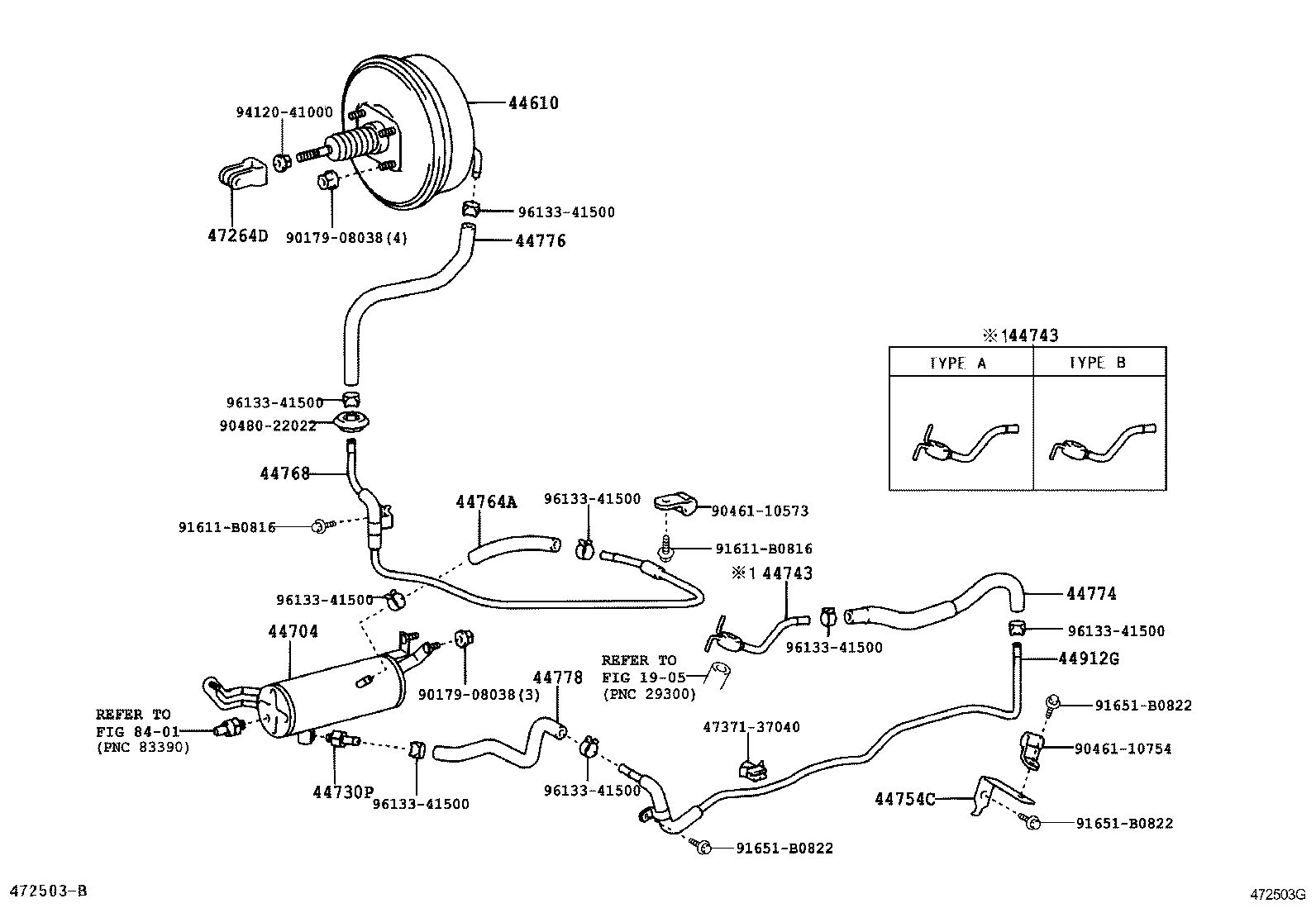

4703 - BRAKE BOOSTER & VACUUM TUBE

LY280-TGMFS3 (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004

Engine 5L

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0107-0308)DSL

Click highlighted areas on diagram

Part #	Description	Period	Qty
44610 - BOOSTER ASSY, BRAKE
44610-25310	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290..DCR,DSL	07/2001 - 10/2016	1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-25160	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290	08/2003 - 12/2999	1
44704-25140	LY220,230,240,270,280,290..DSL	07/2001 - 08/2003	1
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-60050	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290..DCR,DSL	07/2001 - 12/2999	1
44743 - UNION(FOR VACUUM PUMP)
90405-09183	LY220,230,240,270,280,290..DSL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	07/2001 - 08/2004	1
44743 - UNION(FOR VACUUM PUMP)
90405-09183	LY220,230,240,270,280,290..DSL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	07/2001 - 08/2004	1
44754C - BRACKET, VACUUM TUBE, NO.1
44754-25010	LY220,230,240,270,280,290..DSL	07/2001 - 08/2004	1
44764A - HOSE, BOOSTER VACUUM
90445-17141	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290..DCR,DSL	07/2001 - 12/2999	1
44768 - TUBE, BOOSTER VACUUM
44768-25080	TRY230..(TW2,TW3)..TS;KDY231,TRY230..WT..IV6;KDY231,TRY220..(TW1,TW2,TW3)..TS;KDY221,241..(T3,TW1,VAN)..(06S,TB,TS);KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281	07/2001 - 12/2999	1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-25080	LY220,230,240,270,280,290..DSL	07/2001 - 08/2004	1
44776 - HOSE, BRAKE BOOSTER
44776-25040	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 09/2016	1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-25050	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290	08/2003 - 12/2999	1
44778-25020	LY220,230,240,270,280,290..DSL	07/2001 - 08/2003	1
44912G - TUBE, 3 WAY TO MAGNETIC VALVE
44912-25120	LY220,230,240,270,280,290	08/2003 - 08/2004	1
44912-25070	LY220,230,240,270,280,290..DSL	07/2001 - 08/2003	1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-25020	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 10/2016	1
Common parts
47371-37040
90179-08038
90461-10573
90461-10754
90480-22022
91611-B0816
91651-B0822
94120-41000
96133-41500
Linked diagrams
1905
8401

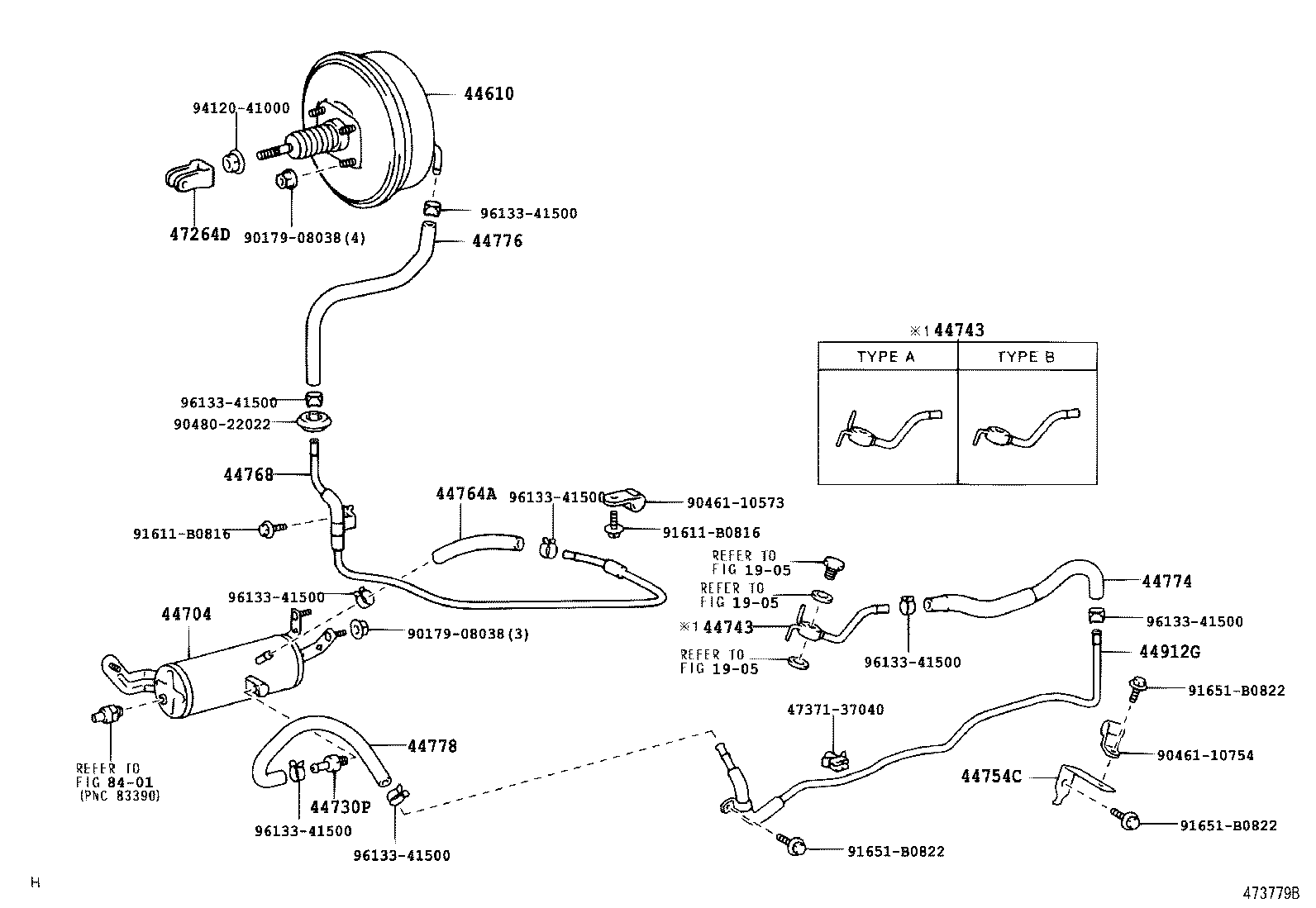

(0308- )LY220,230,240,270,280,290

Click highlighted areas on diagram

Part #	Description	Period	Qty
44610 - BOOSTER ASSY, BRAKE
44610-25310	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290..DCR,DSL	07/2001 - 10/2016	1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-25160	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290	08/2003 - 12/2999	1
44704-25140	LY220,230,240,270,280,290..DSL	07/2001 - 08/2003	1
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-60050	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290..DCR,DSL	07/2001 - 12/2999	1
44743 - UNION(FOR VACUUM PUMP)
90405-09183	LY220,230,240,270,280,290..DSL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	07/2001 - 08/2004	1
44743 - UNION(FOR VACUUM PUMP)
90405-09183	LY220,230,240,270,280,290..DSL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	07/2001 - 08/2004	1
44754C - BRACKET, VACUUM TUBE, NO.1
44754-25010	LY220,230,240,270,280,290..DSL	07/2001 - 08/2004	1
44764A - HOSE, BOOSTER VACUUM
90445-17141	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290..DCR,DSL	07/2001 - 12/2999	1
44768 - TUBE, BOOSTER VACUUM
44768-25080	TRY230..(TW2,TW3)..TS;KDY231,TRY230..WT..IV6;KDY231,TRY220..(TW1,TW2,TW3)..TS;KDY221,241..(T3,TW1,VAN)..(06S,TB,TS);KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281	07/2001 - 12/2999	1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-25080	LY220,230,240,270,280,290..DSL	07/2001 - 08/2004	1
44776 - HOSE, BRAKE BOOSTER
44776-25040	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 09/2016	1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-25050	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290	08/2003 - 12/2999	1
44778-25020	LY220,230,240,270,280,290..DSL	07/2001 - 08/2003	1
44912G - TUBE, 3 WAY TO MAGNETIC VALVE
44912-25120	LY220,230,240,270,280,290	08/2003 - 08/2004	1
44912-25070	LY220,230,240,270,280,290..DSL	07/2001 - 08/2003	1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-25020	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 10/2016	1
Common parts
47371-37040
90179-08038
90461-10573
90461-10754
90480-22022
91611-B0816
91651-B0822
94120-41000
96133-41500
Linked diagrams
1905
8401
