LY280-TGMFS3 (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0107-1610)

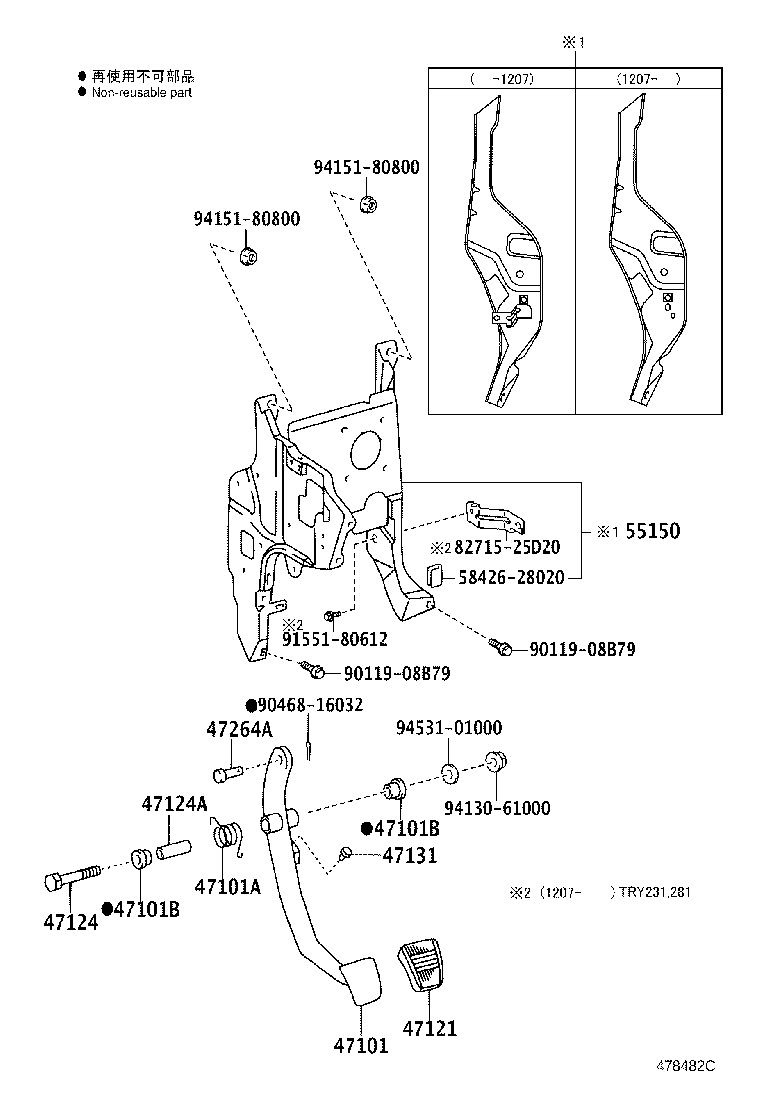

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47124 47124A 47131 47264A 55150 5842628020 8271525D20 9011908B79 9011908B79 9046816032 9155180612 9413061000 9415180800 9415180800 9453101000
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-25080

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90949-03109

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 2
47121 - PAD, BRAKE PEDAL
31321-14020

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
47124 - SHAFT, BRAKE PEDAL
91112-61070

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10004

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06036

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
47264A - PIN(FOR PUSH ROD)
90240-10037

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
55150 - BRACKET ASSY, PEDAL
55150-25020

LY220,230,240,270,280,290,RZY220,230

 1
Common parts
58426-28020
82715-25D20
90119-08B79
90468-16032
91551-80612
94130-61000
94151-80800
94531-01000
