LY280-TGMFS3 (2001)
Toyota Dyna/Toyoace
ILLUST NO. 2 OF 2(0107- )KDY280,LY280..TB ; (0107- )KDY280,LY280..TW1 ; (0107- )KDY23#,281,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46501 - DRUM SUB-ASSY, PARKING BRAKE | ||||
| 46501-25100 |
KDY28#,LY280..TW1;KDY280,LY280,RZY281,TRY281..TB;KDY23#,LY230,RZY230,TRY230..T2..MTM..15T..ST;KDY23#,LY230,RZY230,TRY230..(T3,T4,TW1,TW4)..MTM;KDY22#,24#,281,290,LY220,240,290,RZY220,231,TRY220,231..(T3,T4,VAN)..MTM..15T |
1 | ||
| 46501-25100 |
KDY28#,LY280..TW1;KDY280,LY280,RZY281,TRY281..TB;KDY23#,LY230,RZY230,TRY230..T2..MTM..15T..ST;KDY23#,LY230,RZY230,TRY230..(T3,T4,TW1,TW4)..MTM;KDY22#,24#,281,290,LY220,240,290,RZY220,231,TRY220,231..(T3,T4,VAN)..MTM..15T |
1 | ||
| 46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM) | ||||
| 90114-11124 |
KDY280,LY280..TB;KDY280,LY230,280..TW1;LY230..(T3,T4,TW4)..TB;KDY23#,281,TRY230..TW1,TW4;RZY230..(T3,T4,TW1,TW4)..MTM;KDY23#,LY230,RZY230,TRY230..T2..15T..ST;KDY22#,23#,24#,281,290,LY220,240,290,RZY220,231,281,TRY220,23#,281..(T3,T4,VAN)..15T |
4 | ||
| 90114-11124 |
KDY280,LY280..TB;KDY280,LY230,280..TW1;LY230..(T3,T4,TW4)..TB;KDY23#,281,TRY230..TW1,TW4;RZY230..(T3,T4,TW1,TW4)..MTM;KDY23#,LY230,RZY230,TRY230..T2..15T..ST;KDY22#,23#,24#,281,290,LY220,240,290,RZY220,231,281,TRY220,23#,281..(T3,T4,VAN)..15T |
4 | ||
| 46503C - PLATE SUB-ASSY, PARKING BRAKE | ||||
| 46503-37020 |
KDY280,LY280..TB;KDY280,LY280..TW1;KDY230,LY230,RZY230,TRY230..12T,15T,175T;KDY230,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY220,240,290,LY220,240,290,RZY220,231,281,TRY220,231,281..WT |
1 | ||
| 46503-37020 |
KDY280,LY280..TB;KDY280,LY280..TW1;KDY230,LY230,RZY230,TRY230..12T,15T,175T;KDY230,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY220,240,290,LY220,240,290,RZY220,231,281,TRY220,231,281..WT |
1 | ||
| 46503-36022 |
LY280..TB;LY280..12T;LY220,240,290,RZY220..WT;LY230,RZY230..12T,15T,175T;LY230,RZY230..(TW1,TW2,TW4)..125T |
1 | ||
| 46503-36022 |
LY280..TB;LY280..12T;LY220,240,290,RZY220..WT;LY230,RZY230..12T,15T,175T;LY230,RZY230..(TW1,TW2,TW4)..125T |
1 | ||
| 46506 - ADJUSTER SUB-ASSY, PARKING BRAKE SHOE, RH OR CENTER | ||||
| 46506-36020 |
KDY280,LY280..TB;KDY280,LY280..TW1;KDY23#,281,LY230,RZY230,TRY230..12T,15T,175T;KDY23#,281,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY22#,24#,290,LY220,240,290,RZY220,231,281,TRY220,231,281..WT |
1 | ||
| 46506-36020 |
KDY280,LY280..TB;KDY280,LY280..TW1;KDY23#,281,LY230,RZY230,TRY230..12T,15T,175T;KDY23#,281,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY22#,24#,290,LY220,240,290,RZY220,231,281,TRY220,231,281..WT |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-25010 |
KDY280,LY280..TB;KDY280,LY280..TW1;KDY23#,281,LY230,RZY230,TRY230..12T,15T,175T;KDY23#,281,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY22#,24#,290,LY220,240,290,RZY220,231,281,TRY220,231,281..WT |
1 | ||
| 46540-25010 |
KDY280,LY280..TB;KDY280,LY280..TW1;KDY23#,281,LY230,RZY230,TRY230..12T,15T,175T;KDY23#,281,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY22#,24#,290,LY220,240,290,RZY220,231,281,TRY220,231,281..WT |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-25010 |
KDY280,LY280..TB;KDY280,LY280..TW1;KDY23#,281,LY230,RZY230,TRY230..12T,15T,175T;KDY23#,281,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY22#,24#,290,LY220,240,290,RZY220,231,281,TRY220,231,281..WT |
1 | ||
| 46550-25010 |
KDY280,LY280..TB;KDY280,LY280..TW1;KDY23#,281,LY230,RZY230,TRY230..12T,15T,175T;KDY23#,281,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY22#,24#,290,LY220,240,290,RZY220,231,281,TRY220,231,281..WT |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-18012 |
KDY280,LY280..TB;KDY280,LY280..TW1;KDY23#,281,LY230,RZY230,TRY230..12T,15T,175T;KDY23#,281,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY22#,24#,290,LY220,240,290,RZY220,231,281,TRY220,231,281..WT |
2 | ||
| 90506-18012 |
KDY280,LY280..TB;KDY280,LY280..TW1;KDY23#,281,LY230,RZY230,TRY230..12T,15T,175T;KDY23#,281,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY22#,24#,290,LY220,240,290,RZY220,231,281,TRY220,231,281..WT |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-18012 |
KDY280,LY280..TB;KDY280,LY280..TW1;KDY23#,281,LY230,RZY230,TRY230..12T,15T,175T;KDY23#,281,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY22#,24#,290,LY220,240,290,RZY220,231,281,TRY220,231,281..WT |
2 | ||
| 90506-18012 |
KDY280,LY280..TB;KDY280,LY280..TW1;KDY23#,281,LY230,RZY230,TRY230..12T,15T,175T;KDY23#,281,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY22#,24#,290,LY220,240,290,RZY220,231,281,TRY220,231,281..WT |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-06003 |
LY280..TB;LY280..12T;KDY23#,281,LY230,RZY230,TRY230..12T,15T,175T;KDY23#,281,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY22#,24#,LY220,240,290,RZY220,231,281,TRY220,231,281..WT |
3 | ||
| 90213-06003 |
LY280..TB;LY280..12T;KDY23#,281,LY230,RZY230,TRY230..12T,15T,175T;KDY23#,281,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY22#,24#,LY220,240,290,RZY220,231,281,TRY220,231,281..WT |
3 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-06003 |
LY280..TB;LY280..12T;KDY23#,281,LY230,RZY230,TRY230..12T,15T,175T;KDY23#,281,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY22#,24#,LY220,240,290,RZY220,231,281,TRY220,231,281..WT |
3 | ||
| 90213-06003 |
LY280..TB;LY280..12T;KDY23#,281,LY230,RZY230,TRY230..12T,15T,175T;KDY23#,281,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY22#,24#,LY220,240,290,RZY220,231,281,TRY220,231,281..WT |
3 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14048 |
KDY280,LY280..TB;KDY280,LY280..TW1;KDY23#,281,LY230,RZY230,TRY230..12T,15T,175T;KDY23#,281,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY22#,24#,290,LY220,240,290,RZY220,231,281,TRY220,231,281..WT |
1 | ||
| 90506-14048 |
KDY280,LY280..TB;KDY280,LY280..TW1;KDY23#,281,LY230,RZY230,TRY230..12T,15T,175T;KDY23#,281,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY22#,24#,290,LY220,240,290,RZY220,231,281,TRY220,231,281..WT |
1 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| 46555-35010 |
KDY280,LY280..TB;KDY280,LY280..TW1;KDY23#,281,LY230,RZY230,TRY230..12T,15T,175T;KDY23#,281,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY22#,24#,290,LY220,240,290,RZY220,231,281,TRY220,231,281..WT |
2 | ||
| 46555-35010 |
KDY280,LY280..TB;KDY280,LY280..TW1;KDY23#,281,LY230,RZY230,TRY230..12T,15T,175T;KDY23#,281,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY22#,24#,290,LY220,240,290,RZY220,231,281,TRY220,231,281..WT |
2 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| 46556-35010 |
KDY280,LY280..TB;KDY280,LY280..TW1;KDY23#,281,LY230,RZY230,TRY230..12T,15T,175T;KDY23#,281,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY22#,24#,290,LY220,240,290,RZY220,231,281,TRY220,231,281..WT |
2 | ||
| 46556-35010 |
KDY280,LY280..TB;KDY280,LY280..TW1;KDY23#,281,LY230,RZY230,TRY230..12T,15T,175T;KDY23#,281,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY22#,24#,290,LY220,240,290,RZY220,231,281,TRY220,231,281..WT |
2 | ||
| 46577 - COVER, ADJUSTING CAM HOLE | ||||
| 46577-36010 |
KDY280,LY280..TB;KDY280,LY280..TW1;KDY23#,281,LY230,RZY230,TRY230..12T,15T,175T;KDY23#,281,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY22#,24#,290,LY220,240,290,RZY220,231,281,TRY220,231,281..WT |
1 | ||
| 46577-36010 |
KDY280,LY280..TB;KDY280,LY280..TW1;KDY23#,281,LY230,RZY230,TRY230..12T,15T,175T;KDY23#,281,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY22#,24#,290,LY220,240,290,RZY220,231,281,TRY220,231,281..WT |
1 | ||
| 46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE | ||||
| 46601-25011 |
KDY280,LY280..TB;KDY280,LY280..TW1;KDY23#,281,LY230,RZY230,TRY230..12T,15T,175T;KDY23#,281,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY22#,24#,290,LY220,240,290,RZY220,231,281,TRY220,231,281..WT |
1 | ||
| 46601-25011 |
KDY280,LY280..TB;KDY280,LY280..TW1;KDY23#,281,LY230,RZY230,TRY230..12T,15T,175T;KDY23#,281,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY22#,24#,290,LY220,240,290,RZY220,231,281,TRY220,231,281..WT |
1 | ||
| Common parts | ||||
| 90119-10338 | ||||
| 90119-10339 | ||||
| 94613-11200 | ||||
| Linked diagrams | ||||
| 3305 | ||||
| 3510 | ||||
| 3609 | ||||
(0107-0709)KDY280,LY230,280,RZY230,TRY230..T2,T3,TW3..125T,1T ; (0107-0709)KDY220,2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46210 - LEVER ASSY, PARKING BRAKE | ||||
| 46210-37012B0 |
KDY221,231,TRY220..(125T,1T)..ST;KDY281,TRY230..(T2,T3,TW3)..(125T,1T);KDY220,230,240,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281 DK.CHARCOAL,TRIM1# |
1 | ||
| 46243 - COVER, PARKING BRAKE LEVER | ||||
| 46243-37020B0 |
KDY221,231,TRY220..(125T,1T)..ST;KDY281,TRY230..(T2,T3,TW3)..(125T,1T);KDY220,230,240,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281 DK.CHARCOAL,TRIM1# |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-25150 |
KDY280,LY280..TB;KDY280,LY280..TW1;KDY230,LY230,RZY230,TRY230..12T,15T,175T;KDY230,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY220,240,290,LY220,240,290,RZY220,231,281,TRY220..WT |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-25340 |
LY280..MTM..125T..WT;LY280,290..MTM..(12T,15T) ｲﾗｽﾄ ｻﾝｼﾖｳ |
1 | ||
| 46420-25450 |
LY280..MTM..125T..WT;LY280,290,RZY281,TRY281..MTM..(12T,15T) ｲﾗｽﾄ ｻﾝｼﾖｳ |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-25340 |
LY280..MTM..125T..WT;LY280,290..MTM..(12T,15T) ｲﾗｽﾄ ｻﾝｼﾖｳ |
1 | ||
| 46420-25450 |
LY280..MTM..125T..WT;LY280,290,RZY281,TRY281..MTM..(12T,15T) ｲﾗｽﾄ ｻﾝｼﾖｳ |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46411-25010 |
TRY220..ST;TRY230..(T2,T3,TW3)..TS..ST;KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281 |
4 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46411-25010 |
TRY220..ST;TRY230..(T2,T3,TW3)..TS..ST;KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281 |
4 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46411-25010 |
TRY220..ST;TRY230..(T2,T3,TW3)..TS..ST;KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281 |
4 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46411-25010 |
TRY220..ST;TRY230..(T2,T3,TW3)..TS..ST;KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281 |
4 | ||
| 46451B - BRACKET, PARKING BRAKE CABLE SUPPORT | ||||
| 46451-25050 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2 | ||||
| 33826-37210 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| Common parts | ||||
| 90119-06315 | ||||
| 90206-09001 | ||||
| 90468-06068 | ||||
| 90468-14033 | ||||
| 90468-14039 | ||||
| 90949-01167 | ||||
| 90949-01359 | ||||
| 91611-G0612 | ||||
| 91622-G1014 | ||||
| 91641-K0822 | ||||
| 91651-B0822 | ||||
| 91651-B0825 | ||||
| 94130-00802 | ||||
| 94612-10800 | ||||
| Linked diagrams | ||||
| 8401 | ||||

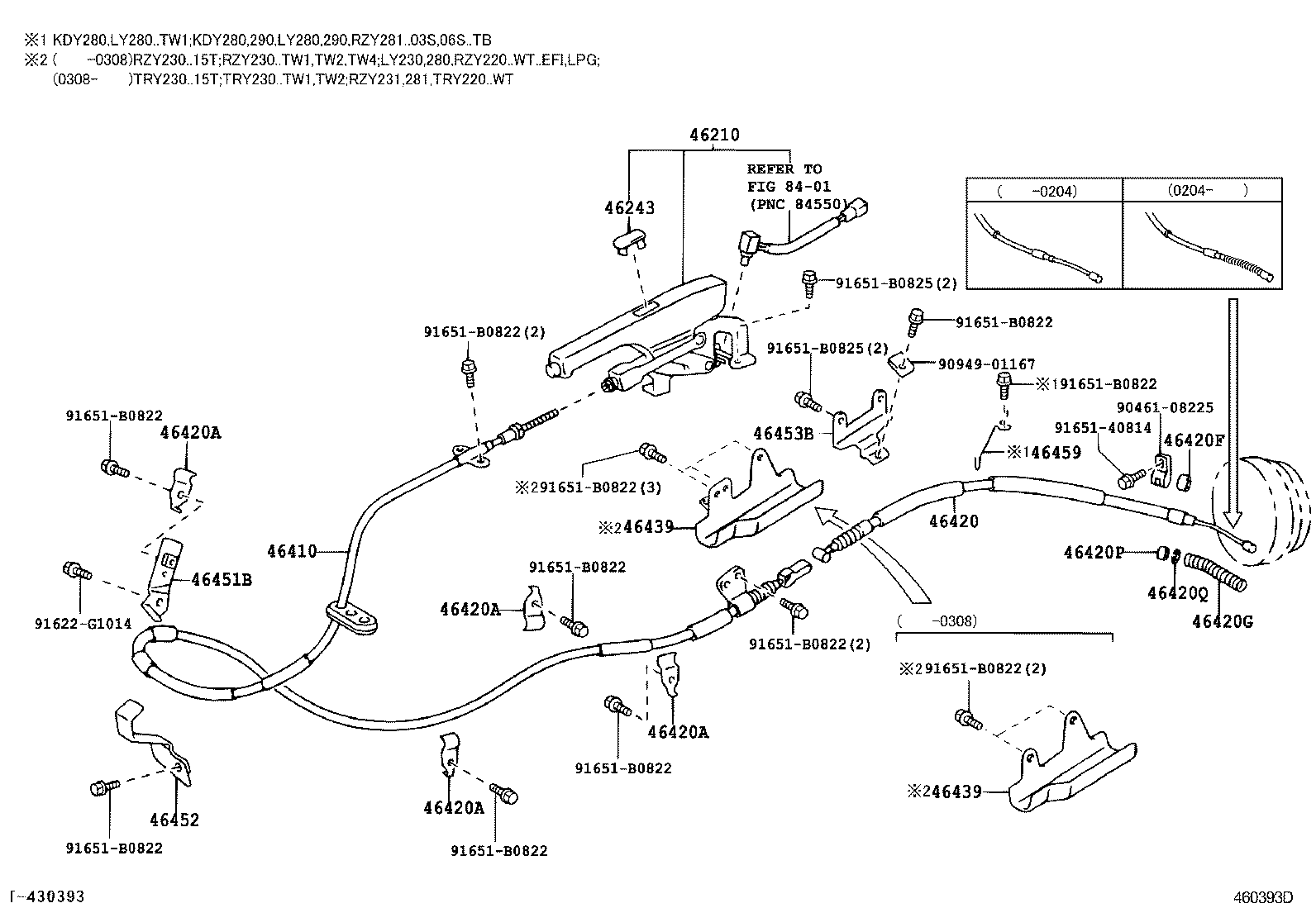

ILLUST NO. 1 OF 2(0107-0708)KDY280,LY280..TB ; (0107-0708)KDY280,LY280..TW1 ; (0107-0708)KDY230,LY23
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46210 - LEVER ASSY, PARKING BRAKE | ||||
| 46210-37012B0 |
KDY221,231,TRY220..(125T,1T)..ST;KDY281,TRY230..(T2,T3,TW3)..(125T,1T);KDY220,230,240,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281 DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-37012B0 |
KDY221,231,TRY220..(125T,1T)..ST;KDY281,TRY230..(T2,T3,TW3)..(125T,1T);KDY220,230,240,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281 DK.CHARCOAL,TRIM1# |
1 | ||
| 46243 - COVER, PARKING BRAKE LEVER | ||||
| 46243-37020B0 |
KDY221,231,TRY220..(125T,1T)..ST;KDY281,TRY230..(T2,T3,TW3)..(125T,1T);KDY220,230,240,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281 DK.CHARCOAL,TRIM1# |
1 | ||
| 46243-37020B0 |
KDY221,231,TRY220..(125T,1T)..ST;KDY281,TRY230..(T2,T3,TW3)..(125T,1T);KDY220,230,240,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281 DK.CHARCOAL,TRIM1# |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-25150 |
KDY280,LY280..TB;KDY280,LY280..TW1;KDY230,LY230,RZY230,TRY230..12T,15T,175T;KDY230,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY220,240,290,LY220,240,290,RZY220,231,281,TRY220..WT |
1 | ||
| 46410-25150 |
KDY280,LY280..TB;KDY280,LY280..TW1;KDY230,LY230,RZY230,TRY230..12T,15T,175T;KDY230,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY220,240,290,LY220,240,290,RZY220,231,281,TRY220..WT |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-25340 |
LY280..MTM..125T..WT;LY280,290..MTM..(12T,15T) ｲﾗｽﾄ ｻﾝｼﾖｳ |
1 | ||
| 46420-25340 |
LY280..MTM..125T..WT;LY280,290..MTM..(12T,15T) ｲﾗｽﾄ ｻﾝｼﾖｳ |
1 | ||
| 46420-25450 |
LY280..MTM..125T..WT;LY280,290,RZY281,TRY281..MTM..(12T,15T) ｲﾗｽﾄ ｻﾝｼﾖｳ |
1 | ||
| 46420-25450 |
LY280..MTM..125T..WT;LY280,290,RZY281,TRY281..MTM..(12T,15T) ｲﾗｽﾄ ｻﾝｼﾖｳ |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46411-25010 |
TRY220..ST;TRY230..(T2,T3,TW3)..TS..ST;KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281 |
4 | ||
| 46411-25010 |
TRY220..ST;TRY230..(T2,T3,TW3)..TS..ST;KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281 |
4 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46411-25010 |
TRY220..ST;TRY230..(T2,T3,TW3)..TS..ST;KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281 |
4 | ||
| 46411-25010 |
TRY220..ST;TRY230..(T2,T3,TW3)..TS..ST;KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281 |
4 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46411-25010 |
TRY220..ST;TRY230..(T2,T3,TW3)..TS..ST;KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281 |
4 | ||
| 46411-25010 |
TRY220..ST;TRY230..(T2,T3,TW3)..TS..ST;KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281 |
4 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46411-25010 |
TRY220..ST;TRY230..(T2,T3,TW3)..TS..ST;KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281 |
4 | ||
| 46411-25010 |
TRY220..ST;TRY230..(T2,T3,TW3)..TS..ST;KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281 |
4 | ||
| 46420F - SEAL, DUST(FOR PARKING BRAKE CABLE) | ||||
| 90303-10001 |
KDY280,LY280..TB;KDY280,LY280..TW1;KDY23#,281,LY230,RZY230,TRY230..12T,15T,175T;KDY23#,281,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY22#,24#,290,LY220,240,290,RZY220,231,281,TRY220,231,281..WT |
1 | ||
| 90303-10001 |
KDY280,LY280..TB;KDY280,LY280..TW1;KDY23#,281,LY230,RZY230,TRY230..12T,15T,175T;KDY23#,281,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY22#,24#,290,LY220,240,290,RZY220,231,281,TRY220,231,281..WT |
1 | ||
| 46420G - SPRING(FOR PARKING CABLE INNER WIRE SET) | ||||
| 90501-14164 |
LY280..TB;LY280..12T;KDY230,LY230,RZY230,TRY230..12T,15T,175T;KDY230,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY220,240,LY220,240,290,RZY220,231,281,TRY220,231,281..WT 長さ=138 |
1 | ||
| 90501-14164 |
LY280..TB;LY280..12T;KDY230,LY230,RZY230,TRY230..12T,15T,175T;KDY230,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY220,240,LY220,240,290,RZY220,231,281,TRY220,231,281..WT 長さ=138 |
1 | ||
| 90501-14021 |
LY280..TB;LY280..12T;LY220,240,290,RZY220..WT;LY230,RZY230..12T,15T,175T;LY230,RZY230..(TW1,TW2,TW4)..125T 長さ=163 |
1 | ||
| 90501-14021 |
LY280..TB;LY280..12T;LY220,240,290,RZY220..WT;LY230,RZY230..12T,15T,175T;LY230,RZY230..(TW1,TW2,TW4)..125T 長さ=163 |
1 | ||
| 46420P - SPACER, PARKING BRAKE | ||||
| 90560-08002 |
LY280..TB;LY280..12T;LY220,240,290,RZY220..WT;LY230,RZY230..12T,15T,175T;LY230,RZY230..(TW1,TW2,TW4)..125T |
1 | ||
| 90560-08002 |
LY280..TB;LY280..12T;LY220,240,290,RZY220..WT;LY230,RZY230..12T,15T,175T;LY230,RZY230..(TW1,TW2,TW4)..125T |
1 | ||
| 90560-09045 |
KDY280,LY280..TB;KDY280,LY280..TW1;KDY23#,281,LY230,RZY230,TRY230..12T,15T,175T;KDY23#,281,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY22#,24#,290,LY220,240,290,RZY220,231,281,TRY220,231,281..WT |
1 | ||
| 90560-09045 |
KDY280,LY280..TB;KDY280,LY280..TW1;KDY23#,281,LY230,RZY230,TRY230..12T,15T,175T;KDY23#,281,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY22#,24#,290,LY220,240,290,RZY220,231,281,TRY220,231,281..WT |
1 | ||
| 46420Q - RING, E(FOR PARKING BRAKE CABLE) | ||||
| 96160-00700 |
KDY280,LY280..TB;KDY280,LY280..TW1;KDY23#,281,LY230,RZY230,TRY230..12T,15T,175T;KDY23#,281,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY22#,24#,290,LY220,240,290,RZY220,231,281,TRY220,231,281..WT |
1 | ||
| 96160-00700 |
KDY280,LY280..TB;KDY280,LY280..TW1;KDY23#,281,LY230,RZY230,TRY230..12T,15T,175T;KDY23#,281,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY22#,24#,290,LY220,240,290,RZY220,231,281,TRY220,231,281..WT |
1 | ||
| 46451B - BRACKET, PARKING BRAKE CABLE SUPPORT | ||||
| 46451-25050 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 46451-25050 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2 | ||||
| 33826-37210 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 33826-37210 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 46453B - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-25040 |
KDY280,LY280..TB;KDY280,LY280..TW1;KDY230,LY230,RZY230,TRY230..12T,15T,175T;KDY230,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY220,240,290,LY220,240,290,RZY220,231,281,TRY220..WT |
1 | ||
| 46453-25040 |
KDY280,LY280..TB;KDY280,LY280..TW1;KDY230,LY230,RZY230,TRY230..12T,15T,175T;KDY230,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY220,240,290,LY220,240,290,RZY220,231,281,TRY220..WT |
1 | ||
| 46459 - GUIDE, CABLE | ||||
| 46459-25020 |
LY280..12T;LY280,290..(03S,06S,TB)..DSL |
1 | ||
| 46459-25020 |
LY280..12T;LY280,290..(03S,06S,TB)..DSL |
1 | ||
| Common parts | ||||
| 90461-08225 | ||||
| 90949-01167 | ||||
| 91622-G1014 | ||||
| 91651-40814 | ||||
| 91651-B0822 | ||||
| 91651-B0825 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
